Hazard Warning Switch: Service and Repair

Hazard Warning Switch:

HAZARD WARNING SWITCH

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

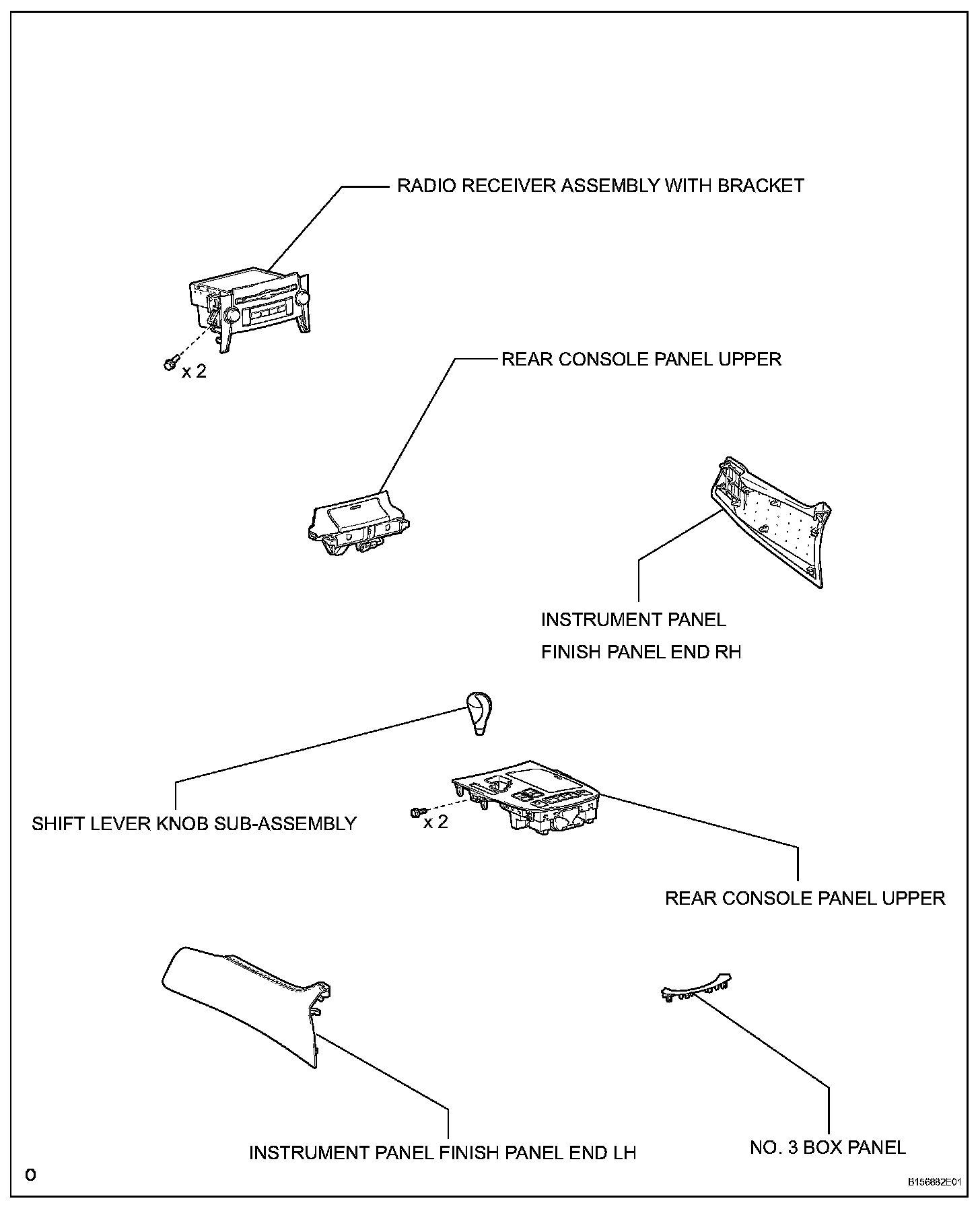

3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
4. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
5. REMOVE SHIFT LEVER KNOB
6. REMOVE NO.3 CONSOLE BOX PANEL
7. REMOVE CONSOLE PANEL UPPER REAR
8. REMOVE CONSOLE PANEL UPPER
9. REMOVE RADIO RECEIVER ASSEMBLY
10. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY (w/o Multi-display)
11. REMOVE MULTI-MEDIA MODULE DISPLAY ASSEMBLY (w/ Multi-display)

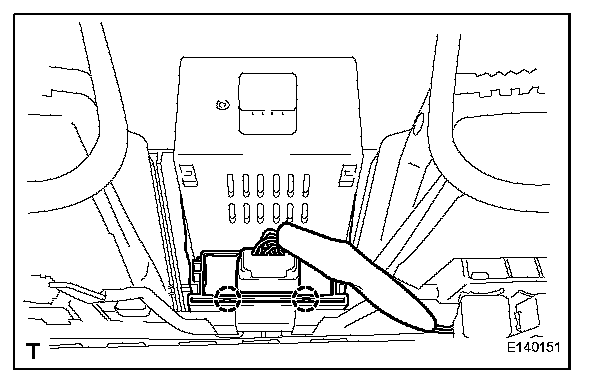

12. REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY
a. Disconnect the connector.
b. Detach the 2 claws and remove the hazard warning signal switch.

INSTALLATION

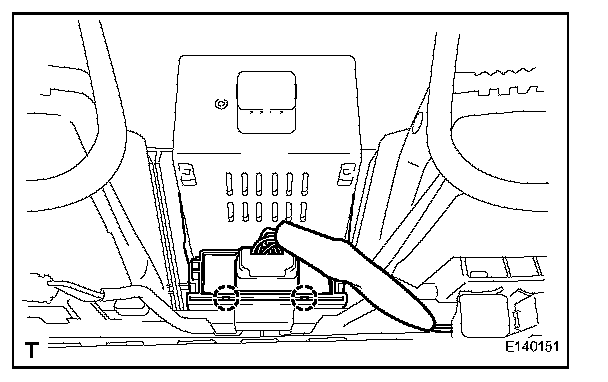

1. INSTALL HAZARD WARNING SIGNAL SWITCH ASSEMBLY
a. Attach the 2 claws and install the hazard warning signal switch.
b. Connect the connector.

2. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY (w/o Multi-display)
3. INSTALL MULTI-MEDIA MODULE DISPLAY ASSEMBLY (w/ Multi-display)
4. INSTALL RADIO RECEIVER ASSEMBLY
5. INSTALL CONSOLE PANEL UPPER
6. INSTALL CONSOLE PANEL UPPER REAR
7. INSTALL NO.3 CONSOLE BOX PANEL
8. INSTALL SHIFT LEVER KNOB
9. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
10. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
12. INSTALL COWL TOP VENTILATOR LOUVER RH
13. PERFORM INITIALIZATION

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
