Brake Light Switch: Testing and Inspection

INSPECTION

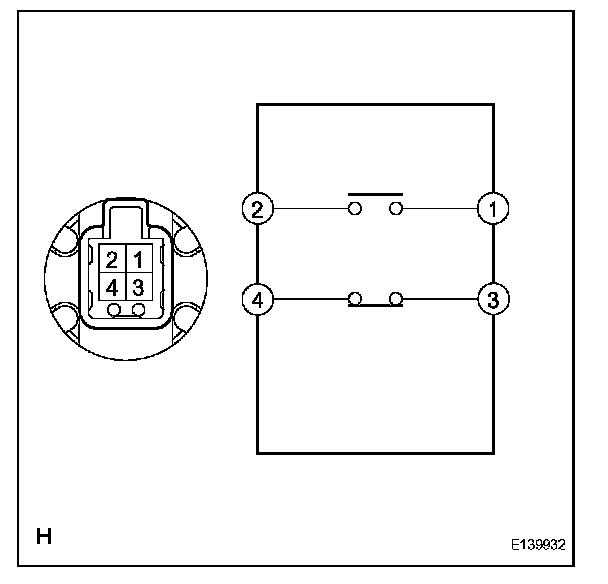

1. INSPECT STOP LIGHT SWITCH ASSEMBLY

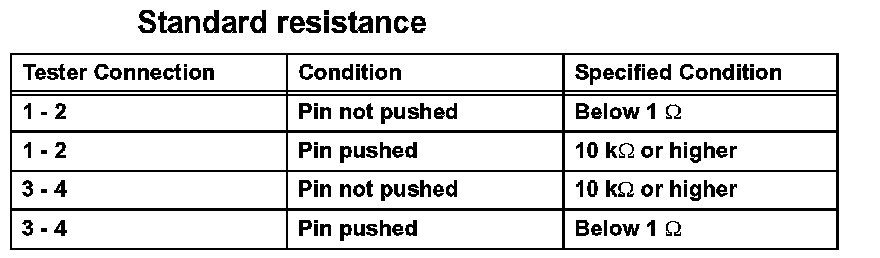

a. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the stop light switch.
