Ambient Light Sensor: Service and Repair

Automatic Light Control Sensor:

AUTOMATIC LIGHT CONTROL SENSOR

REMOVAL

1. TABLE OF BOLT, SCREW AND NUT
2. REMOVE COWL TOP VENTILATOR LOUVER RH

3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
a. Disable the AUTO TILT AWAY function by changing the customize parameter.

NOTE: Record the current customize parameter setting (whether the AUTO TILT AWAY function is enabled or disabled) in order to restore the current setting after finishing the operation.

HINT: Performing the above operation causes the AUTO TILT AWAY function to be disabled when the engine switch is turned off.

b. Turn the engine switch on (IG). Operate the tilt and telescopic switch to fully extend and lower the steering column.
c. Turn the engine switch off and disconnect the cable from the negative (-) battery terminal.

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

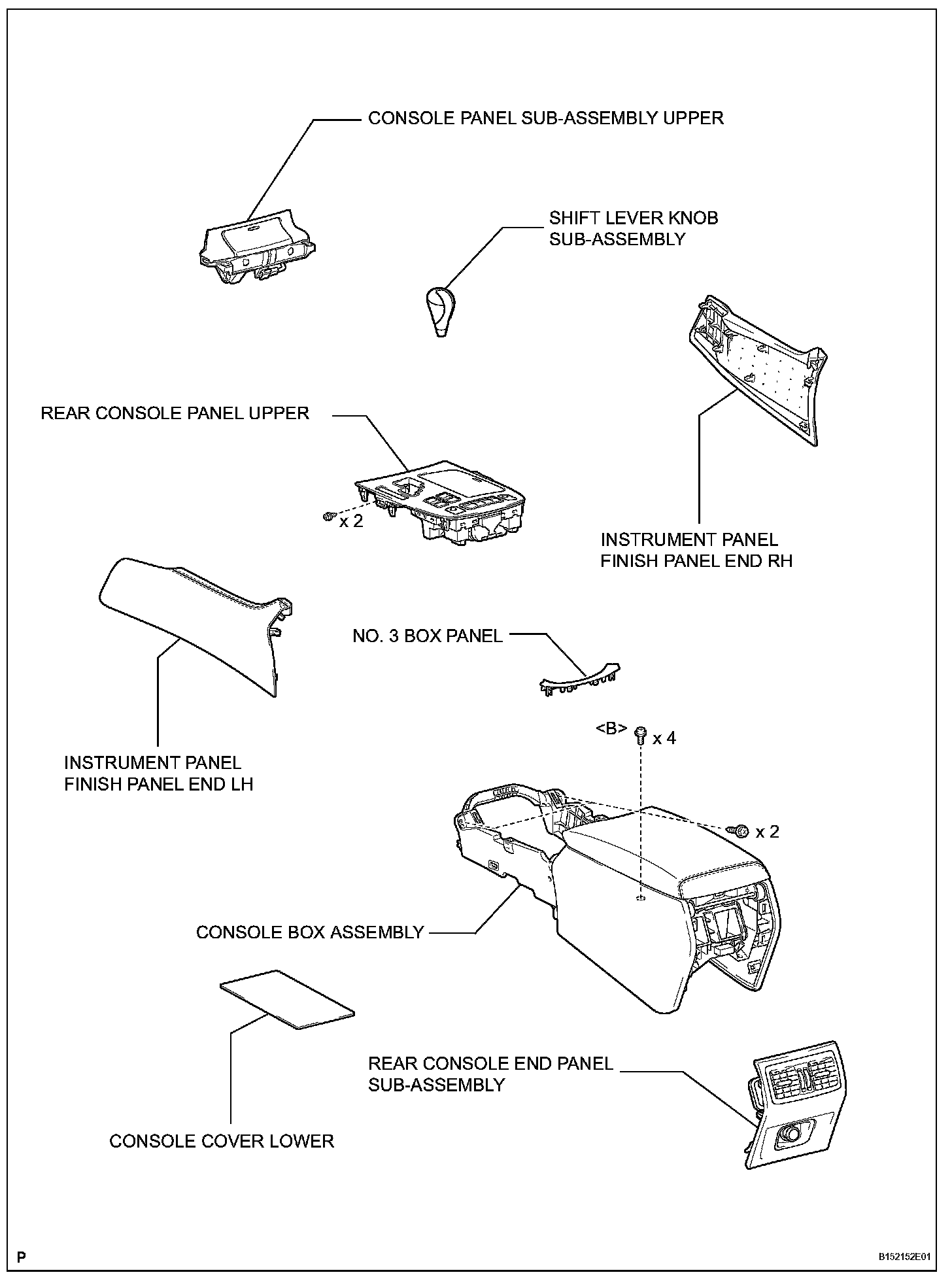

6. REMOVE SHIFT LEVER KNOB
7. REMOVE NO.3 CONSOLE BOX PANEL
8. REMOVE CONSOLE PANEL UPPER REAR
9. REMOVE CONSOLE PANEL UPPER
10. REMOVE CONSOLE REAR END PANEL
11. REMOVE CONSOLE COVER LOWER
12. REMOVE CONSOLE BOX ASSEMBLY
13. REMOVE SWITCH & VOLUME CASE

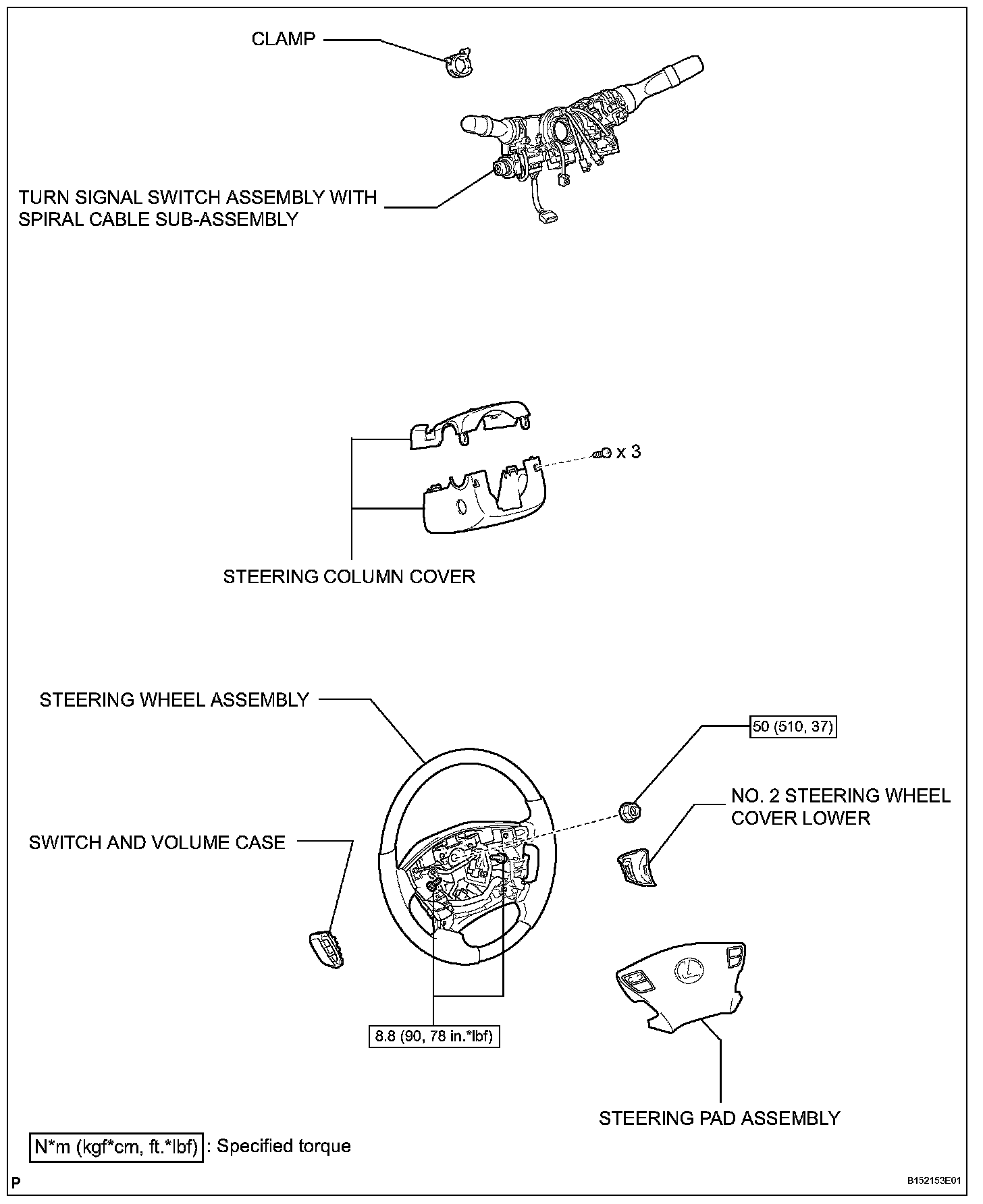

14. REMOVE NO.2 STEERING WHEEL COVER LOWER
15. REMOVE STEERING WHEEL PAD
16. REMOVE STEERING WHEEL ASSEMBLY
17. REMOVE STEERING COLUMN COVER
18. REMOVE TURN SIGNAL SWITCH ASSEMBLY W/ SPIRAL CABLE

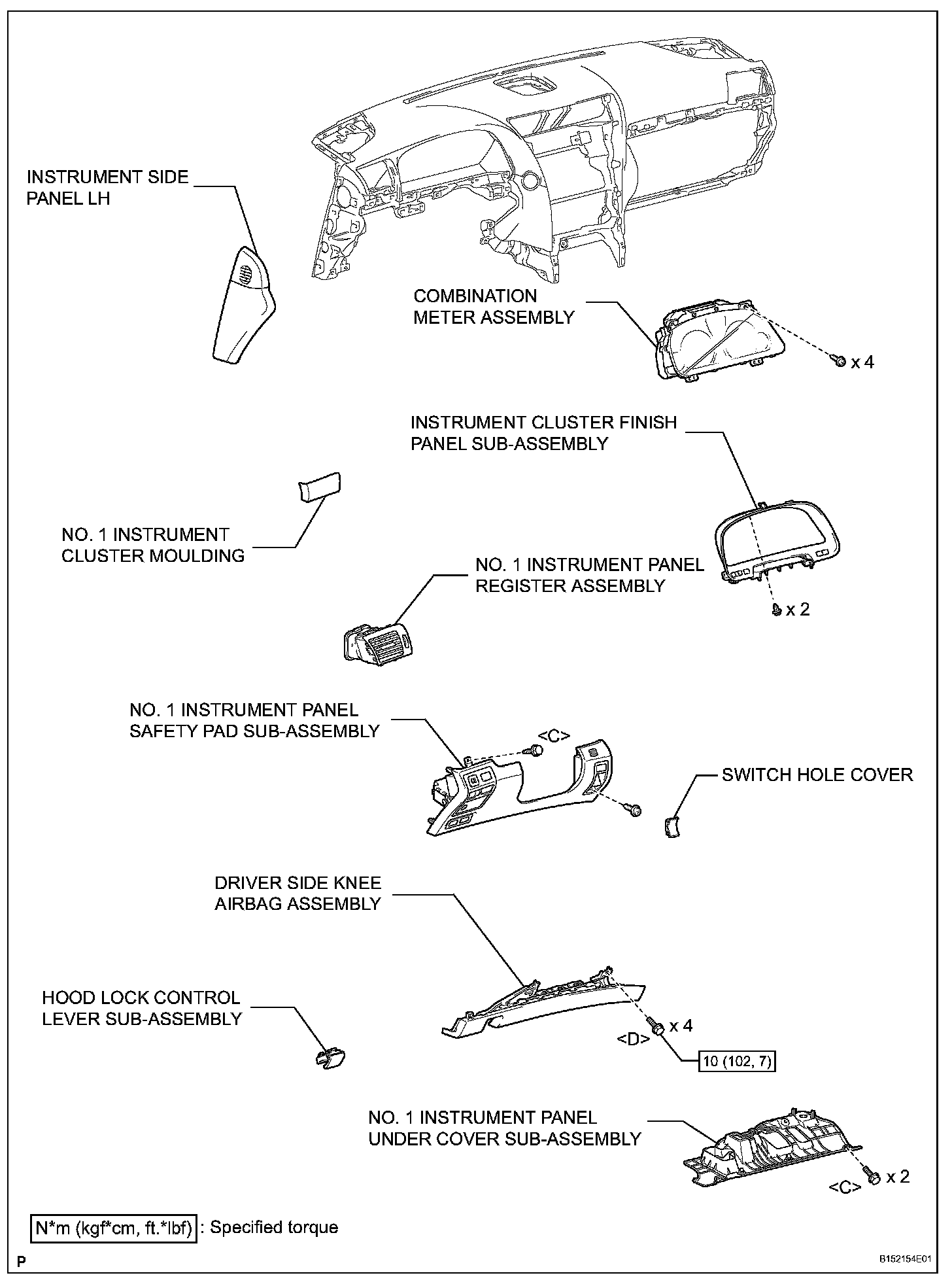

19. REMOVE INSTRUMENT CLUSTER FINISH PANEL
20. REMOVE COMBINATION METER ASSEMBLY
21. REMOVE INSTRUMENT SIDE PANEL LH
22. REMOVE NO.1 INSTRUMENT CLUSTER MOULDING
23. REMOVE NO.1 INSTRUMENT PANEL UNDER COVER
24. REMOVE NO.1 INSTRUMENT PANEL SAFETY PAD
25. REMOVE NO.1 INSTRUMENT PANEL LOWER AIRBAG

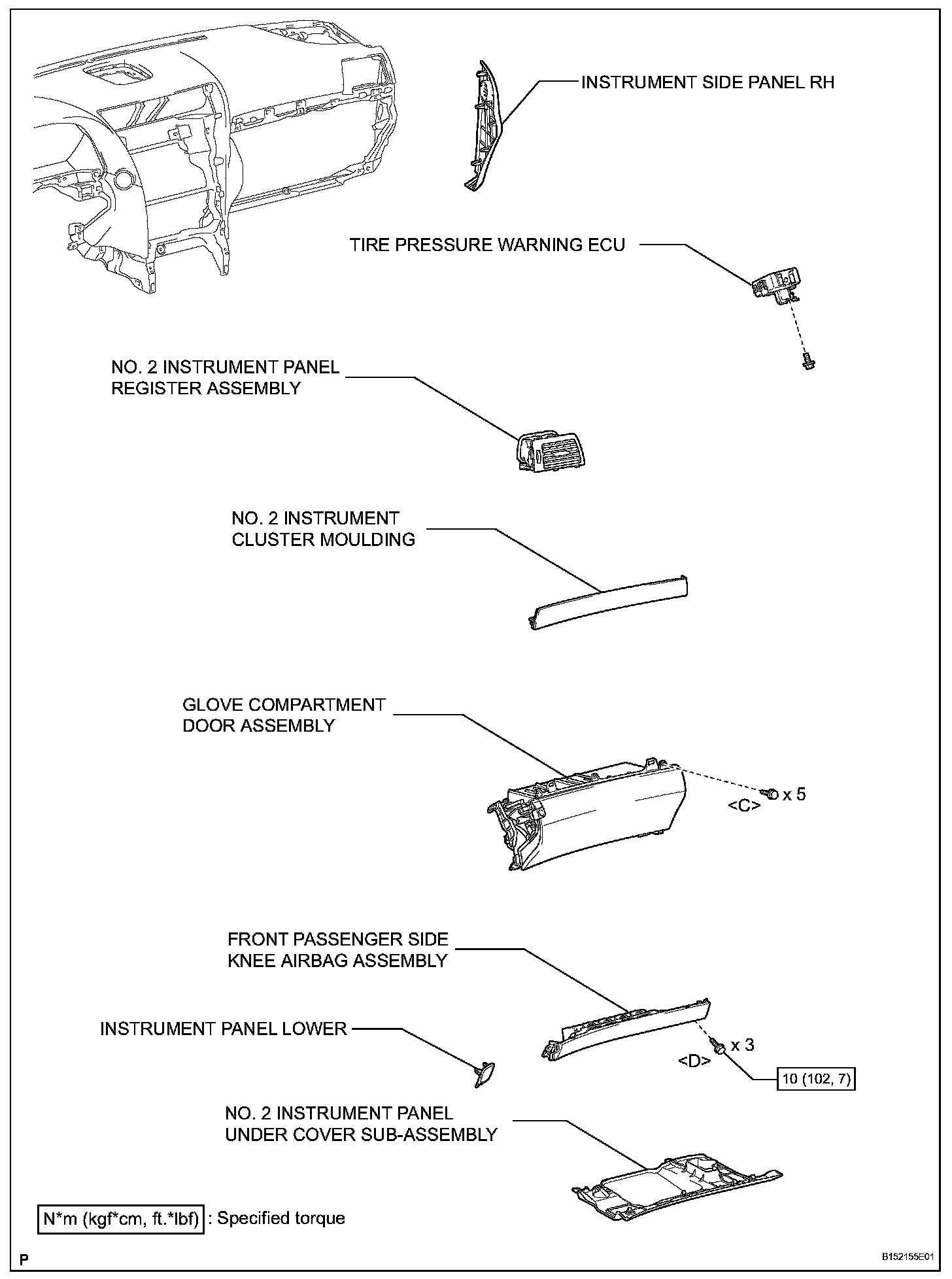

26. REMOVE INSTRUMENT SIDE PANEL RH
27. REMOVE NO.2 INSTRUMENT CLUSTER
28. REMOVE NO.2 INSTRUMENT PANEL UNDER COVER
29. REMOVE INSTRUMENT PANEL LOWER
30. REMOVE NO.2 INSTRUMENT PANEL LOWER AIRBAG
31. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

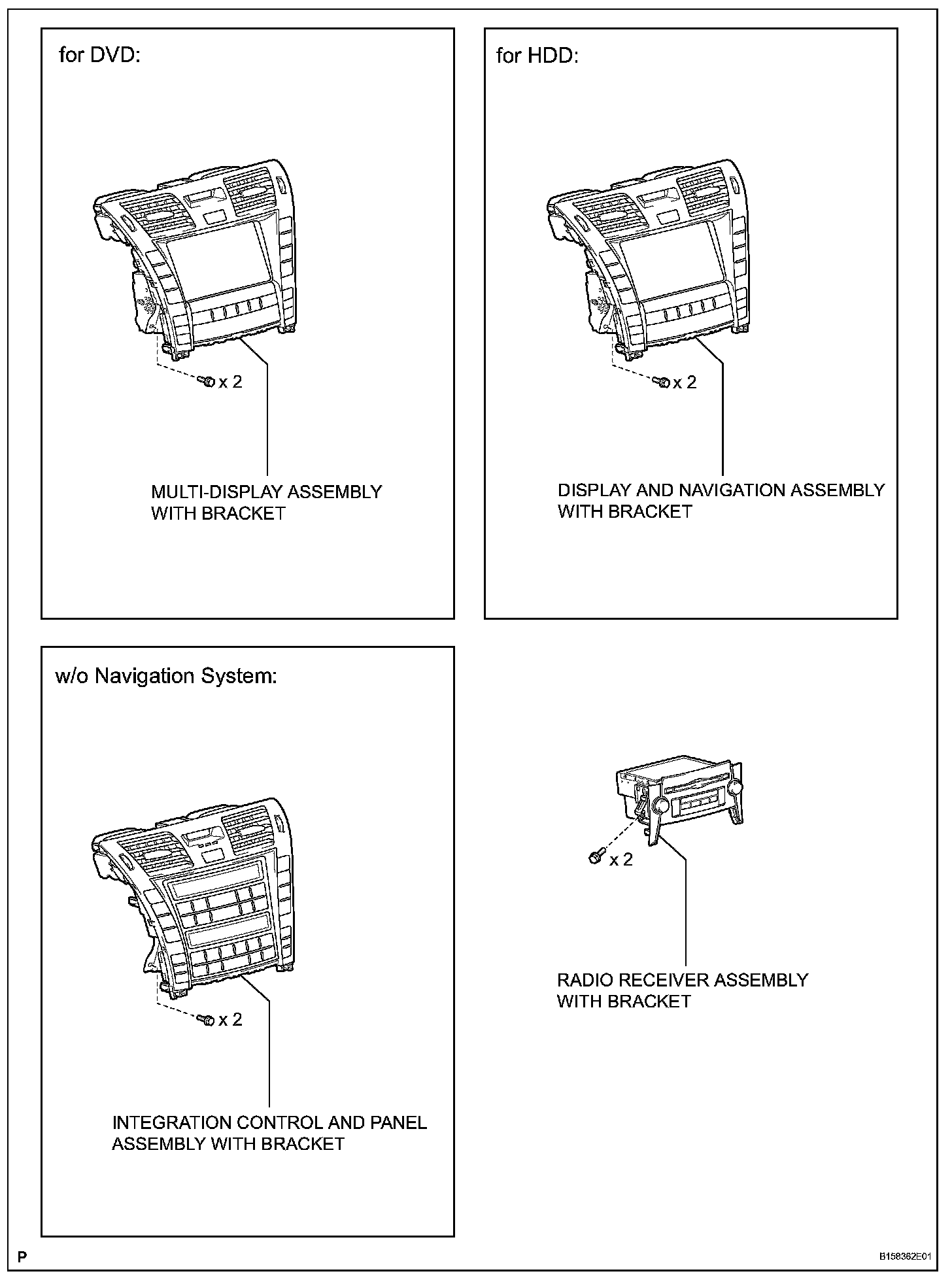

32. REMOVE RADIO RECEIVER ASSEMBLY
33. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY (w/o Multi-display)
34. REMOVE MULTI-MEDIA MODULE DISPLAY ASSEMBLY (w/ Multi-display)

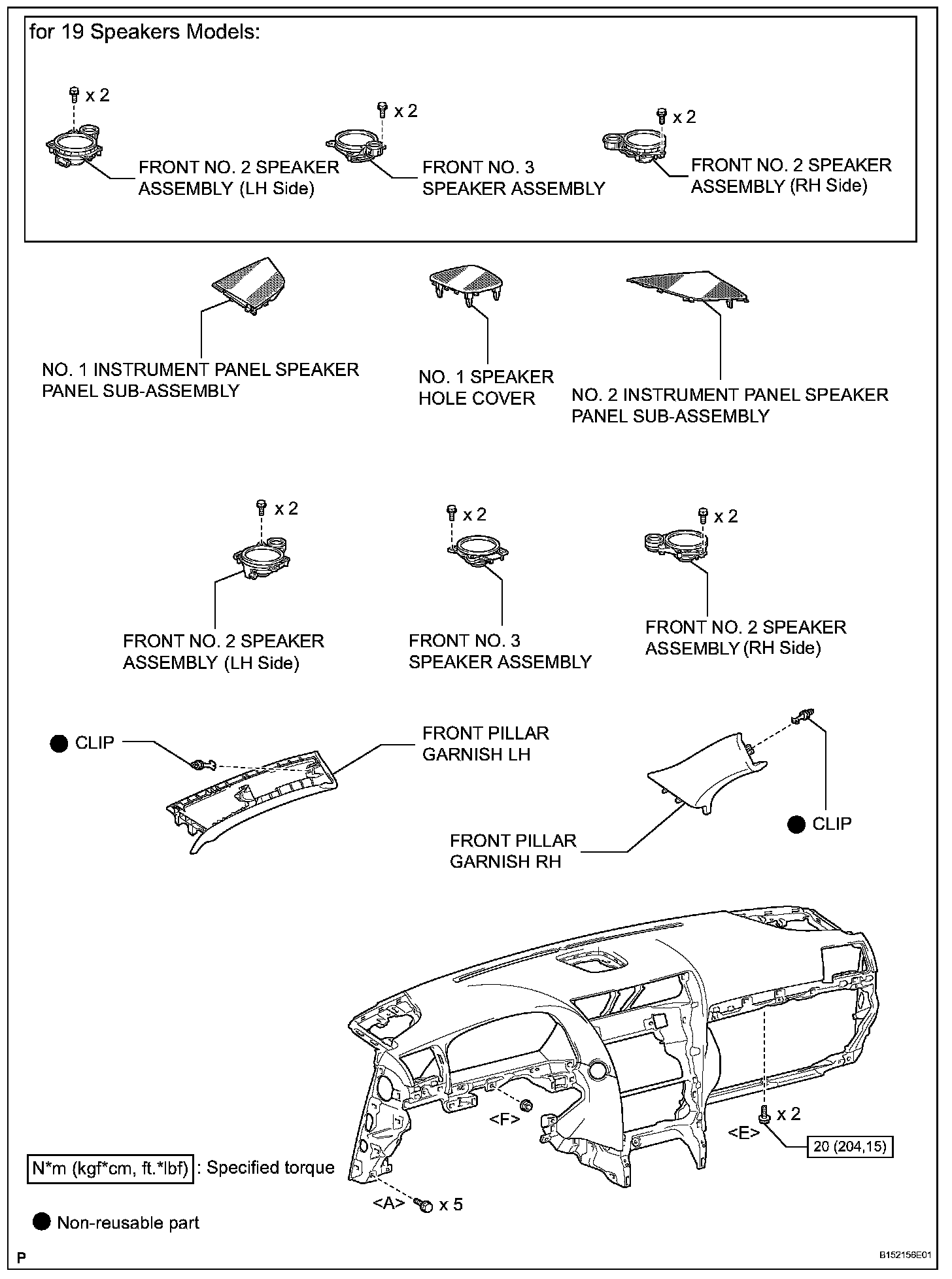

35. REMOVE FRONT PILLAR GARNISH RH
36. REMOVE FRONT PILLAR GARNISH LH
37. REMOVE NO.1 INSTRUMENT PANEL SPEAKER PANEL
38. REMOVE FRONT NO.2 SPEAKER ASSEMBLY (for RH)
39. REMOVE NO.2 INSTRUMENT PANEL SPEAKER PANEL
40. REMOVE FRONT NO.2 SPEAKER ASSEMBLY (for LH)
41. REMOVE NO.1 SPEAKER HOLE COVER
42. REMOVE FRONT NO.3 SPEAKER ASSEMBLY
43. REMOVE NO.1 INSTRUMENT PANEL REGISTER ASSEMBLY
44. REMOVE NO.2 INSTRUMENT PANEL REGISTER ASSEMBLY
45. REMOVE INSTRUMENT PANEL SAFETY PAD

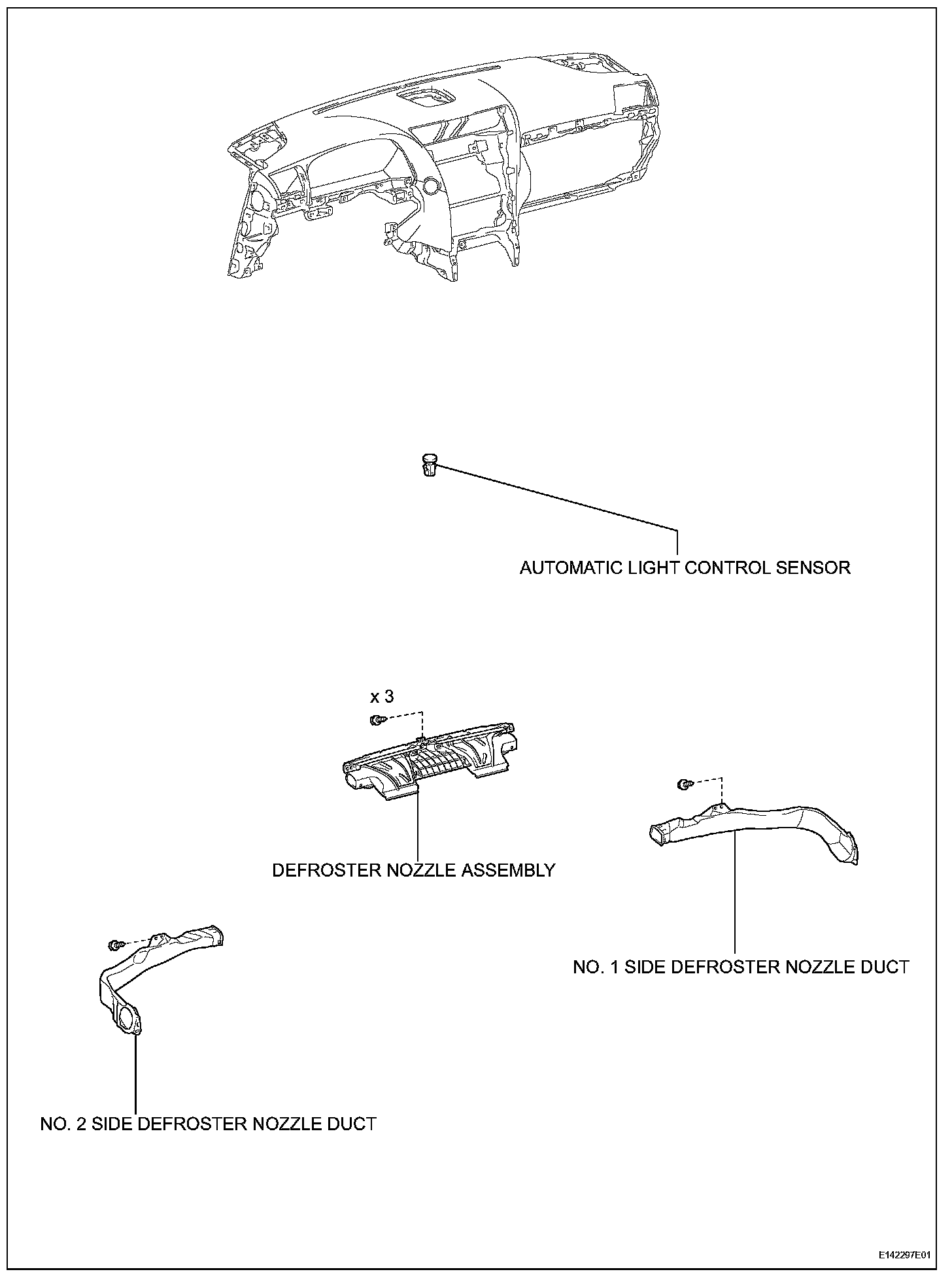

46. REMOVE NO.1 SIDE DEFROSTER NOZZLE DUCT
47. REMOVE NO.2 SIDE DEFROSTER NOZZLE DUCT
48. REMOVE DEFROSTER NOZZLE ASSEMBLY

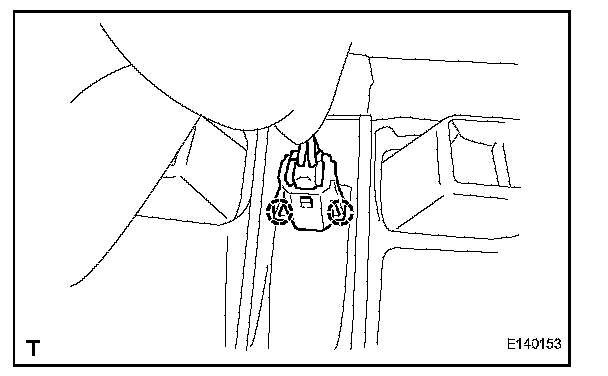

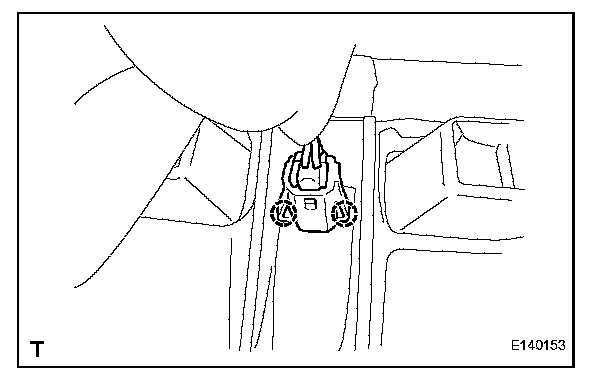

49. REMOVE AUTOMATIC LIGHT CONTROL SENSOR
a. Disconnect the connector.
b. Detach the 2 claws and remove the automatic light control sensor.

INSTALLATION

1. INSTALL AUTOMATIC LIGHT CONTROL SENSOR
a. Attach the 2 claws and install the automatic control sensor.
b. Connect the connector.

2. INSTALL DEFROSTER NOZZLE ASSEMBLY
3. INSTALL NO.2 SIDE DEFROSTER NOZZLE DUCT
4. INSTALL NO.1 SIDE DEFROSTER NOZZLE DUCT
5. INSTALL INSTRUMENT PANEL SAFETY PAD
6. INSTALL NO.2 INSTRUMENT PANEL REGISTER ASSEMBLY
7. INSTALL NO.1 INSTRUMENT PANEL REGISTER ASSEMBLY
8. INSTALL FRONT NO.3 SPEAKER ASSEMBLY
9. INSTALL NO.1 SPEAKER HOLE COVER
10. INSTALL FRONT NO.2 SPEAKER ASSEMBLY (for LH)
11. INSTALL NO.2 INSTRUMENT PANEL SPEAKER PANEL
12. INSTALL FRONT NO.2 SPEAKER ASSEMBLY (for RH)
13. INSTALL NO.1 INSTRUMENT PANEL SPEAKER PANEL
14. INSTALL FRONT PILLAR GARNISH LH
15. INSTALL FRONT PILLAR GARNISH RH
16. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY (w/o Multi-display)
17. INSTALL MULTI-MEDIA MODULE DISPLAY ASSEMBLY (w/ Multi-display)
18. INSTALL RADIO RECEIVER ASSEMBLY
19. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
20. INSTALL NO.2 INSTRUMENT PANEL LOWER AIRBAG
21. INSTALL INSTRUMENT PANEL LOWER
22. INSTALL NO.2 INSTRUMENT PANEL UNDER COVER
23. INSTALL NO.2 INSTRUMENT CLUSTER
24. INSTALL INSTRUMENT SIDE PANEL RH
25. INSTALL NO.1 INSTRUMENT PANEL LOWER AIRBAG
26. INSTALL NO.1 INSTRUMENT PANEL SAFETY PAD
27. INSTALL NO.1 INSTRUMENT PANEL UNDER COVER
28. INSTALL NO.1 INSTRUMENT CLUSTER MOULDING
29. INSTALL INSTRUMENT SIDE PANEL LH
30. INSTALL COMBINATION METER ASSEMBLY
31. INSTALL INSTRUMENT CLUSTER FINISH PANEL
32. INSTALL TURN SIGNAL SWITCH ASSEMBLY W/ SPIRAL CABLE
33. INSTALL STEERING COLUMN COVER
34. INSTALL STEERING WHEEL ASSEMBLY
35. INSTALL STEERING WHEEL PAD
36. INSTALL NO.2 STEERING WHEEL COVER LOWER
37. INSTALL SWITCH & VOLUME CASE
38. INSTALL CONSOLE BOX ASSEMBLY
39. INSTALL CONSOLE COVER LOWER
40. INSTALL CONSOLE REAR END PANEL
41. INSTALL CONSOLE PANEL UPPER
42. INSTALL CONSOLE PANEL UPPER REAR
43. INSTALL NO.3 CONSOLE BOX PANEL
44. INSTALL SHIFT LEVER KNOB
45. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
46. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
47. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTE: Reset the AUTO TILT AWAY function setting to the previous condition by changing the customize parameter.

48. INSTALL COWL TOP VENTILATOR LOUVER RH

49. INSPECT SRS WARNING LIGHT
a. Check the SRS warning light.

50. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal
