Fuel Gauge Sender: Testing and Inspection

INSPECTION

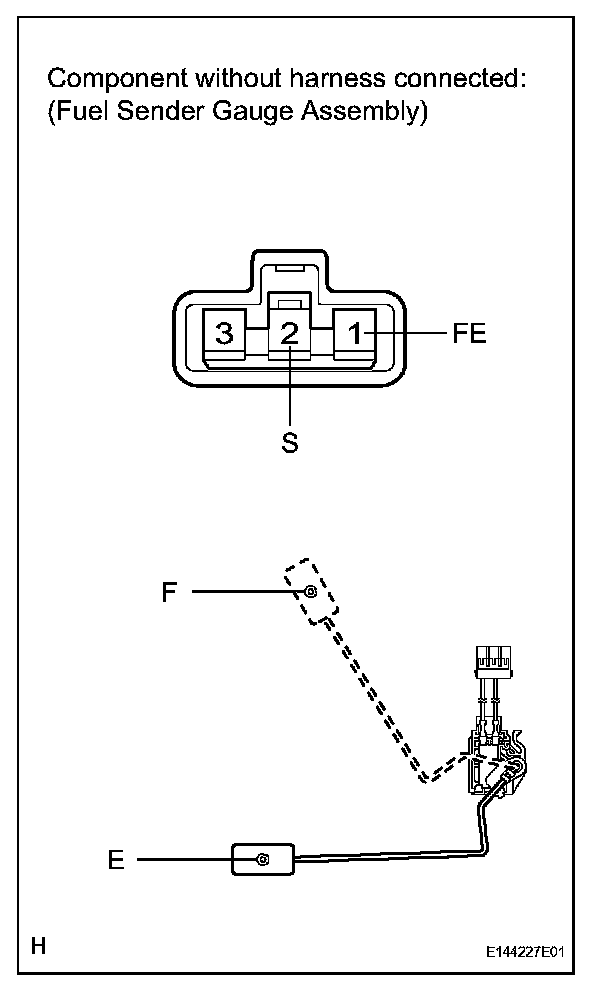

1. INSPECT FUEL SENDER GAUGE ASSEMBLY (for LH Side)

a. Inspect the fuel sender gauge.
1. Check that the float moves smoothly between F and E.

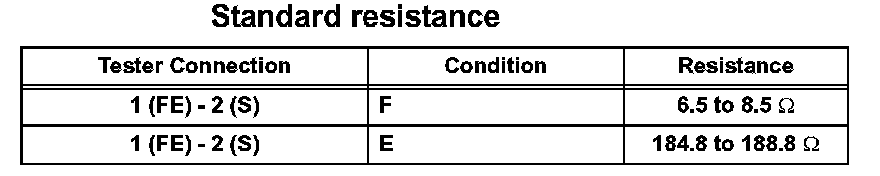

2. Measure the resistance according to the value(s) in the table.

If the value is not as specified, replace the fuel sender gauge assembly.

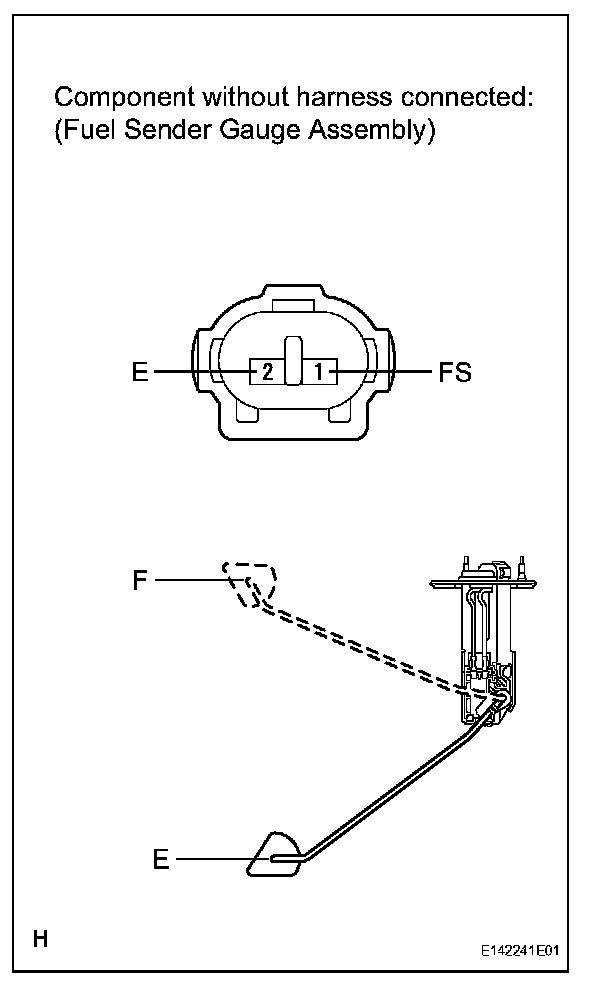

2. INSPECT FUEL SENDER GAUGE ASSEMBLY (for RH Side)
a. Inspect the fuel sender gauge.
1. Check that the float moves smoothly between F and E.

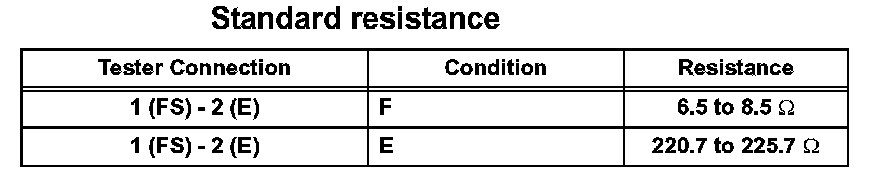

2. Measure the resistance according to the value(s) in the table.

If the value is not as specified, replace the fuel sender gauge assembly.
