Front Door Courtesy Switch
INSPECTION

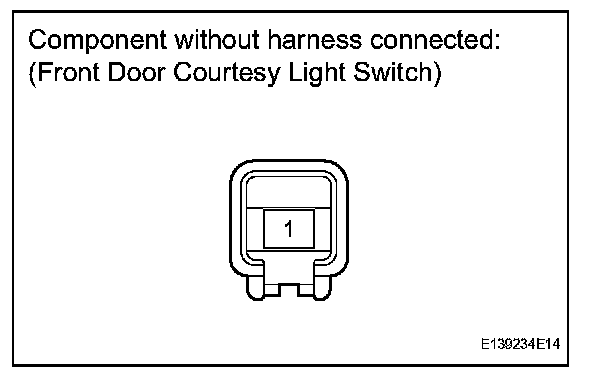

1. INSPECT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

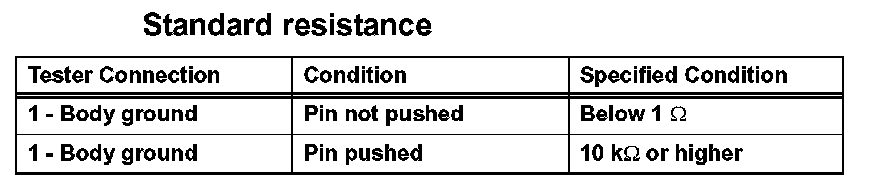

a. Measure the resistance according to the value(s) in the table.
If the result is not as specified, replace the front door courtesy light switch.
1. INSPECT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY
a. Measure the resistance according to the value(s) in the table.
If the result is not as specified, replace the front door courtesy light switch.
