Rear Door Courtesy Switch

Rear Door Courtesy Switch:

REAR DOOR COURTESY SWITCH

REMOVAL

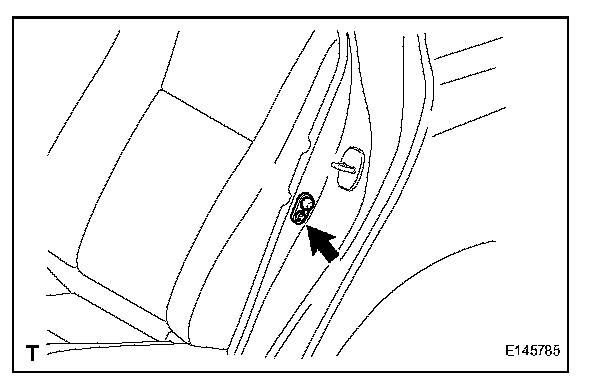

1. REMOVE REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY

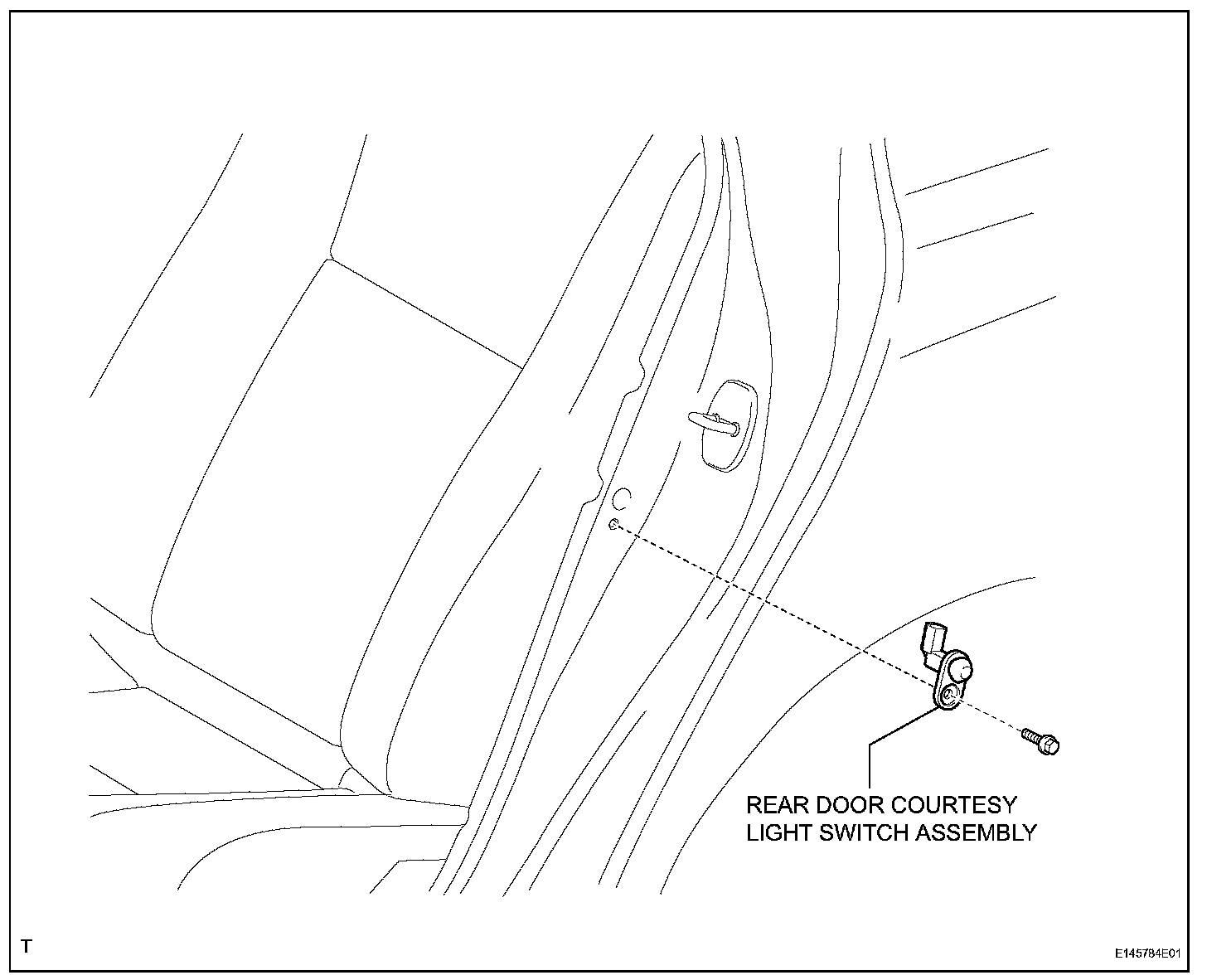

a. Remove the bolt and switch.
b. Disconnect the connector.

INSTALLATION

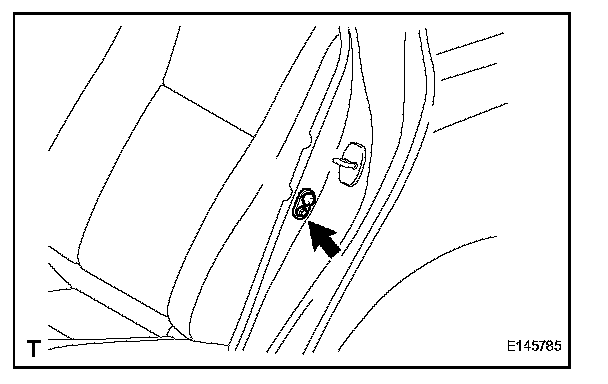

1. INSTALL REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY
a. Connect the connector.
b. Install the switch with the bolt.
