Solar Sensor (For Rear Side)

INSPECTION

INSPECT COOLER (SOLAR SENSOR) THERMISTOR

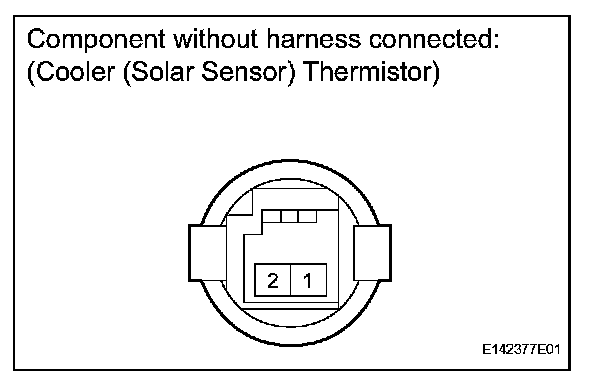

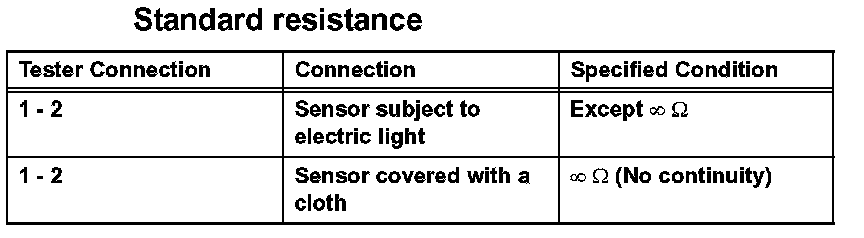

Using an ohmmeter, connect the positive lead to terminal 2 and the negative lead to terminal 1, then measure the resistance between the terminals.

NOTE: The connection procedure for using a digital tester such as a TOYOTA electrical tester is shown. When using an analog tester, connect the positive (+) lead to terminal 1 and the negative (-) lead to terminal 2 of the A/C solar sensor.

HINT: Use an incandescent lamp for inspection. Bring it within 30 cm (11.8 in.) of the A/C solar sensor. If the result is not as specified, replace the thermistor.
