Solar Sensor (For Rear Side)

Solar Sensor (For Rear Side):




SOLAR SENSOR (for Rear Side)

REMOVAL

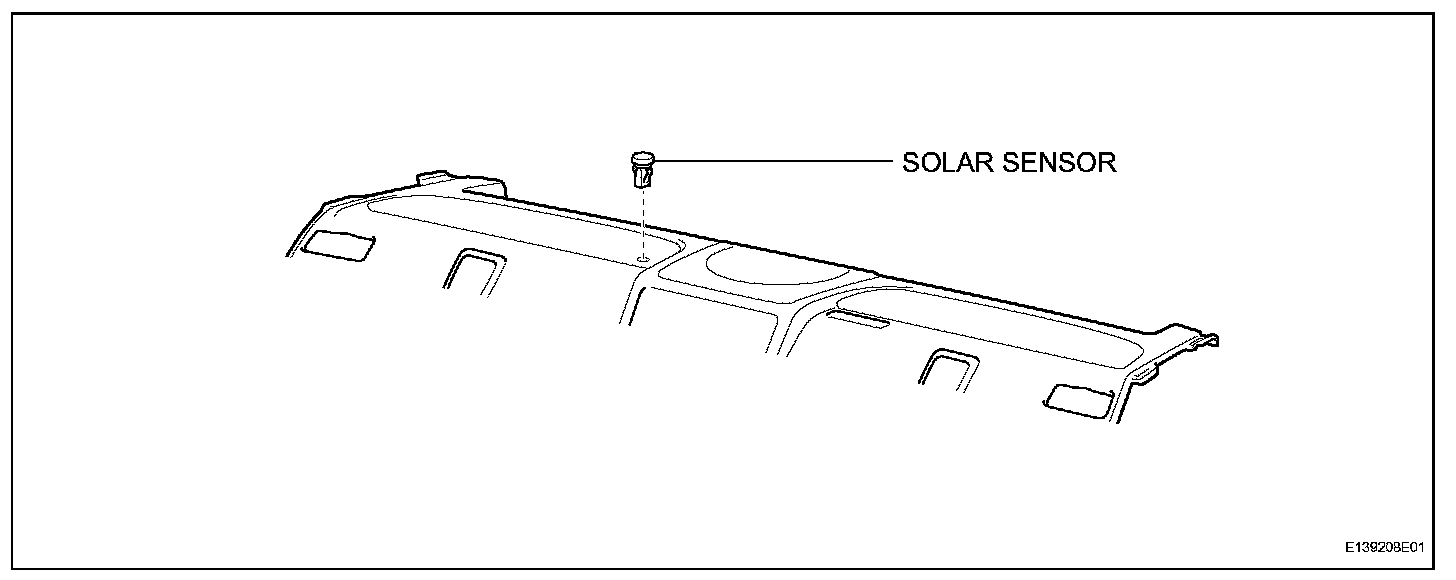

REMOVE SOLAR SENSOR

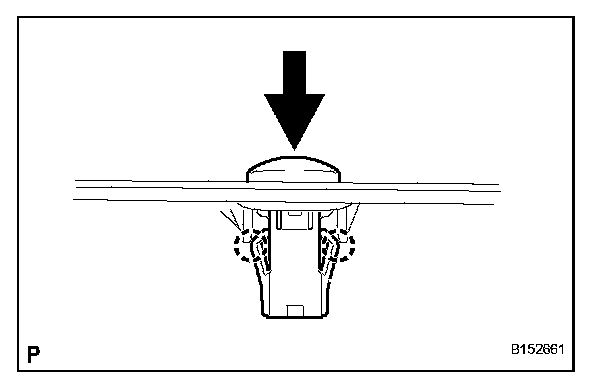

a. Detach the 2 claws.
b. Disconnect the connector and remove the sensor.

INSTALLATION

INSTALL SOLAR SENSOR




a. Connect the connector.
b. Attach the 2 claws to install the sensor.
