Solar Sensor (For Front Side)

Solar Sensor(For Front Side):




SOLAR SENSOR (for Front Side)

REMOVAL

REMOVE SOLAR SENSOR

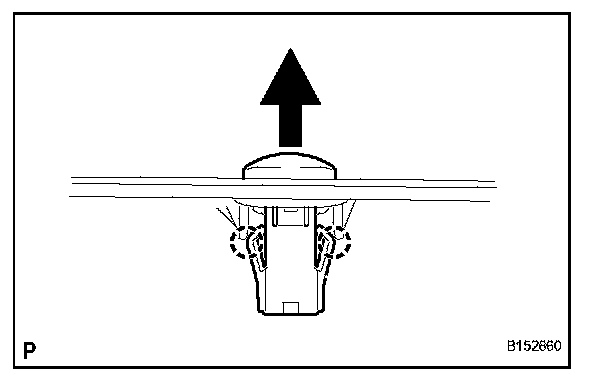

a. Detach the 2 claws.
b. Disconnect the connector and remove the sensor.

INSTALLATION

INSTALL SOLAR SENSOR




a. Connect the connector.

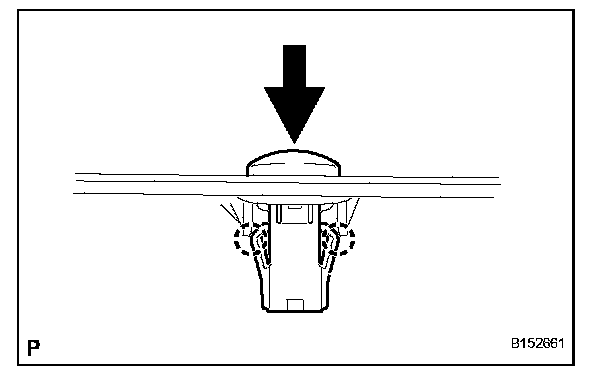

b. Attach the 2 claws to install the sensor.
