Lexus
>>
2007
>>
LS 460 V8-4.6L (1UR-FSE)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - HVAC
>>
Solar Sensor
>>
Locations

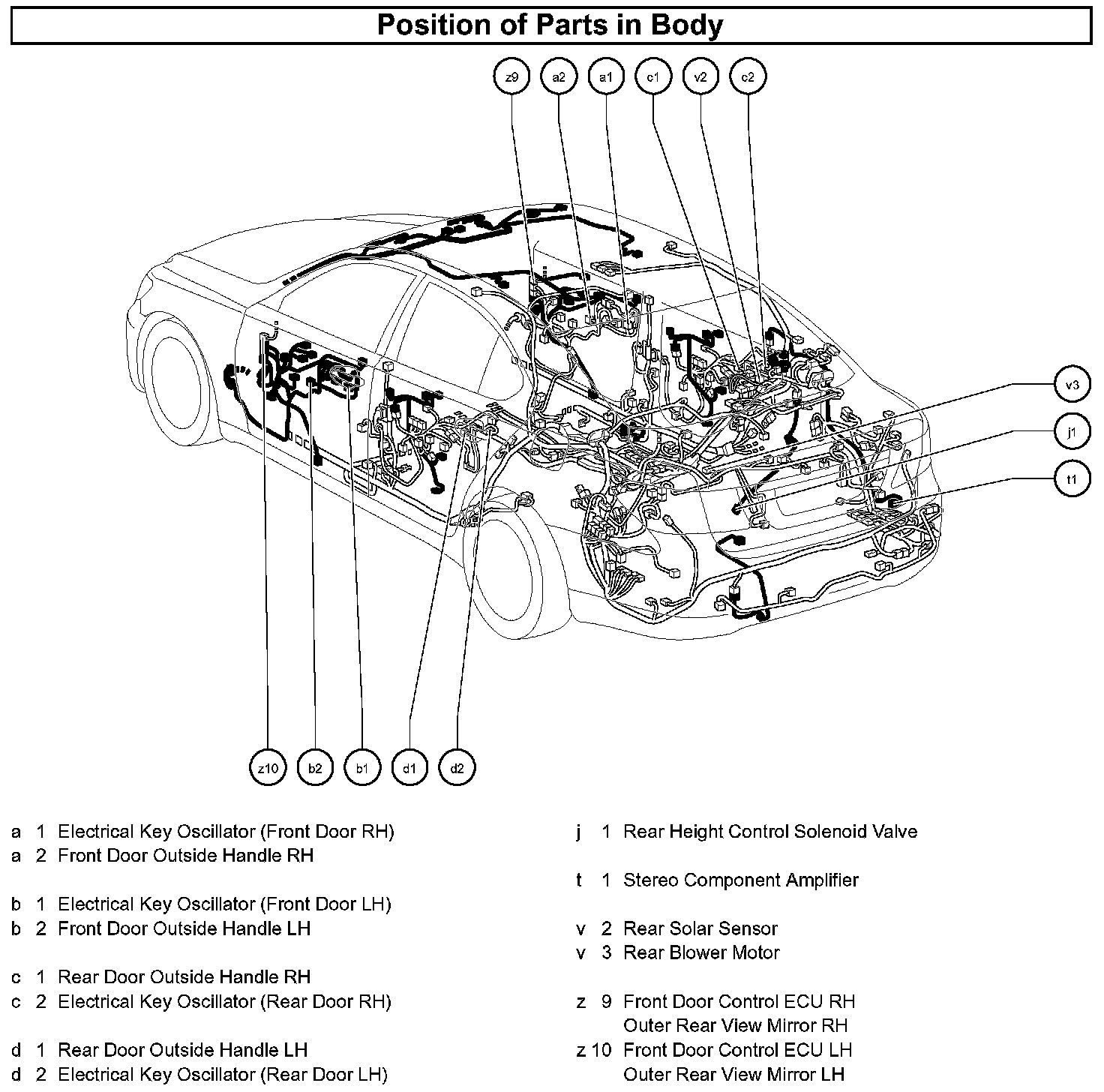

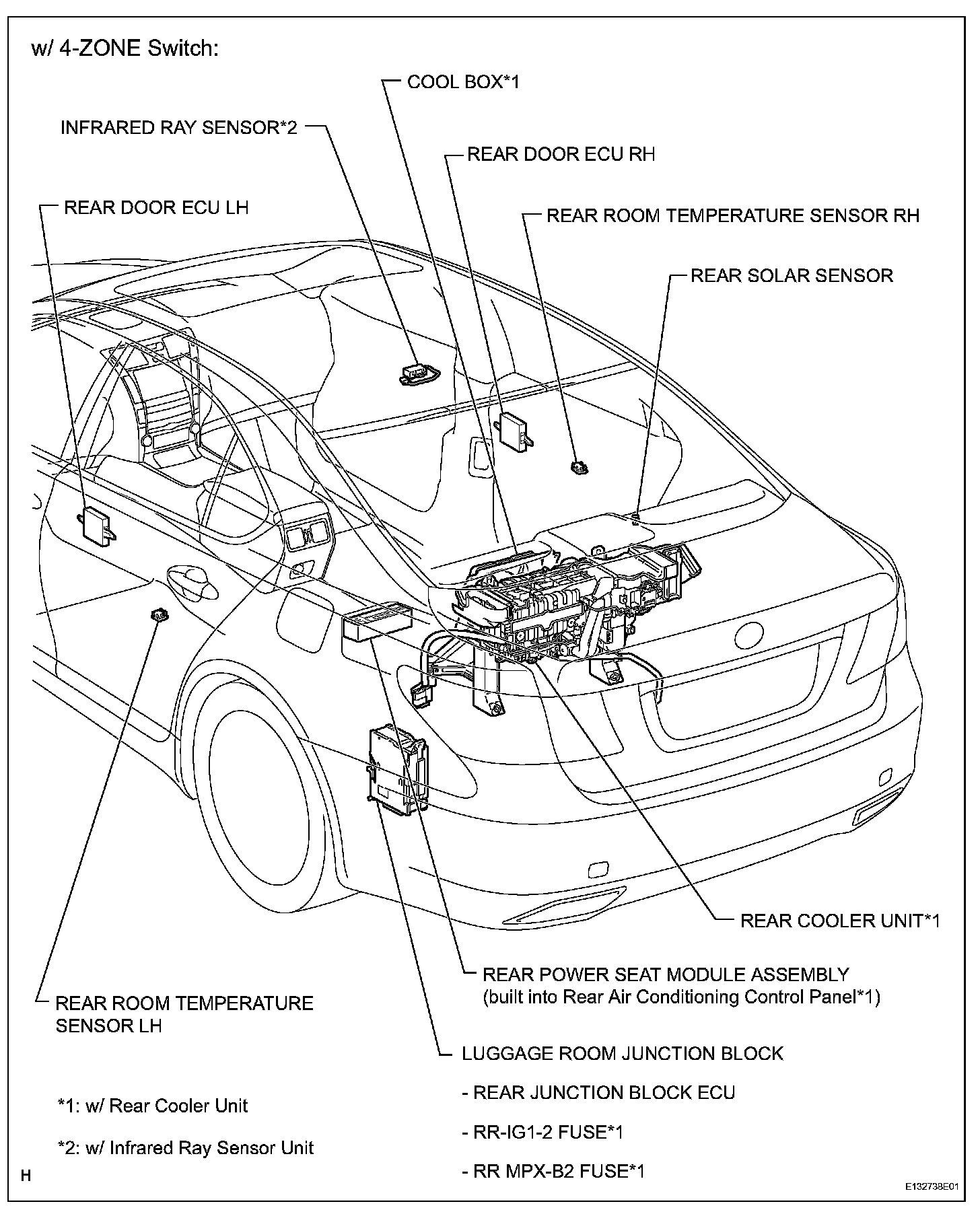

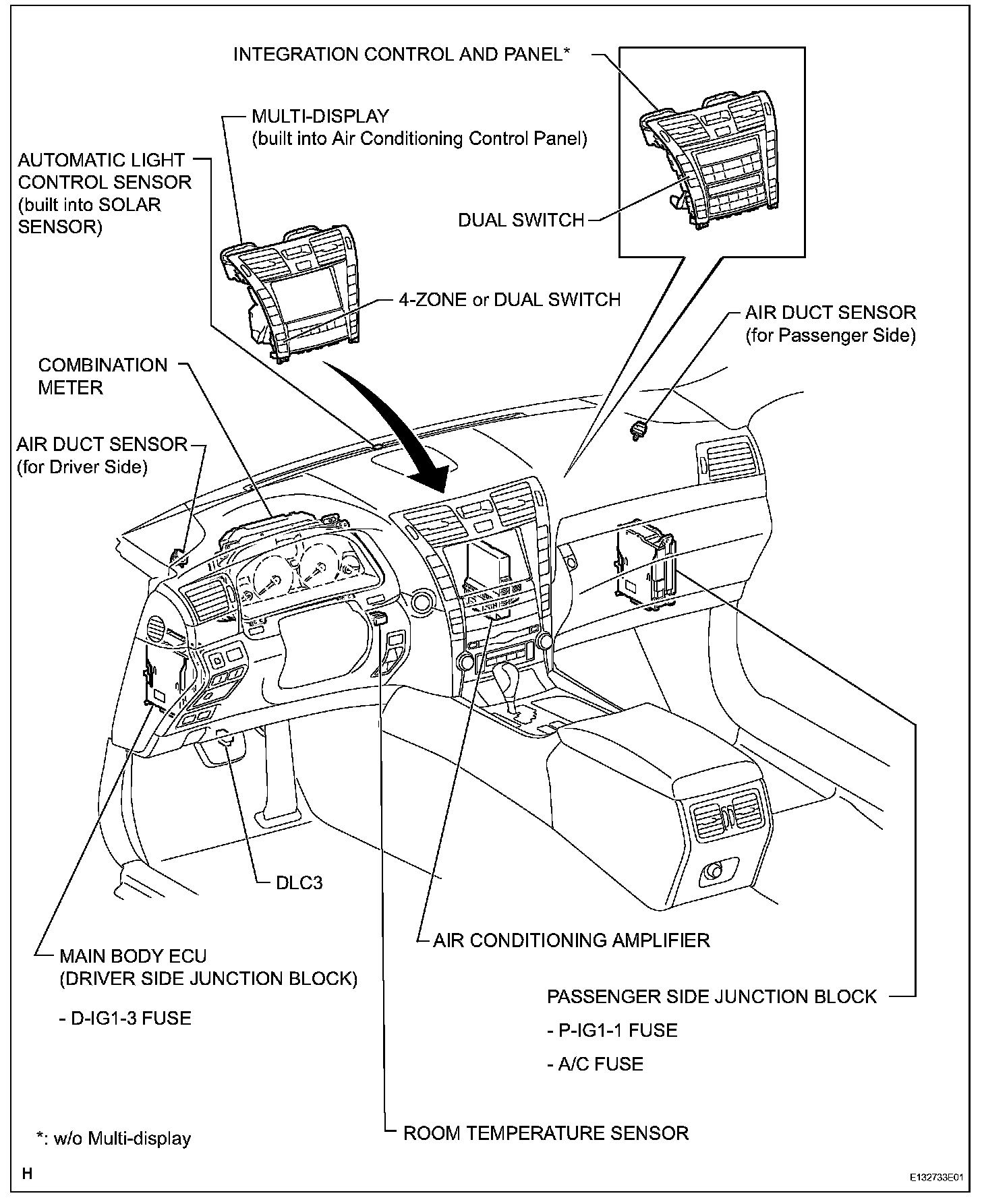

Solar Sensor: Locations
El - St:
Air Conditioning System:
Air Conditioning System:
