Discharge Air Temperature Sensor / Switch: Service and Repair

Duct Temperature Sensor:

DUCT TEMPERATURE SENSOR

REMOVAL

1. REMOVE INSTRUMENT PANEL SAFETY PAD
a. Remove the instrument panel safety pad.

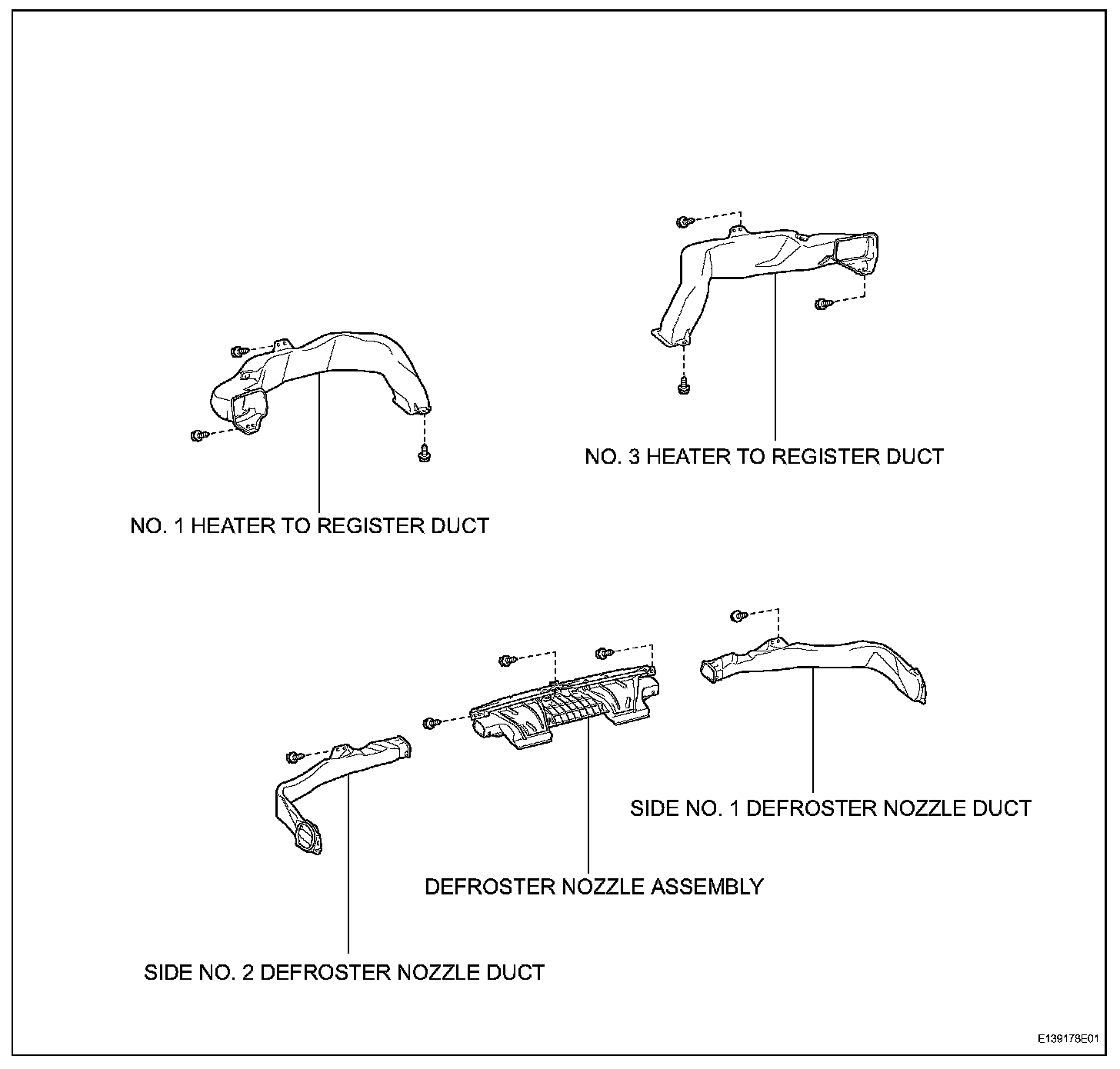

2. REMOVE SIDE NO. 2 DEFROSTER NOZZLE DUCT
3. REMOVE DEFROSTER NOZZLE ASSEMBLY
4. REMOVE SIDE NO. 1 DEFROSTER NOZZLE DUCT
5. REMOVE NO. 1 HEATER TO REGISTER DUCT
6. REMOVE NO. 3 HEATER TO REGISTER DUCT

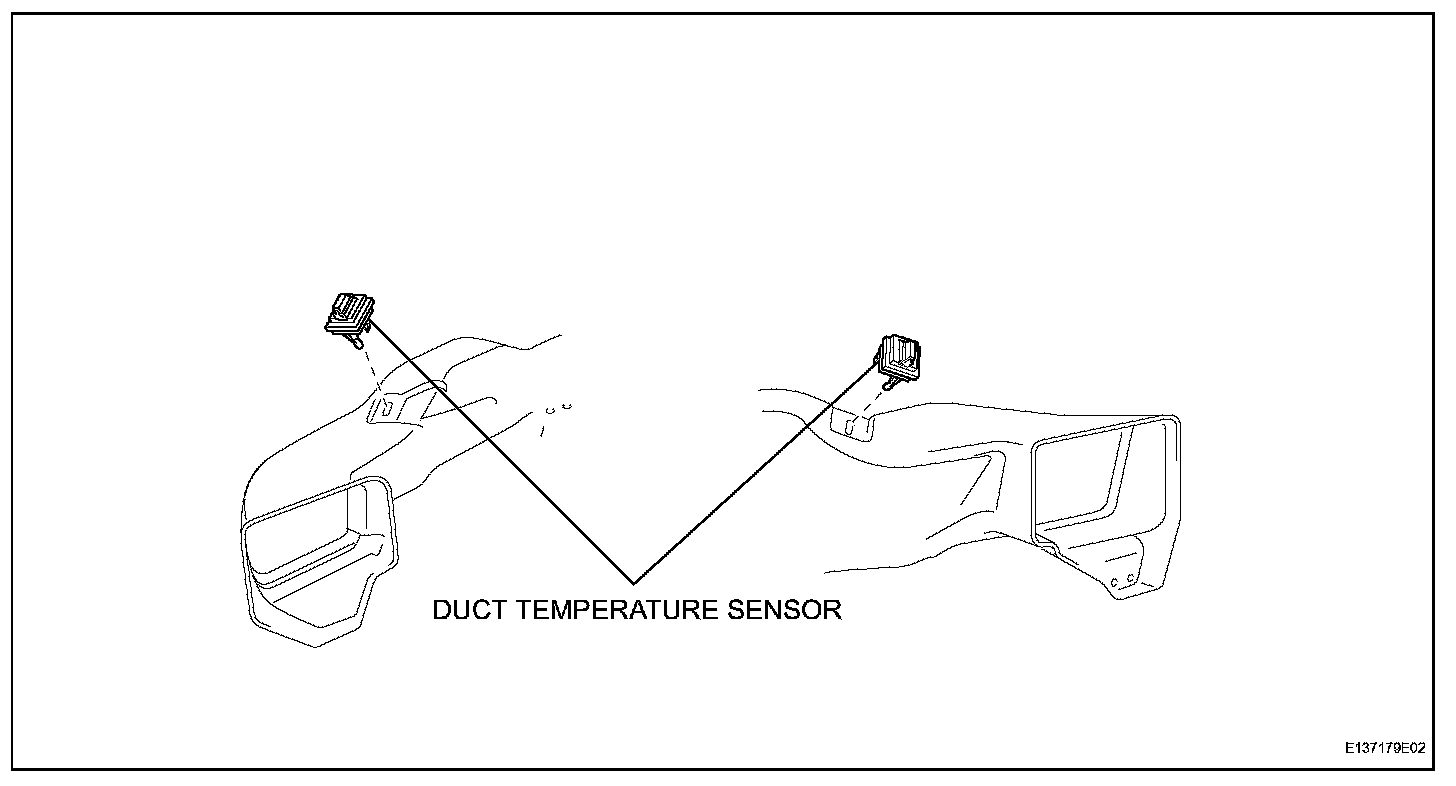

7. REMOVE DUCT TEMPERATURE SENSOR

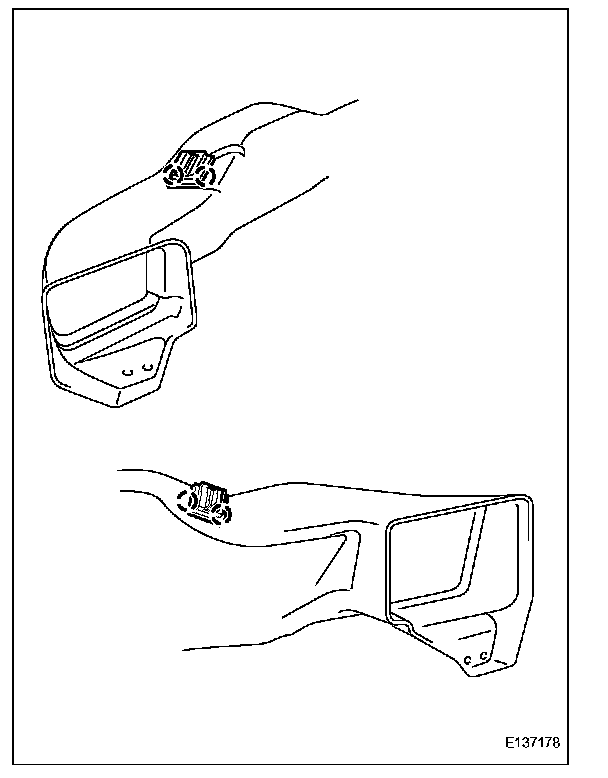

a. Detach the 4 claws and remove the 2 sensors.

INSTALLATION

1. INSTALL DUCT TEMPERATURE SENSOR

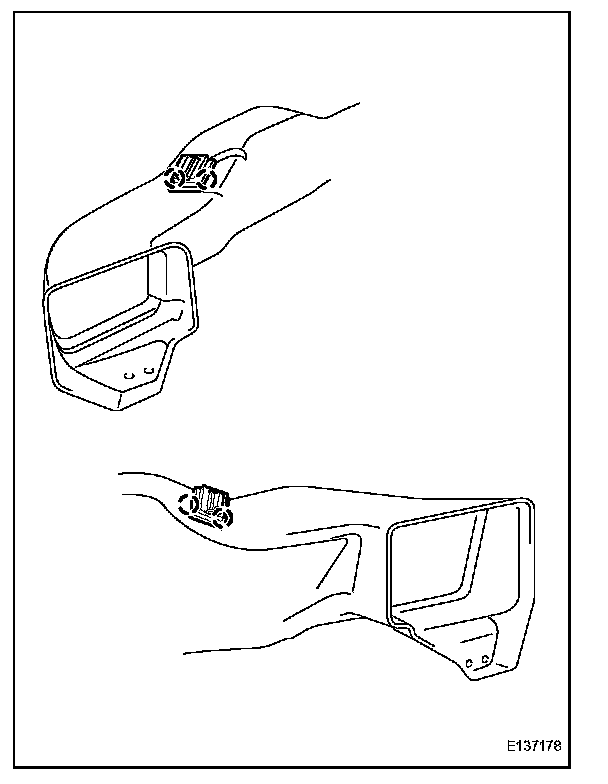

a. Attach the 4 claws to install the 2 sensors.

2. INSTALL NO. 3 HEATER TO REGISTER DUCT
3. INSTALL NO. 1 HEATER TO REGISTER DUCT
4. INSTALL SIDE NO. 1 DEFROSTER NOZZLE DUCT
5. INSTALL DEFROSTER NOZZLE ASSEMBLY
6. INSTALL SIDE NO. 2 DEFROSTER NOZZLE DUCT
7. INSTALL INSTRUMENT PANEL SAFETY PAD
a. Install the instrument panel safety pad.
