Climate Control Exhaust Gas Sensor: Service and Repair

Smog Ventilation Sensor:

Smog Ventilation Sensor:

SMOG VENTILATION SENSOR

REMOVAL

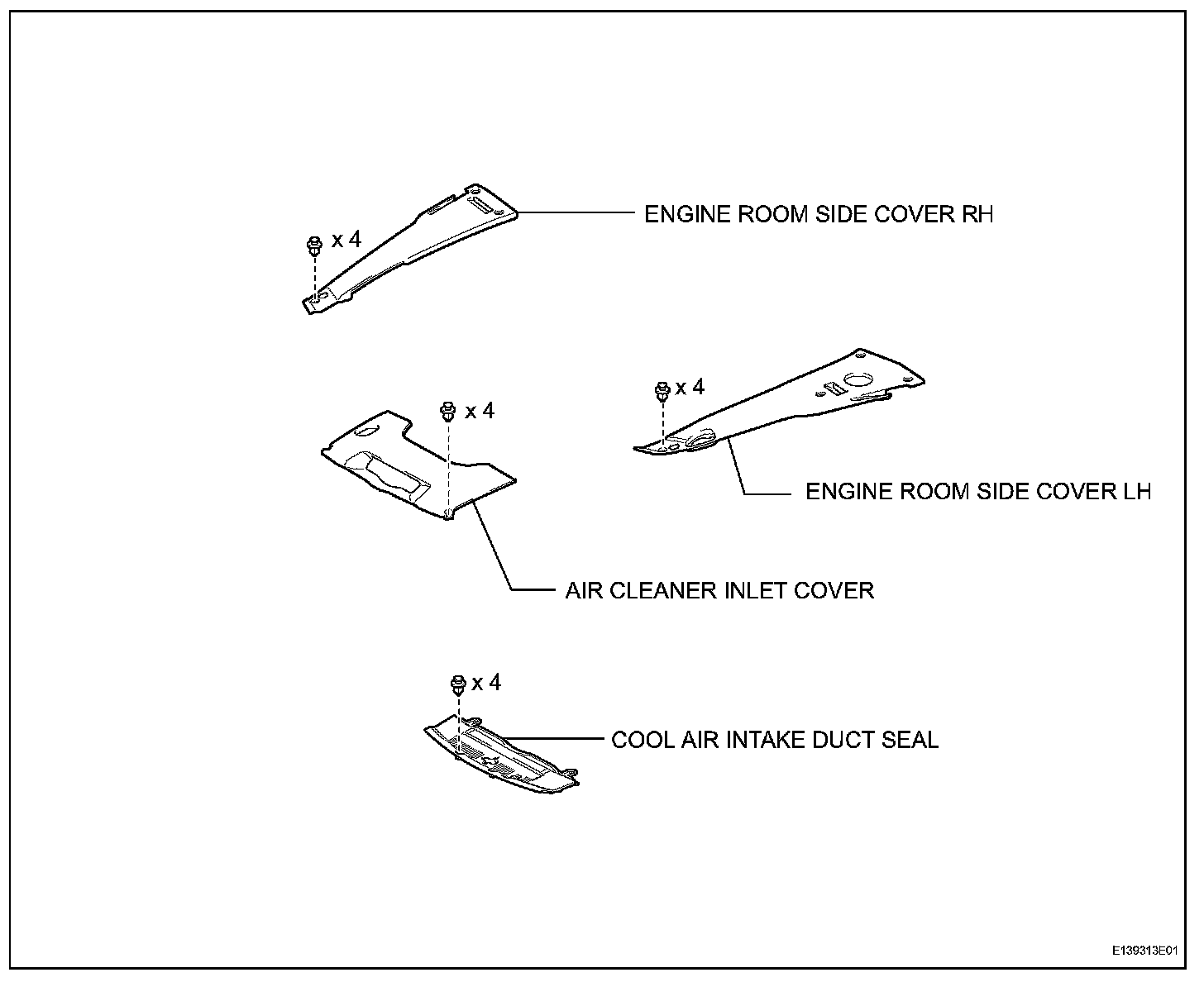

1. REMOVE ENGINE ROOM SIDE COVER LH
a. Remove the 4 clips and cover.

2. REMOVE ENGINE ROOM SIDE COVER RH
a. Remove the 4 clips and cover.

3. REMOVE AIR CLEANER INLET COVER
a. Remove the 2 clips and cover.

4. REMOVE COOL AIR INTAKE DUCT SEAL
a. Remove the 2 clips and duct seal.

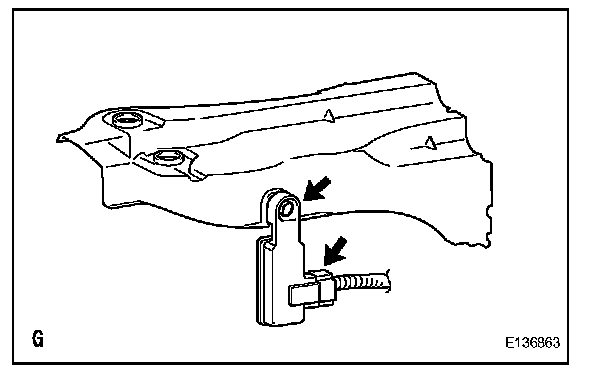

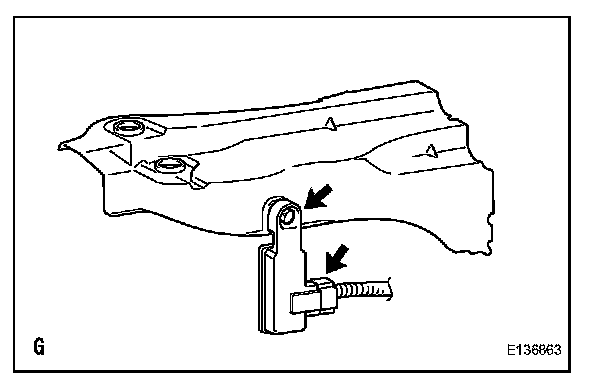

5. REMOVE SMOG VENTILATION SENSOR




a. Disconnect the connector.
b. Remove the bolt and sensor.

INSTALLATION

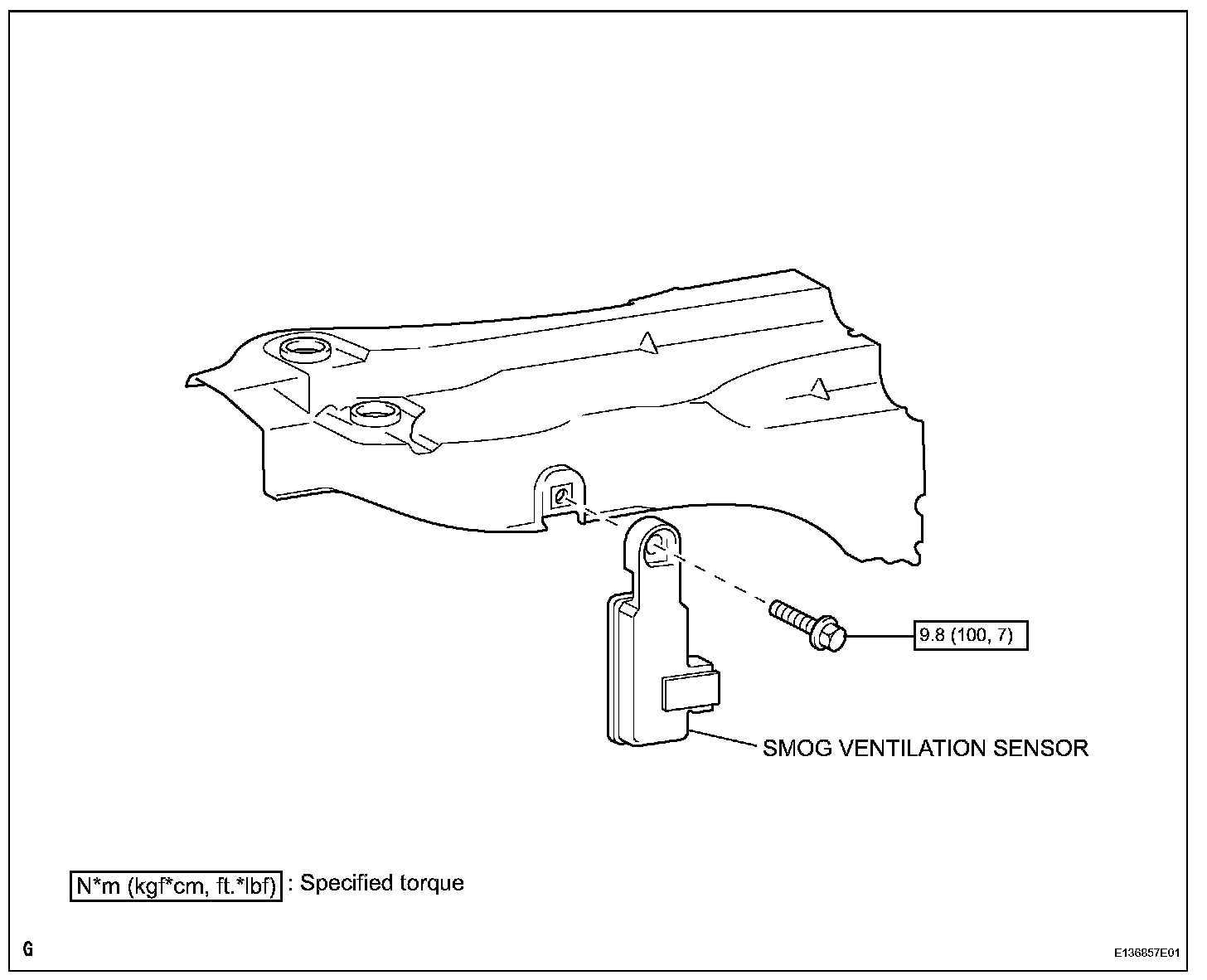

1. INSTALL SMOG VENTILATION SENSOR




a. Install the sensor with the bolt.

Torque: 9.8 N.m (100 kgf.cm, 7 ft.lbf)

b. Connect the connector.

2. INSTALL COOL AIR INTAKE DUCT SEAL
a. Install the duct seal with the 2 clips.

3. INSTALL AIR CLEANER INLET COVER
a. Install the cover with the 2 clips.

4. INSTALL ENGINE ROOM SIDE COVER LH
a. Install the cover with the 4 clips.

5. INSTALL ENGINE ROOM SIDE COVER RH
a. Install the cover with the 4 clips.
