Component Inspection
CRUISE CONTROL MAIN SWITCHINSPECTION
INSPECT CRUISE CONTROL MAIN SWITCH ASSEMBLY

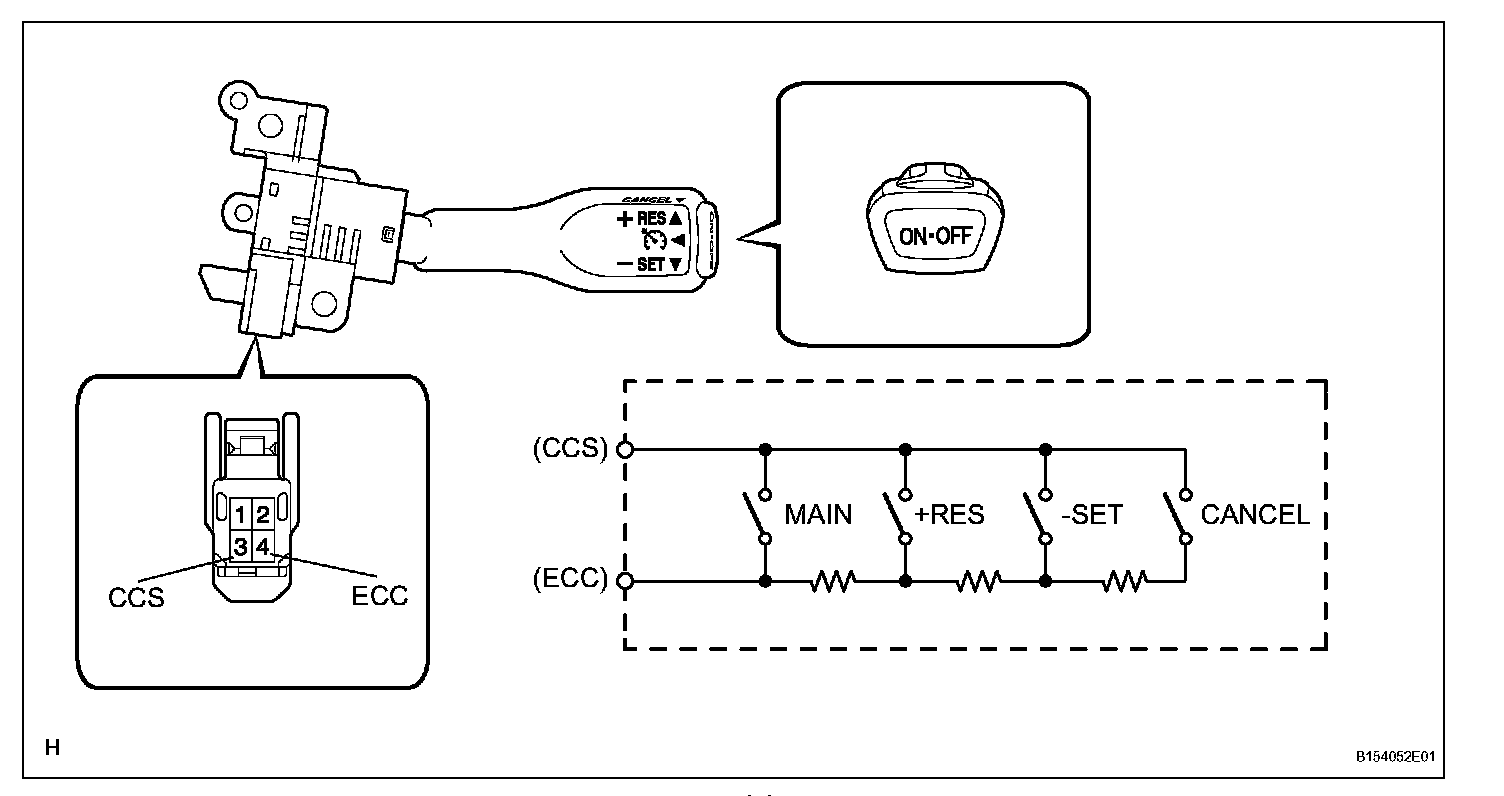

a. Measure resistance (Vehicle without vehicle-to-vehicle distance control mode)
1. Remove the cruise control main switch.

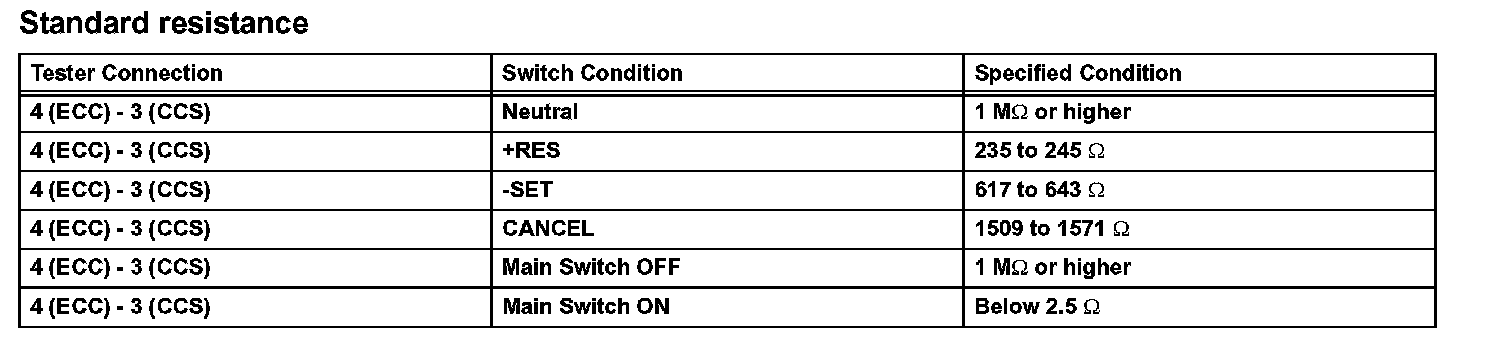

2. Measure the resistance according to the value(s) in the table given.
If the result is not as specified, replace the cruise control main switch.

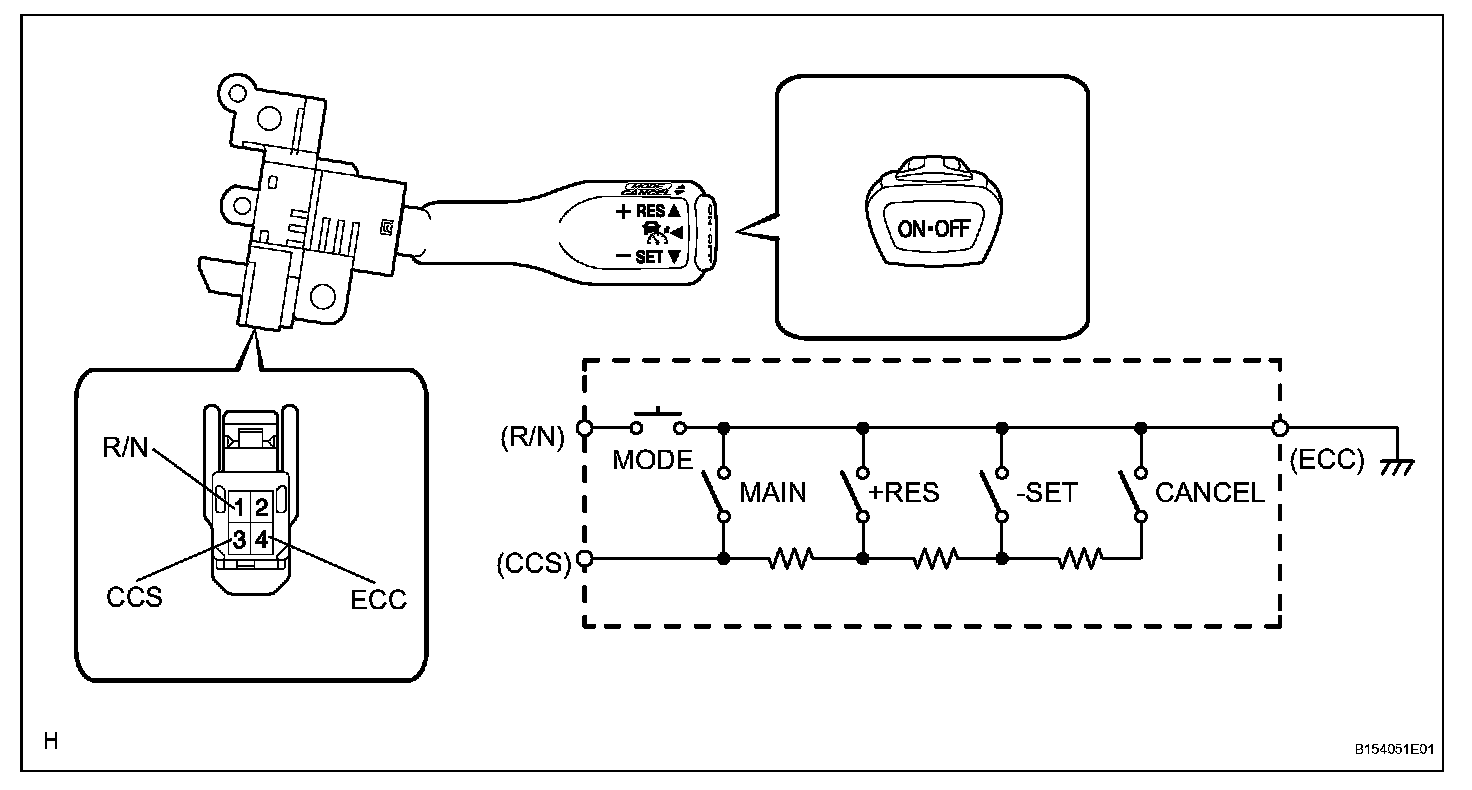

b. Measure resistance (Vehicle with vehicle-to-vehicle distance control mode)
1. Remove the cruise control main switch.

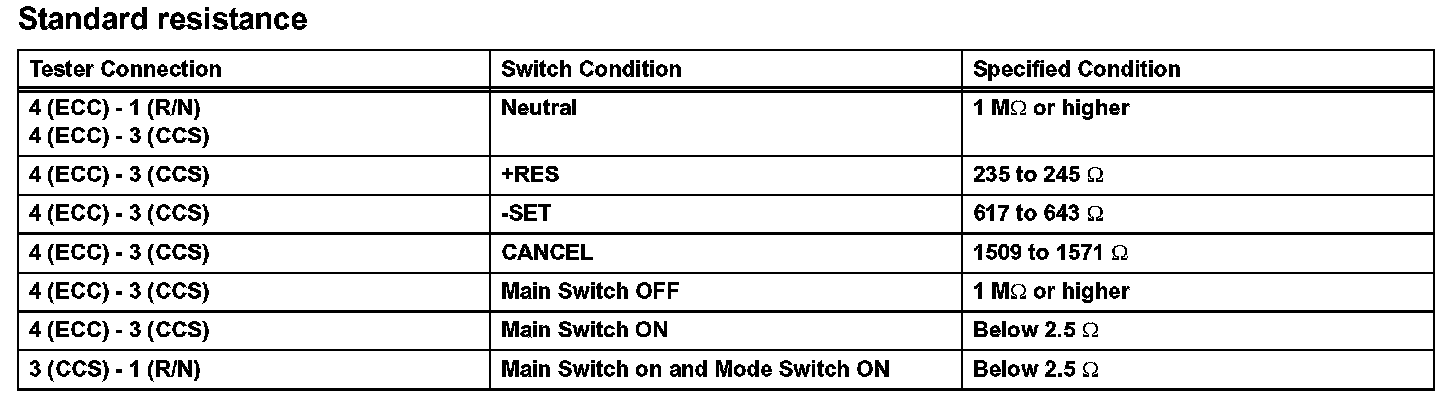

2. Measure the resistance according to the value(s) in the table given.
If the result is not as specified, replace the cruise control main switch.
