Cruise Control Switch: Service and Repair

Cruise Control Main Switch:

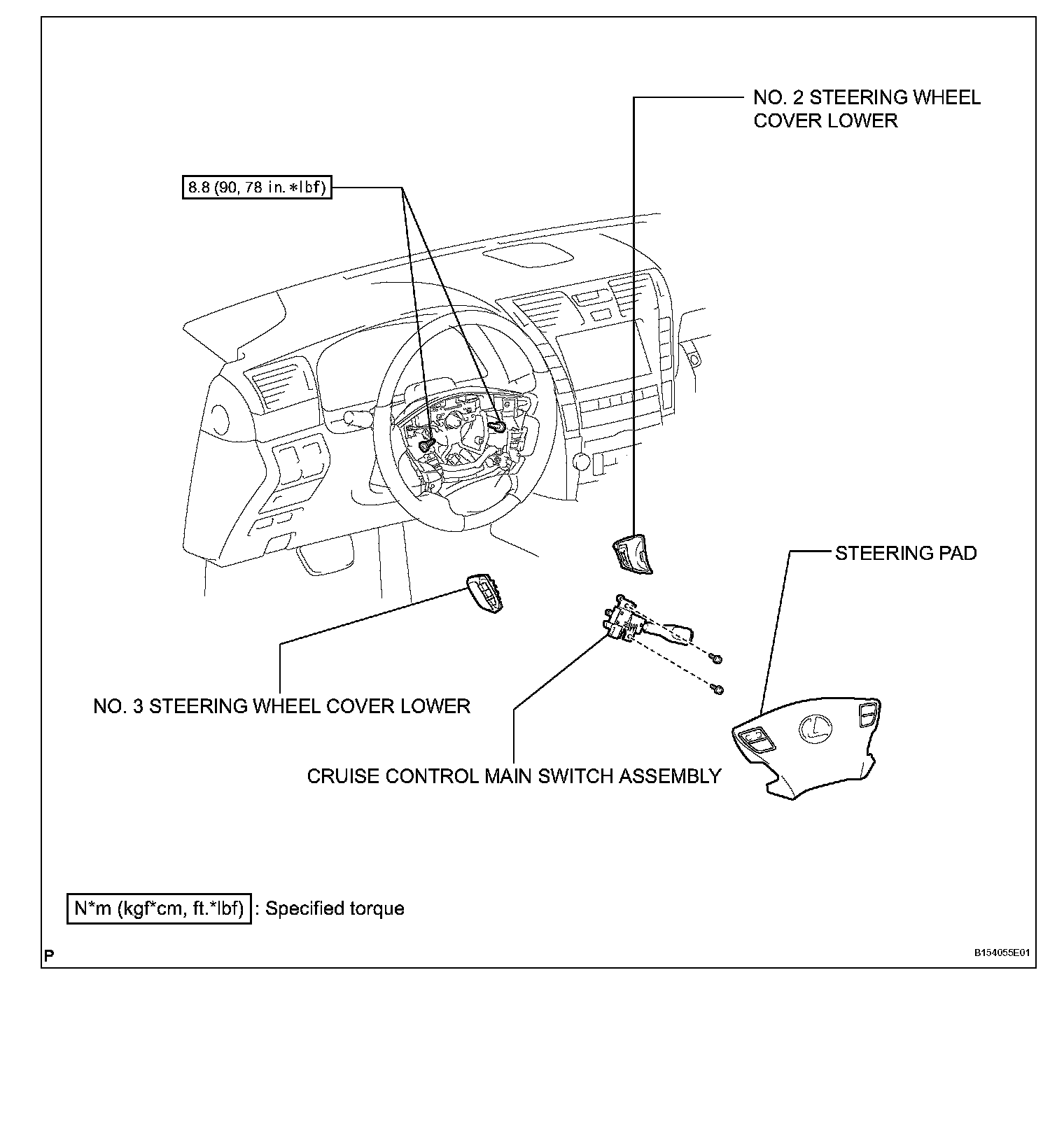

CRUISE CONTROL MAIN SWITCH

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER LH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE SWITCH AND VOLUME CASE
4. REMOVE NO.2 STEERING WHEEL COVER LOWER
5. REMOVE STEERING PAD
6. REMOVE CRUISE CONTROL MAIN SWITCH ASSEMBLY

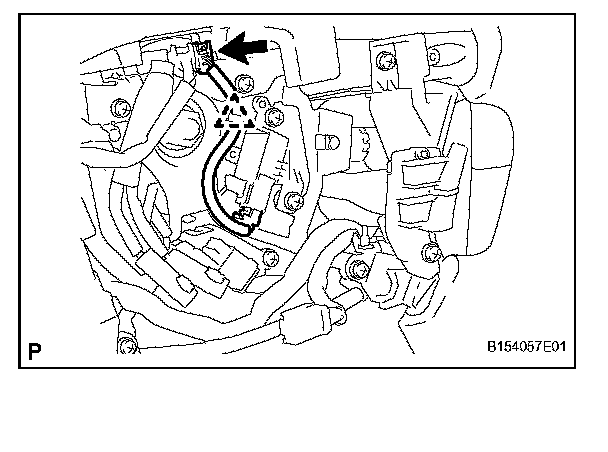

a. Disconnect the connector and clamp.

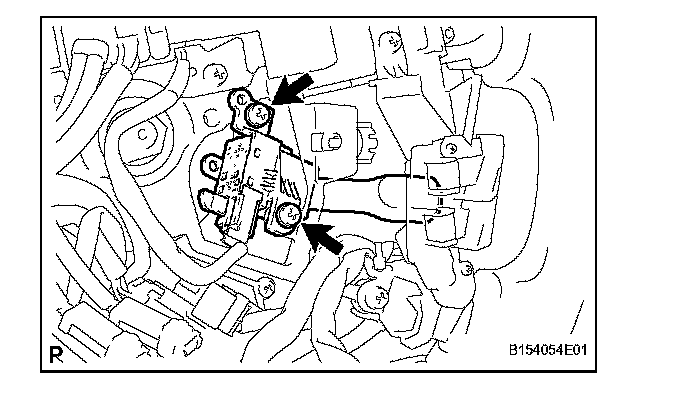

b. Remove the 2 screws.

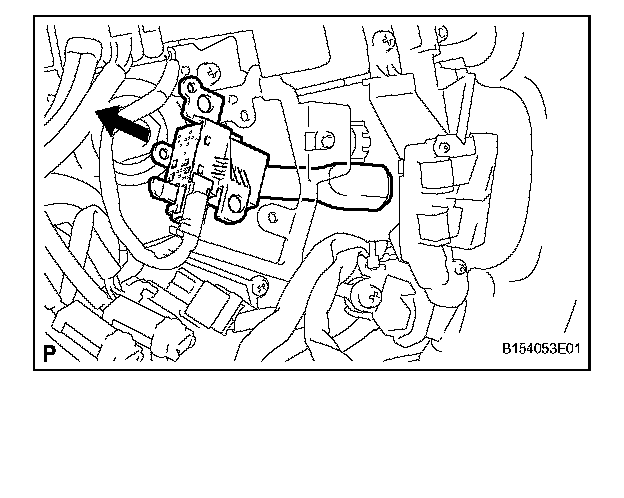

c. Remove the switch.

INSTALLATION

1. INSTALL CRUISE CONTROL MAIN SWITCH ASSEMBLY

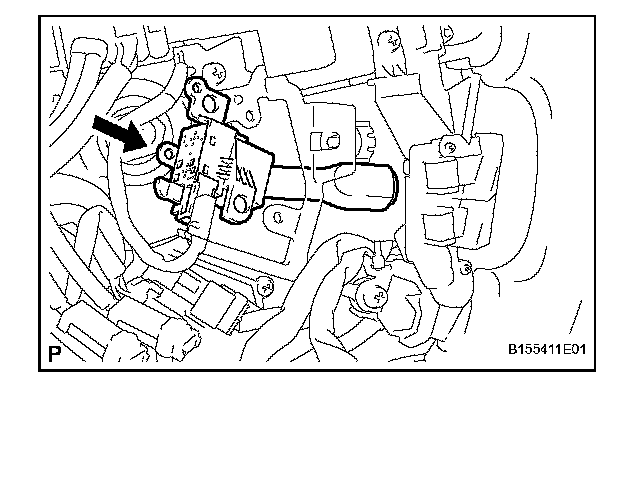

a. Install the switch.

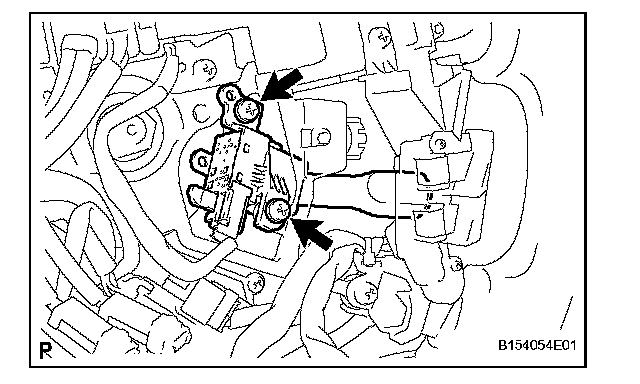

b. Install the 2 screws.

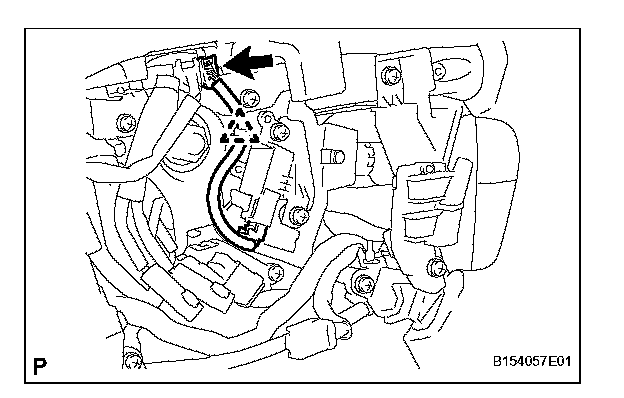

c. Connect the connector and clamp.

2. INSTALL STEERING PAD
3. INSTALL SWITCH AND VOLUME CASE
4. INSTALL NO.2 STEERING WHEEL COVER LOWER
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. REMOVE COWL TOP VENTILATOR LOUVER LH
7. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

8. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
