Electric Parking Brake Switch: Service and Repair

ELECTRIC PARKING BRAKE SWITCH

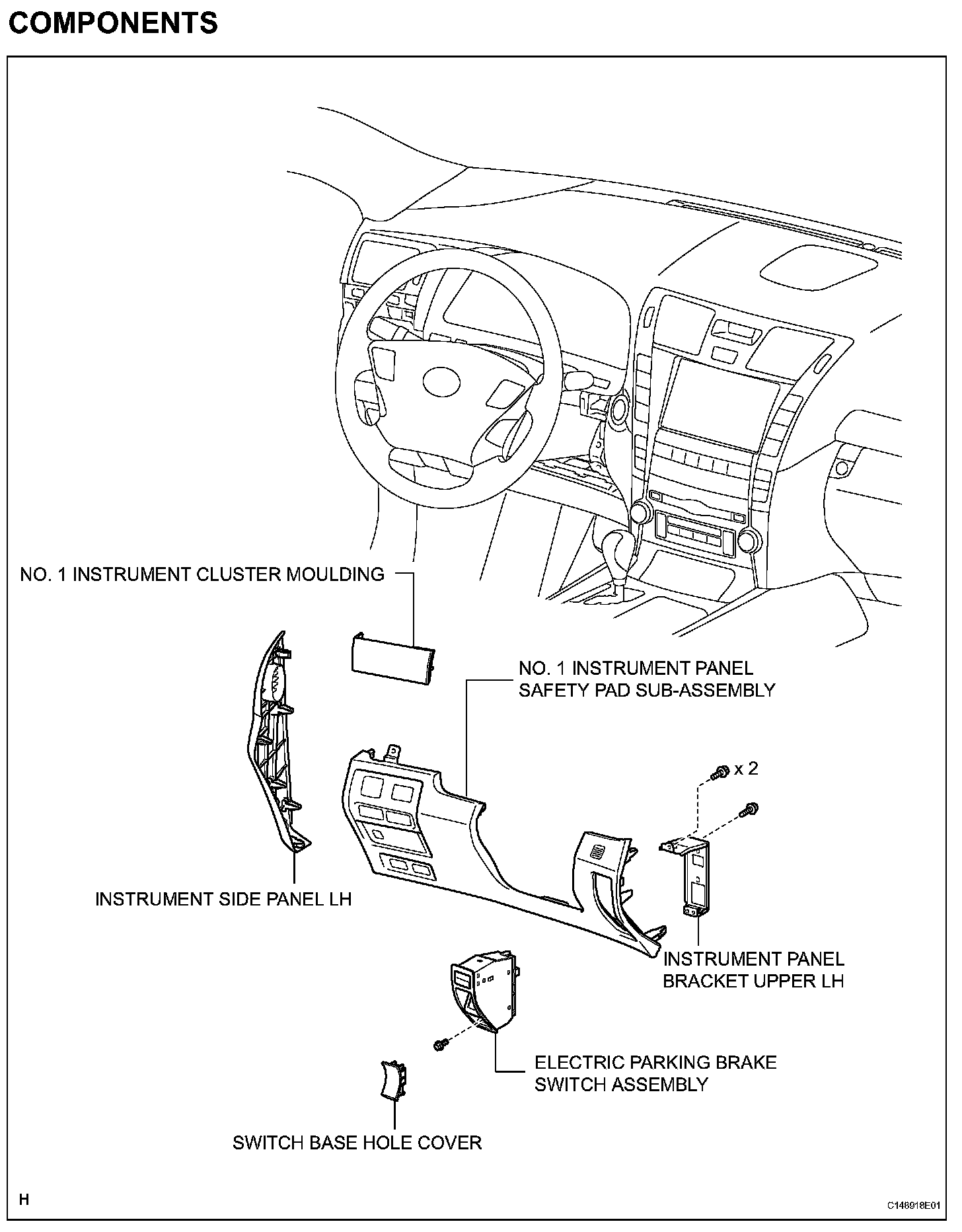

COMPONENTS:





REMOVAL
1. REMOVE COWL TOP VENTILATOR LOUVER RH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTICE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE INSTRUMENT SIDE PANEL LH
4. REMOVE NO. 1 INSTRUMENT CLUSTER MOULDING





5. REMOVE SWITCH BASE HOLE COVER

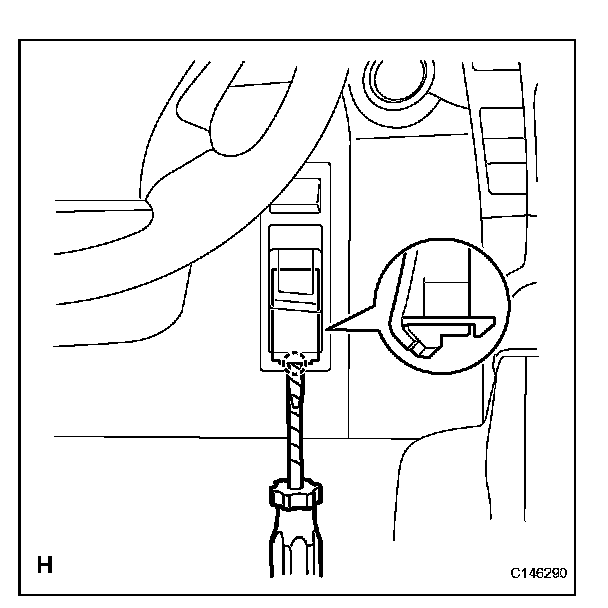

(a) Detach the claw and remove the cover from the No. 1 instrument panel safety pad.

HINT: Tape the screwdriver tip before use.

6. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
7. REMOVE ELECTRIC PARKING BRAKE SWITCH ASSEMBLY
(a) Disconnect the connector.

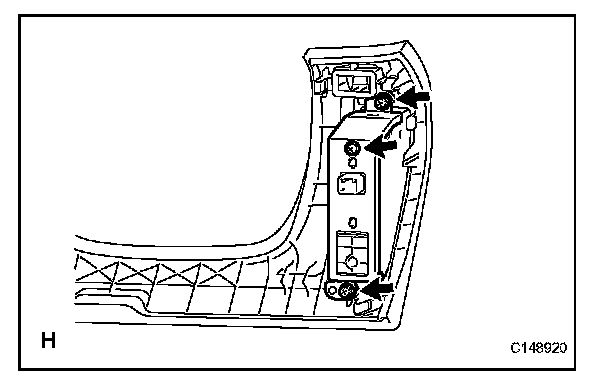

(b) Remove the 3 screws and bracket from the No. 1 instrument panel safety pad.
(c) Remove the electric parking brake switch from the No. 1 instrument panel safety pad.

INSPECTION
1. INSPECT ELECTRIC PARKING BRAKE SWITCH ASSEMBLY





(a) Measure the resistance between the terminals when the switch is operated.

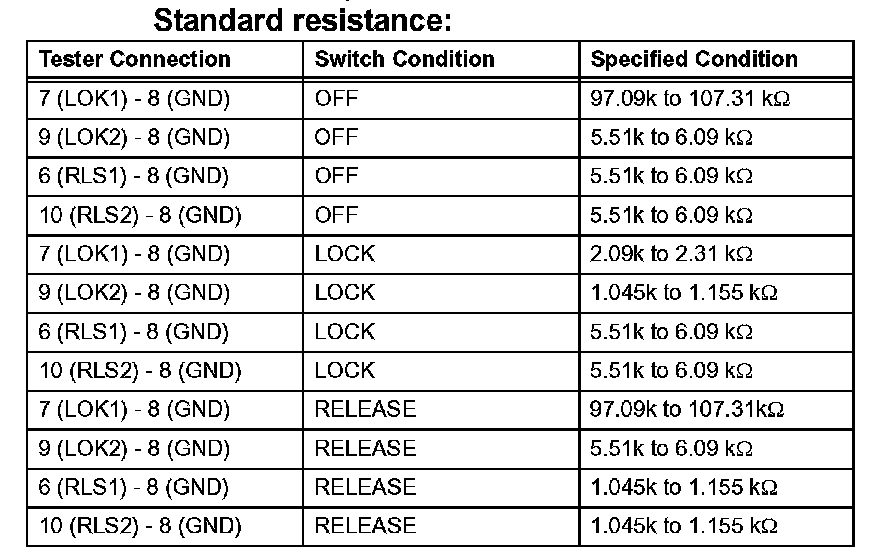

Standard resistance:





If the result is not as specified, replace the switch.

INSTALLATION





1. INSTALL ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

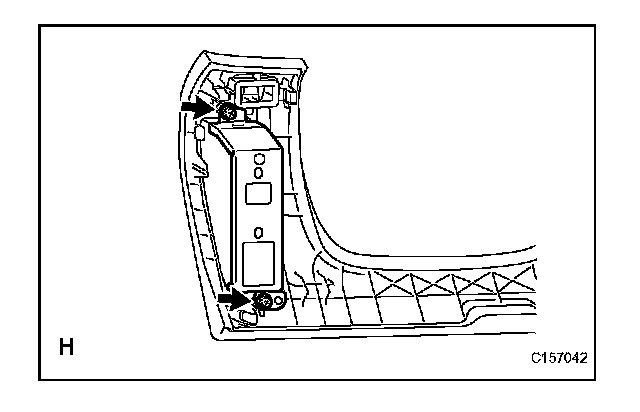

(a) Install the bracket to the No. 1 instrument panel safety pad with the 2 screws.
(b) Install the electric parking brake switch to the No. 1 instrument panel safety pad.

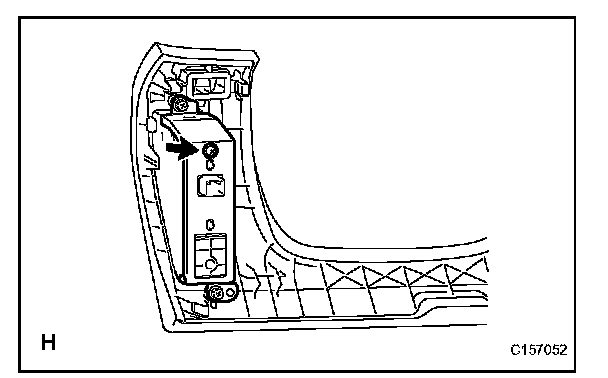

(c) Install the screw.
(d) Connect the connector.

2. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY





3. INSTALL SWITCH BASE HOLE COVER

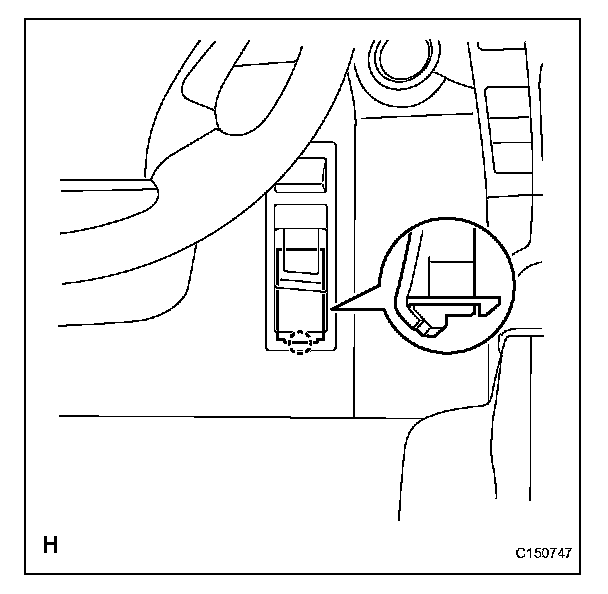

(a) Attach the claw and install the cover to the instrument panel safety pad.

4. INSTALL NO. 1 INSTRUMENT CLUSTER MOULDING
5. INSTALL INSTRUMENT SIDE PANEL LH
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. INSTALL COWL TOP VENTILATOR LOUVER RH
8. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light.

9. PERFORM INITIALIZATION
(a) Perform initialization.

NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
