Distance Sensor: Service and Repair

Millimeter Wave Radar Sensor:

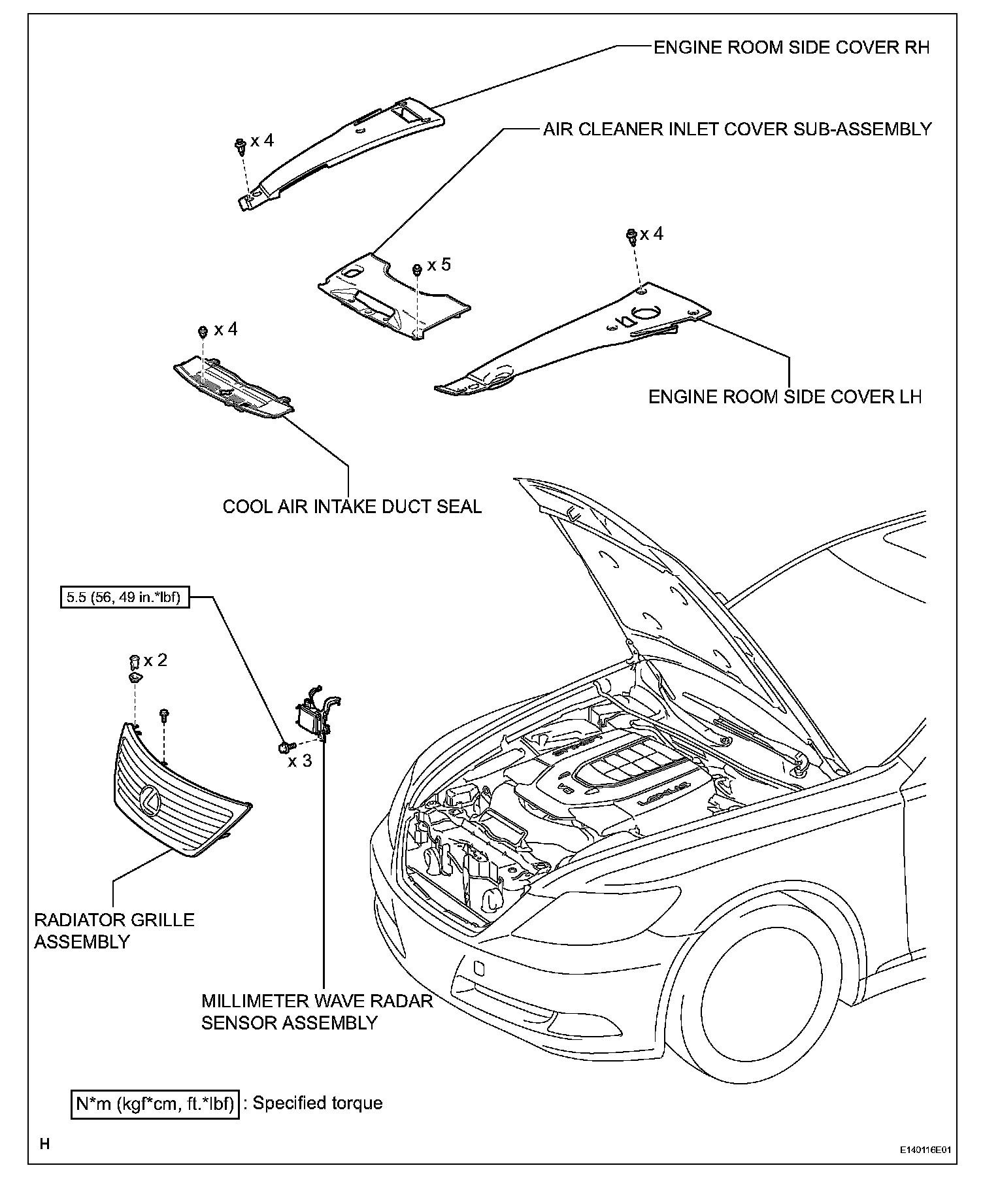

MILLIMETER WAVE RADAR SENSOR

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE ENGINE ROOM SIDE COVER LH
4. REMOVE ENGINE ROOM SIDE COVER RH
5. REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY
6. REMOVE COOL AIR INTAKE DUCT SEAL
7. REMOVE RADIATOR GRILLE ASSEMBLY

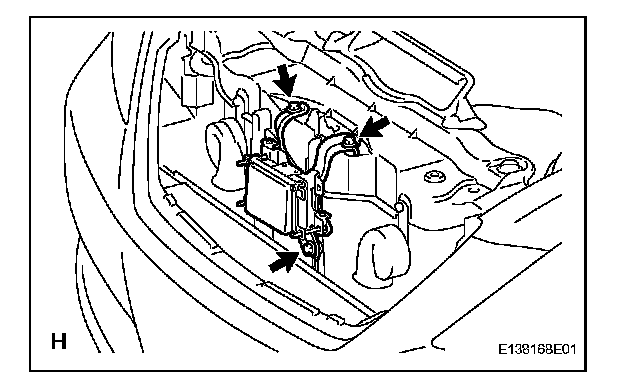

8. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
a. Disconnect the sensor connector.
b. Remove the 3 bolts and sensor.

INSTALLATION

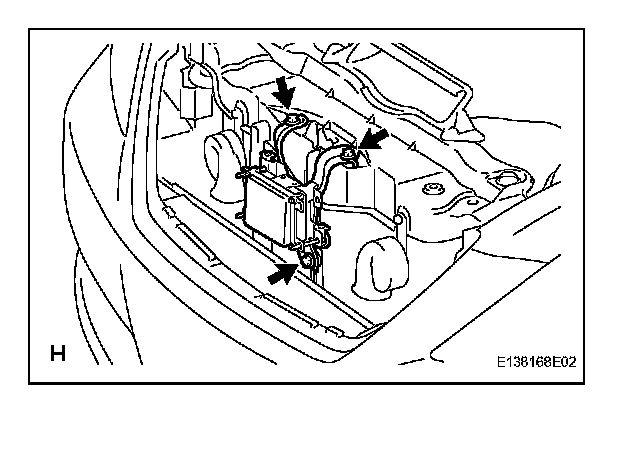

1. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY
a. Install the sensor with the 3 bolts.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

b. Connect the sensor connector.

2. ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY
3. INSTALL RADIATOR GRILLE ASSEMBLY
4. INSTALL COOL AIR INTAKE DUCT SEAL
5. INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY
6. INSTALL ENGINE ROOM SIDE COVER LH
7. INSTALL ENGINE ROOM SIDE COVER RH
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
9. INSTALL COWL TOP VENTILATOR LOUVER RH
10. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
