LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH

REMOVAL

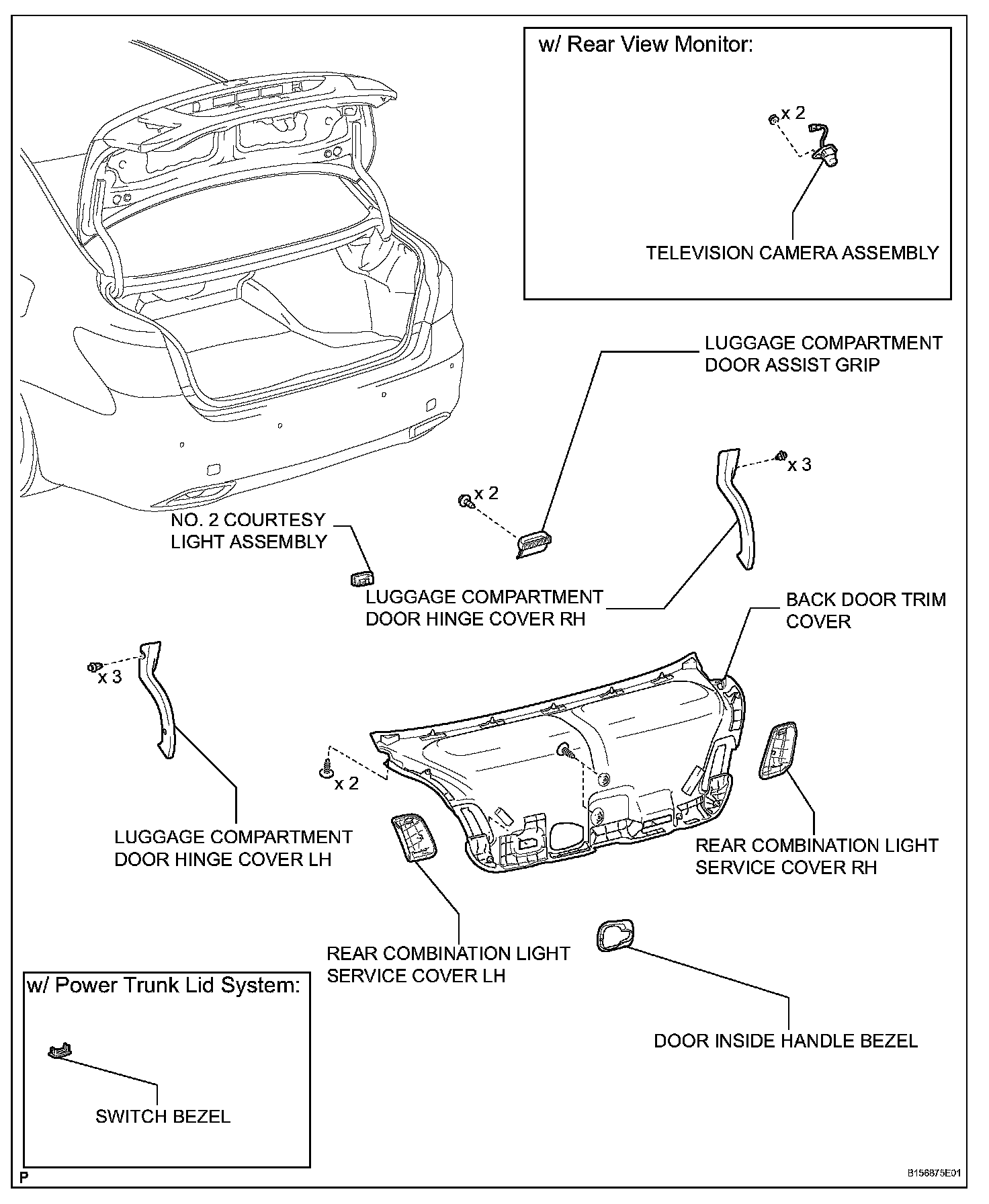

1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP
2. REMOVE DOOR INSIDE HANDLE BEZEL
3. REMOVE SWITCH BEZEL (w/ Power Trunk Lid System)
4. REMOVE NO.2 COURTESY LIGHT ASSEMBLY
5. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER LH
6. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER RH
7. REMOVE REAR COMBINATION LIGHT SERVICE COVER LH
8. REMOVE REAR COMBINATION LIGHT SERVICE COVER RH
9. REMOVE BACK DOOR TRIM COVER
10. REMOVE TELEVISION CAMERA ASSEMBLY (w/ Rear View Monitor)
11. REMOVE REAR LIGHT ASSEMBLY LH
12. REMOVE REAR LIGHT ASSEMBLY RH

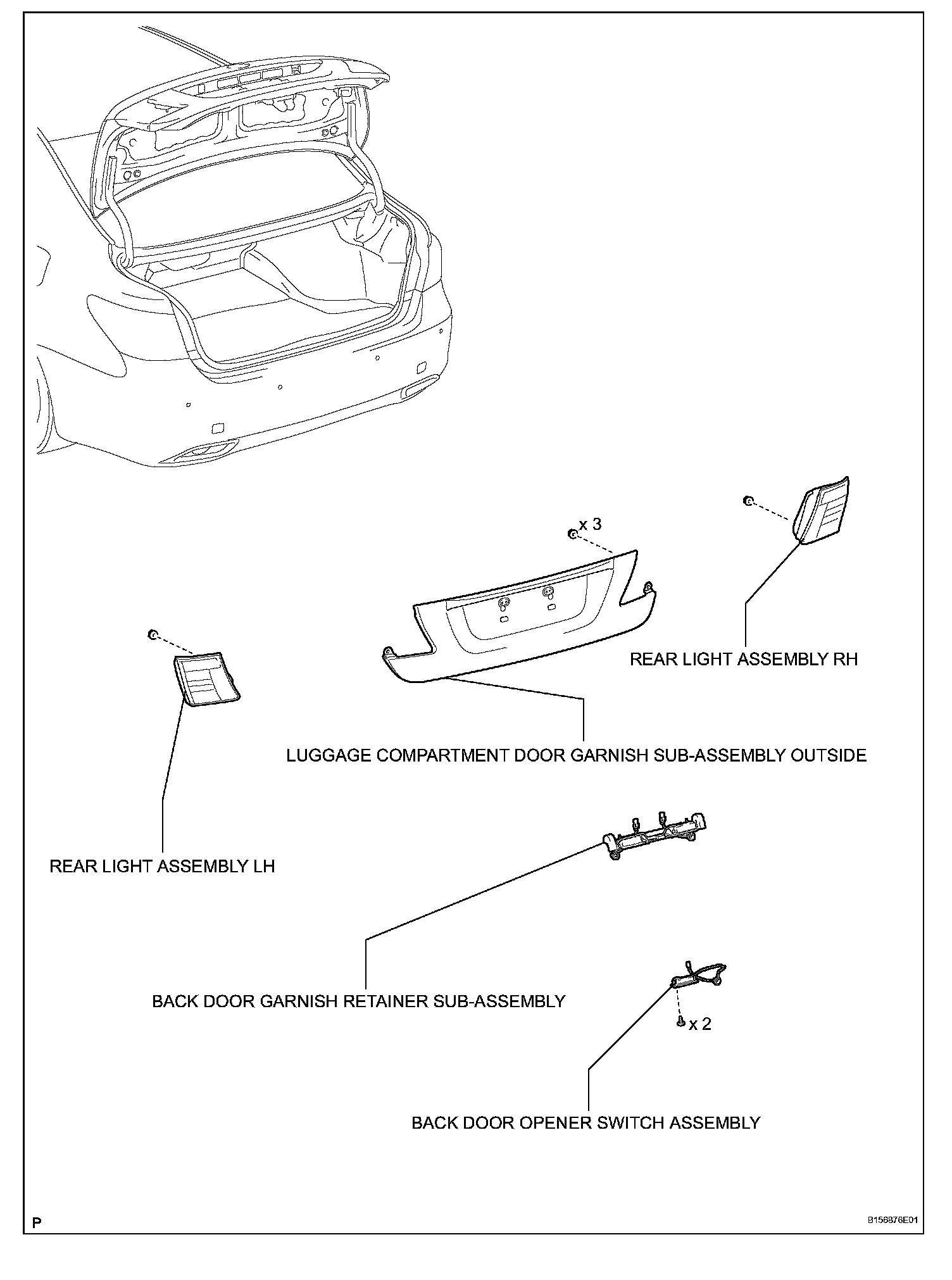

13. REMOVE LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSEMBLY OUTSIDE
14. REMOVE BACK DOOR GARNISH RETAINER SUB-ASSEMBLY
15. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

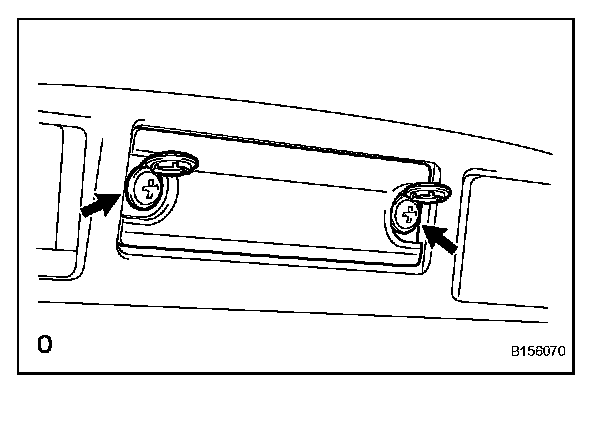

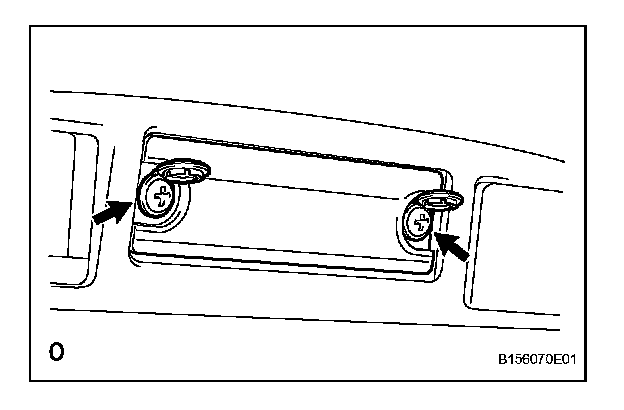

a. Open the screw caps and remove the 2 screws.




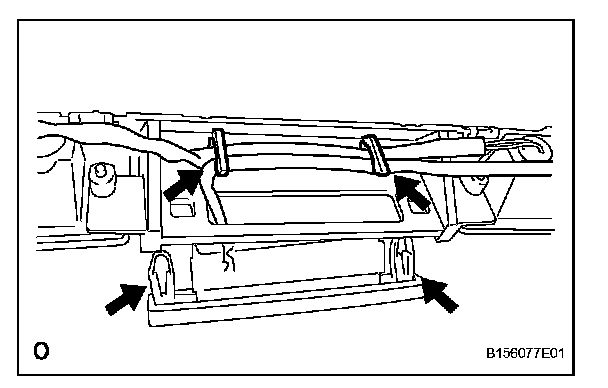

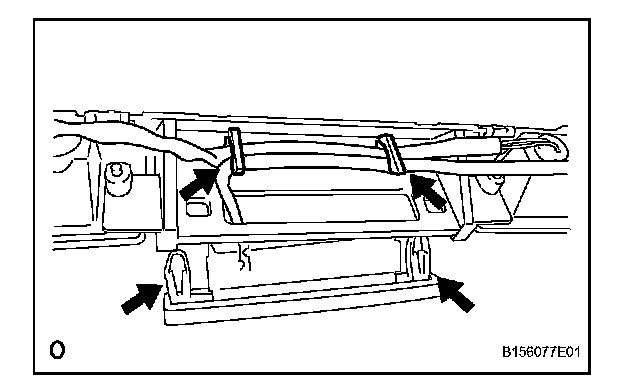

b. Detach the 4 claws and remove the opener switch.

INSTALLATION

1. INSTALL BACK DOOR OPENER SWITCH ASSEMBLY




a. Attach the 4 claws to install the opener switch.




b. Install the 2 screws and close the screw caps.

2. INSTALL BACK DOOR GARNISH RETAINER SUB-ASSEMBLY
3. INSTALL LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSEMBLY OUTSIDE
4. INSTALL REAR LIGHT ASSEMBLY RH
5. INSTALL REAR LIGHT ASSEMBLY LH
6. INSTALL TELEVISION CAMERA ASSEMBLY (w/ Rear View Monitor)
7. INSTALL BACK DOOR TRIM COVER
8. INSTALL REAR COMBINATION LIGHT SERVICE COVER RH
9. INSTALL REAR COMBINATION LIGHT SERVICE COVER LH
10. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER RH
11. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER LH
12. INSTALL NO.2 COURTESY LIGHT ASSEMBLY
13. INSTALL SWITCH BEZEL (w/ Power Trunk Lid System)
14. INSTALL DOOR INSIDE HANDLE BEZEL
15. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP
