Rear Climate Control Seat Switch (For Front Side)

INSPECTION

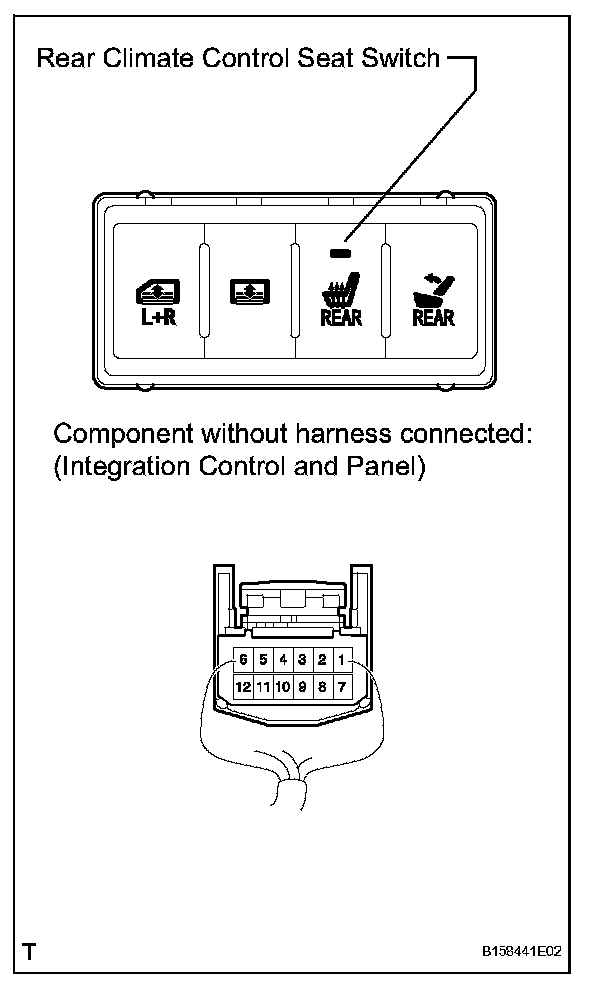

1. INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY

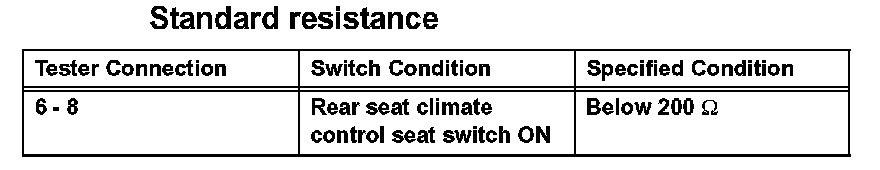

a. Measure the resistance between the terminals when the switch is operated.





If the result is not as specified, replace the integration control and panel.
