Seat Climate Control Switch (For Front Side)

SEAT CLIMATE CONTROL SWITCH (For Front Side)

Seat Climate Control Switch (For Front Side):

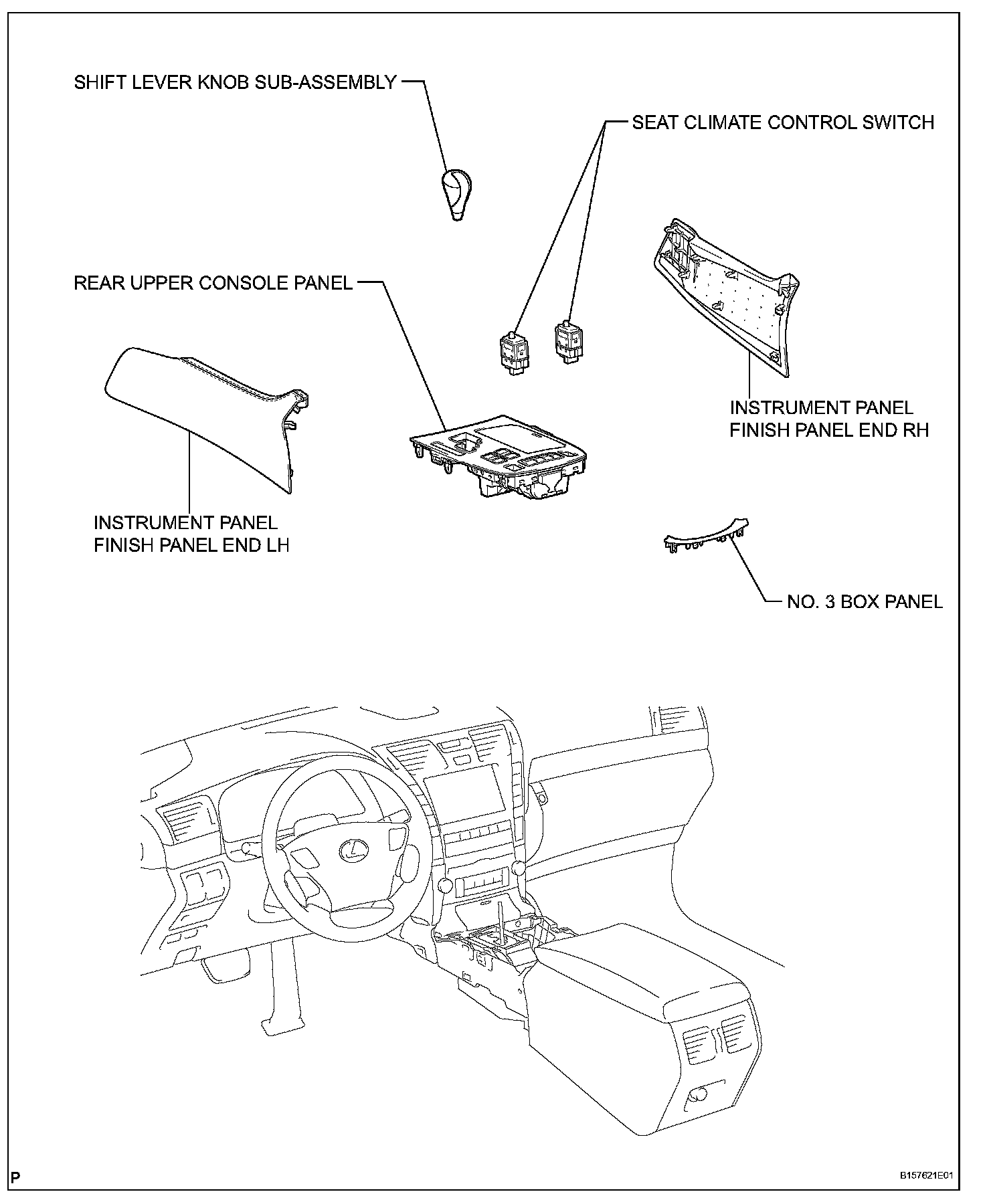

REMOVAL

1. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
2. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
4. REMOVE NO. 3 BOX PANEL
5. REMOVE REAR UPPER CONSOLE PANEL





6. REMOVE SEAT CLIMATE CONTROL SWITCH

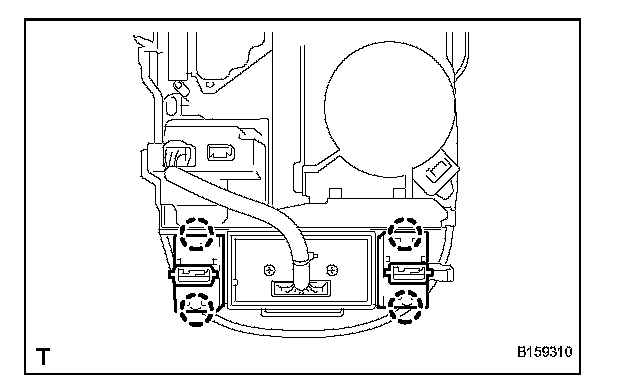

a. Detach the 4 claws and remove the 2 switches.

INSTALLATION

1. INSTALL SEAT CLIMATE CONTROL SWITCH

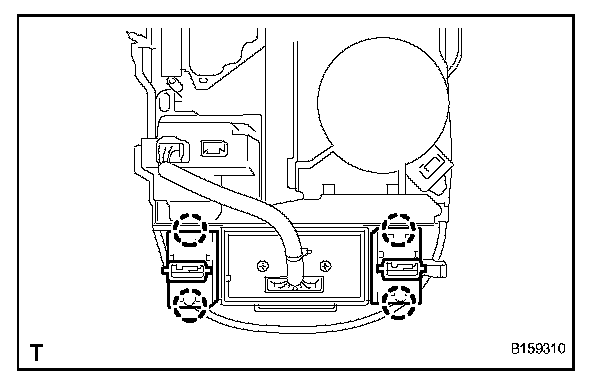

a. Attach the 4 claws and install the 2 switches.

2. INSTALL REAR UPPER CONSOLE PANEL
3. INSTALL NO. 3 BOX PANEL
4. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
5. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
6. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
