Rear Climate Control Seat Switch (For Front Side)

REAR CLIMATE CONTROL SEAT SWITCH (For Front Side)

Rear Climate Control Seat Switch (For Front Side):

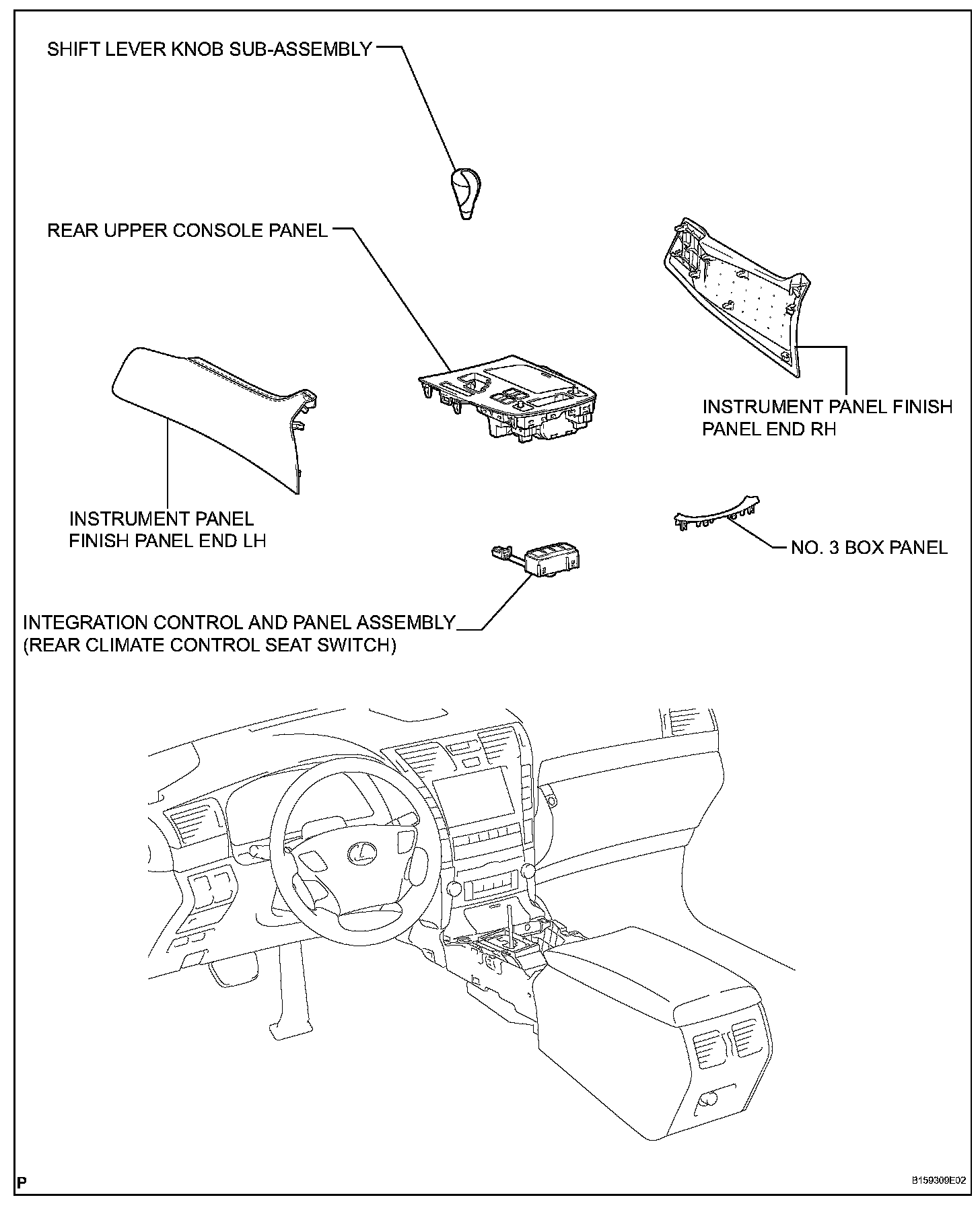

REMOVAL

1. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
2. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
4. REMOVE NO. 3 BOX PANEL
5. REMOVE REAR UPPER CONSOLE PANEL





6. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

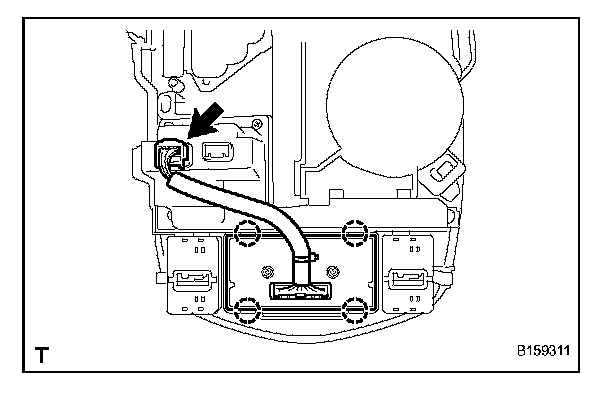

a. Disconnect the connector.
b. Detach the 4 claws and remove the integration control and panel.

INSTALLATION

1. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY





a. Attach the 4 claws and install the integration control and panel.
b. Connect the connector.

2. INSTALL REAR UPPER CONSOLE PANEL
3. INSTALL NO. 3 BOX PANEL
4. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
5. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
6. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
