Power Seat Switch (For Passenger Side)

POWER SEAT SWITCH (For Front Passenger Side)

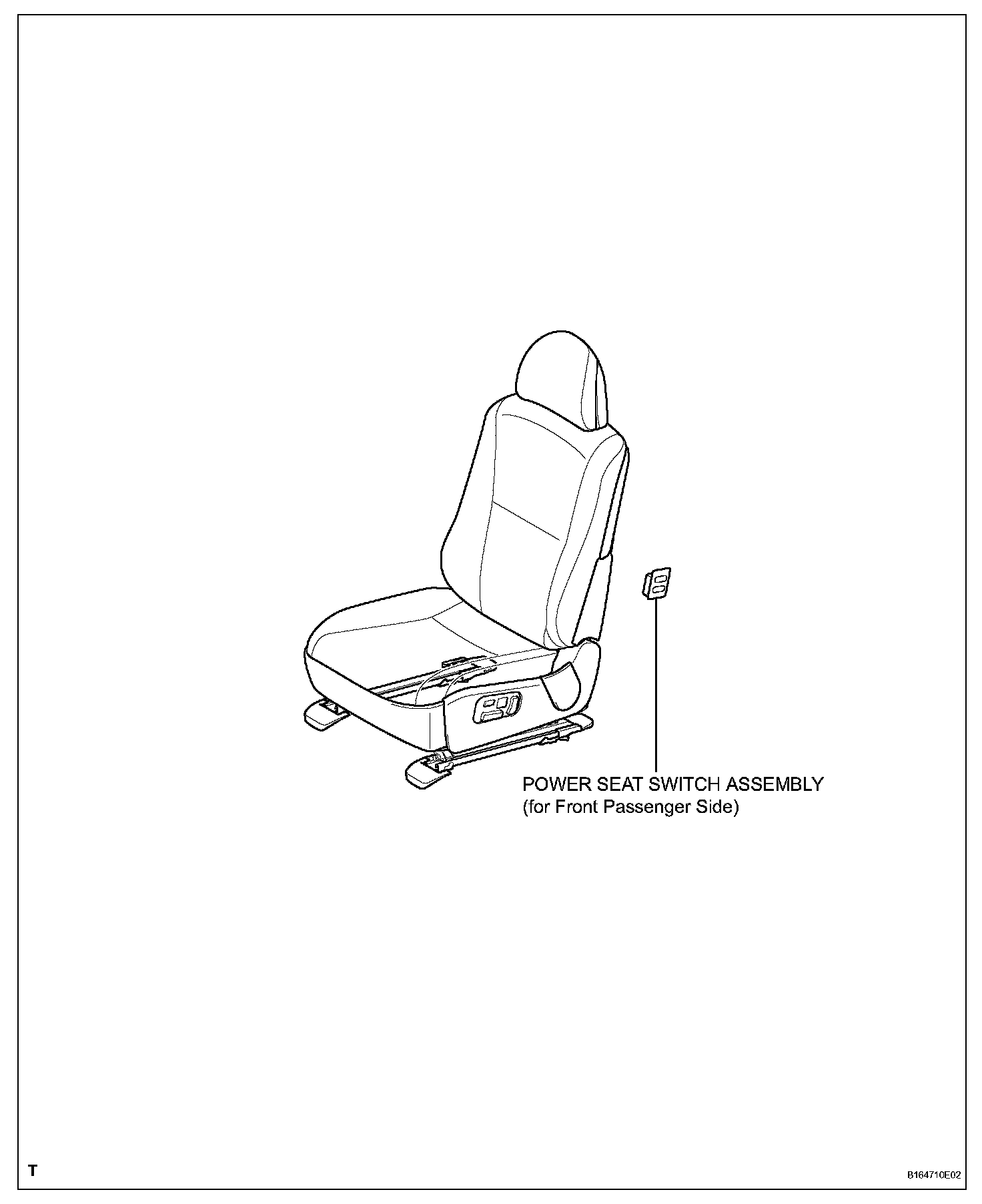

Power Seat Switch (For Front Passenger Side):

REMOVAL

1. REMOVE POWER SEAT SWITCH ASSEMBLY (for Front Passenger Side)

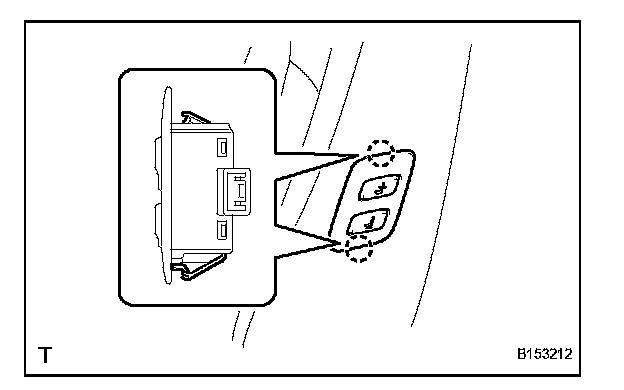

a. Using a screwdriver, detach the 2 claws and remove the power seat switch.

HINT: Tape the screwdriver tip before use.

b. Disconnect the connector.

INSTALLATION

1. INSTALL POWER SEAT SWITCH ASSEMBLY (for Front Passenger Side)





a. Connect the connector.
b. Attach the 2 claws and install the power seat switch.
