Remote Switch: Testing and Inspection

INSPECTION

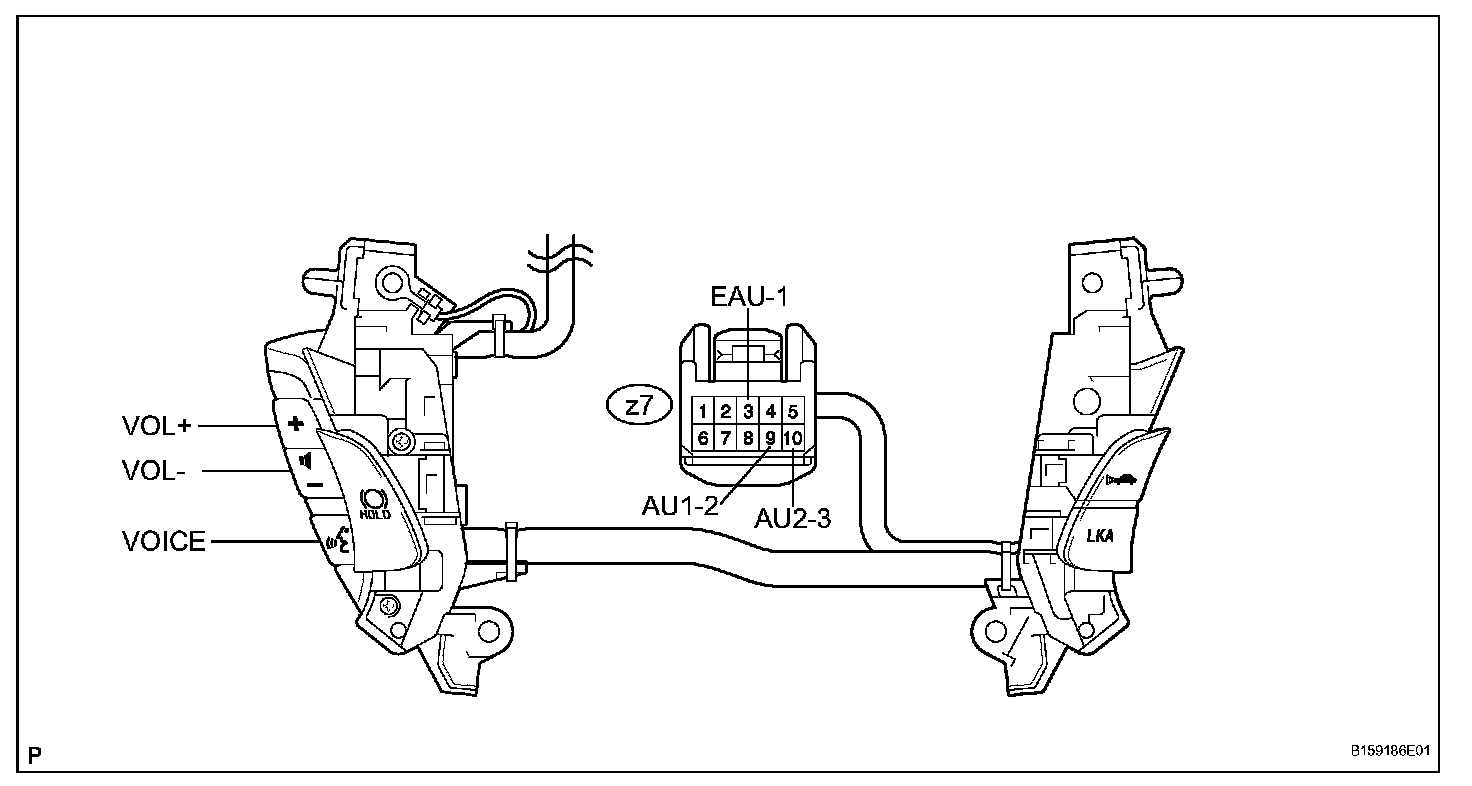

1. INSPECT STEERING PAD SWITCH ASSEMBLY (STEERING WHEEL SIDE)







a. Disconnect the switch connector.

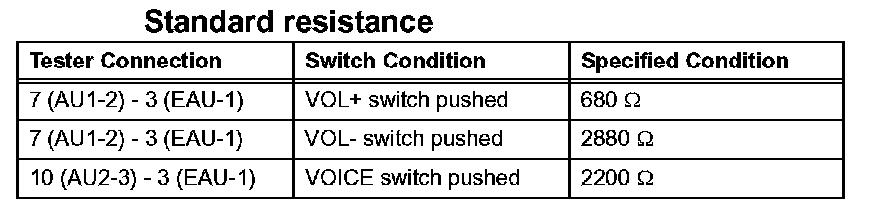

b. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the switch assembly.

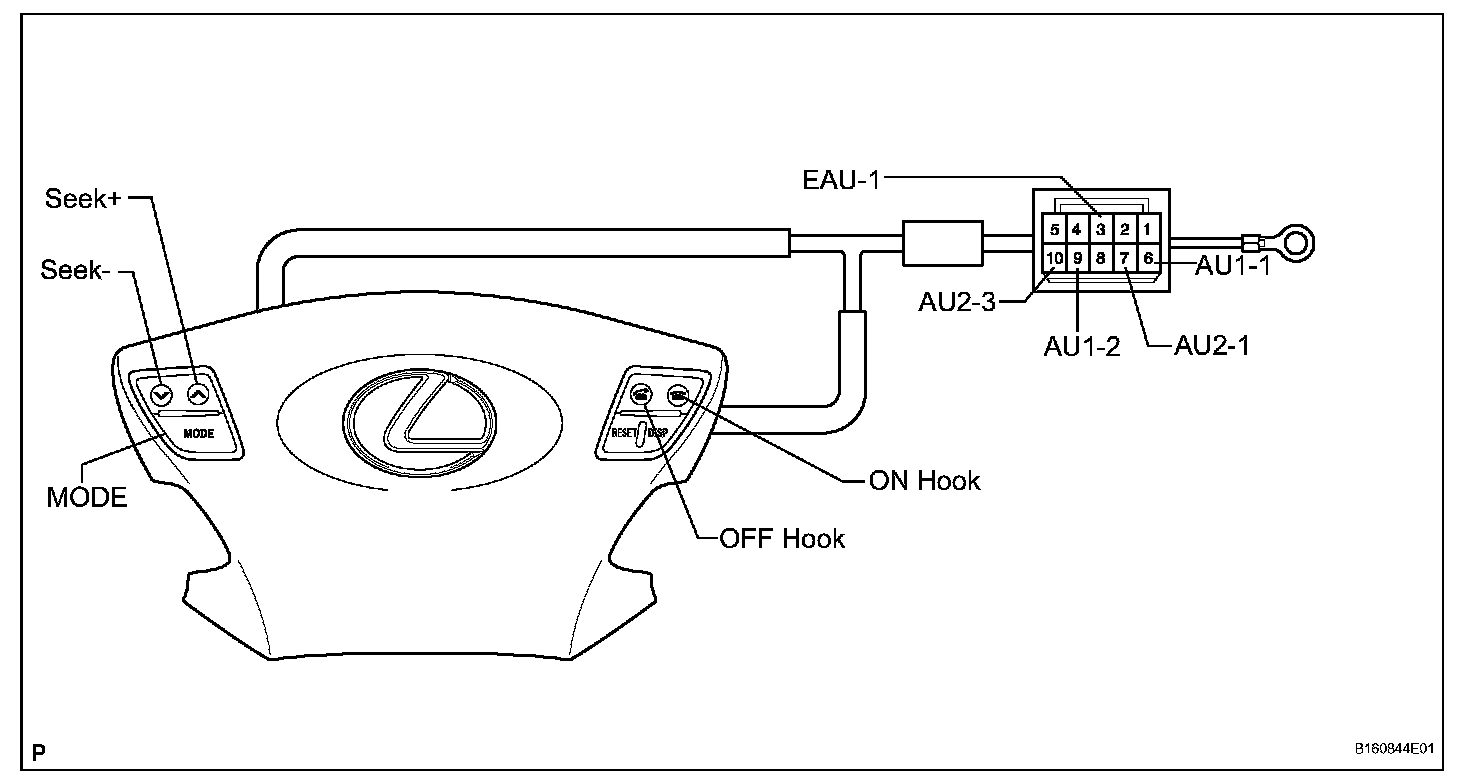

2. INSPECT STEERING PAD SWITCH ASSEMBLY (STEERING PAD SIDE)







a. Disconnect the switch connector.

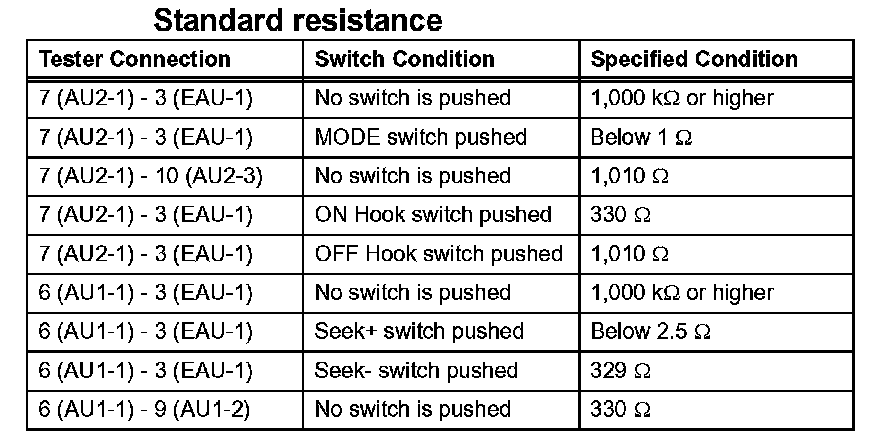

b. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the switch assembly.
