Remote Switch: Service and Repair

Steering Pad Switch:

STEERING PAD SWITCH

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

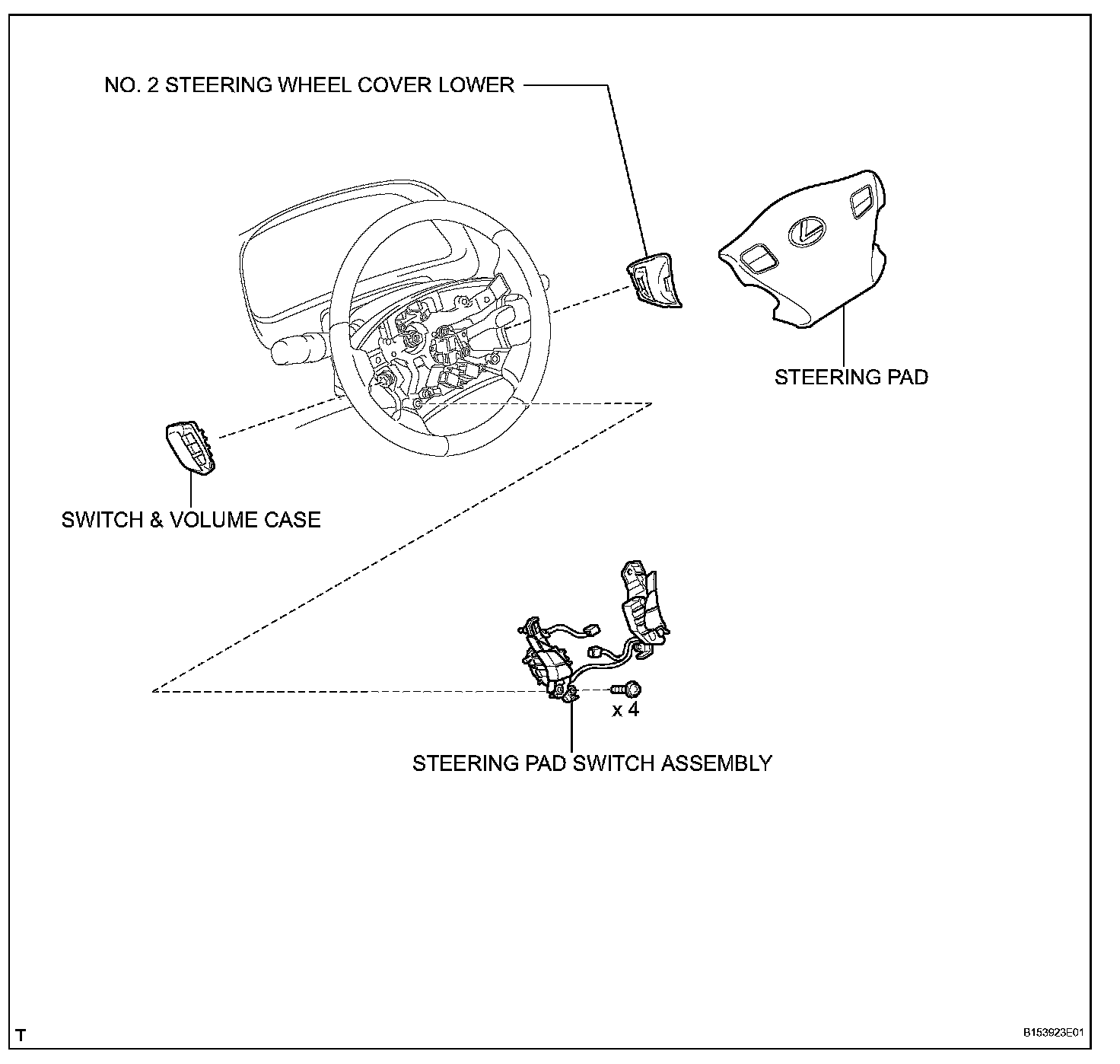

2. REMOVE SWITCH & VOLUME CASE
3. REMOVE NO. 2 STEERING WHEEL COVER LOWER
4. REMOVE STEERING PAD

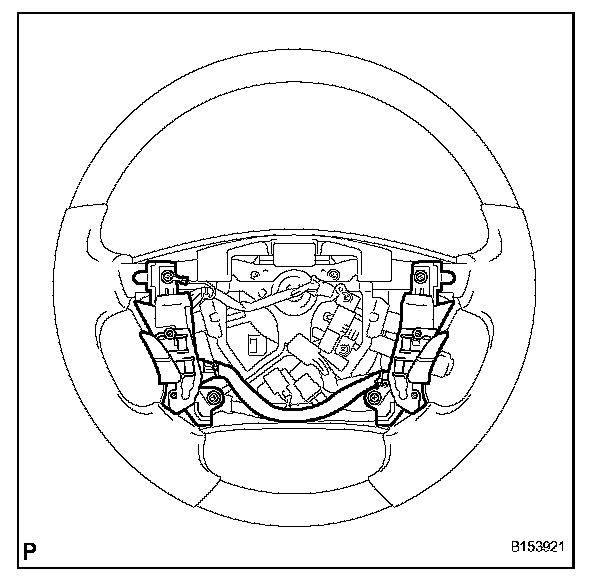

5. REMOVE STEERING PAD SWITCH ASSEMBLY




a. Disconnect the connector.
b. Remove the 4 screws and steering pad switch.

INSTALLATION

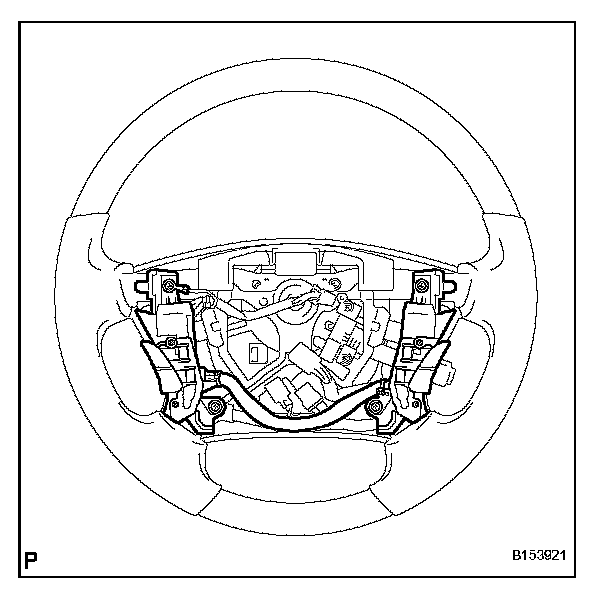

1. INSTALL STEERING PAD SWITCH ASSEMBLY




a. Install the switch with the 4 screws.
b. Connect the connector.

2. INSTALL STEERING PAD
3. INSTALL SWITCH & VOLUME CASE
4. INSTALL NO. 2 STEERING WHEEL COVER LOWER
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. INSPECT STEERING PAD
7. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

8. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
