Front Passenger Side Seat Belt Anchor Does Not Operate Manually
Front Passenger Side Seat Belt Anchor does not Operate ManuallyDESCRIPTION
When the shoulder belt anchorage switch's UP or DOWN switch are pressed, an UP or DOWN signal is sent to the front door ECU RH. Then the signal is sent to the rear junction block ECU through CAN communication. Based on the received signal, the rear junction block ECU moves the shoulder belt anchor RH up or down.

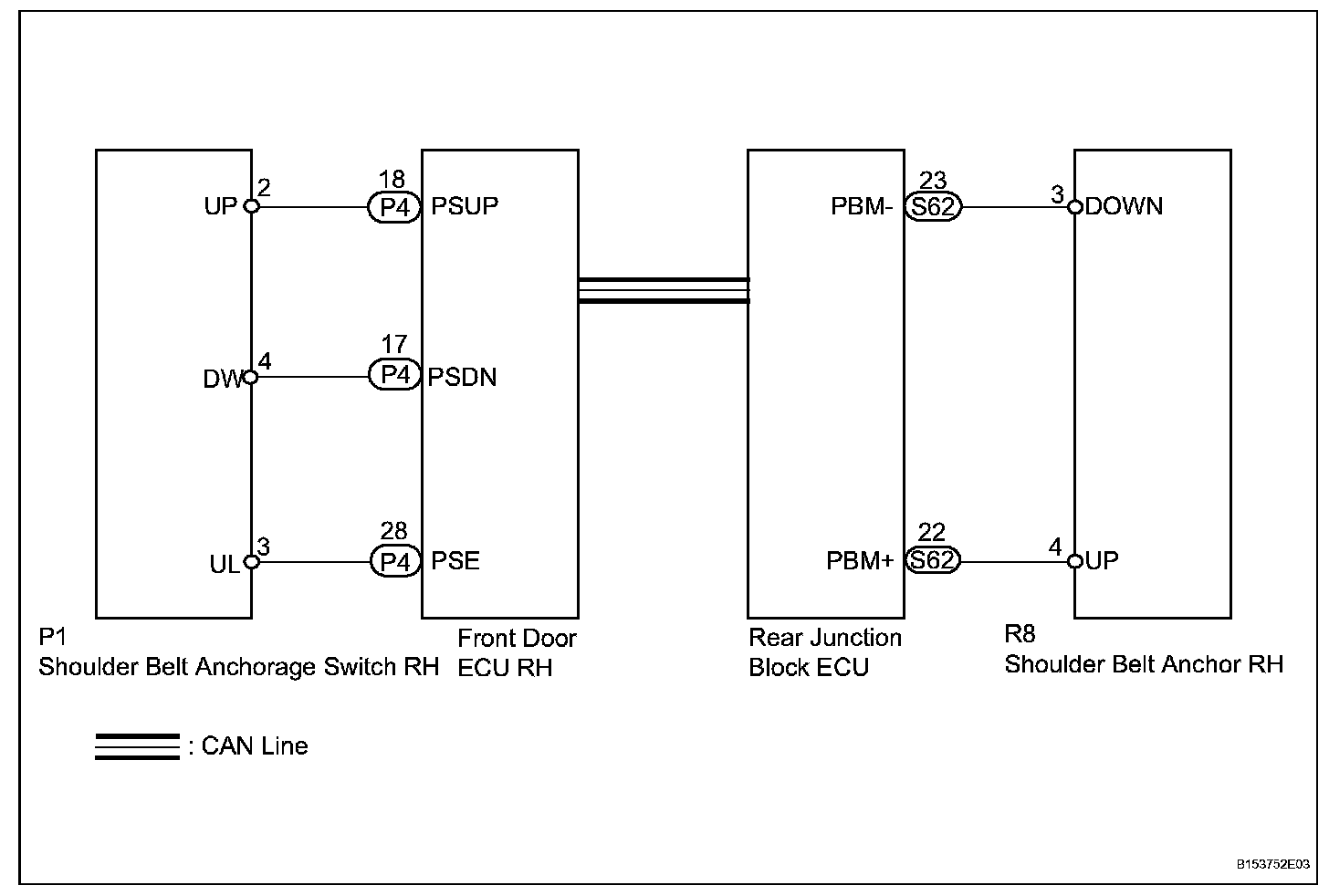

Wiring Diagram:

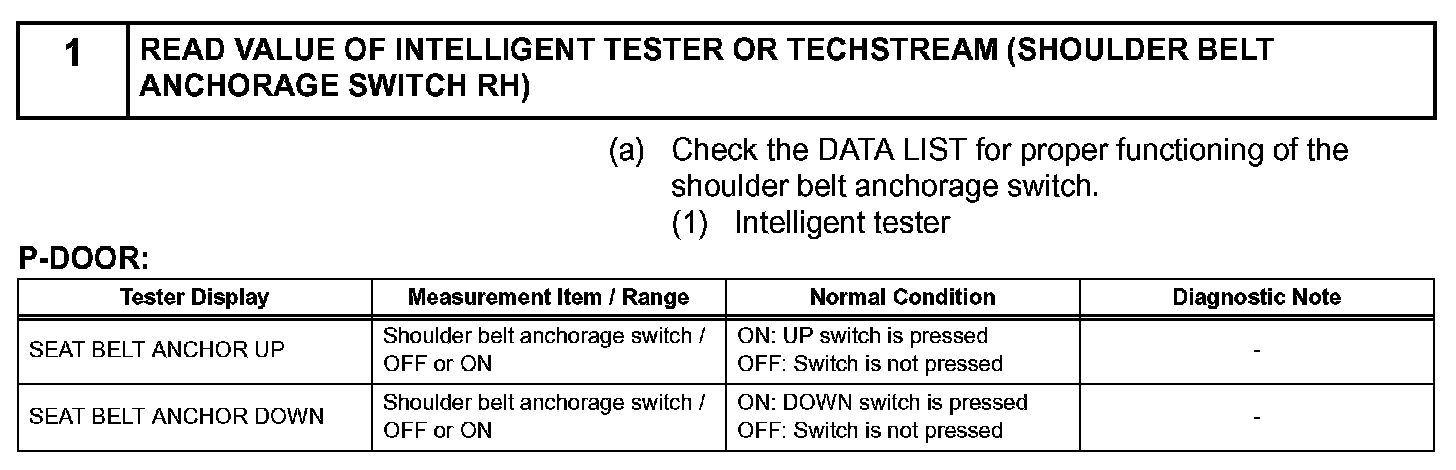

Step 1:

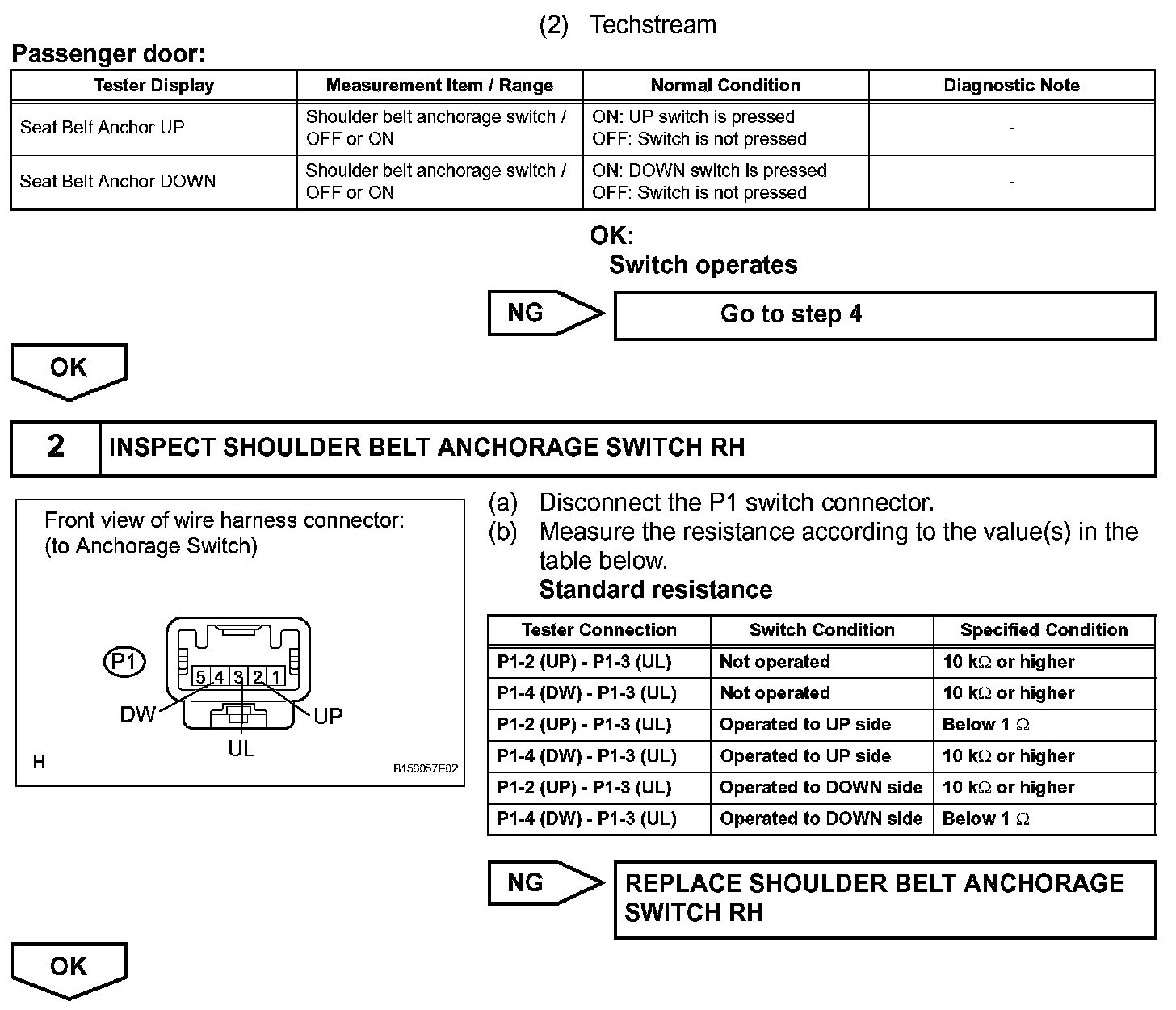

Step 1 (Continued)-2:

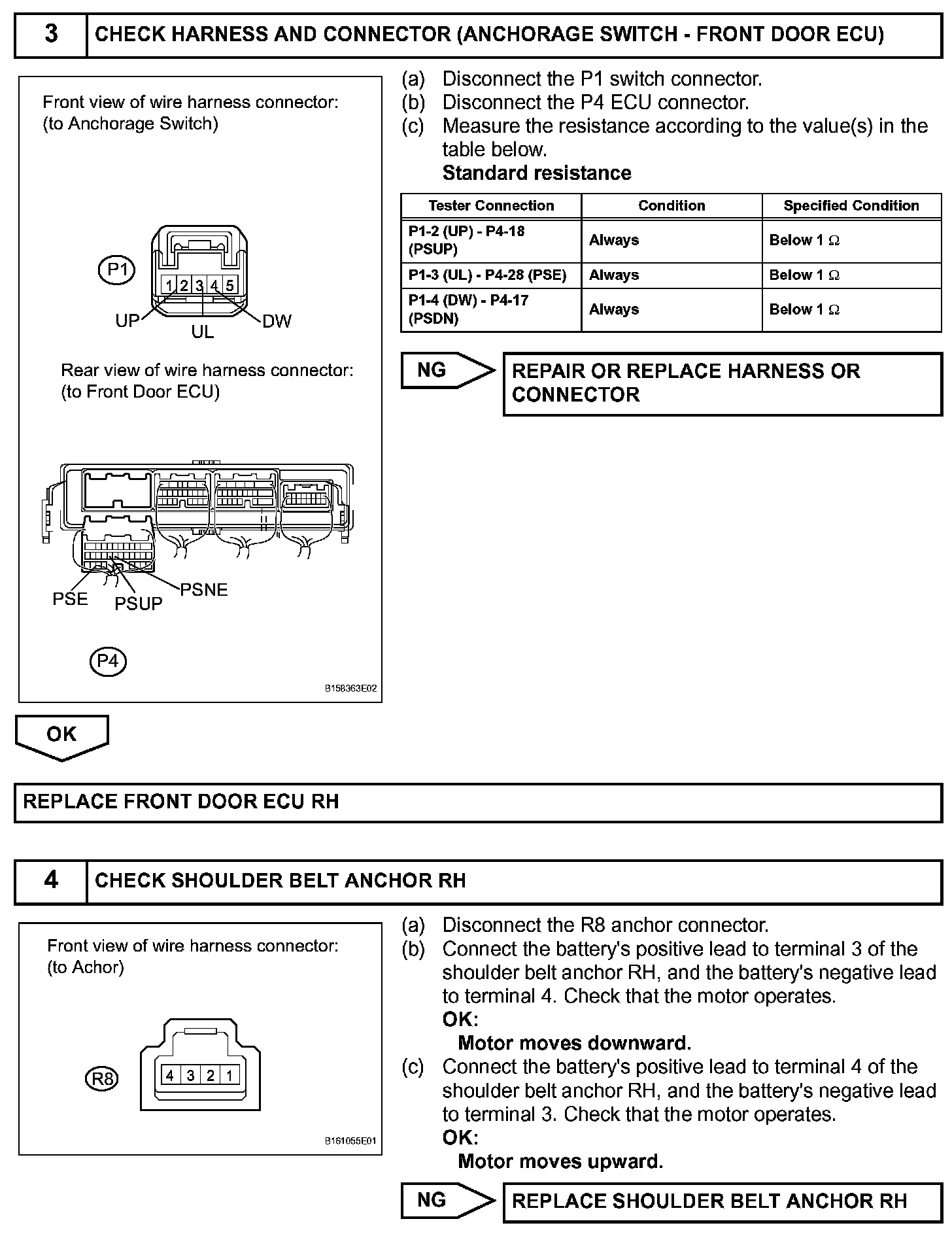

Step 3-4:

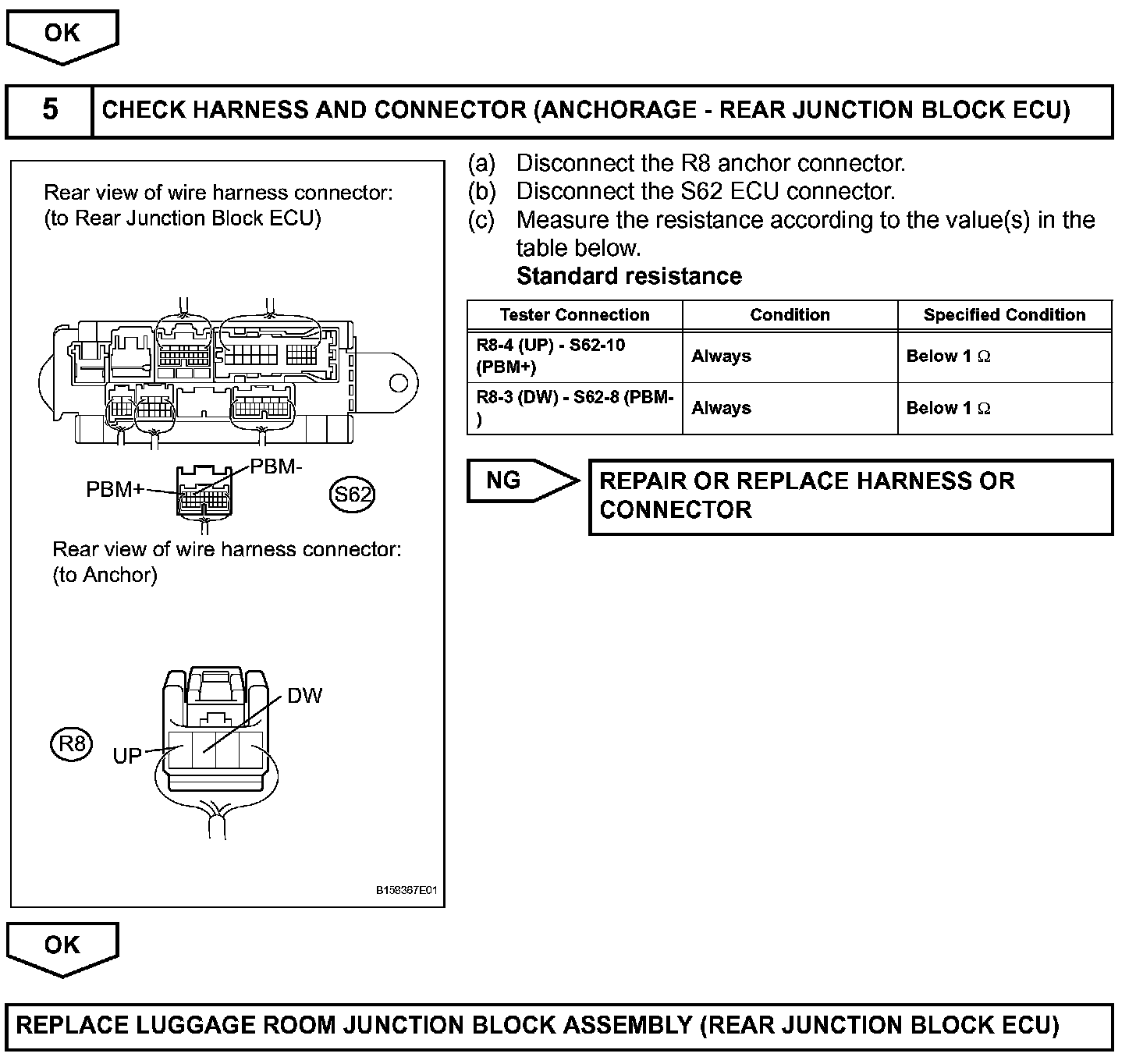

Step 4 (Continued)-5:
INSPECTION PROCEDURE
