Seat Belt Warning System

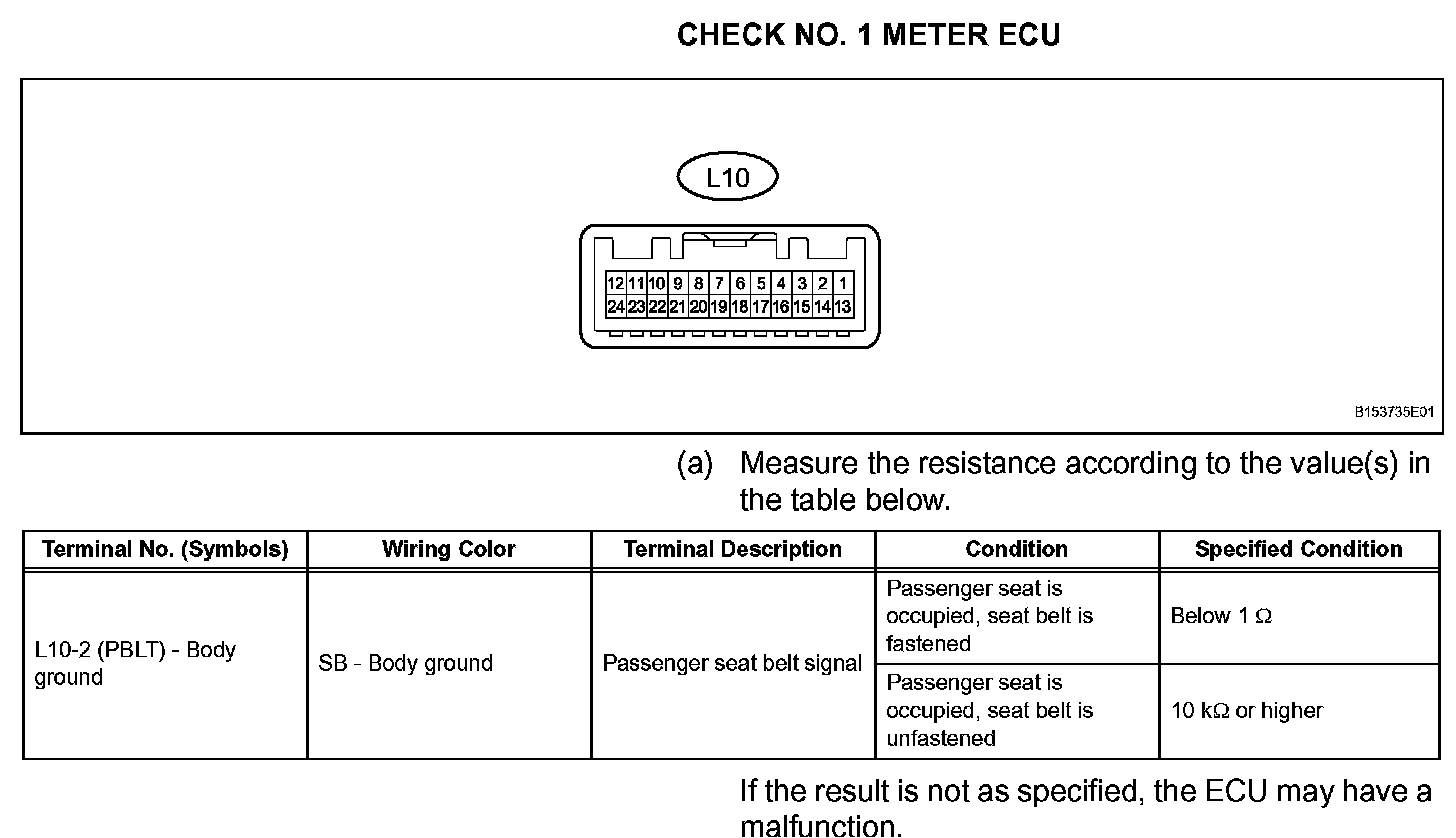

Terminals Of Control Module/Pinouts-Check No. 1 Meter ECU:

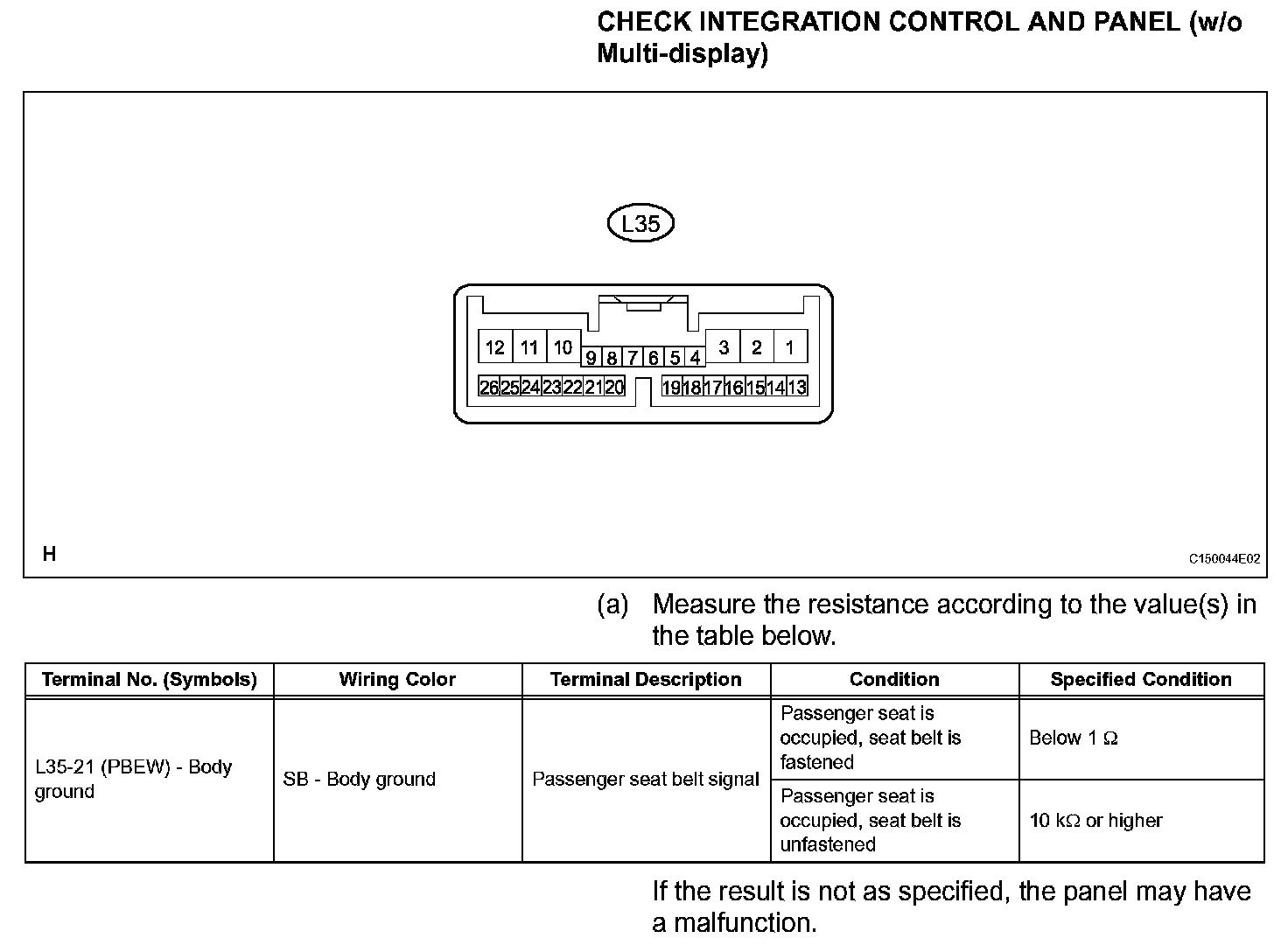

Terminals Of Control Module/Pinouts-Check Integration Control And Panel (w/o Multi-display):

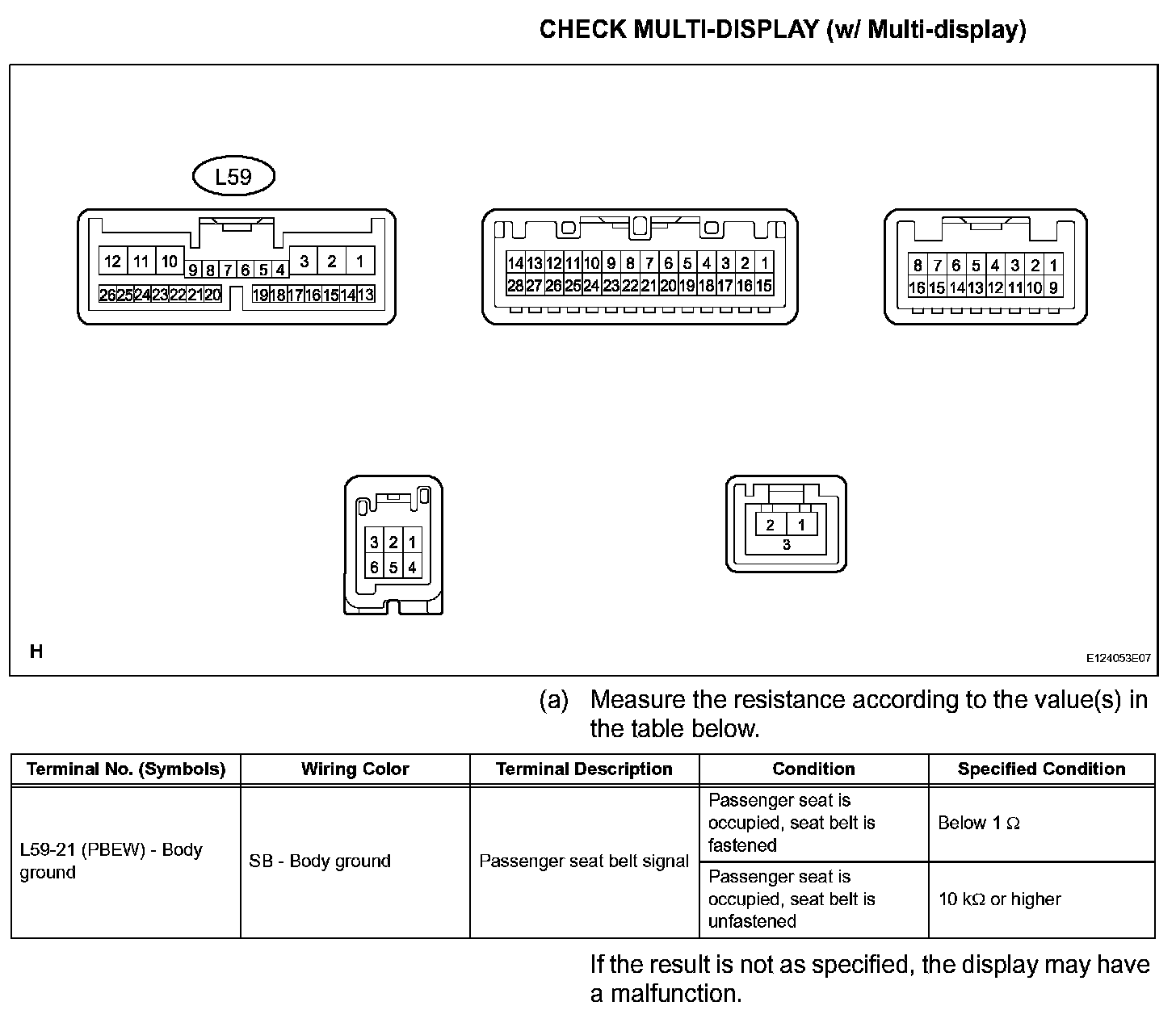

Terminals Of Control Module/Pinouts-Check Multi-Display (w/ Multi-Display):

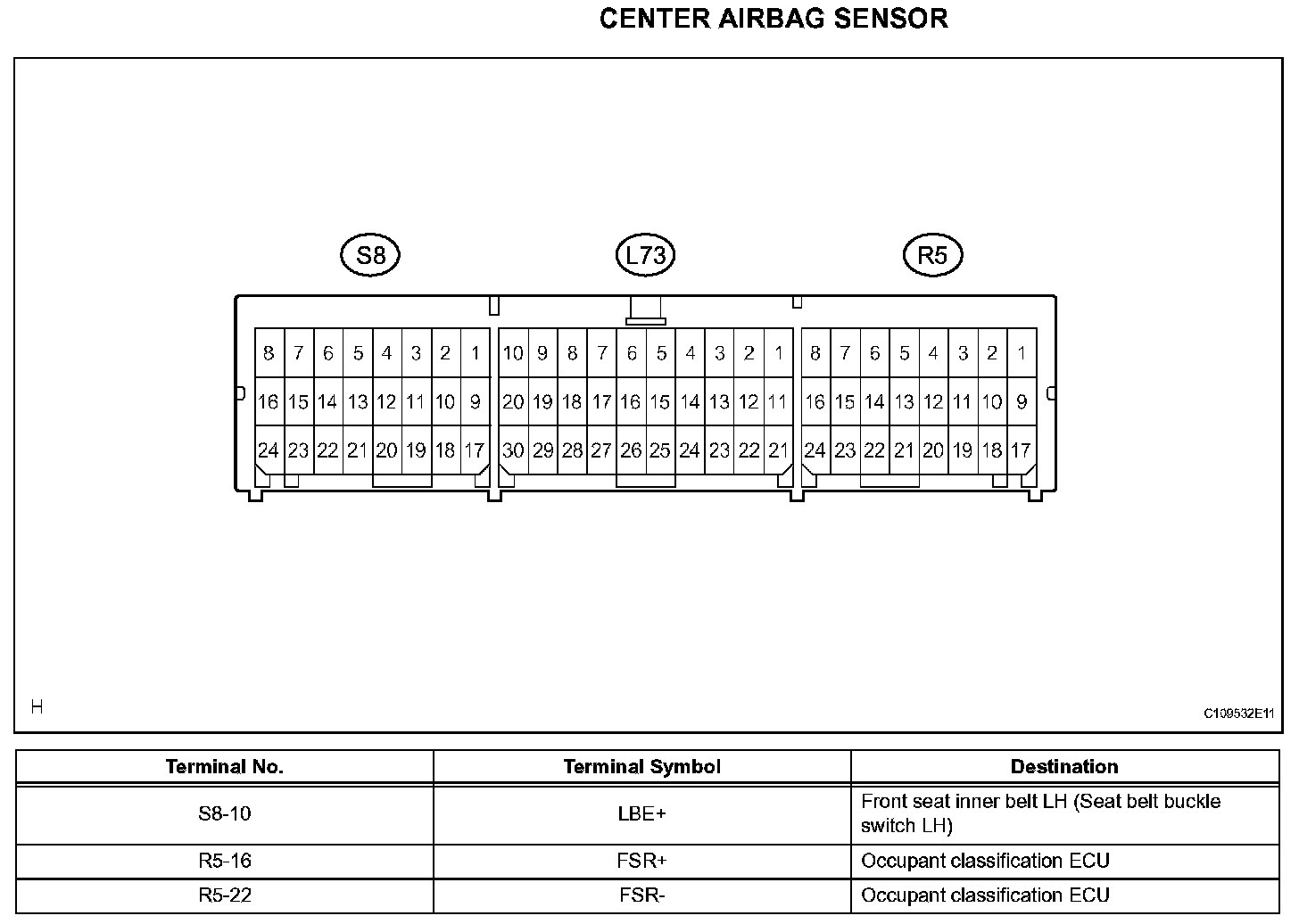

Terminals Of Control Module/Pinouts-Center Airbag Sensor:

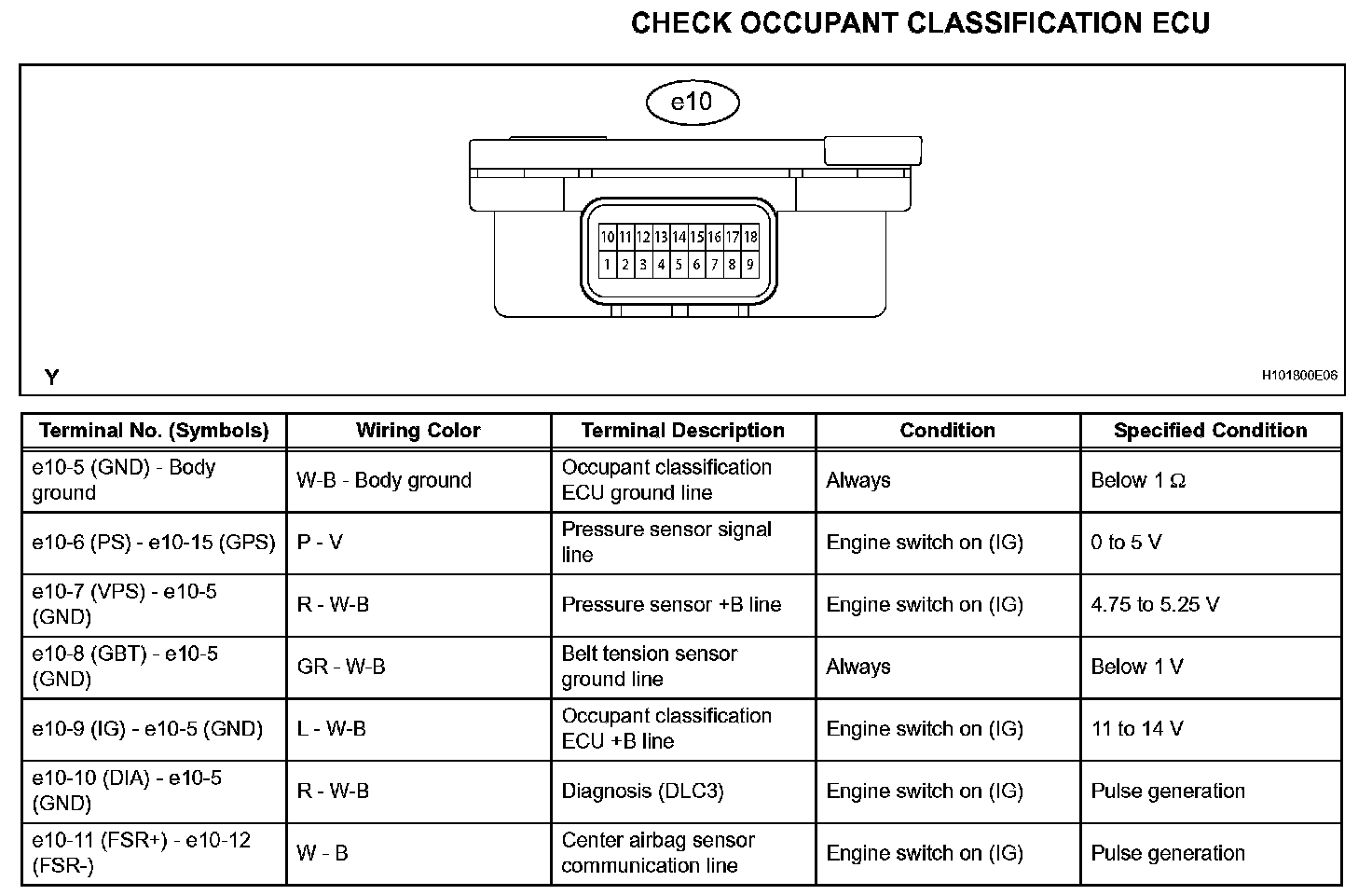

Terminals Of Control Module/Pinouts-Check Occupant Classification ECU (Part 1):

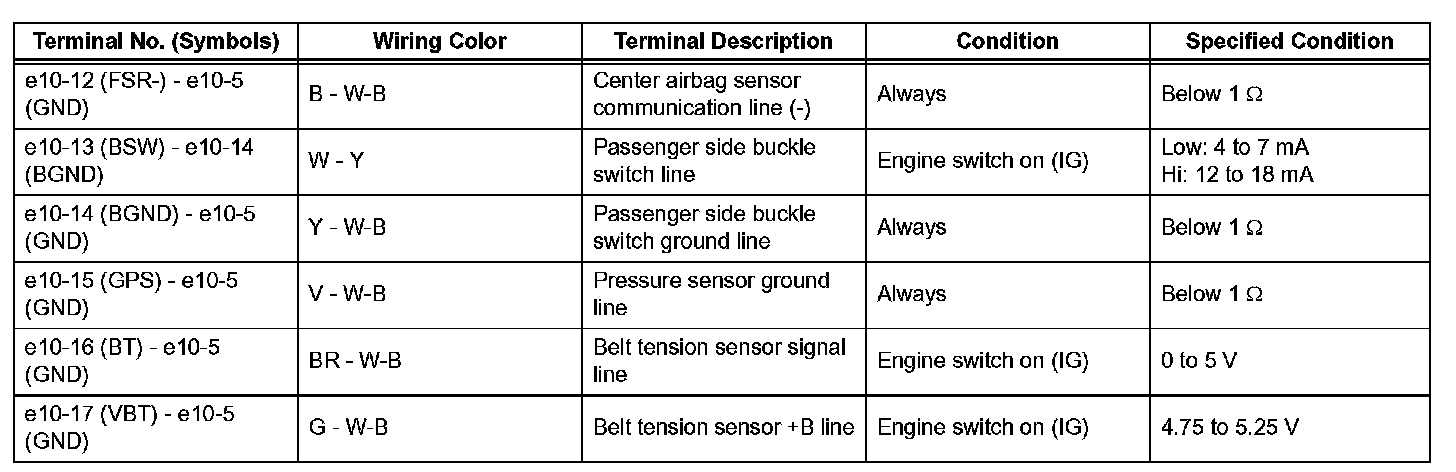

Terminals Of Control Module/Pinouts-Check Occupant Classification ECU (Part 2):
