Front Seat Inner Belt Assembly
INSPECTION1. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH

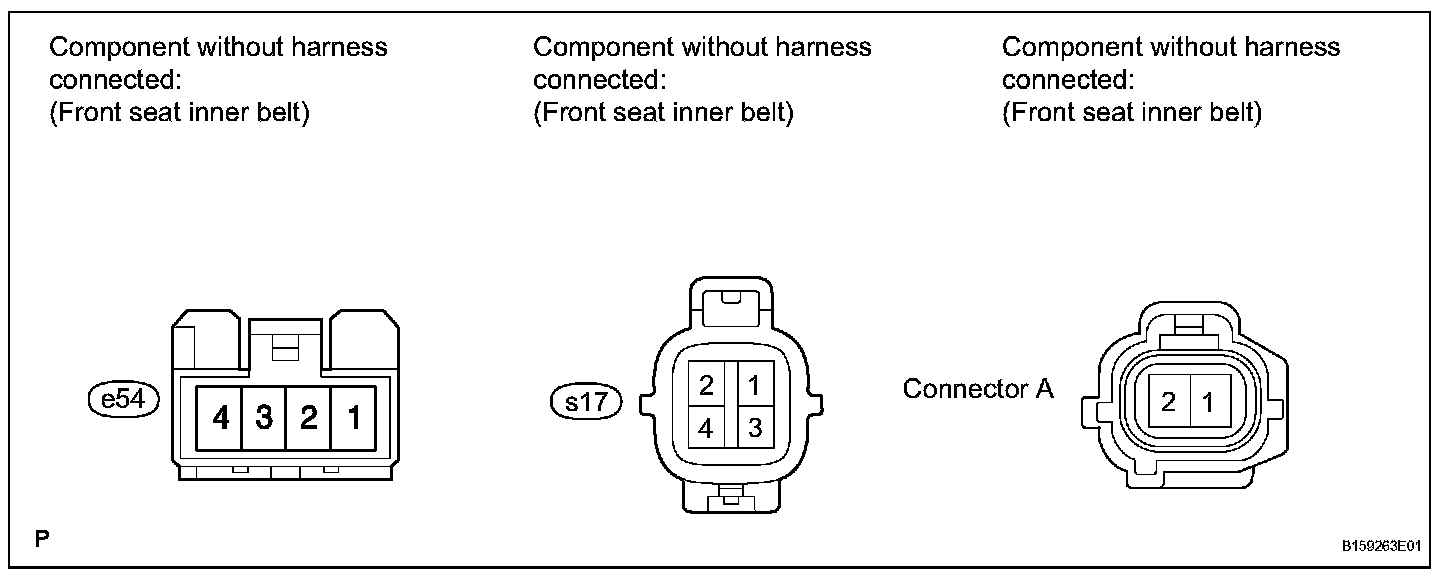

a. Check the buckle switch.

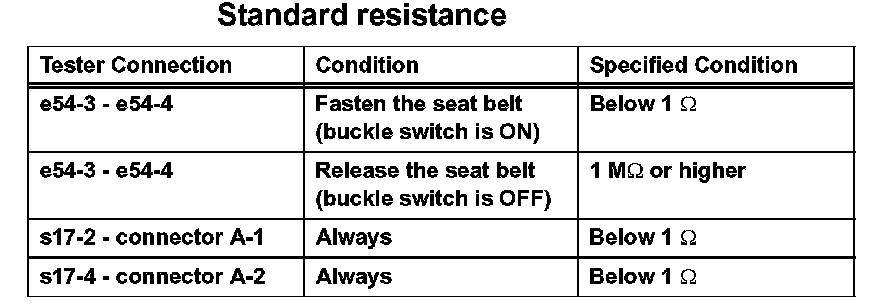

1. Measure the resistance according to the value(s) in the table.
If the result is not as specified, replace the inner belt assembly.

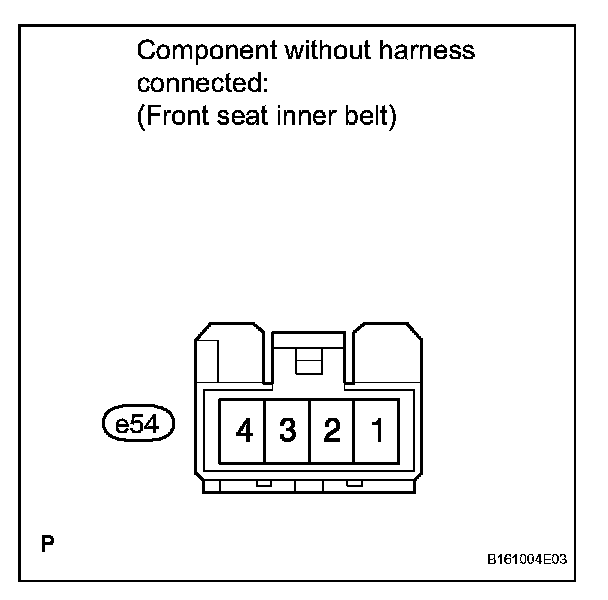

b. Check that the LED illuminates.

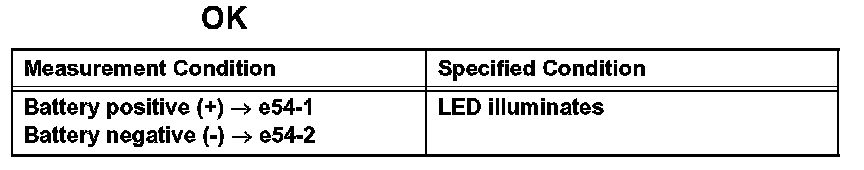

1. Apply battery voltage to the front seat inner belt and check that the LED illuminates.
If the result is not as specified, replace the inner belt assembly.
2. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH

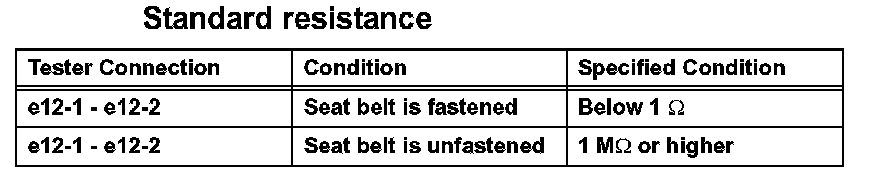

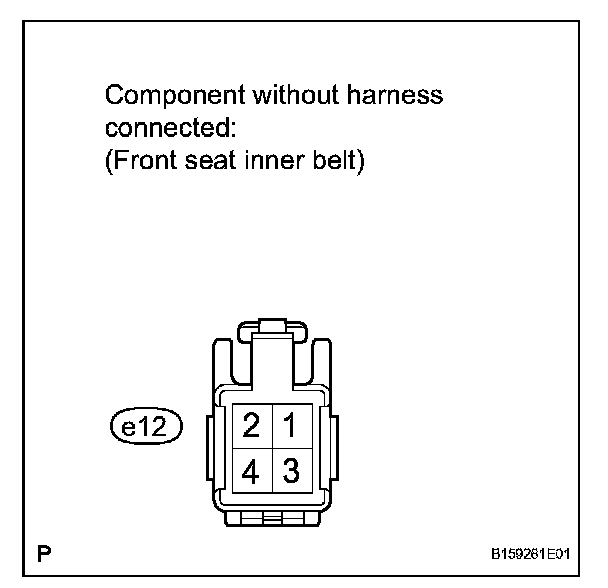

a. Check the buckle switch. Standard resistance

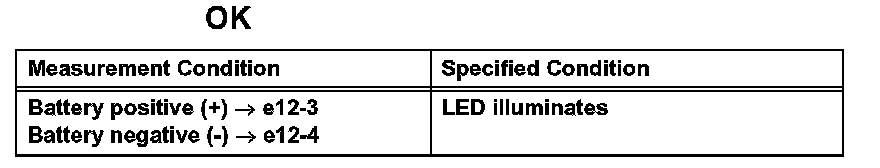

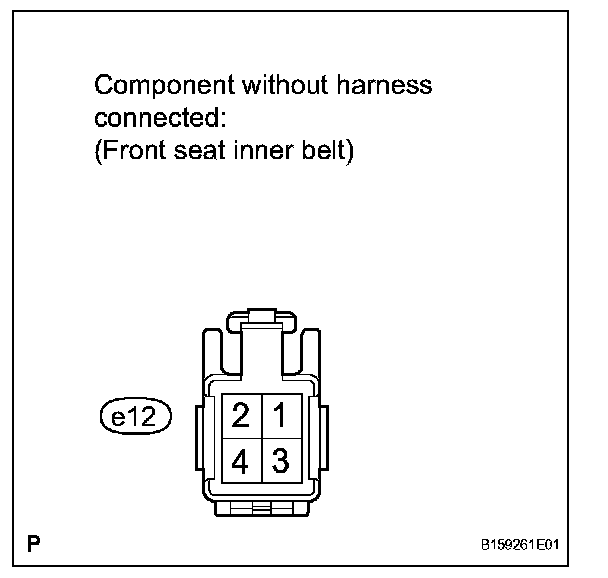

1. Apply battery voltage to the front seat inner belt and check that the LED illuminates. OK
If the result is not as specified, replace the inner belt assembly.
