Seat Belt Systems: Service and Repair

Front Seat Inner Belt Assembly:

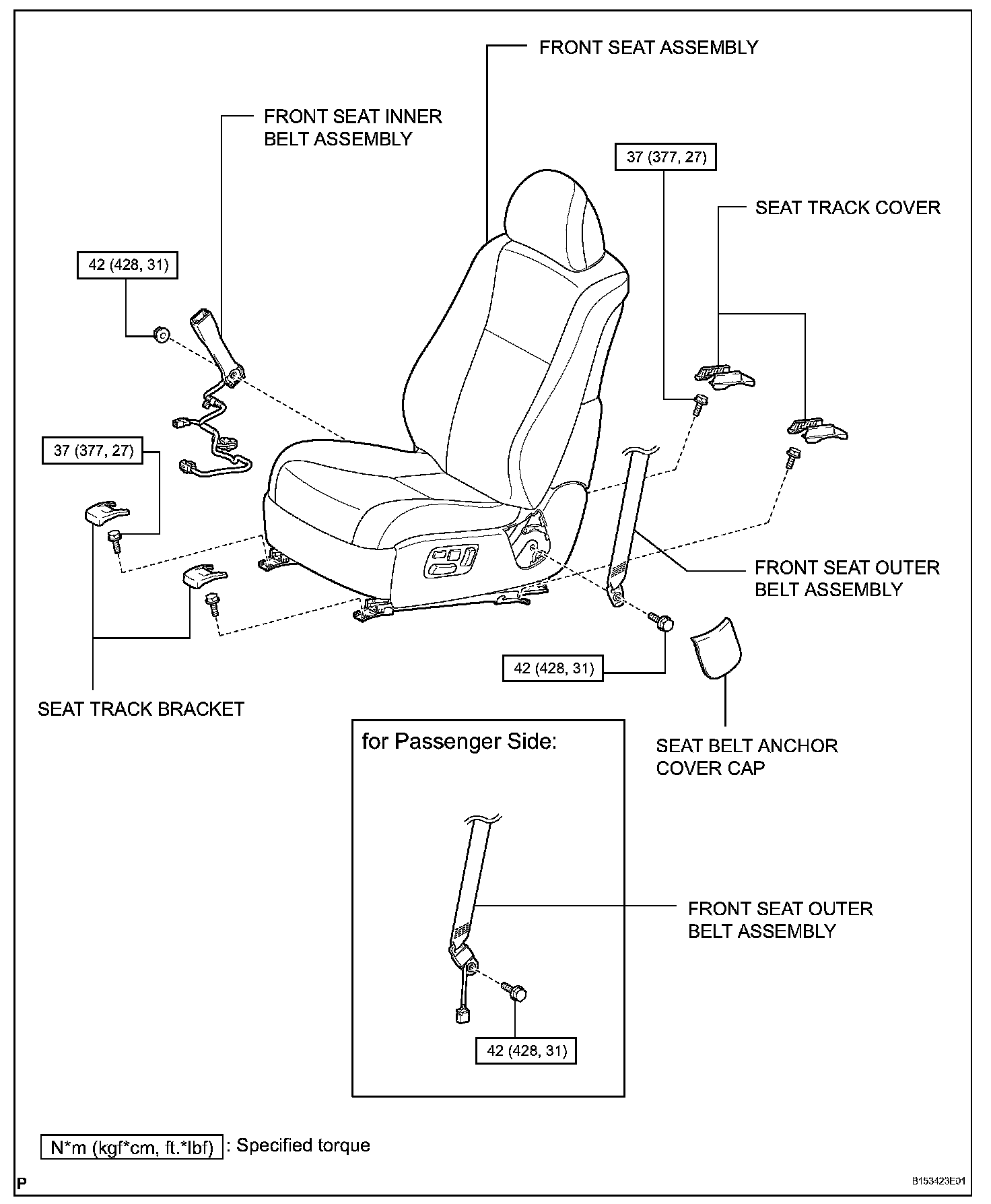

FRONT SEAT INNER BELT ASSEMBLY

REMOVAL

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. REMOVE COWL TOP VENTILATOR LOUVER RH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY
4. REMOVE FRONT SEAT ASSEMBLY
5. REMOVE FRONT SEAT INNER BELT ASSEMBLY

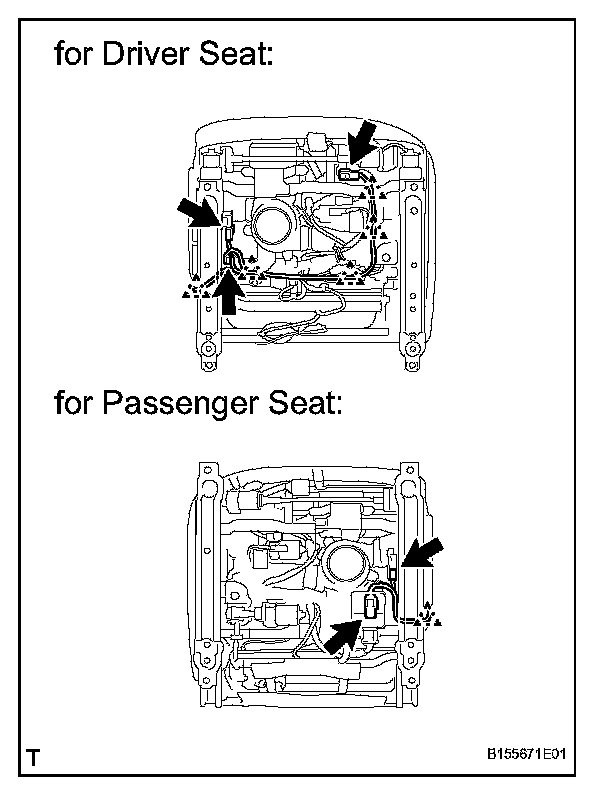

a. for Driver Seat:
Disconnect the 3 connectors and detach the 5 clamps.

b. for Passenger Seat:
Disconnect the 2 connectors and detach the clamp.

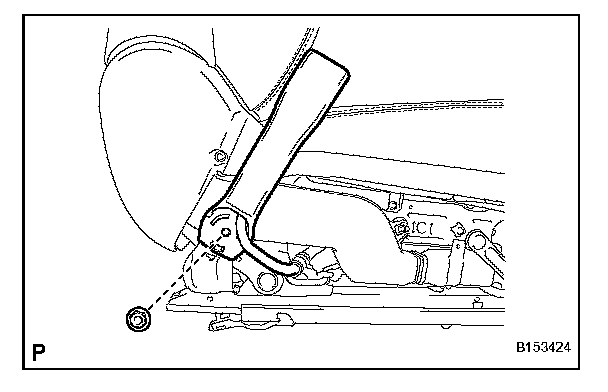

c. Remove the nut and front seat inner belt assembly.

INSTALLATION

1. INSTALL FRONT SEAT INNER BELT ASSEMBLY




a. Install the front seat inner belt assembly with the nut.

Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

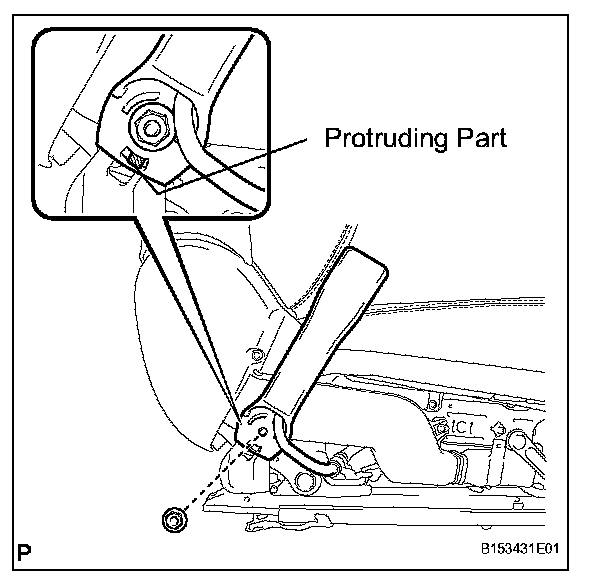

NOTE: Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding parts of the front seat adjuster.

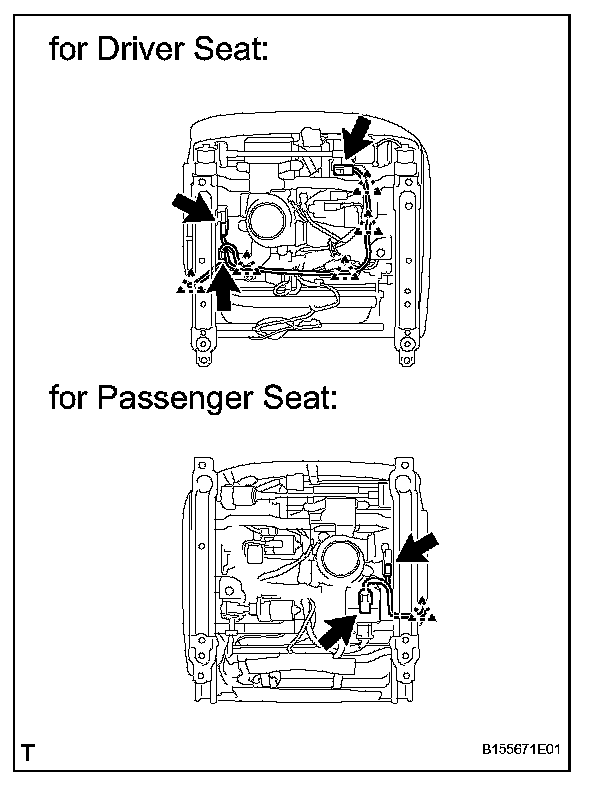

b. for Driver Seat:
Connect the 3 connectors and attach the 5 clamps.

c. for Passenger Seat:
Connect the 2 connectors and attach the clamp.

2. INSTALL FRONT SEAT ASSEMBLY
3. CONNECT FRONT SEAT OUTER BELT ASSEMBLY
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. INSTALL COWL TOP VENTILATOR LOUVER RH
6. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

7. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
