Child Restraint Seat Anchor Bracket

Child Restrain Seat Tether Anchor Bracket:

Child Restrain Seat Tether Anchor Bracket:

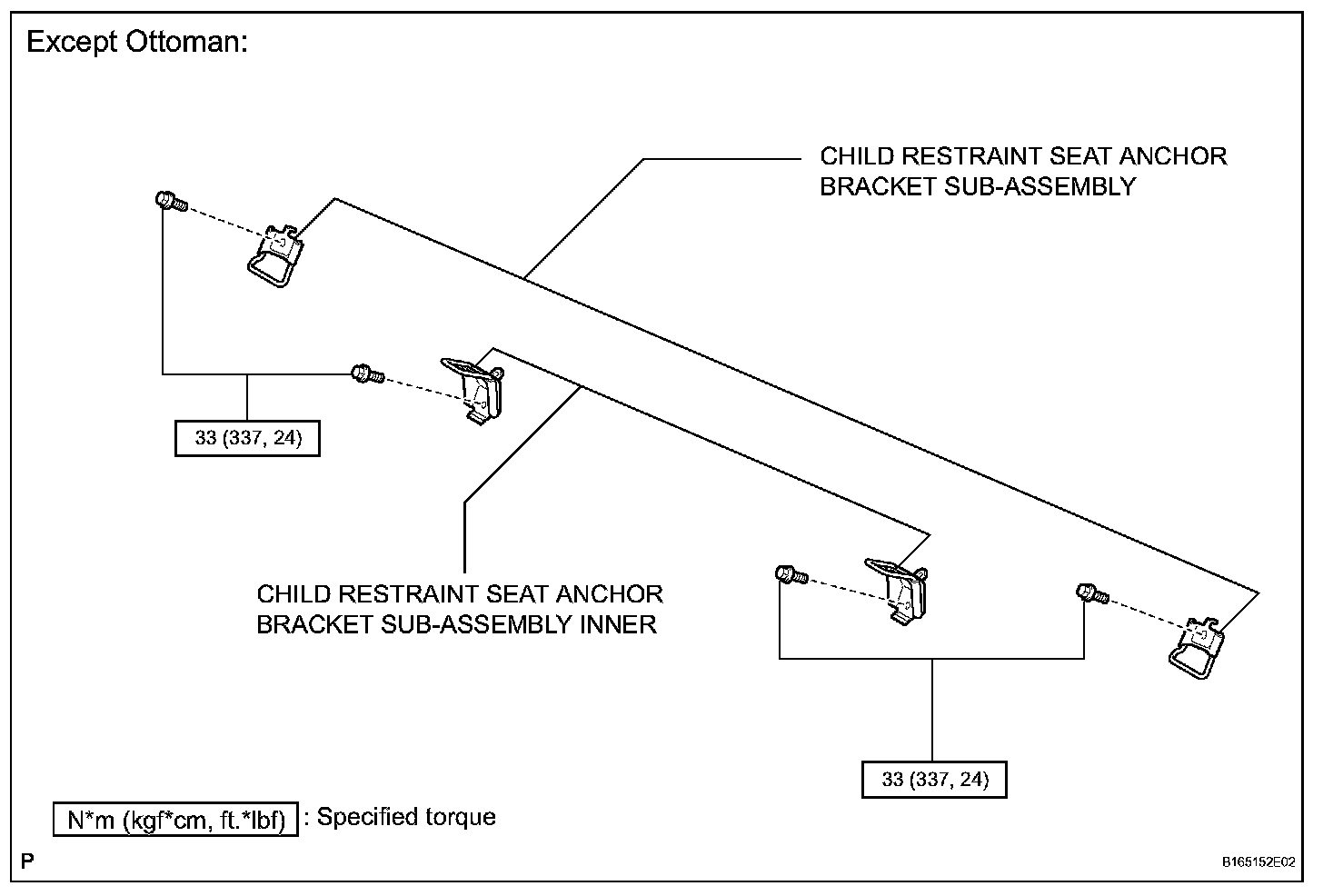

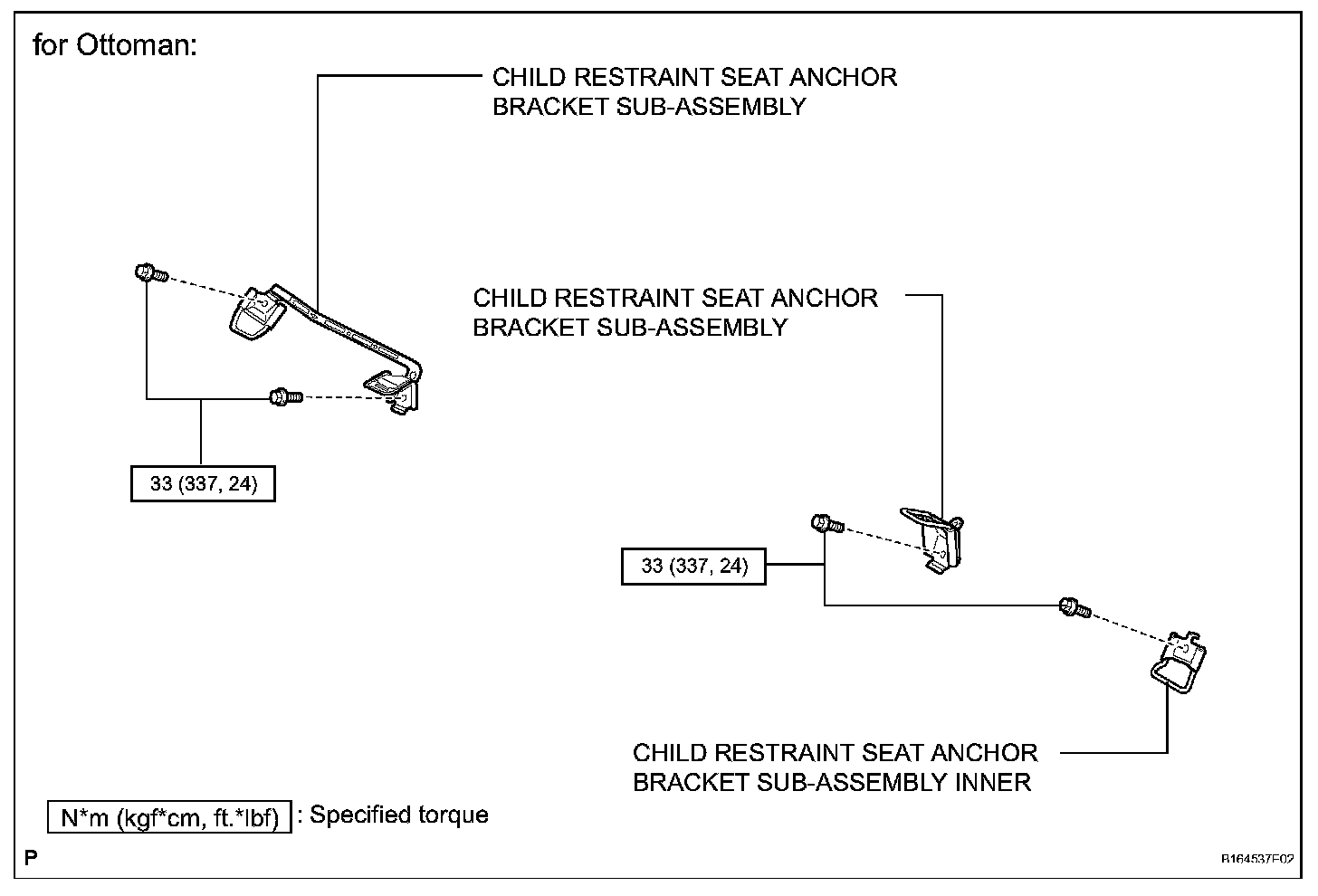

CHILD RESTRAINT SEAT ANCHOR BRACKET

REMOVAL

1. REMOVE REAR SEAT ASSEMBLY
a. for Power Seat:
Remove the rear seat.

b. for Ottoman:
Remove the rear seat.

c. for Fixed Seat Type:
Remove the rear seat.

2. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY INNER




a. Except Ottoman:

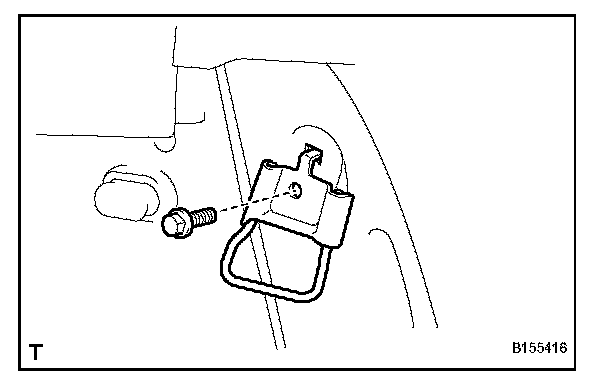

Remove the 2 bolts and 2 anchor brackets.

b. for Ottoman:

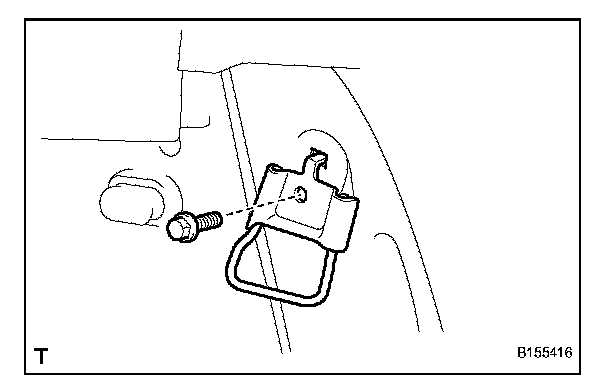

Remove the bolt and anchor bracket.

3. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY




a. Except Ottoman:

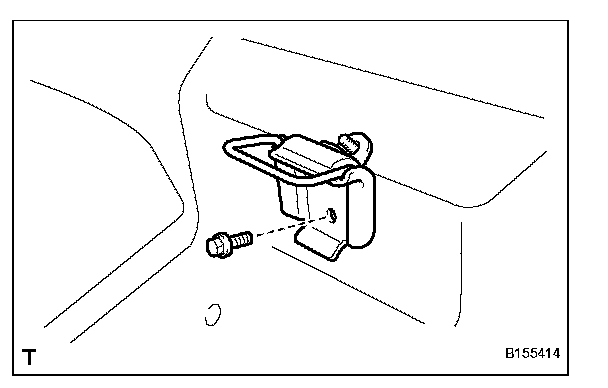

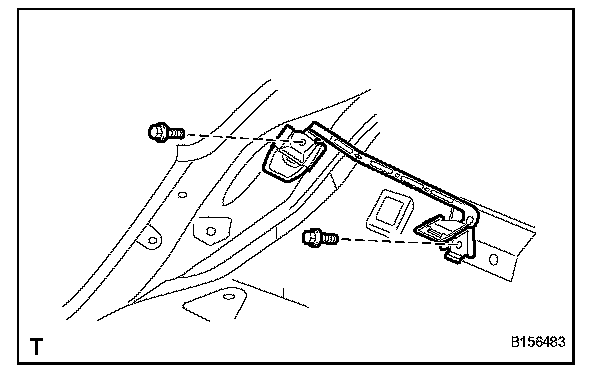

Remove the 2 bolts and 2 anchor brackets.

b. for Ottoman:




1. for Driver Side:
Remove the bolt and anchor bracket.




2. for Passenger Side:

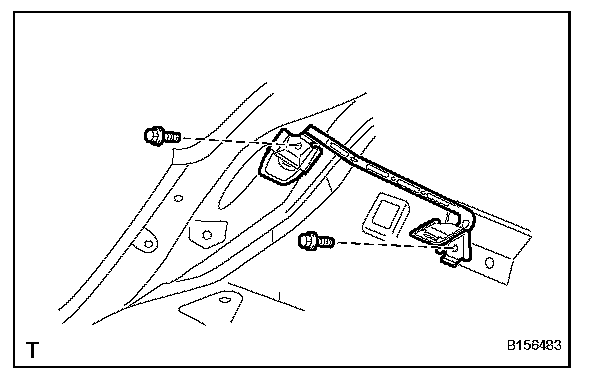

Remove the 2 bolts and anchor bracket.

INSTALLATION

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.
- A bolt without a torque specification is shown in the standard bolt chart.

1. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY




a. for Ottoman:
1. for Passenger Side:
Install the anchor bracket with the 2 bolts.

Torque: 33 N.m (337 kgf.cm, 24 ft.lbf)




2. for Driver Side:
Install the anchor bracket with the bolt.

Torque: 33 N.m (337 kgf.cm, 24 ft.lbf)




b. Except Ottoman:

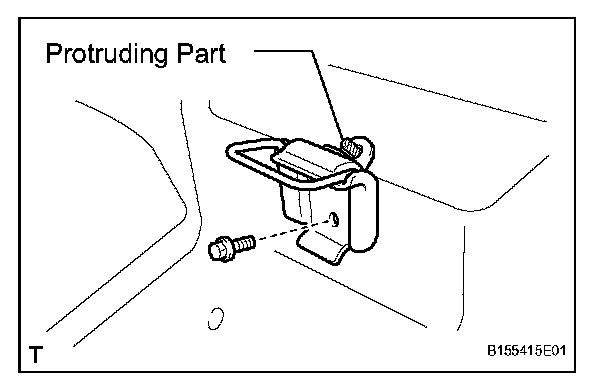

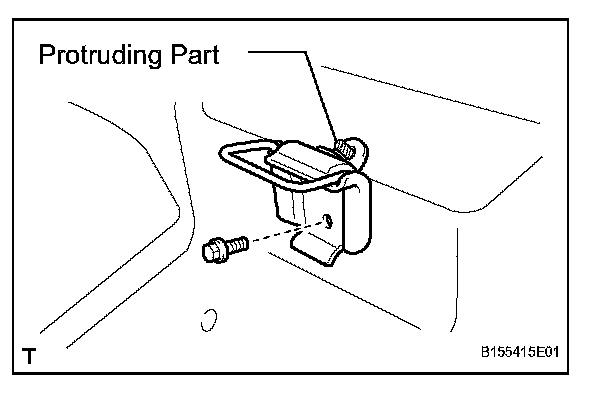

Align the claw with the positioning hole and install the 2 anchor brackets with the 2 bolts.

Torque: 33 N.m (337 kgf.cm, 24 ft.lbf)

2. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY INNER




a. Except Ottoman:

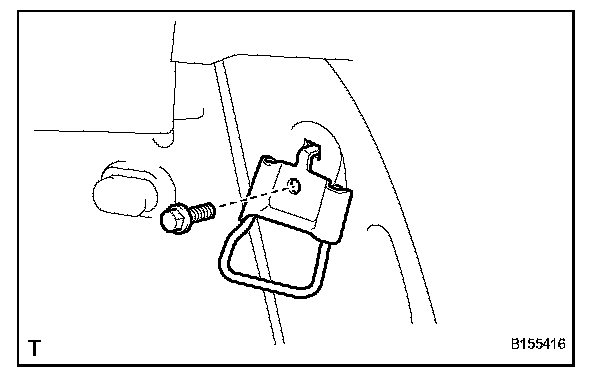

1. Align the hole with the positioning pin and install the 2 anchor brackets with the 2 bolts.

Torque: 33 N.m (337 kgf.cm, 24 ft.lbf)




b. for Ottoman:

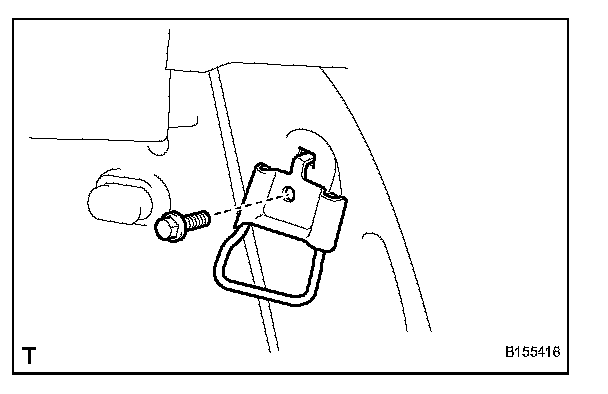

Align the hole with the positioning pin and install the anchor bracket with the bolt.

Torque: 33 N.m (337 kgf.cm, 24 ft.lbf)

3. INSTALL REAR SEAT ASSEMBLY
a. for Power Seat:
Install the rear seat.

b. for Ottoman:
Install the rear seat.

c. for Fixed Seat Type:
Install the rear seat.
