Curtain Shield Airbag Assembly

ON-VEHICLE INSPECTION

1. CHECK CURTAIN SHIELD AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)




a. Perform a diagnostic system check.

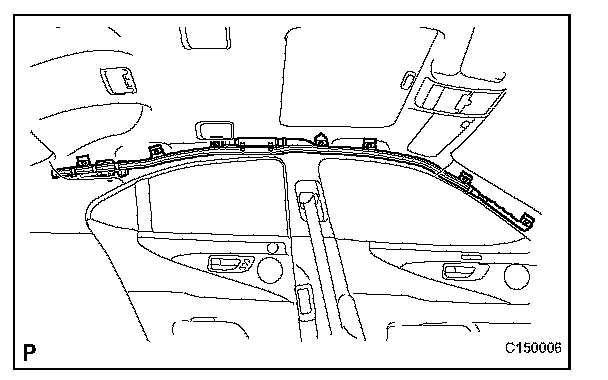

b. With the curtain shield airbag installed on the vehicle, perform a visual check. If any of the defects mentioned below are present, replace the curtain shield airbag with a new one:
Cuts, minute cracks or marked discoloration on the curtain shield airbag.

2. CHECK CURTAIN SHIELD AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEPLOYED)




a. Perform a diagnostic system check.

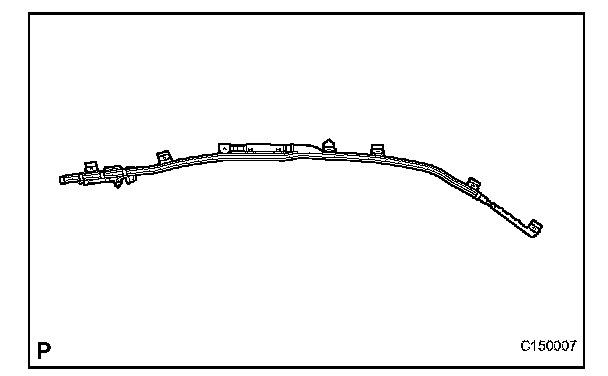

b. With the curtain shield airbag removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the curtain shield airbag with a new one:
- Cuts, minute cracks or marked discoloration on the curtain shield airbag.
- Cracks or other damage to the connectors.

NOTE: For removal and installation procedures of the curtain shield airbag, be sure to follow the correct procedure.
