Ignition Relay No. 2

ON-VEHICLE INSPECTION

1. REMOVE COWL TOP VENTILATOR LOUVER RH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE IGNITION RELAY NO. 2 (IG2)
a. Remove the ignition relay No. 2 from the engine room No. 2 relay block.

4. INSPECT IGNITION RELAY NO. 2

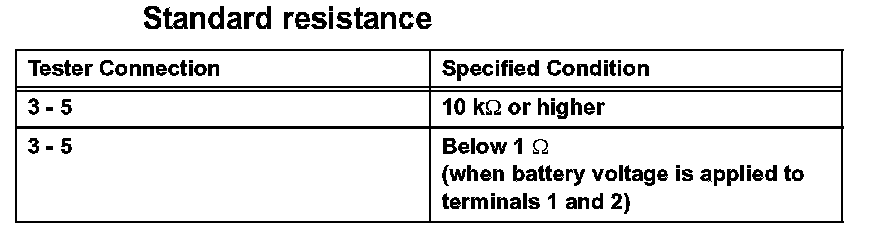

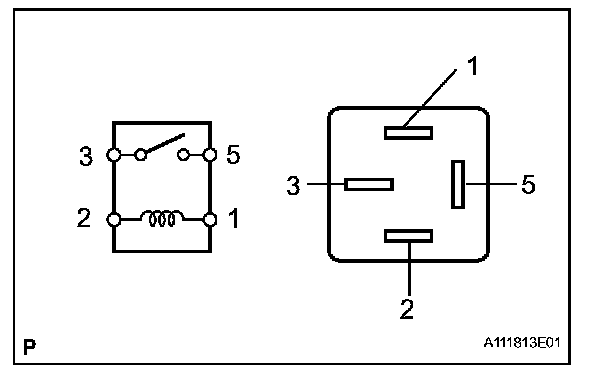

a. Measure the resistance of the ignition relay No. 2.

If the result is not as specified, replace the relay.

5. INSTALL IGNITION RELAY NO. 2
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. INSTALL COWL TOP VENTILATOR LOUVER RH

8. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
