Transmission Speed Sensor: Service and Repair

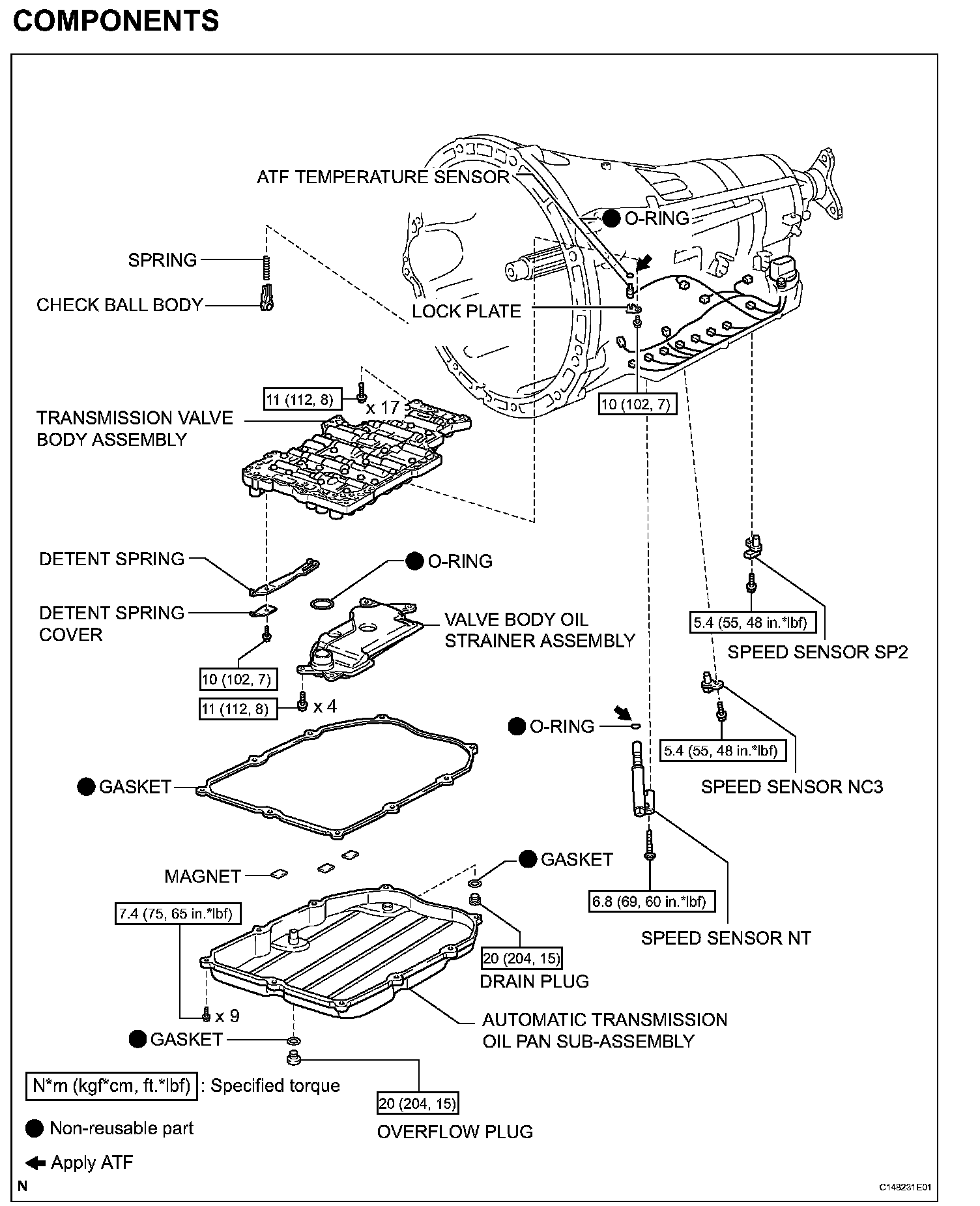

SPEED SENSORCOMPONENTS:
REMOVAL
1. REMOVE COWL TOP VENTILATOR LOUVER
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTICE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
3. DRAIN AUTOMATIC TRANSMISSION FLUID
(a) Remove the drain plug and gasket, and drain the ATF.
(b) Install a new gasket and the drain plug.
Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

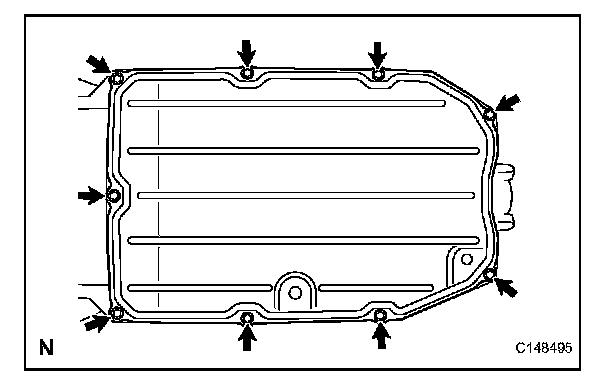

4. REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
(a) Remove the 9 bolts, oil pan and gasket from the transmission.
NOTICE: Some fluid will remain in the oil pan. Remove all the pan bolts, and carefully remove the oil pan assembly.
(b) Remove the 3 transmission oil cleaner magnets from the oil pan.
(c) Examine the particles in the pan.
(1) Collect any steel chips with the removed magnets. Carefully look at the foreign objects and particles in the pan and on the magnets to guess the type of wear which might be found in the transmission.
Steel (magnetic): bearing, gear and clutch plate wear
Brass (nonmagnetic): bush wear
5. REMOVE VALVE BODY OIL STRAINER ASSEMBLY
(a) Remove the 4 bolts and oil strainer from the valve body.
(b) Remove the O-ring from the oil strainer.
6. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

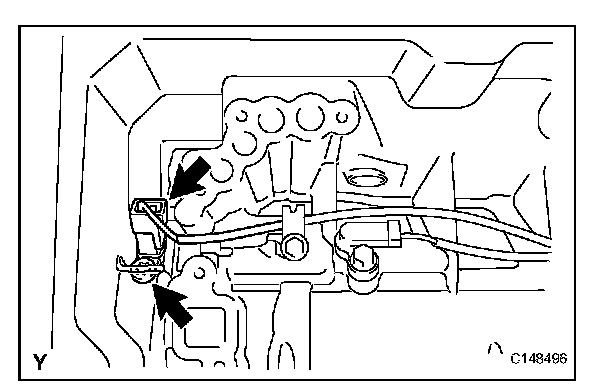

(a) Remove the bolt, lock plate and ATF temperature sensor.
(b) Remove the O-ring from the ATF temperature sensor.
(c) Disconnect the oil pressure switch connector.

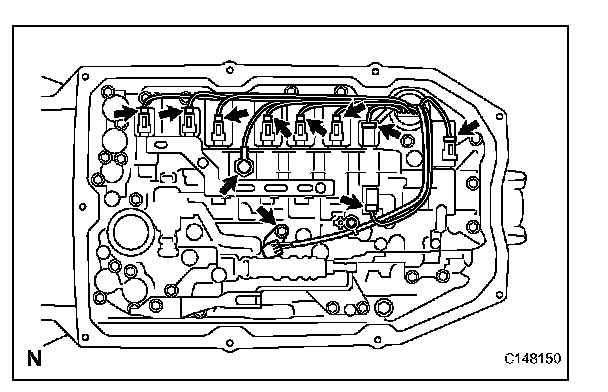

(d) Disconnect the 8 connectors from the solenoid valves.

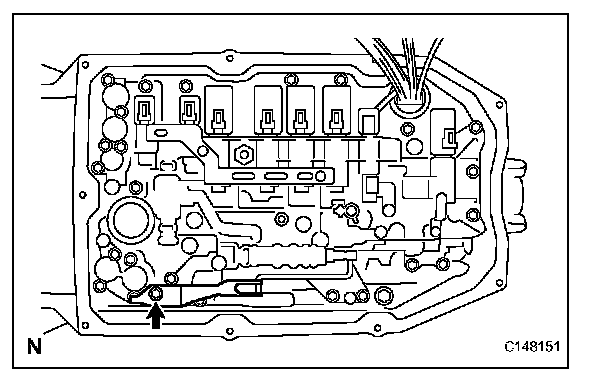

(e) Remove the bolt, detent spring cover and detent spring.

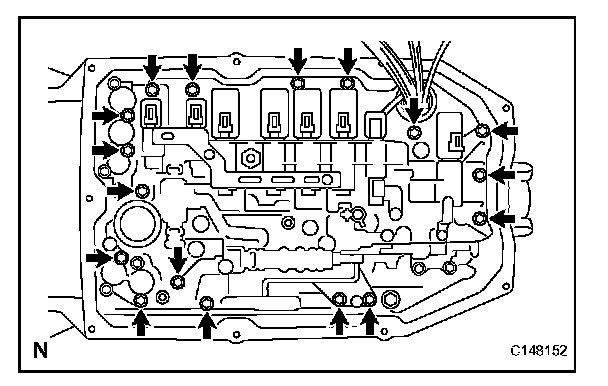

(f) Remove the 17 bolts and valve body.
NOTICE: Do not drop the check ball body and spring.
(g) Disconnect the lever pin from the manual valve.

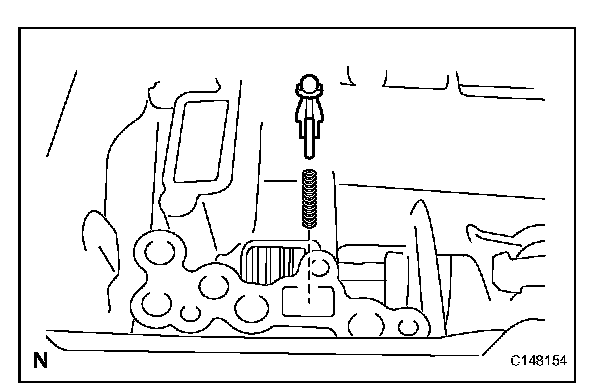

(h) Remove the check ball body and spring.
7. REMOVE SPEED SENSOR NT
(a) Disconnect the sensor connector.
(b) Using a T30 "TORX" wrench, remove the bolt and speed sensor from the oil pump.
(c) Remove the O-ring from the speed sensor.

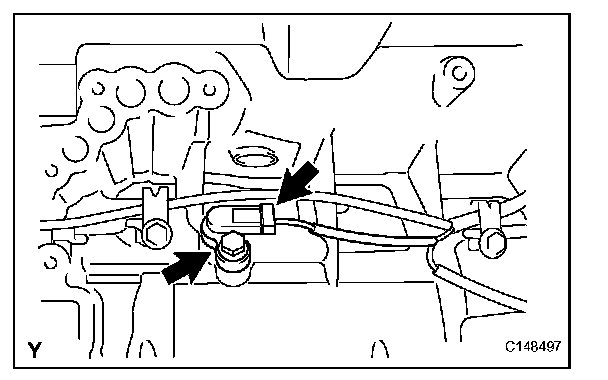

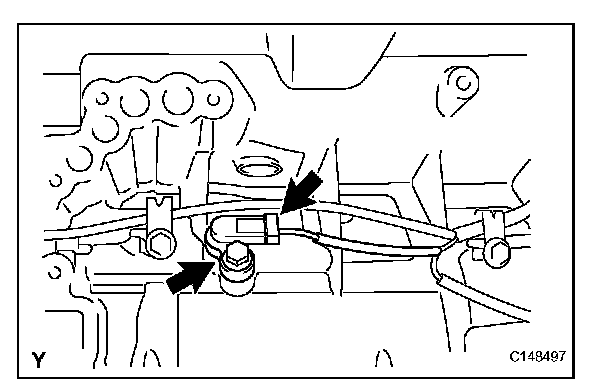

8. REMOVE SPEED SENSOR NC3

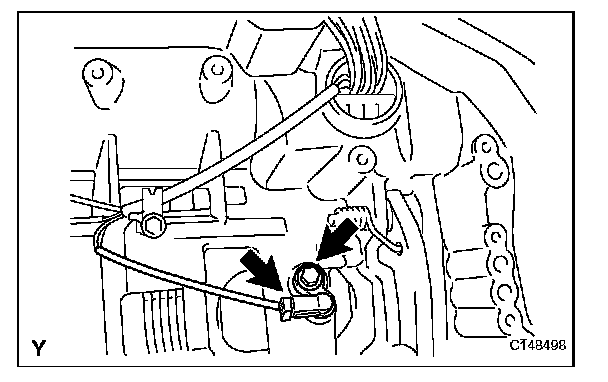

(a) Disconnect the sensor connector.
(b) Remove the bolt and speed sensor from the transmission case.

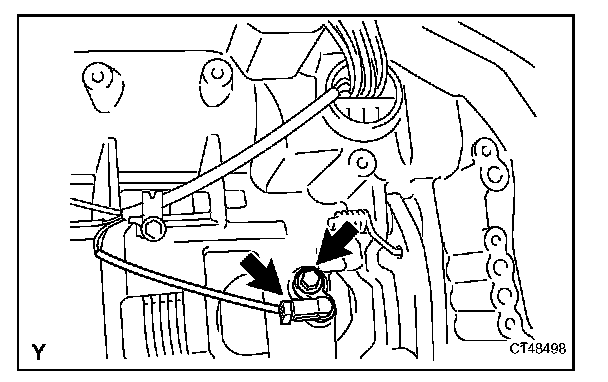

9. REMOVE SPEED SENSOR SP2
(a) Disconnect the sensor connector.
(b) Remove the bolt and speed sensor from the transmission case.
INSTALLATION
1. INSTALL SPEED SENSOR SP2
(a) Install the speed sensor to the transmission case with the bolt.
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
(b) Connect the sensor connector.
2. INSTALL SPEED SENSOR NC3
(a) Install the speed sensor to the transmission case with the bolt.
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
(b) Connect the sensor connector.
3. INSTALL SPEED SENSOR NT
(a) Coat a new O-ring with ATF and install it to the speed sensor.
(b) Using a T30 "TORX" wench, install the speed sensor with the bolt.
Torque: 6.8 N*m (69 kgf*cm, 60 in.*lbf)
(c) Connect the sensor connector.
4. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

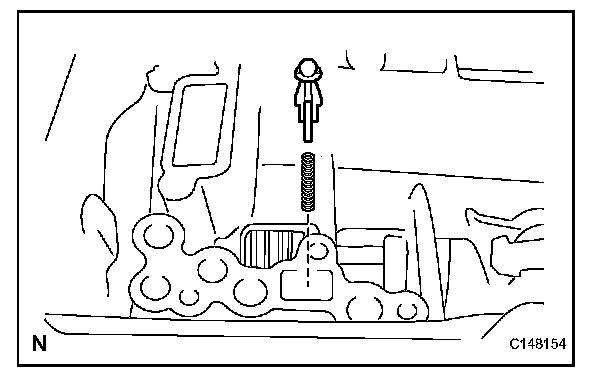

(a) Install the spring and check ball body.

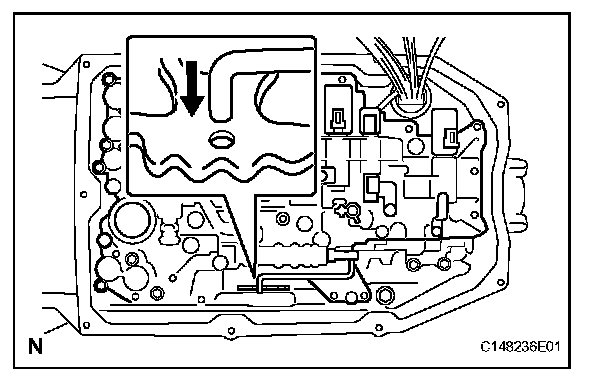

(b) Align the groove of the manual valve with the lever pin.
(c) Install the 17 bolts.
Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)
HINT:

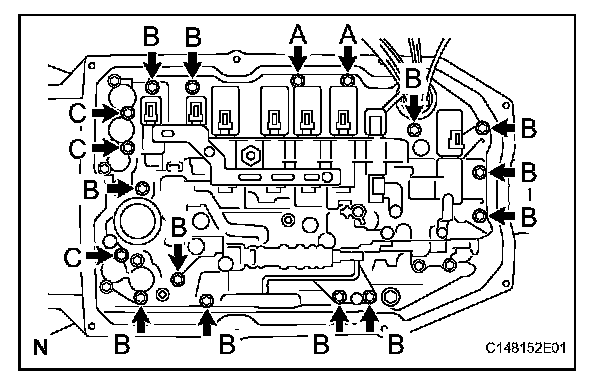

Each bolt length is indicated below.
Bolt length:
21 mm (0.83 in.) for bolt A
31 mm (1.22 in.) for bolt B
64 mm (2.52 in.) for bolt C
(d) Install the detent spring and detent spring cover with the bolt.
NOTICE: Make sure to install the detent spring so that its roller is perpendicularly at the center of the manual valve lever.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

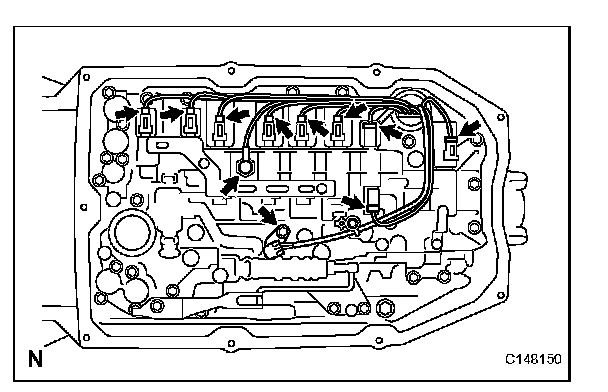

(e) Connect the 8 connectors to the solenoid valves.
(f) Connect the oil pressure switch connector.
(g) Coat a new O-ring with ATF and install it to the ATF temperature sensor.

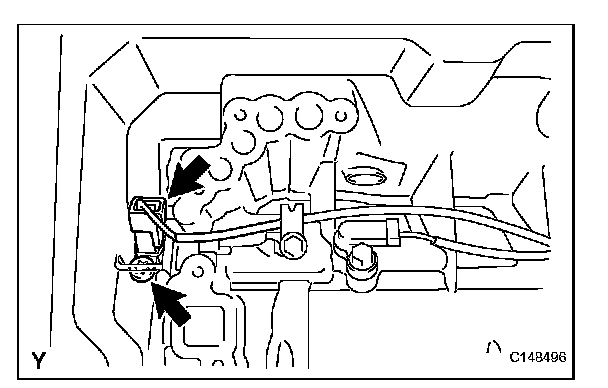

(h) Install the ATF temperature sensor and lock plate with the bolt.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
5. INSTALL VALVE BODY OIL STRAINER ASSEMBLY

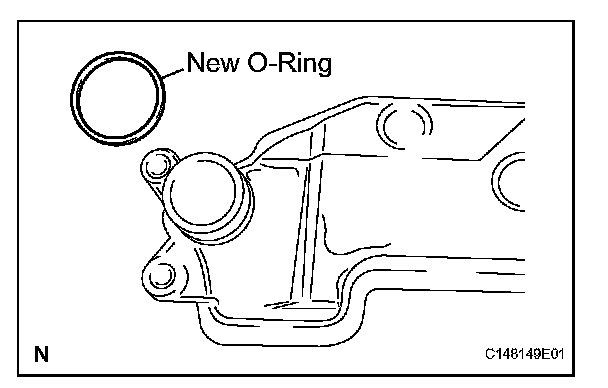

(a) Coat a new O-ring with ATF and install it to the oil strainer.
NOTICE: Ensure that the O-ring is not twisted or pinched.

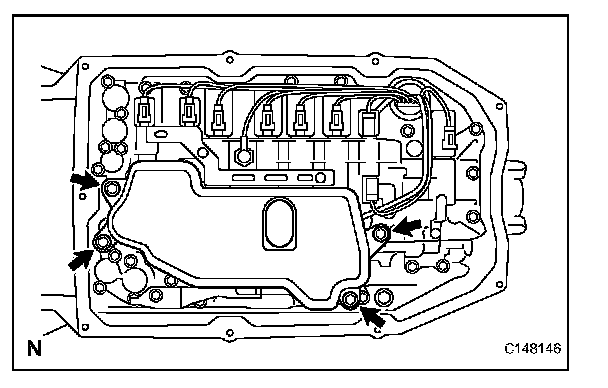

(b) Install the oil strainer to the valve body with the 4 bolts.
Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)
6. INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY

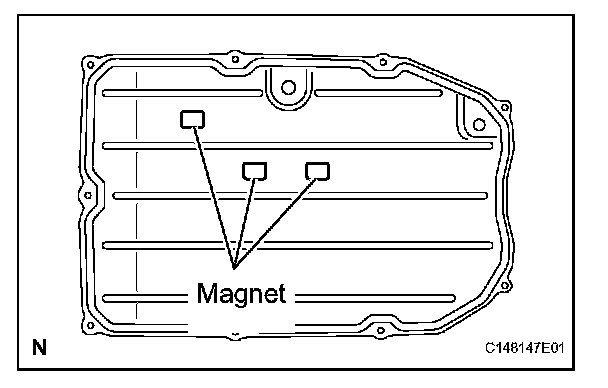

(a) Install the 3 magnets to the oil pan.

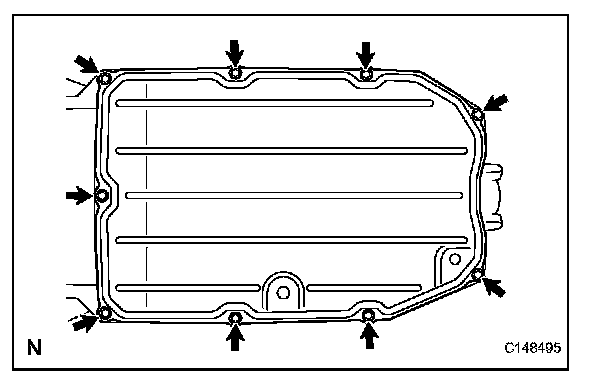

(b) Install a new gasket and the oil pan to the transmission case with the 9 bolts.
Torque: 7.4 N*m (75 kgf*cm, 65 in.*lbf)

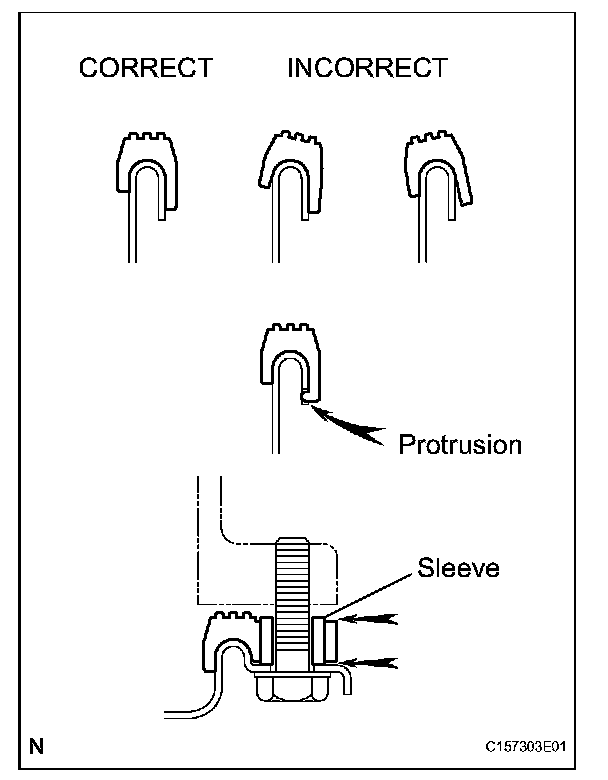

NOTICE:
^ Make sure that there is no oil or foreign matter on the gasket seal surface and oil pan contact surface.
^ Install the gasket so that there is no slack in the gasket, and that the seal surface's entire circumference is level.
^ Make sure that the 9 gasket drop prevention protrusions are set on the oil pan.
^ When tightening the oil pan, make sure that the gasket is not pinched between the gasket tightening area's sleeve and the transmission's seal surface.
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. INSTALL COWL TOP VENTILATOR LOUVER
9. ADD AUTOMATIC TRANSMISSION FLUID
(a) Add automatic transmission fluid.
10. PERFORM INITIALIZATION
(a) Perform initialization.
NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
