Inspection

INSPECTION

1. INSPECT THROTTLE BODY
a. Check that the throttle valve opens and closes smoothly.
b. Check that the there is no sludge accumulating around the throttle body.

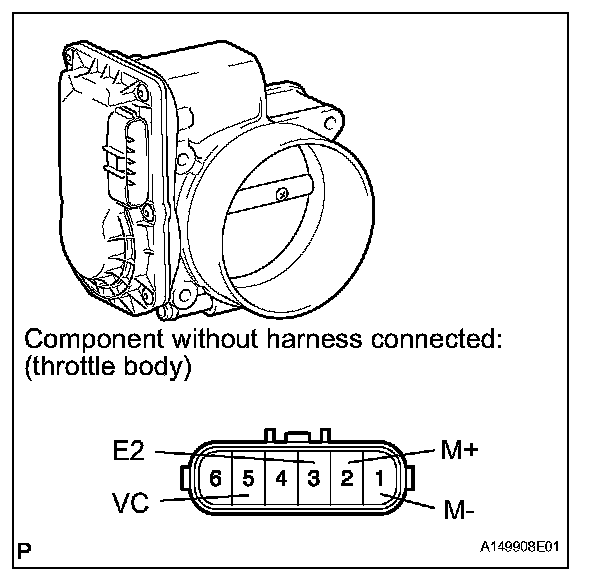

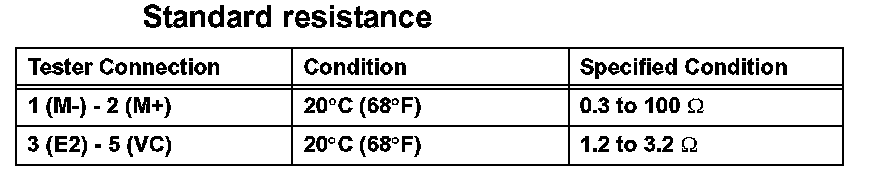

c. Measure the resistance between the terminals.

If the result is not as specified, replace the throttle body.
