Fuel Delivery and Air Induction: Description and Operation

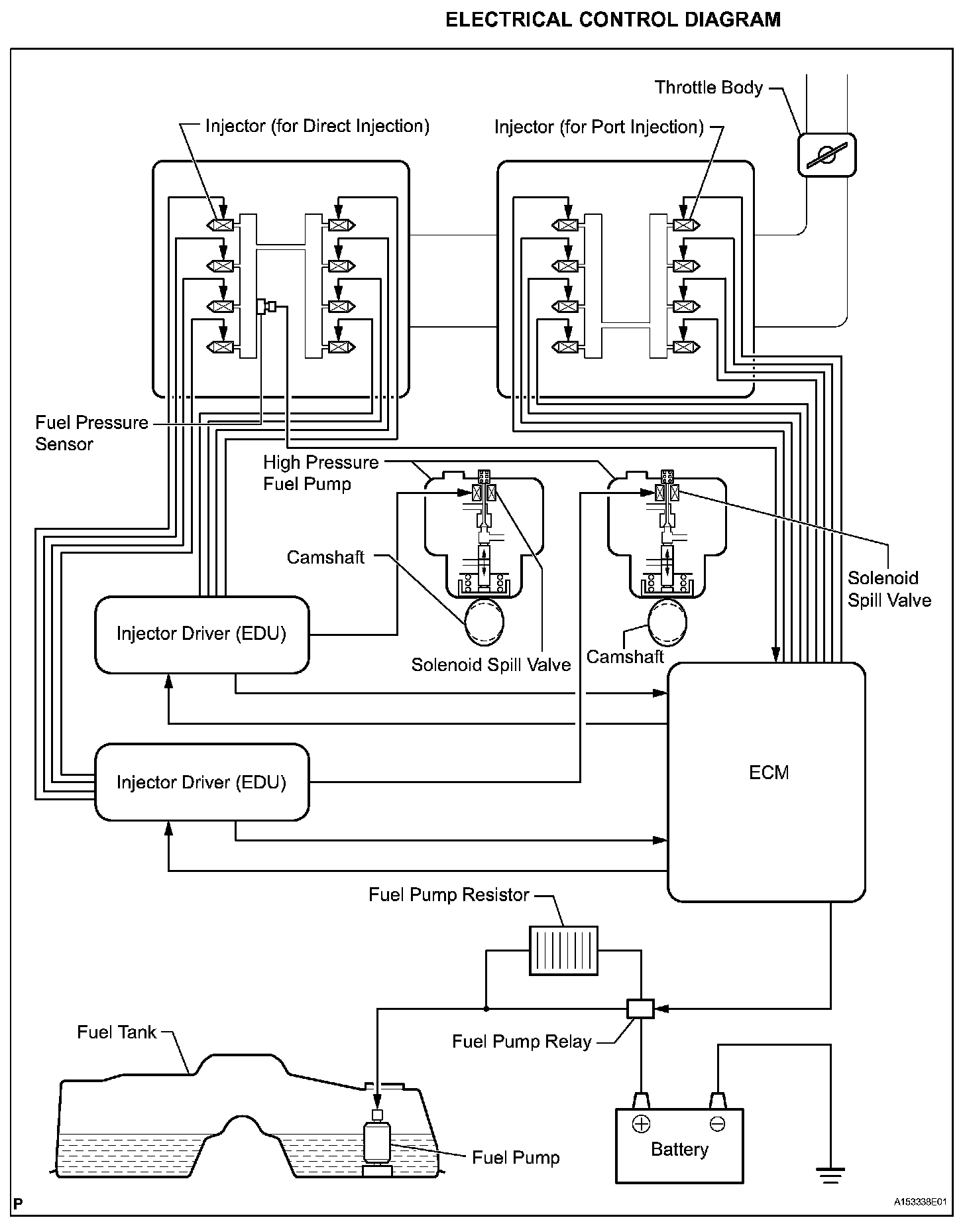

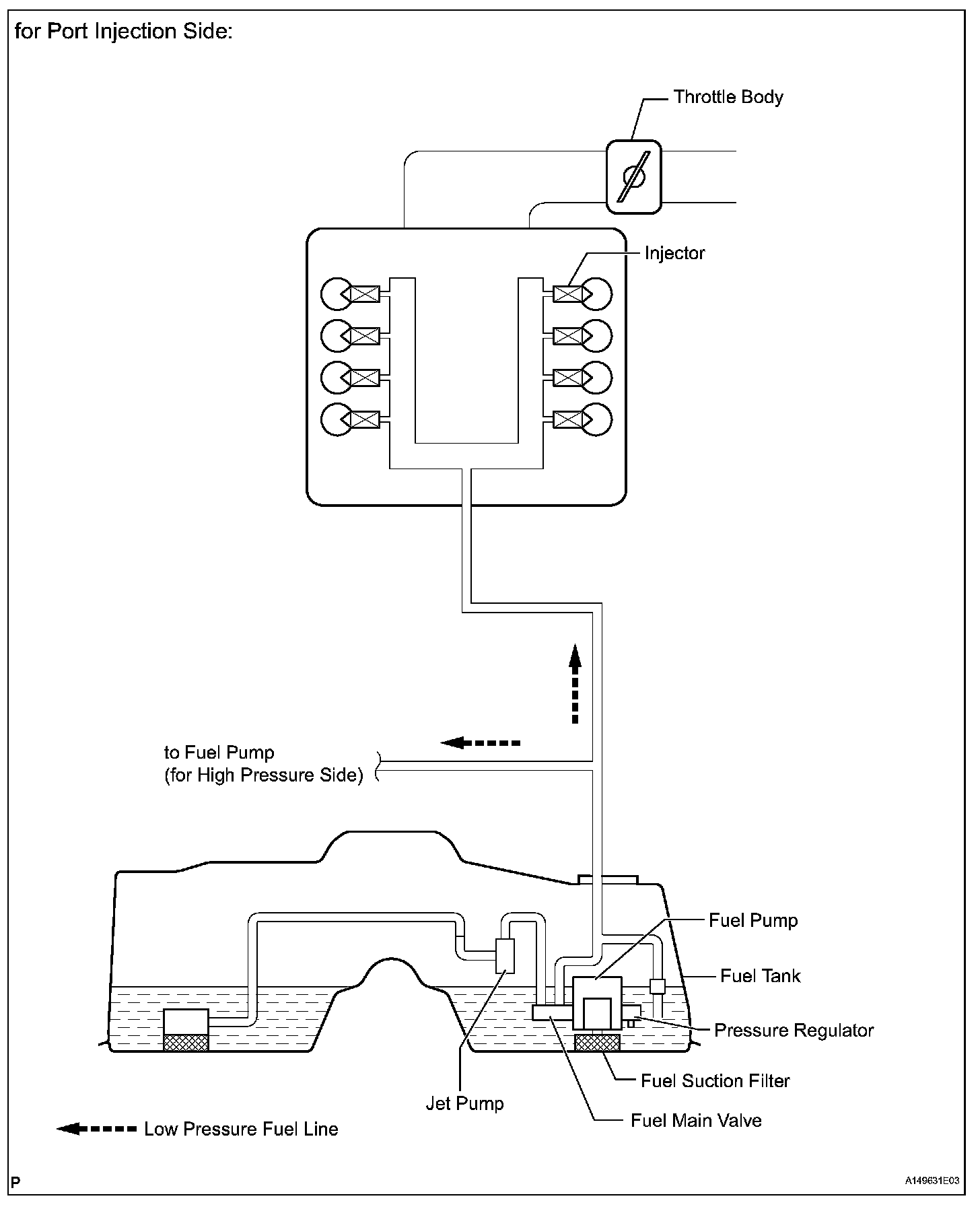

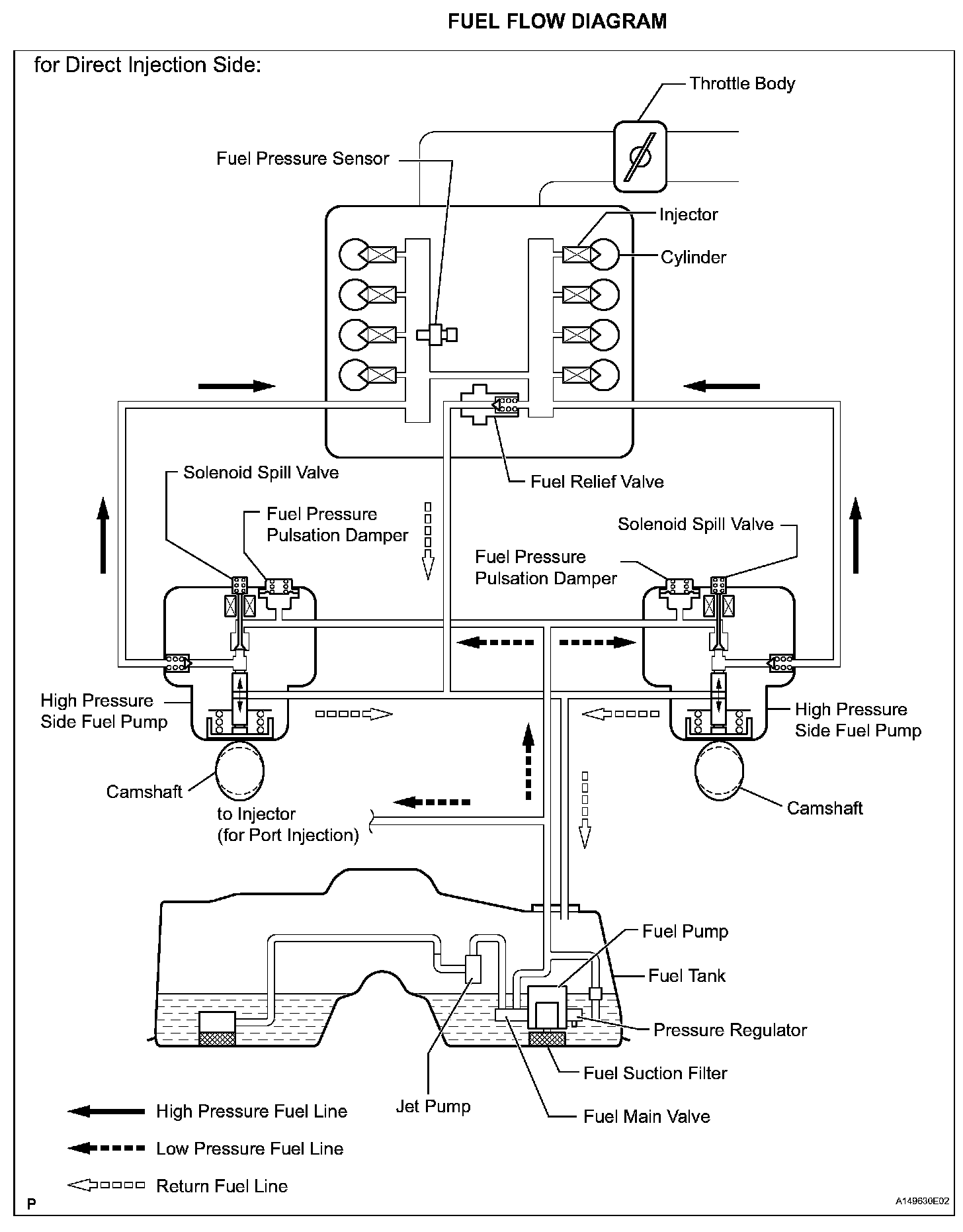

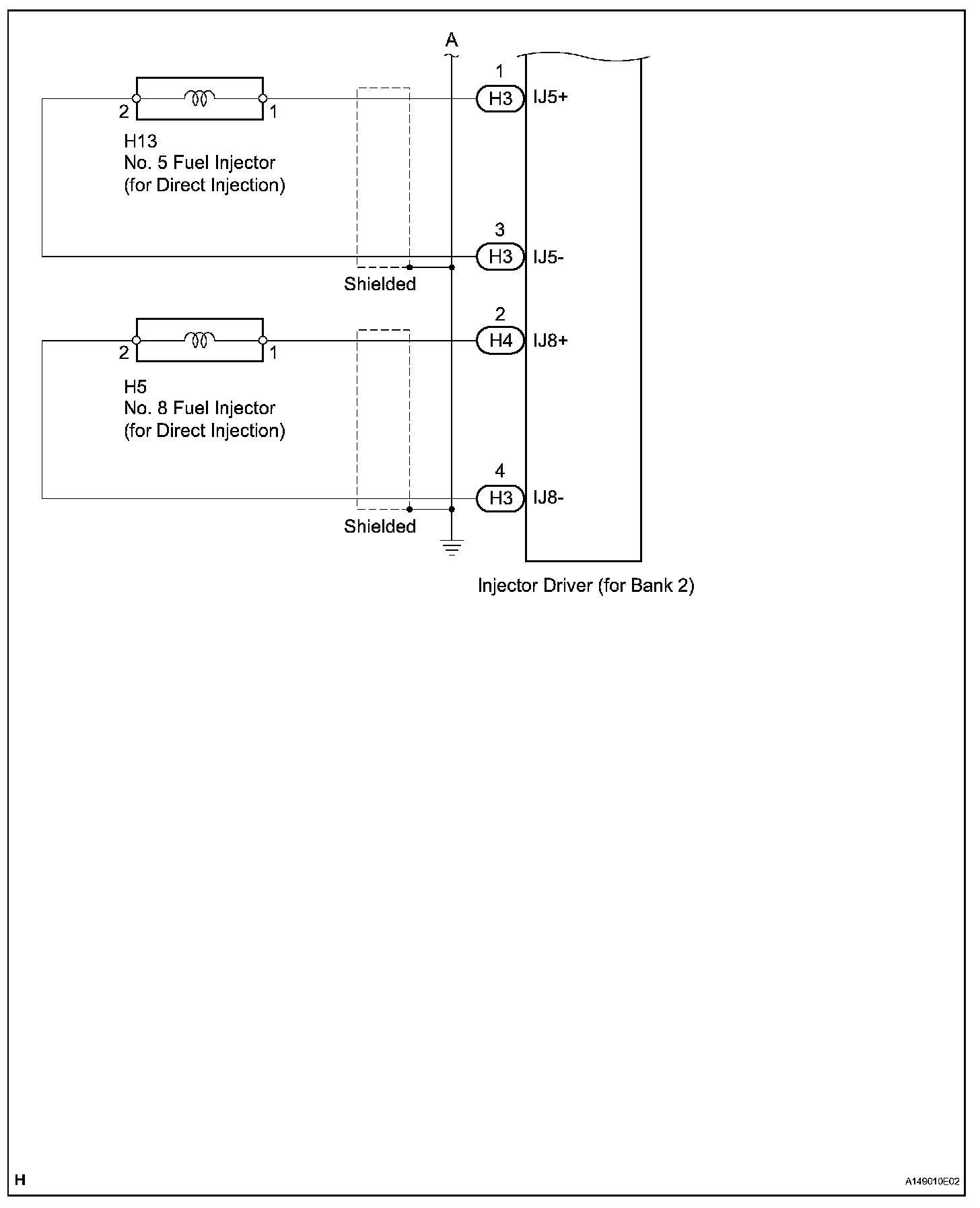

System Diagram (Part 1):

System Diagram (Part 2):

System Diagram (Part 3):

System Diagram (Part 4):

System Diagram (Part 5):

System Diagram (Part 6):

System Diagram (Part 7):

System Diagram (Part 8):

System Diagram (Part 9):

System Diagram (Part 10):

System Diagram (Part 11):
