Accelerator Pedal: Service and Repair
REMOVAL1. REMOVE COWL TOP VENTILATOR LOUVER RH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
3. REMOVE ACCELERATOR PEDAL

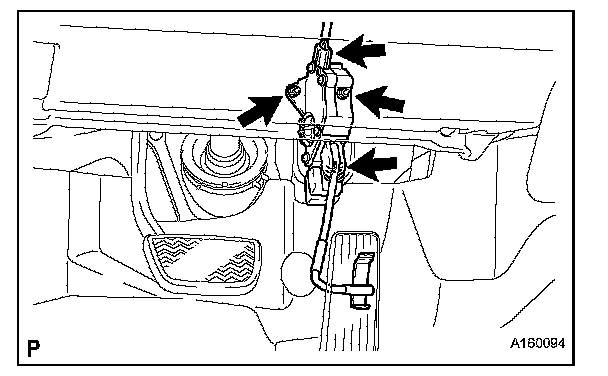

a. Disconnect the accelerator pedal sensor connector.
b. Remove the 3 nuts and accelerator pedal.
NOTE:
- Avoid physical shocks to the accelerator pedal.
- Do not disassemble the accelerator pedal assembly.
INSTALLATION
1. INSTALL ACCELERATOR PEDAL
NOTE:
- Avoid physical shocks to the accelerator pedal.
- Do not disassemble the accelerator pedal assembly.
a. Connect the tip of the accelerator pedal rod to the bracket.
b. Install the accelerator pedal with the 3nuts.
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
c. Connect the accelerator pedal sensor connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. INSTALL COWL TOP VENTILATOR LOUVER RH
4. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
