Without Manufacturer's Scan Tool
DTC CHECKCHECK DTC (without Intelligent Tester or Techstream)
(a) Turn the engine switch off.

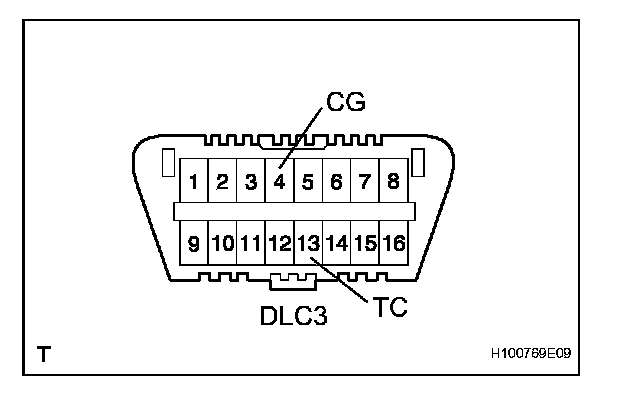

(b) Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
SST 09843-18040
NOTICE: Do not connect the wrong terminals, as this will cause parts to be damaged.

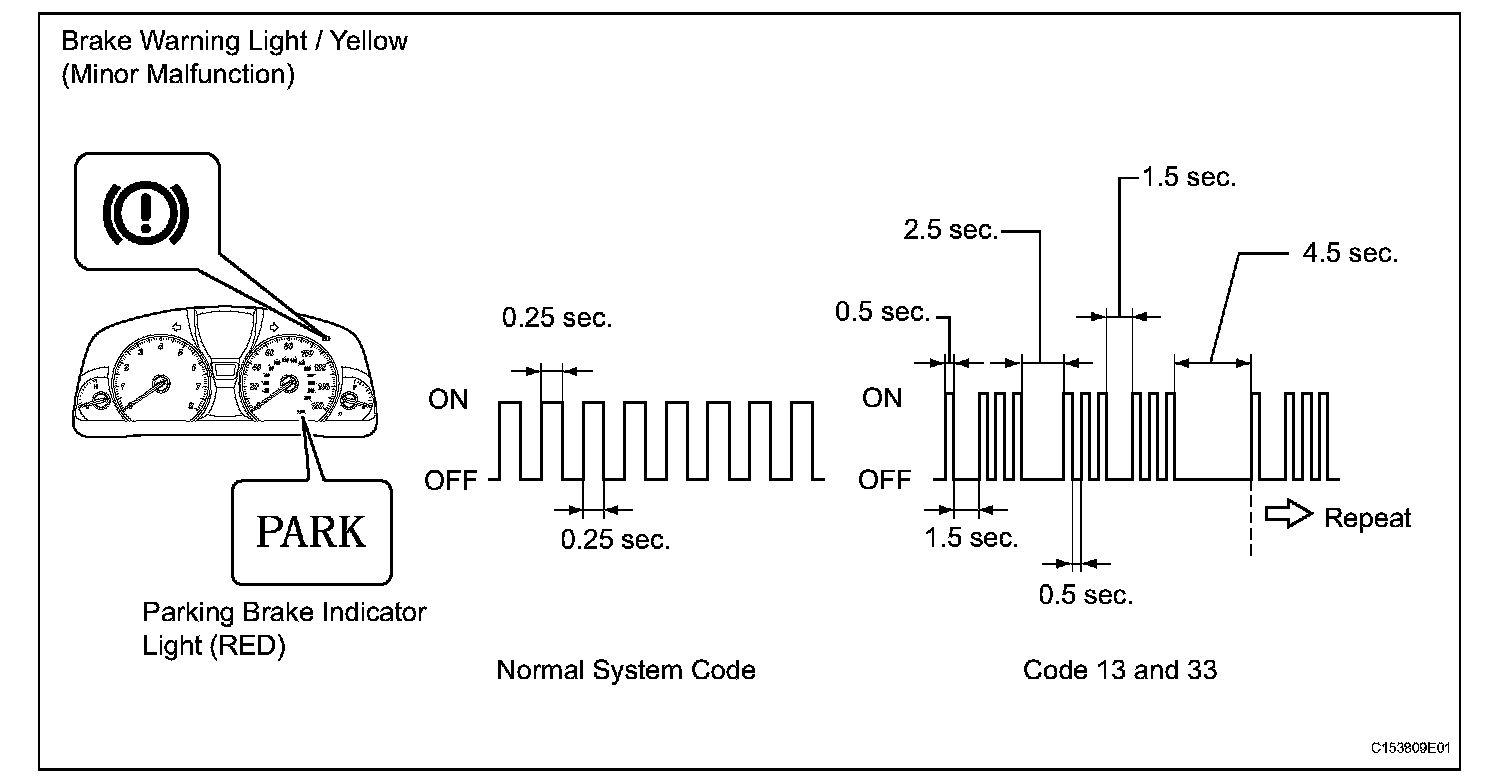

(c) Turn the engine switch on (IG), and read the DTCs from the number of blinks of the parking brake indicator light (RED).
HINT:
^ If normal, the light blinks at 0.25 second intervals.
^ If DTCs are stored, refer to the Diagnostic Trouble Code Chart.
^ If there is only 1 DTC, the DTC is displayed with a 4.5 second pause in between displays. If there are several DTCs, the DTC are displayed with a 2.5 second pause in between each code. Once all of the DTCs are displayed, there is a 4.5 second pause and the DTCs are output again.
^ If 2 or more DTCs are detected, the MIL will display the smaller number DTC first.
