Heated Oxygen Sensor

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH
2. REMOVE FRONT DOOR SCUFF PLATE RH
3. REMOVE COWL SIDE TRIM BOARD LH
4. REMOVE COWL SIDE TRIM BOARD RH
5. REMOVE FRONT FLOOR SILENCER PAD LH
6. REMOVE FRONT FLOOR SILENCER PAD RH
7. REMOVE REAR NO. 2 AIR DUCT
8. REMOVE REAR NO. 1 AIR DUCT

9. REMOVE HEATED OXYGEN SENSOR (for Bank 1)

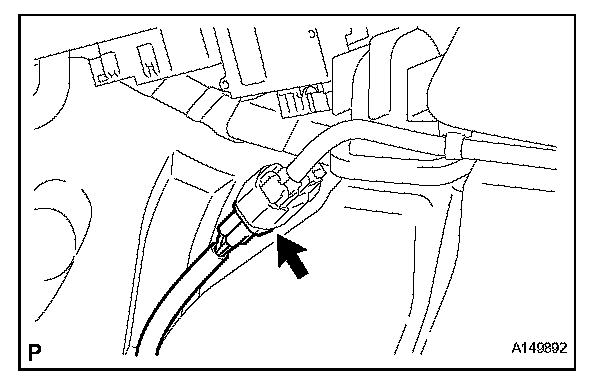

a. Disconnect the heated oxygen sensor connector.




b. Remove the grommet.

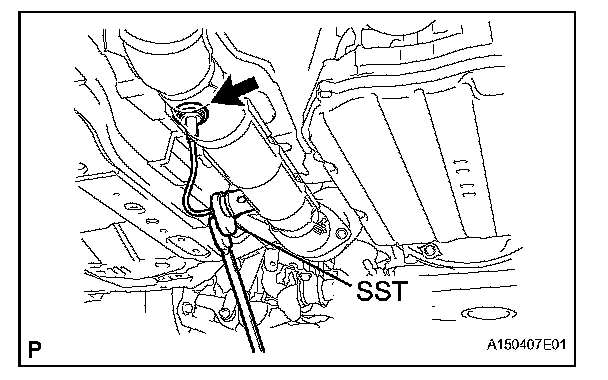

c. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.

SST 09224-00010

10. REMOVE HEATED OXYGEN SENSOR (for Bank 2)

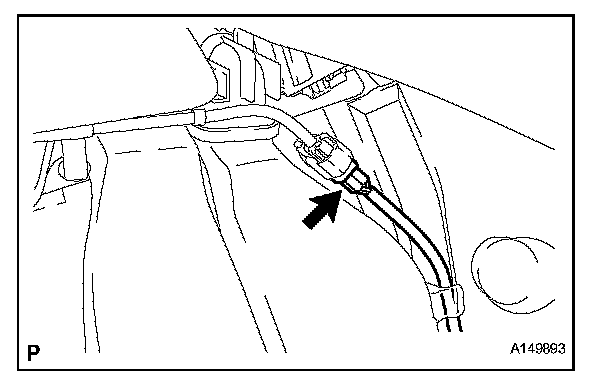

a. Disconnect the heated oxygen sensor connector.




b. Remove the grommet.

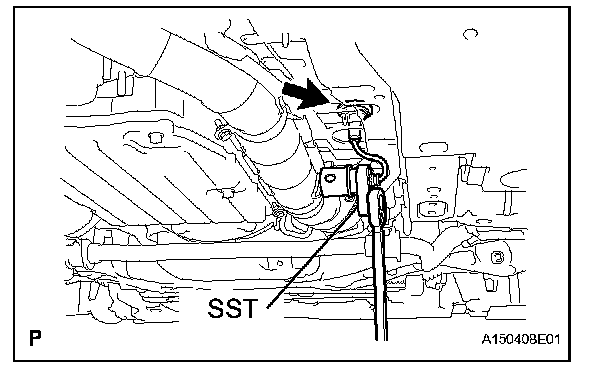

c. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.

SST 09224-00010

INSTALLATION

1. INSTALL HEATED OXYGEN SENSOR (for Bank 1)

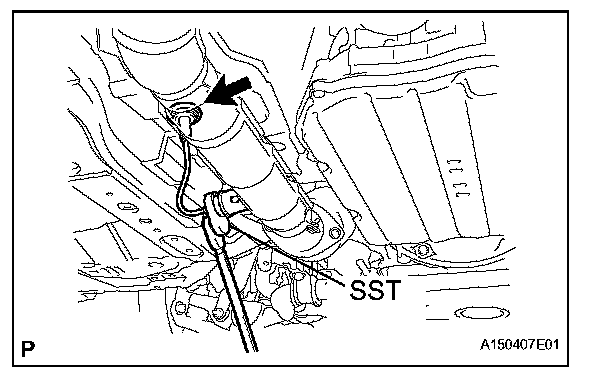

a. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.

SST 09224-00010

Torque: without SST
44 N.m (449 kgf.cm, 32 ft.lbf)
with SST
40 N.m (408 kgf.cm, 30 ft.lbf)

HINT: Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).

b. Install the grommet to the vehicle.

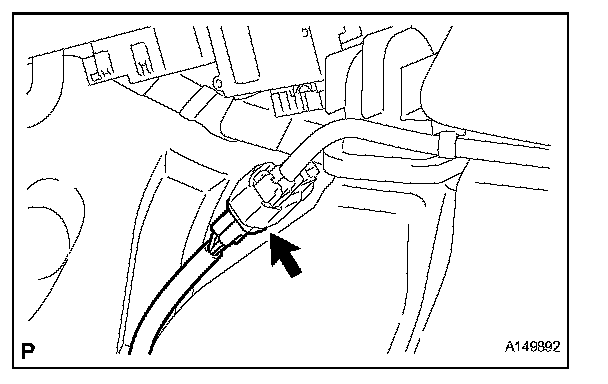

c. Connect the heated oxygen sensor connector.

2. INSTALL HEATED OXYGEN SENSOR (for Bank 2)

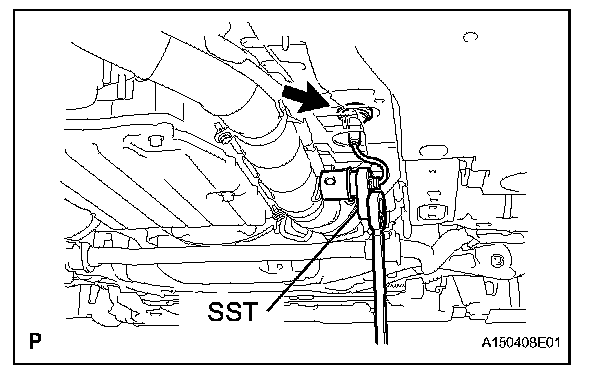

a. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.

SST 09224-00010

Torque: without SST
44 N.m (449 kgf.cm, 32 ft.lbf)
with SST
40 N.m (408 kgf.cm, 30 ft.lbf)

HINT: Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).

b. Install the grommet to the vehicle.

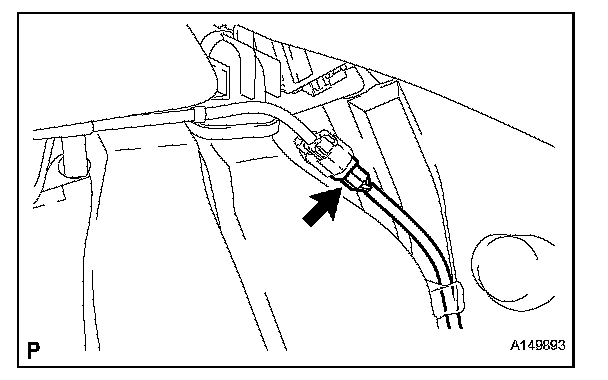

c. Connect the heated oxygen sensor connector.

3. INSTALL REAR NO. 2 AIR DUCT
4. INSTALL REAR NO. 1 AIR DUCT
5. INSTALL FRONT FLOOR SILENCER PAD LH
6. INSTALL FRONT FLOOR SILENCER PAD RH
7. INSTALL COWL SIDE TRIM BOARD LH
8. INSTALL COWL SIDE TRIM BOARD RH
9. INSTALL FRONT DOOR SCUFF PLATE LH
10. INSTALL FRONT DOOR SCUFF PLATE RH
