Air Fuel Ratio Sensor
REMOVAL1. REMOVE COWL TOP VENTILATOR LOUVER RH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
3. REMOVE V-BANK COVER SUB-ASSEMBLY
4. REMOVE AIR CLEANER INLET COVER
5. REMOVE NO. 1 AIR CLEANER INLET
6. REMOVE NO. 1 ENGINE UNDER COVER
7. REMOVE FRONT SUSPENSION MEMBER PROTECTOR LOWER
8. REMOVE NO. 2 ENGINE UNDER COVER
9. REMOVE INTAKE AIR CONNECTOR PIPE
10. REMOVE V-RIBBED BELT
11. REMOVE GENERATOR ASSEMBLY
12. REMOVE FRONT EXHAUST PIPE ASSEMBLY
a. Remove the front exhaust pipe.
13. REMOVE STEERING SLIDING YOKE WITH SHAFT SUB-ASSEMBLY (w/ VGRS)
14. REMOVE STEERING SLIDING YOKE WITH SHAFT SUB-ASSEMBLY (w/o VGRS)
15. REMOVE STEERING INTERMEDIATE SHAFT (w/o VGRS)
16. REMOVE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (w/ VGRS)
17. REMOVE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (w/o VGRS)
18. REMOVE ENGINE UNDER COVER REAR LH
19. REMOVE ENGINE UNDER COVER REAR RH
20. REMOVE FRONT STABILIZER BAR
21. REMOVE ENGINE UNDER COVER SUB-ASSEMBLY LH
22. REMOVE ENGINE UNDER COVER SUB-ASSEMBLY RH
23. REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT LH
24. REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT RH
25. REMOVE OIL DIPSTICK GUIDE
26. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
27. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH
28. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
29. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH
30. REMOVE AIR FUEL RATIO SENSOR (for Bank 1)

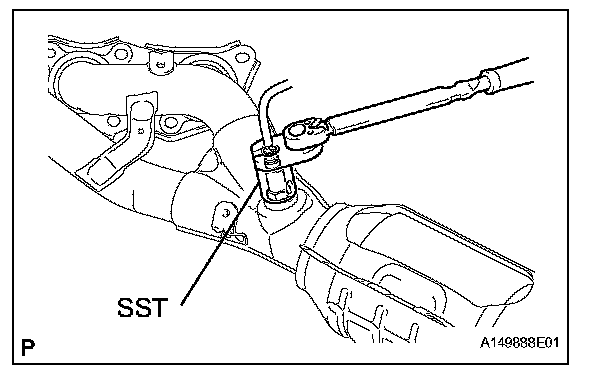

a. Using SST, remove the air fuel ratio sensor from the exhaust manifold LH.
SST 09224-00010
31. REMOVE AIR FUEL RATIO SENSOR (for Bank 2)

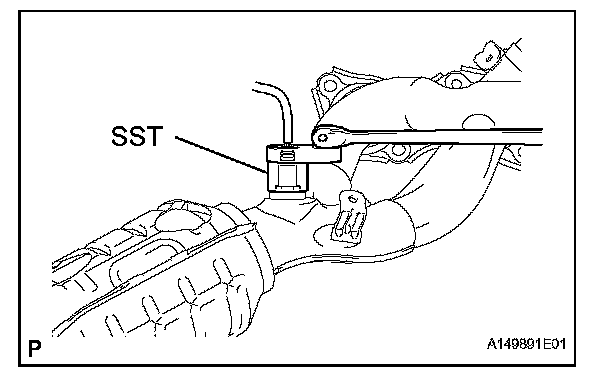

a. Using SST, remove the air fuel ratio sensor from the exhaust manifold RH.
SST 09224-00010
INSTALLATION
1. INSTALL AIR FUEL RATIO SENSOR (for Bank 1)

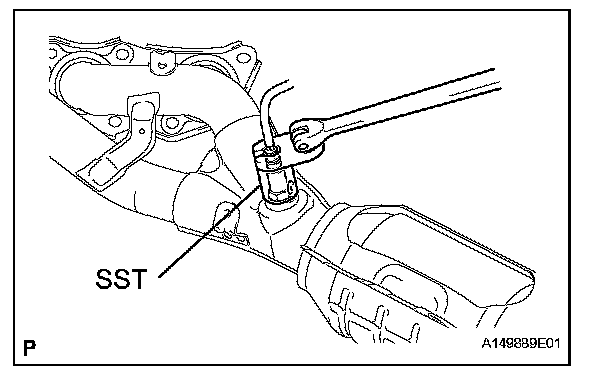

a. Using SST, remove the air fuel ratio sensor from the exhaust manifold LH.
SST 09224-00010
Torque: without SST
44 N.m (449 kgf.cm, 32 ft.lbf)
with SST
40 N.m (408 kgf.cm, 30 ft.lbf)
NOTE: Use a torque wrench with a fulcrum length of 300 mm (11.81 in.)
2. INSTALL AIR FUEL RATIO SENSOR (for Bank 2)

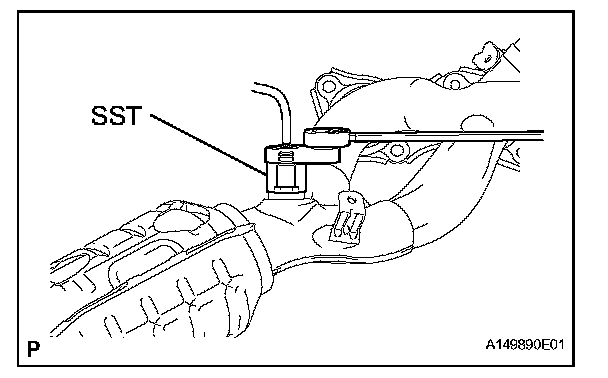

a. Using SST, remove the air fuel ratio sensor from the exhaust manifold RH.
SST 09224-00010
Torque:without SST
44 N.m (449 kgf.cm, 32 ft.lbf)
with SST
40 N.m (408 kgf.cm, 30 ft.lbf)
NOTE: Use a torque wrench with a fulcrum length of 300 mm (11.81 in.)
3. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH
4. INSTALL NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
5. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH
6. INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
7. INSTALL OIL DIPSTICK GUIDE
8. INSTALL FRONT SUSPENSION MEMBER REINFORCEMENT LH
9. INSTALL FRONT SUSPENSION MEMBER REINFORCEMENT RH
10. INSTALL ENGINE UNDER COVER SUB-ASSEMBLY LH
11. INSTALL ENGINE UNDER COVER SUB-ASSEMBLY RH
12. INSTALL FRONT STABILIZER BAR
13. INSTALL ENGINE UNDER COVER REAR LH
14. INSTALL ENGINE UNDER COVER REAR RH
15. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (w/ VGRS)
16. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (w/o VGRS)
17. INSTALL STEERING INTERMEDIATE SHAFT (w/o VGRS)
18. INSTALL STEERING SLIDING YOKE WITH SHAFT SUB-ASSEMBLY (w/ VGRS)
19. INSTALL STEERING SLIDING YOKE WITH SHAFT SUB-ASSEMBLY (w/o VGRS)
20. INSTALL FRONT EXHAUST PIPE ASSEMBLY
a. Install the front exhaust pipe.
21. INSTALL GENERATOR ASSEMBLY
22. INSTALL V-RIBBED BELT
23. INSTALL INTAKE AIR CONNECTOR PIPE
24. INSTALL NO. 2 ENGINE UNDER COVER
25. INSTALL FRONT SUSPENSION MEMBER PROTECTOR LOWER
26. INSTALL NO. 1 ENGINE UNDER COVER
27. INSTALL NO. 1 AIR CLEANER INLET
28. INSTALL AIR CLEANER INLET COVER
29. INSTALL V-BANK COVER SUB-ASSEMBLY
30. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
31. INSTALL COWL TOP VENTILATOR LOUVER RH
32. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
