Multiplex Communication System - CAN

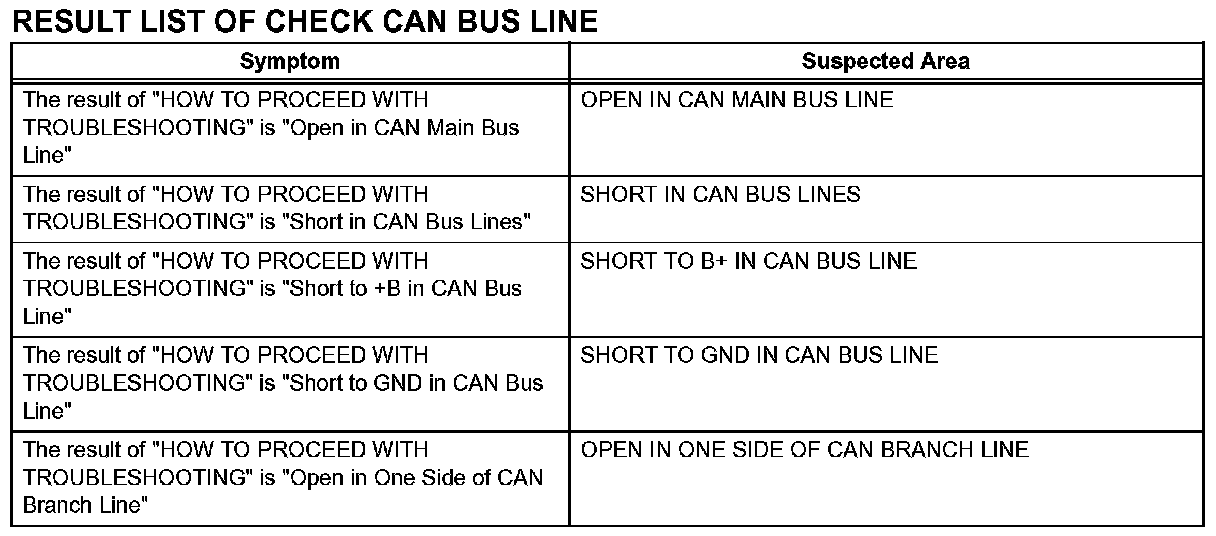

Problem Symptoms Table-Result List Of Check CAN Bus Line:

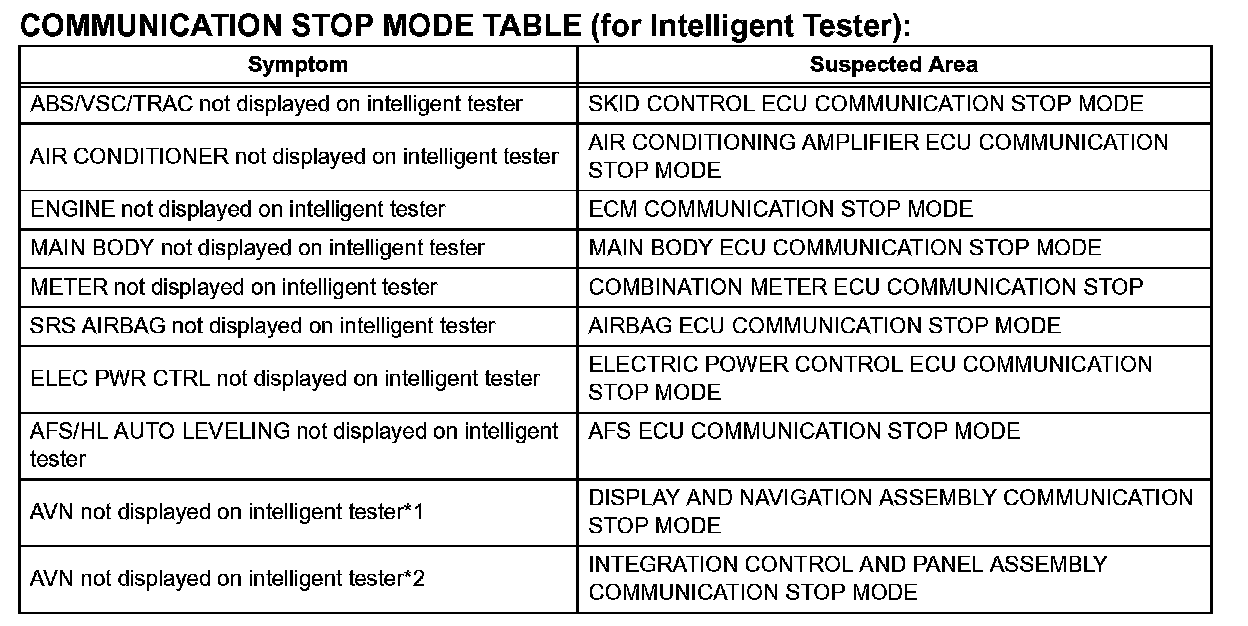

Problem Symptoms Table-Communication Stop Mode Table (For Intelligent Tester):

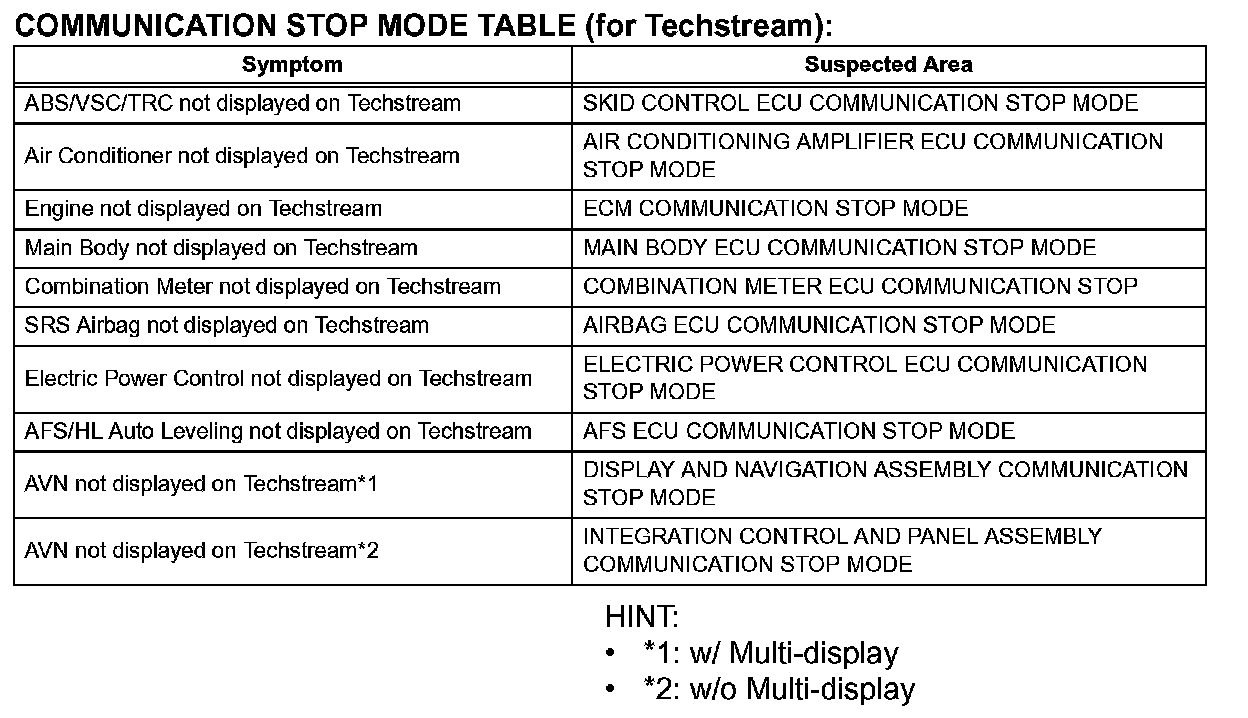

Problem Symptoms Table-Communication Stop Mode Table (For Techstream):
