Part 1 of 2
TERMINALS OF ECUHINT: Operating the engine switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
a. Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the main wire and the branch wire.
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTE:
- Before measuring the resistance, leave the vehicle for at least 1 minute and do not operate the engine switch, any switches or doors. If doors need to be opened in order to check connectors, open the doors and leave them open.
- After the engine switch is turned off, the HOD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

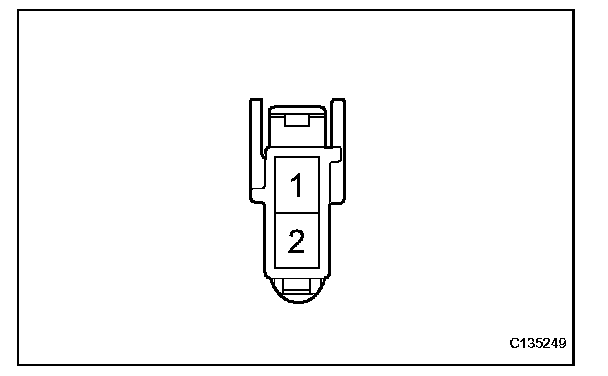

2. JUNCTION CONNECTOR

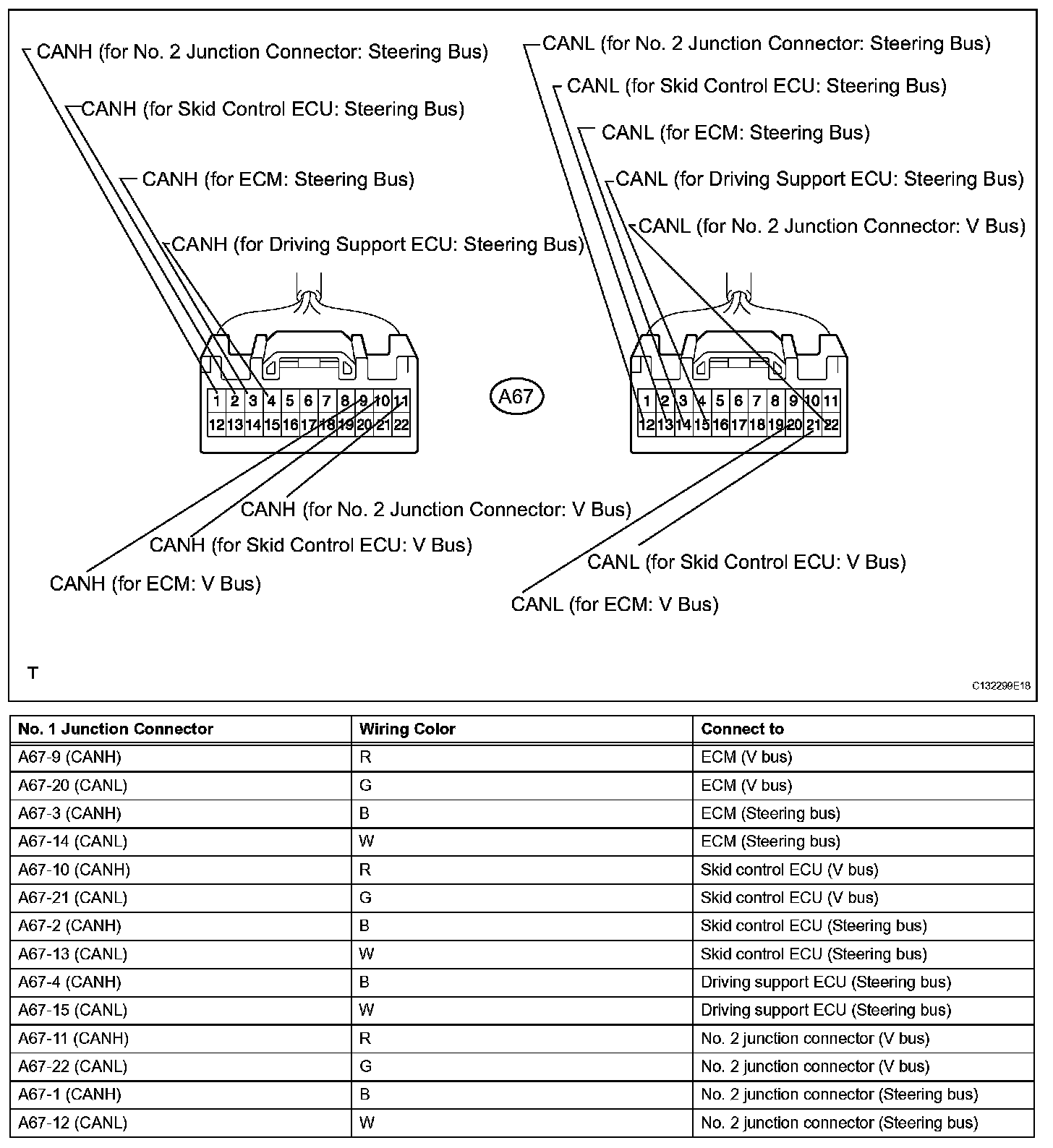

a. No.1 JUNCTION CONNECTOR
b. No.2 JUNCTION CONNECTOR

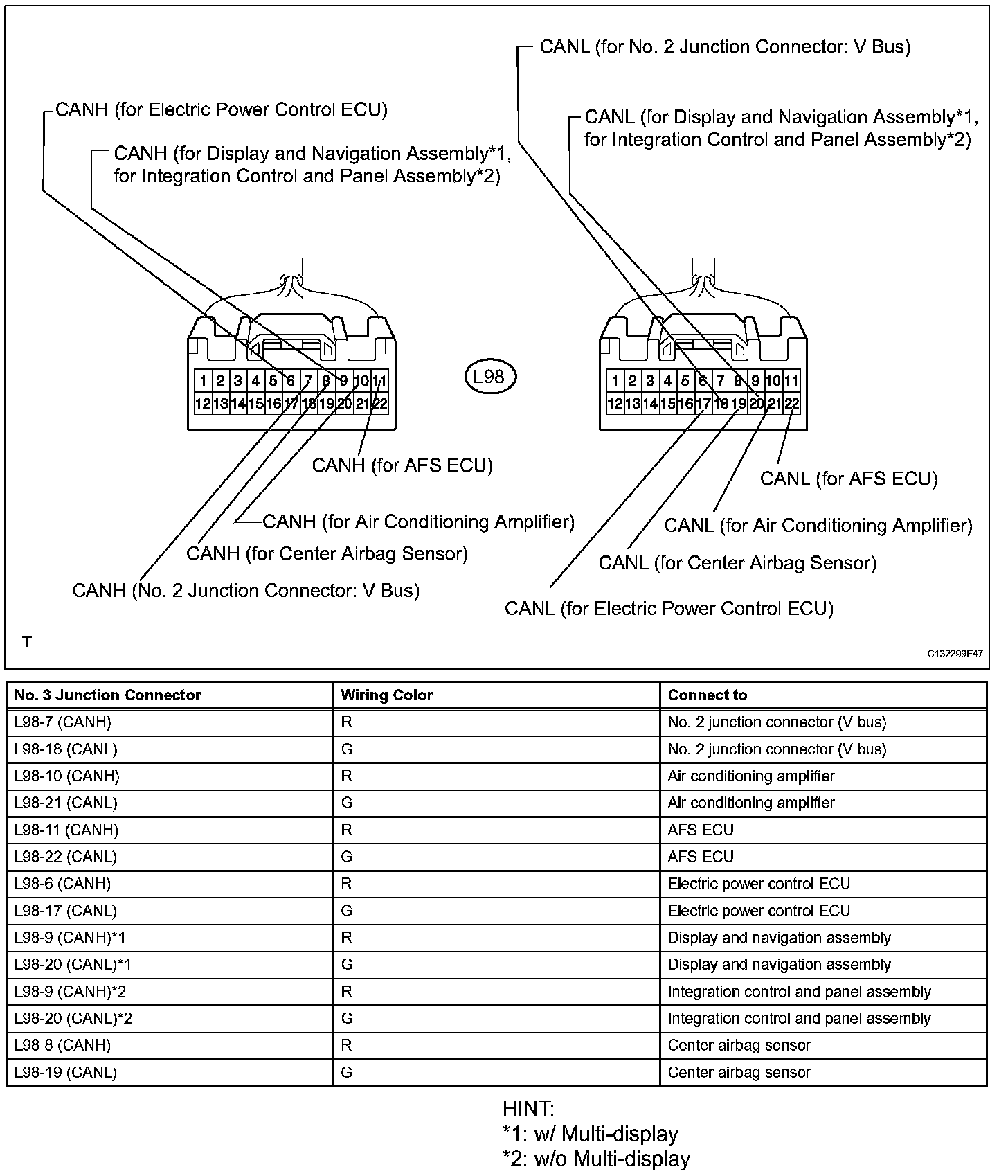

c. No.3 JUNCTION CONNECTOR

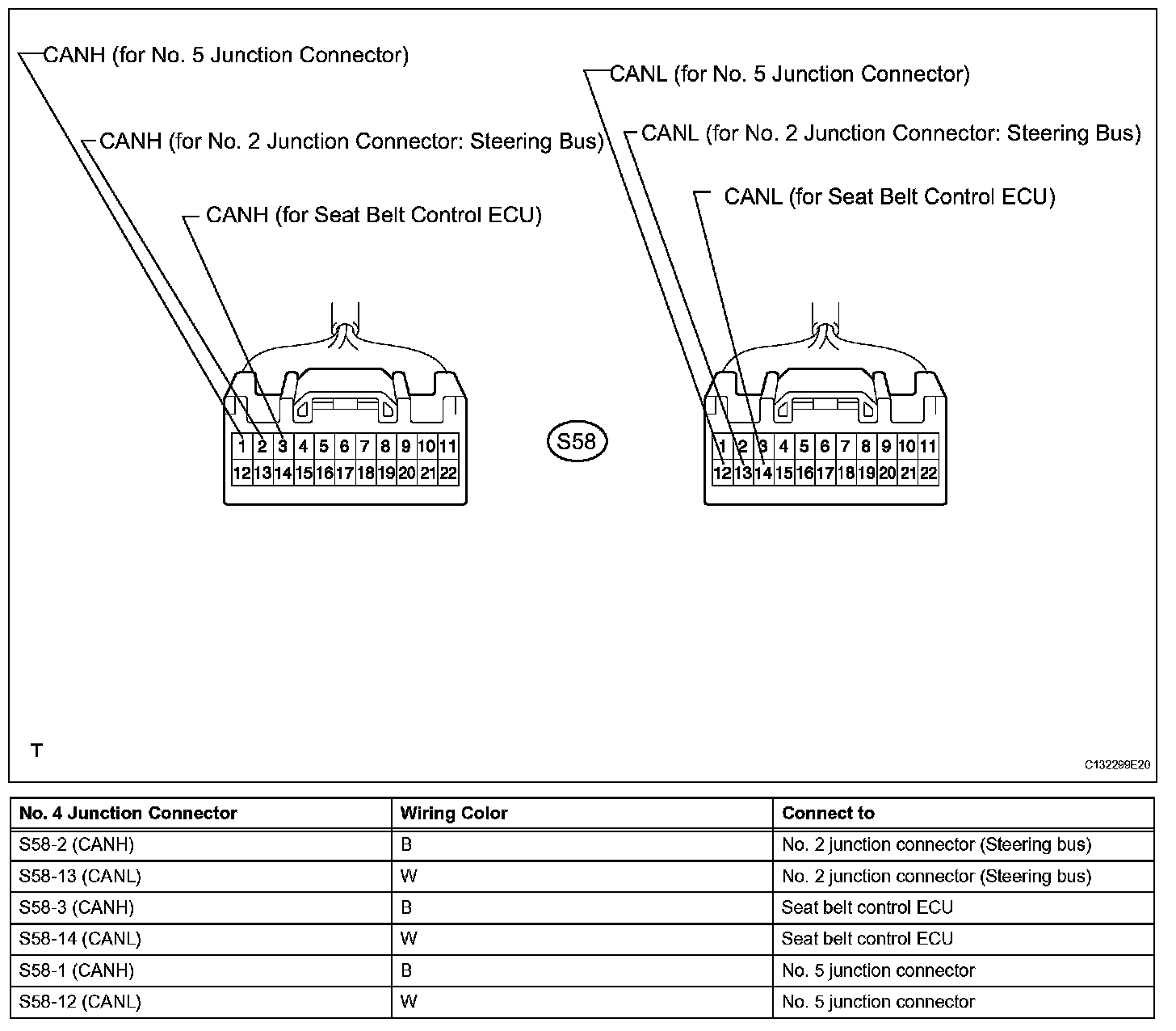

d. No.4 JUNCTION CONNECTOR

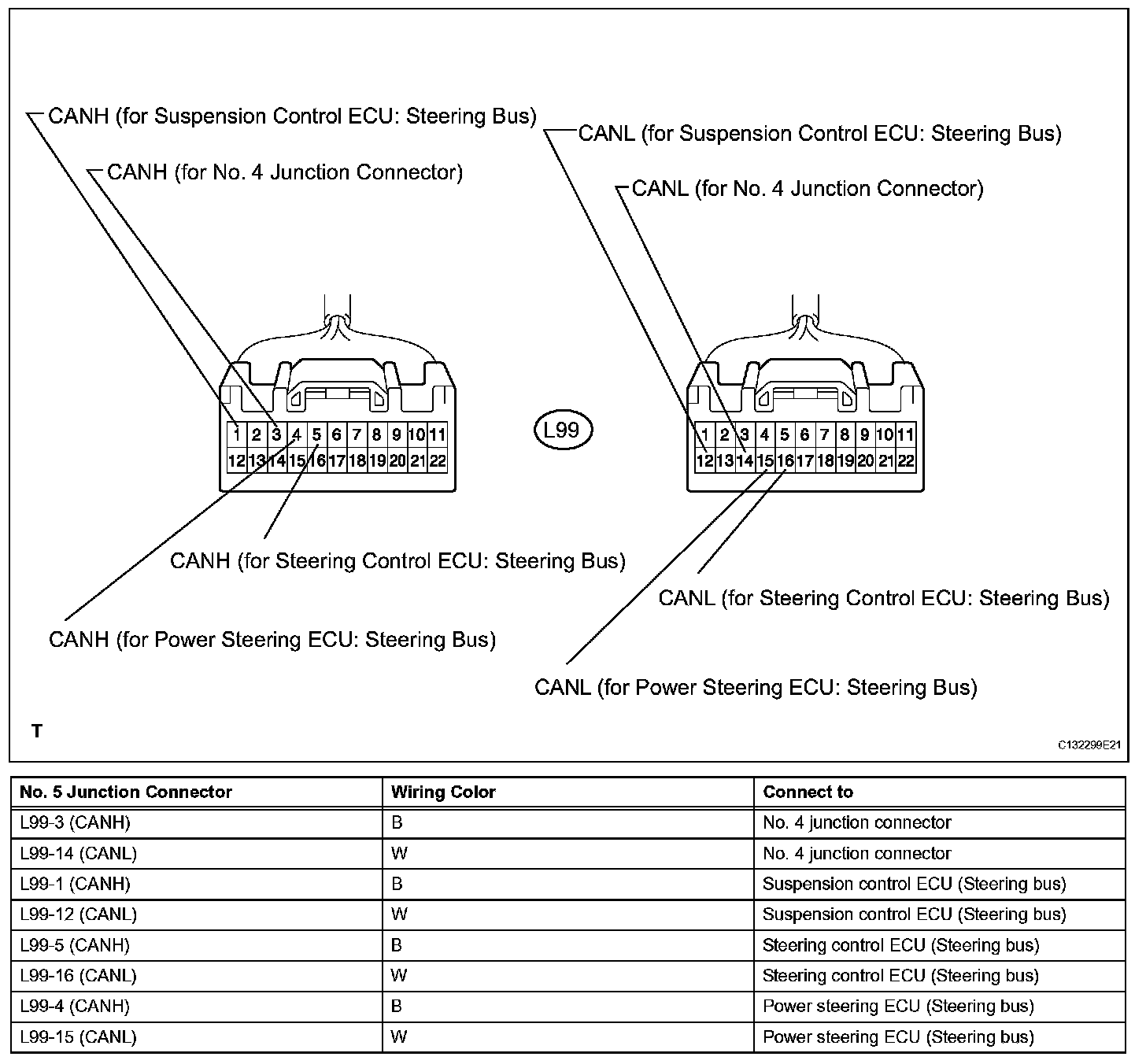

e. No.5 JUNCTION CONNECTOR

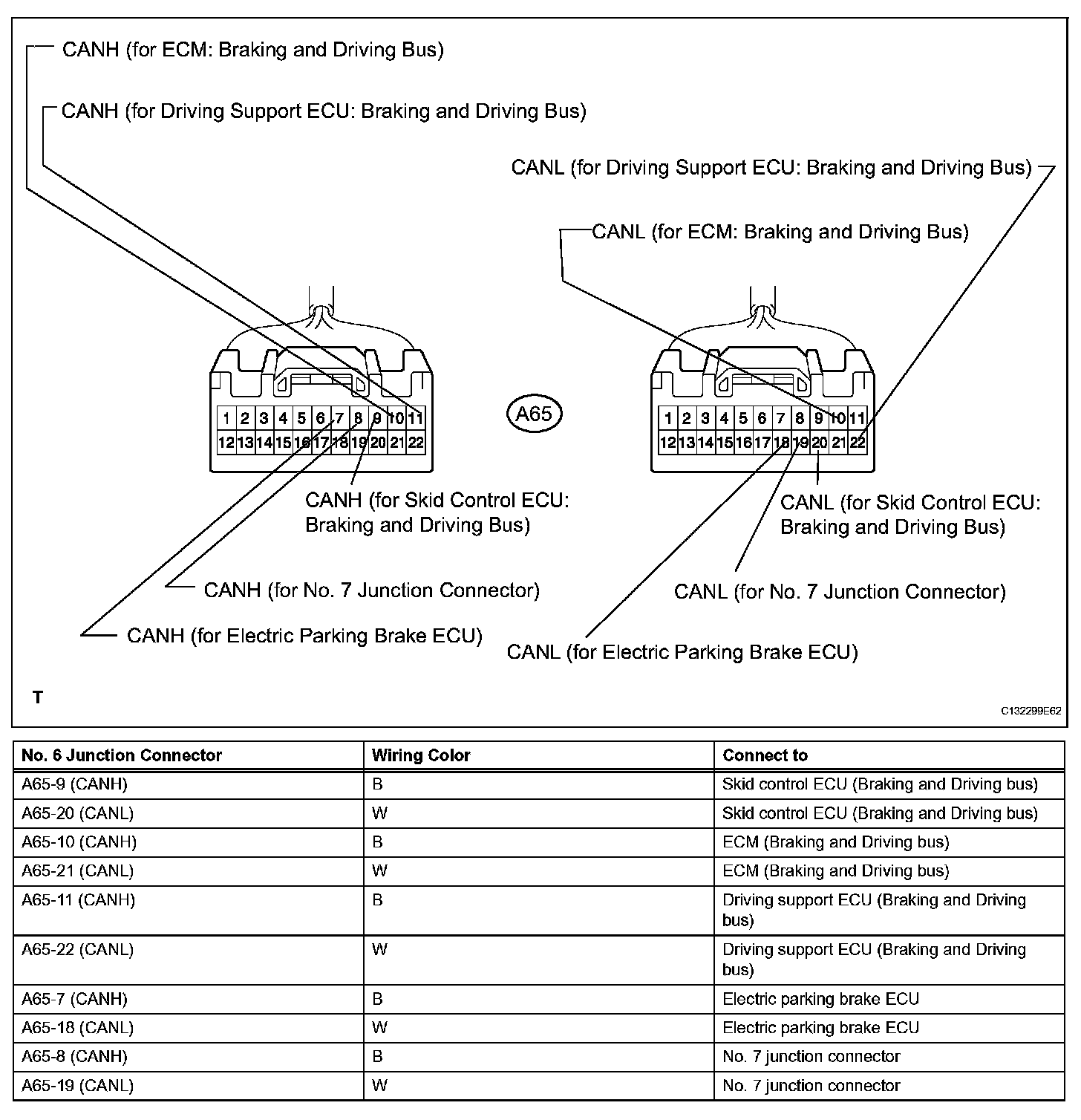

f. No.6 JUNCTION CONNECTOR

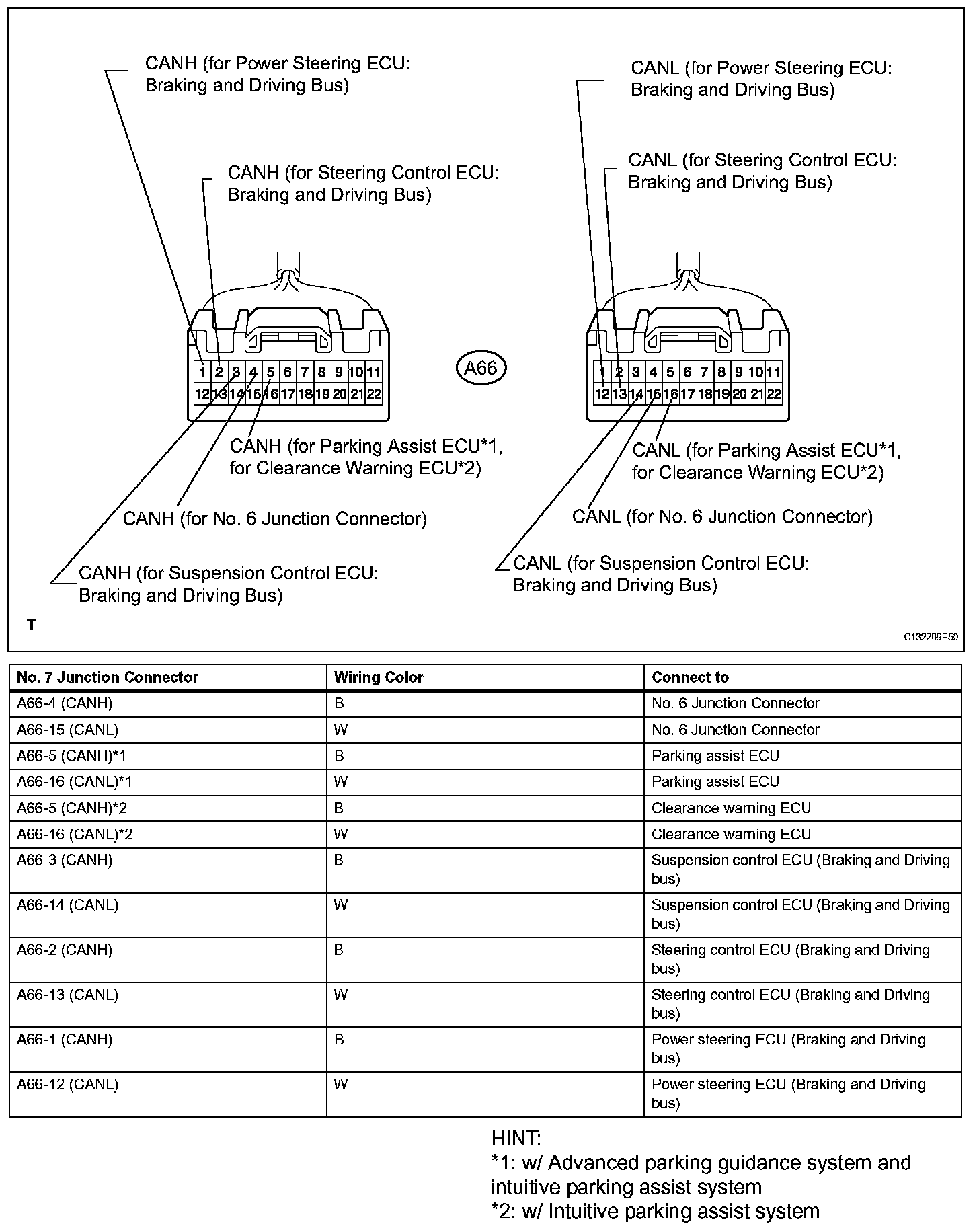

g. No.7 JUNCTION CONNECTOR

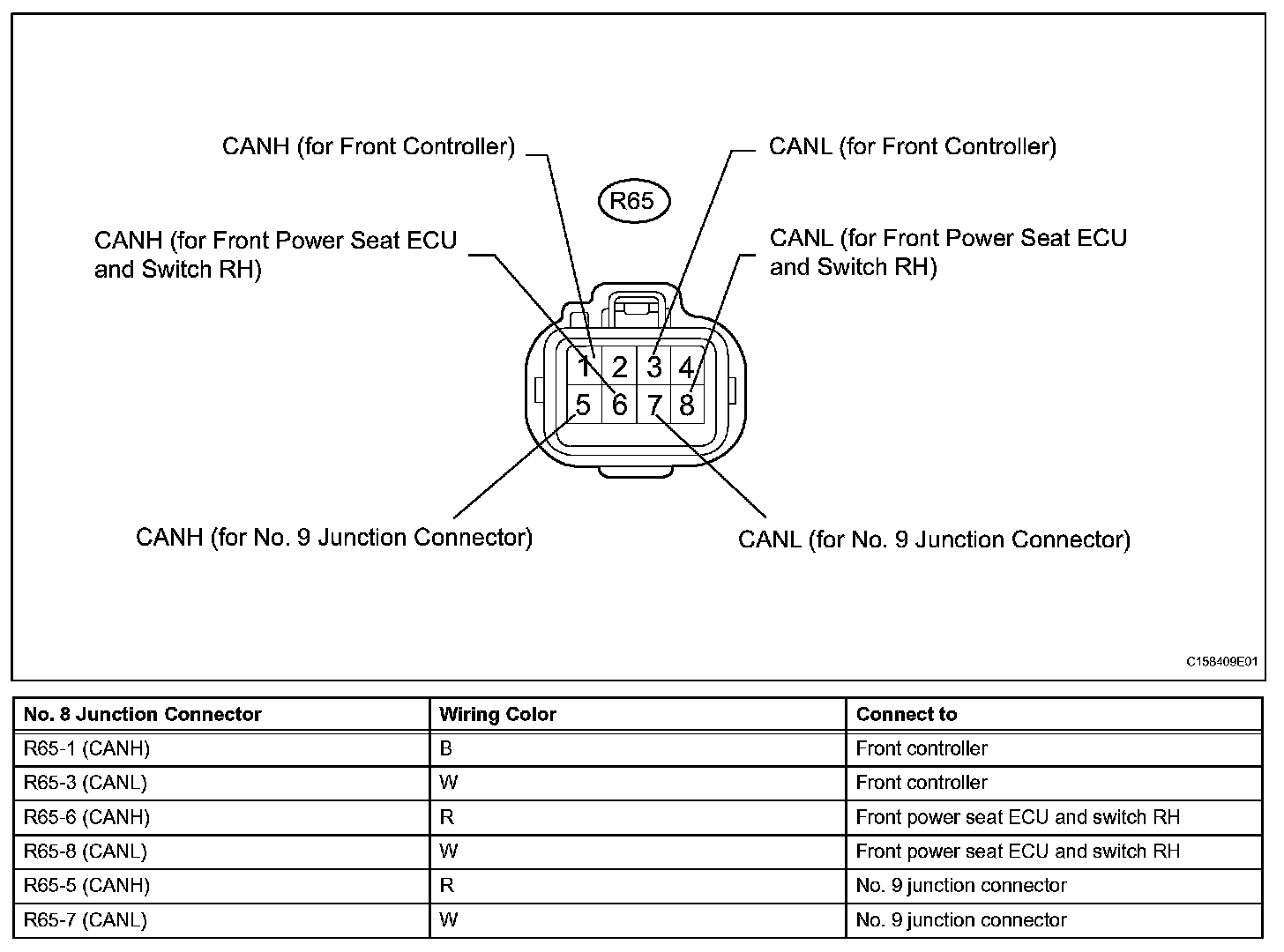

h. No.8 JUNCTION CONNECTOR

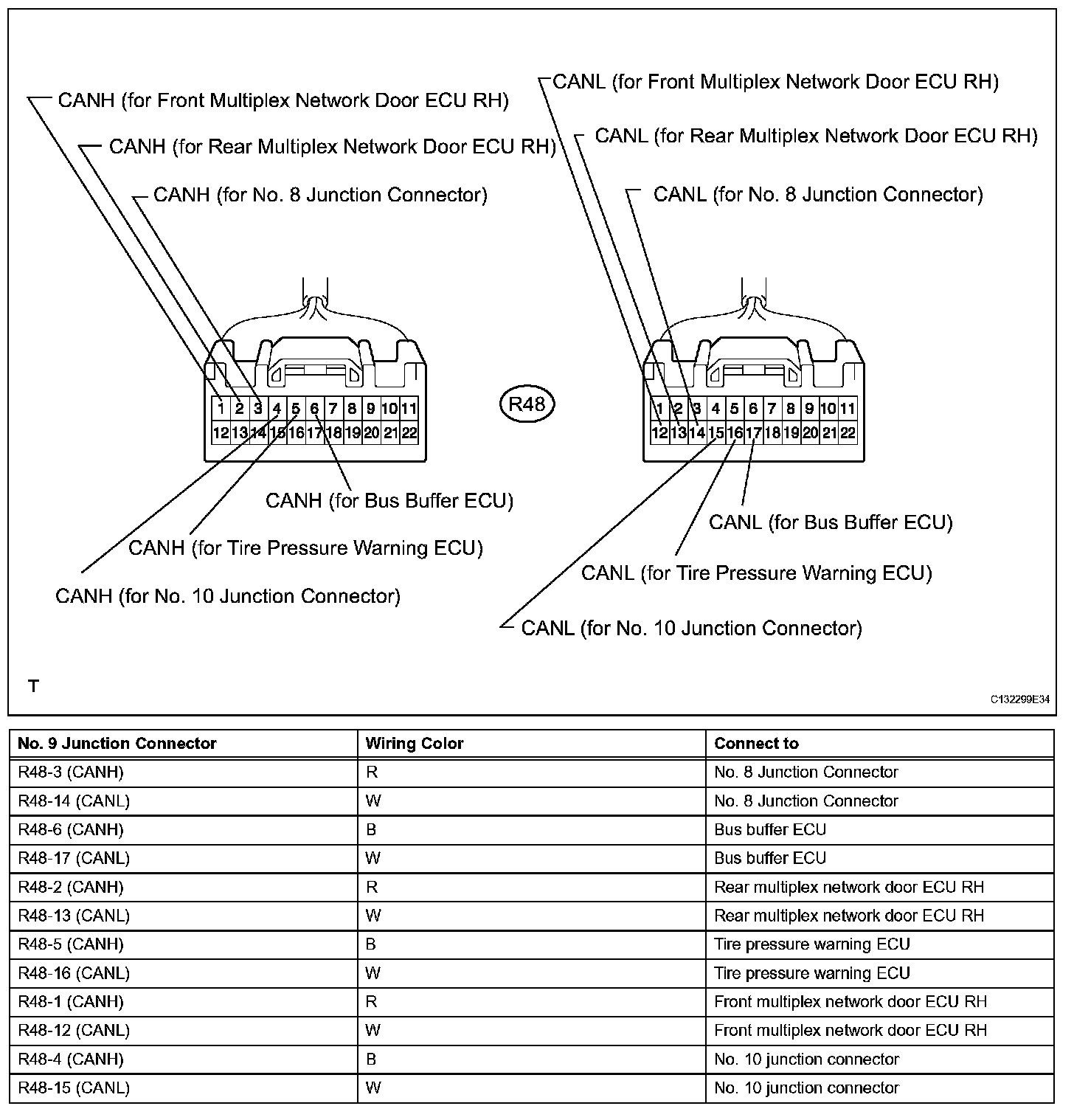

i. No.9 JUNCTION CONNECTOR

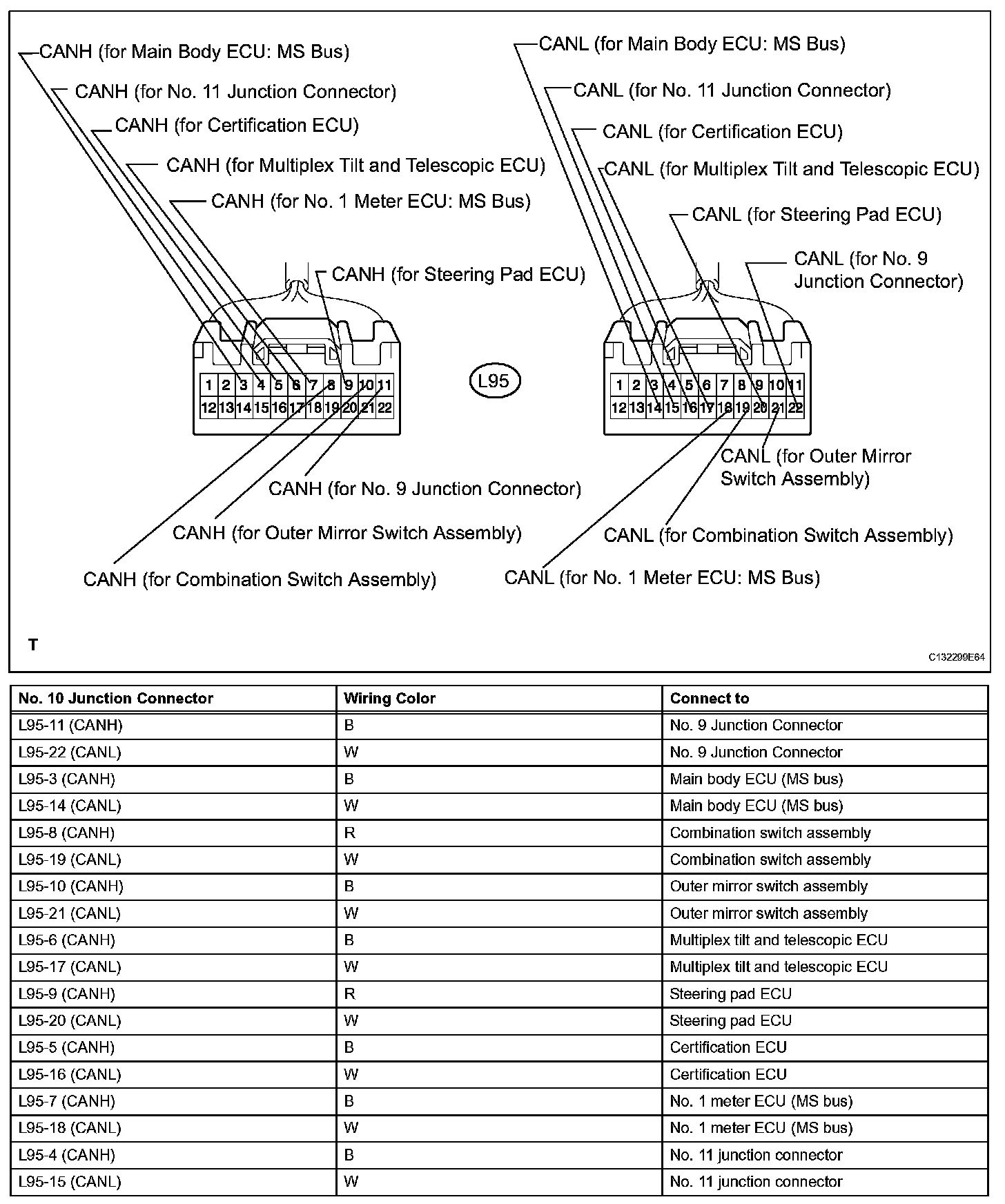

j. No.10 JUNCTION CONNECTOR

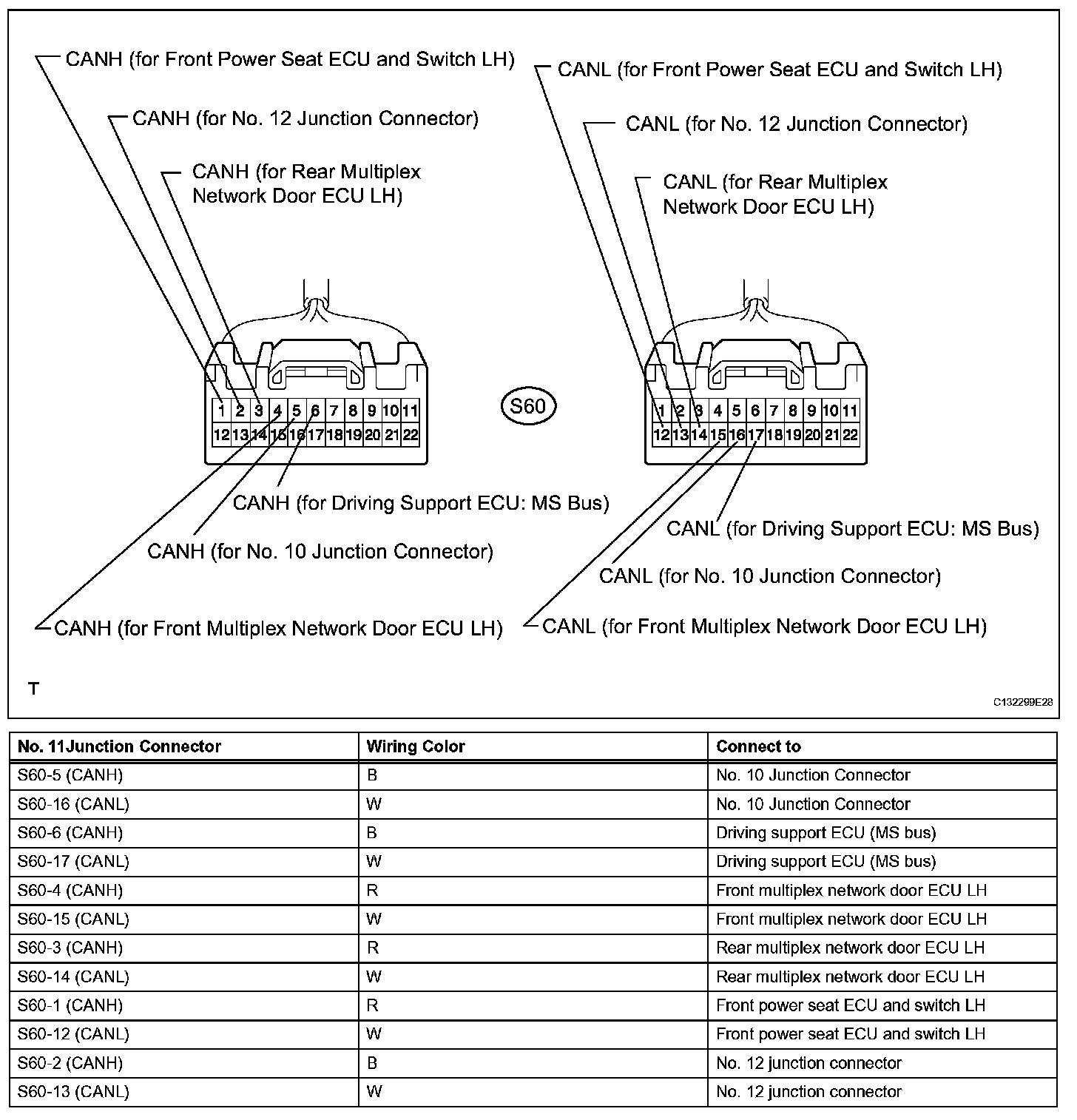

k. No.11 JUNCTION CONNECTOR

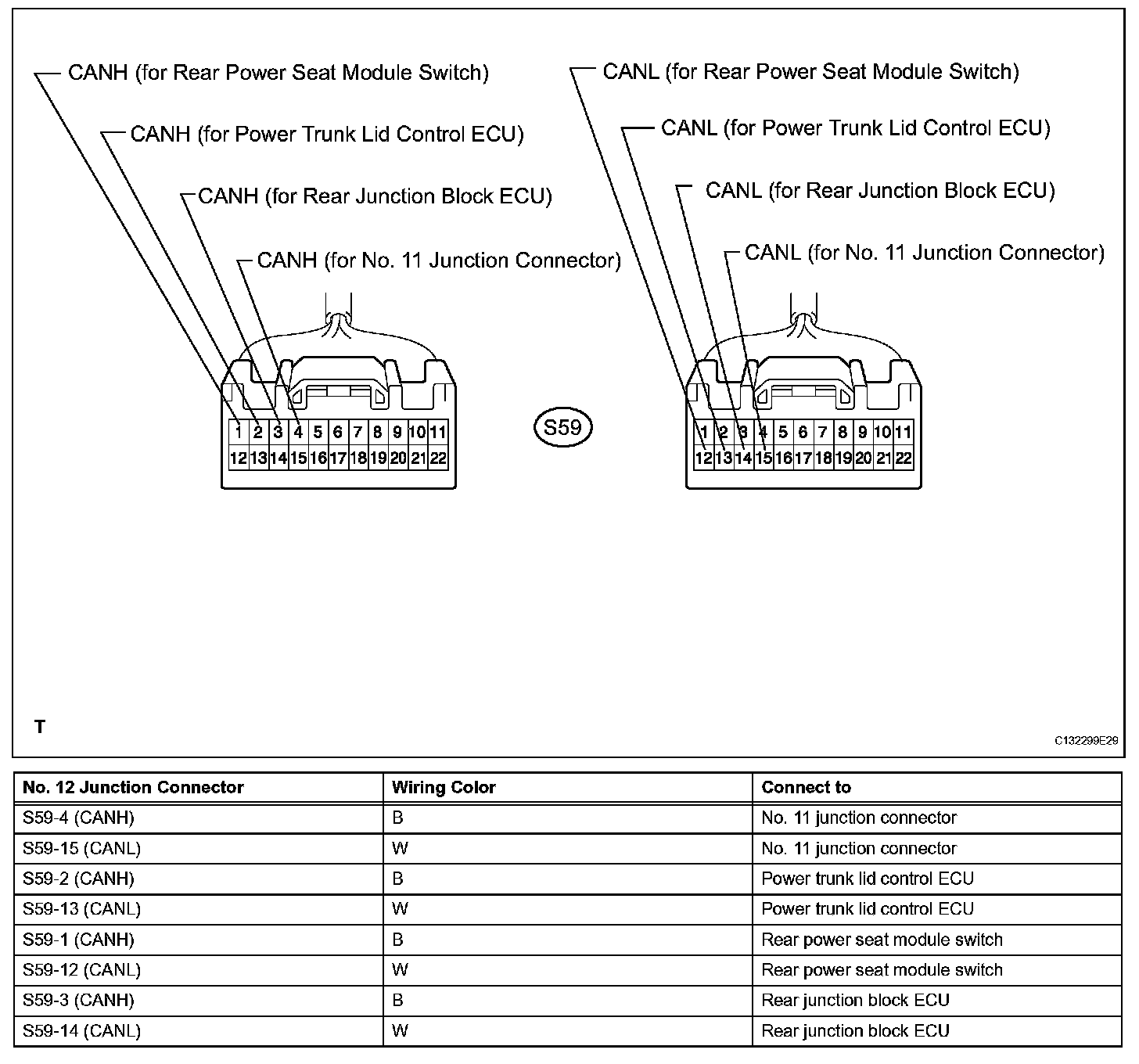

l. No.12 JUNCTION CONNECTOR

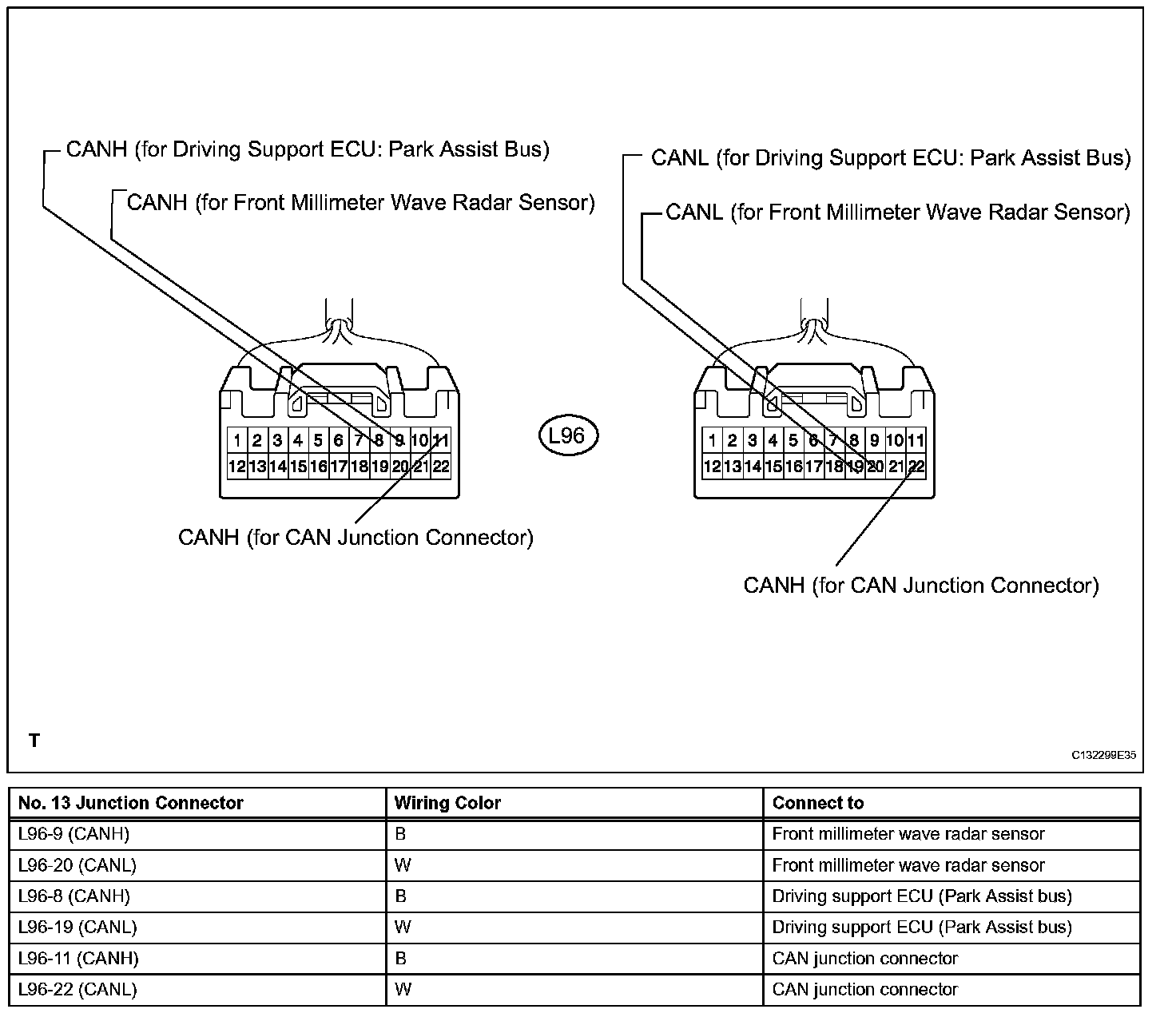

m. No.13 JUNCTION CONNECTOR
n. CAN JUNCTION CONNECTOR

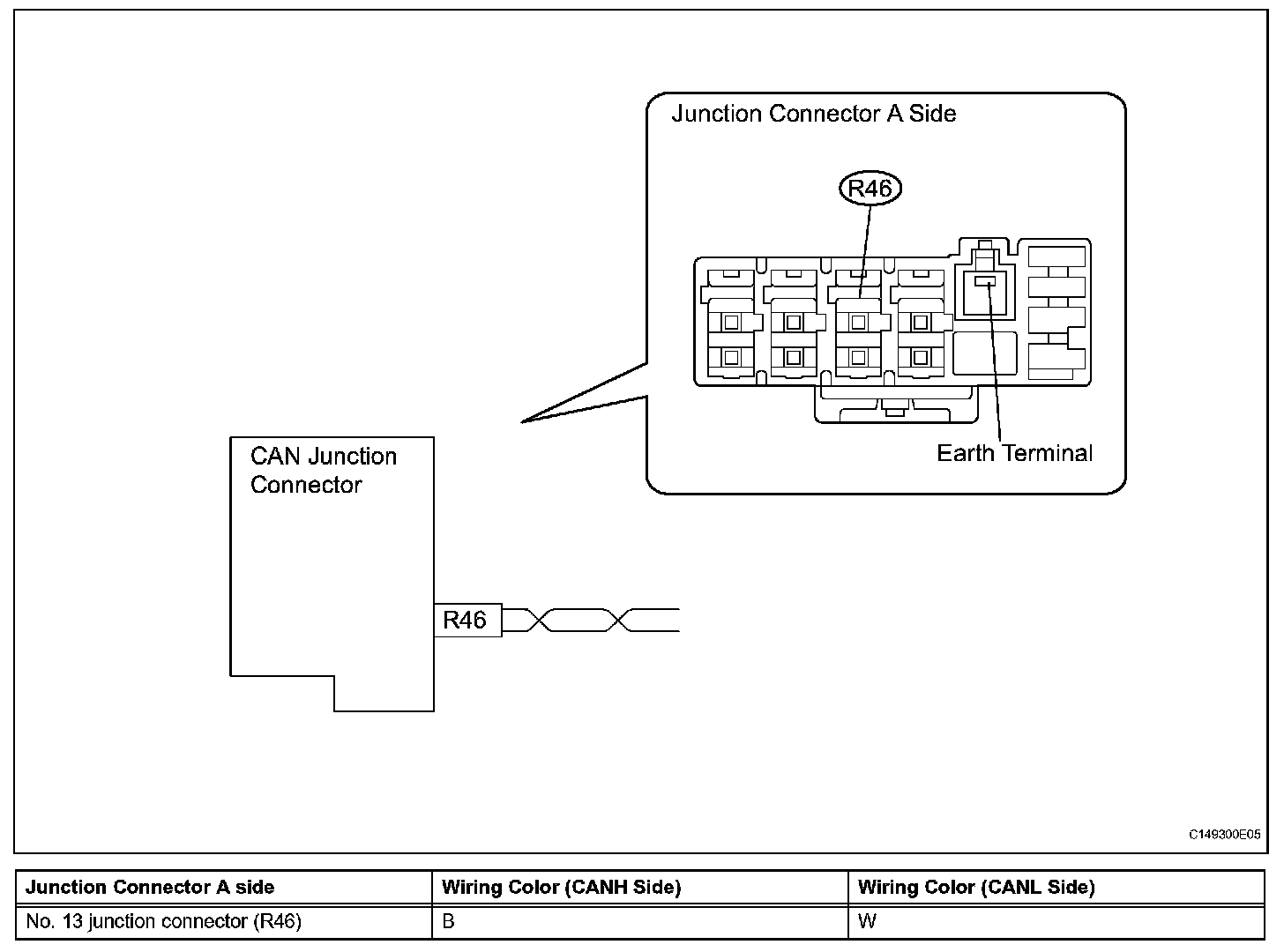

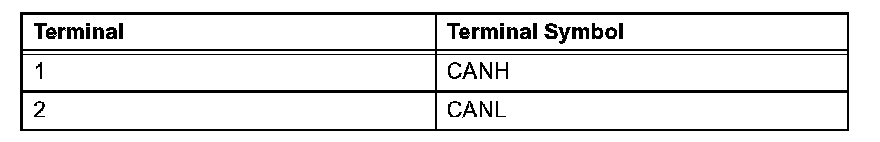

3. TERMINALS OF CONNECTORS FOR JUNCTION CONNECTOR (CAN JUNCTION CONNECTOR)

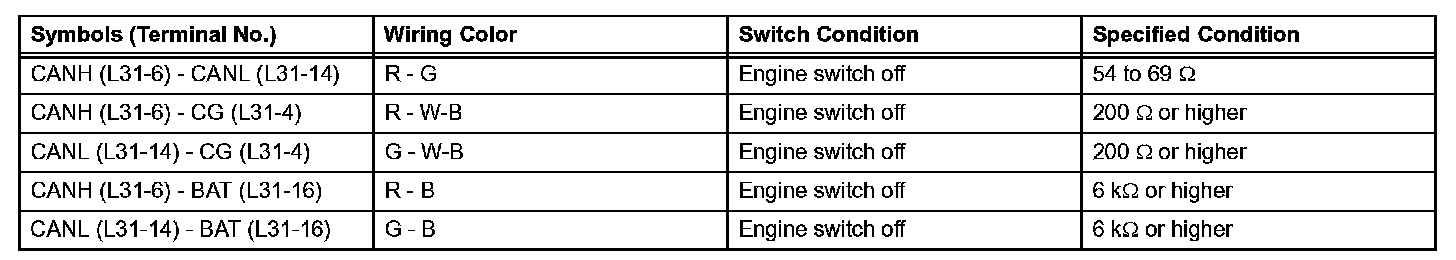

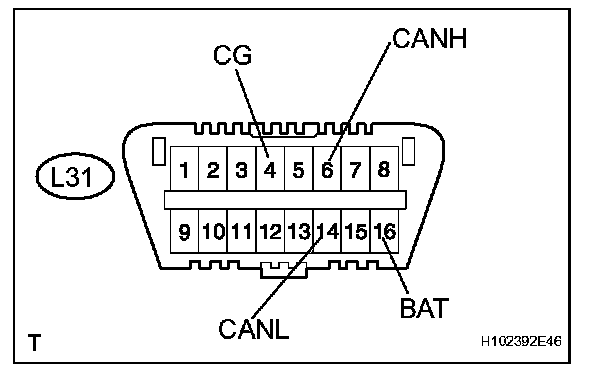

4. CHECKDLC3
a. Measure the resistance according to the value(s) in the table.

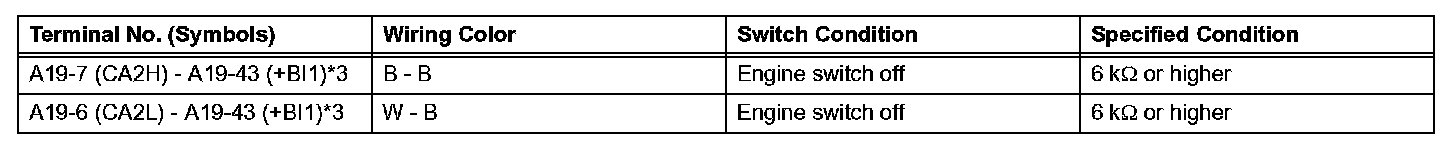

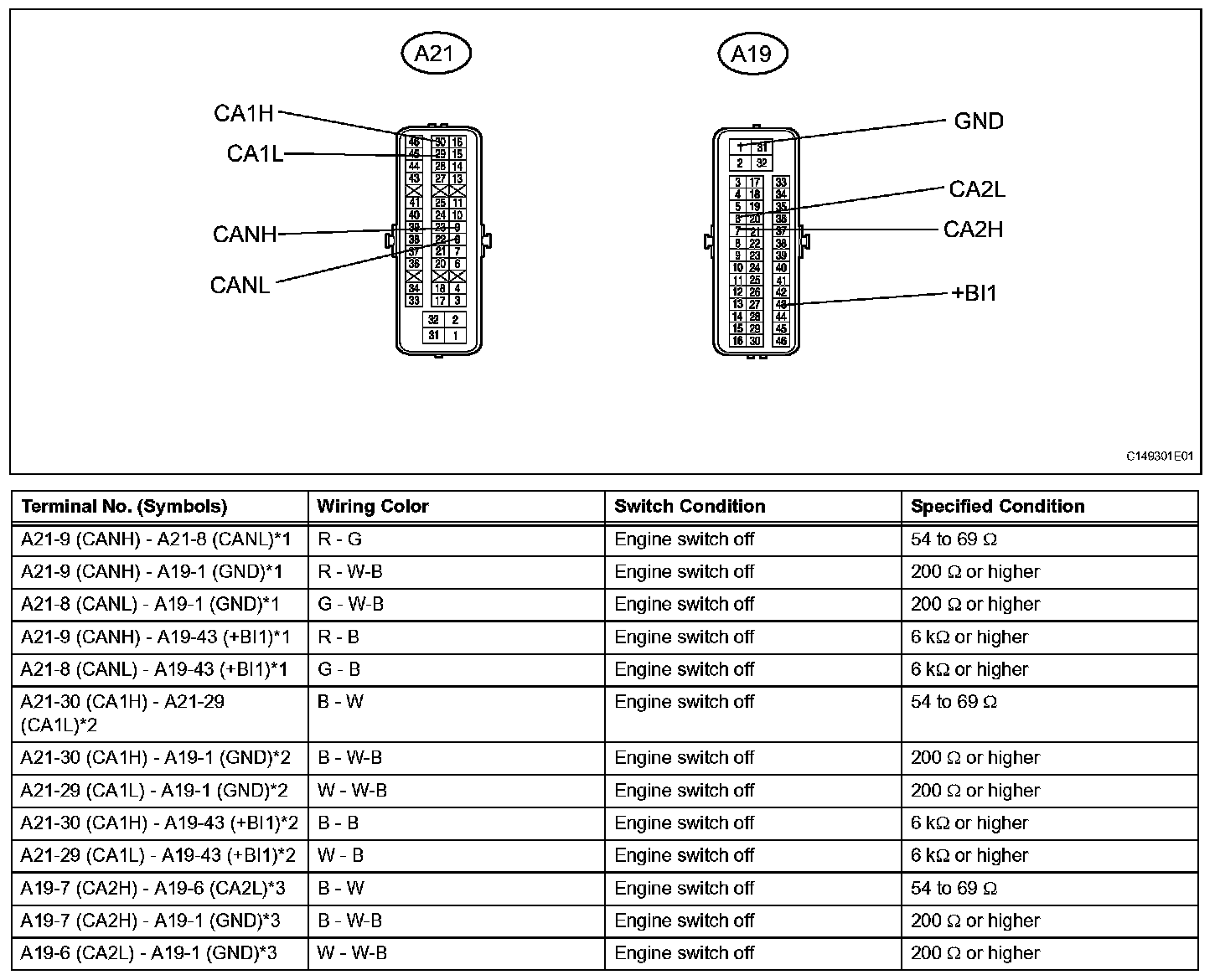

5. CHECK SKID CONTROL ECU
a. Disconnect the A19 and A21 ECU connectors.
b. Measure the resistance according to the value(s) in the table.

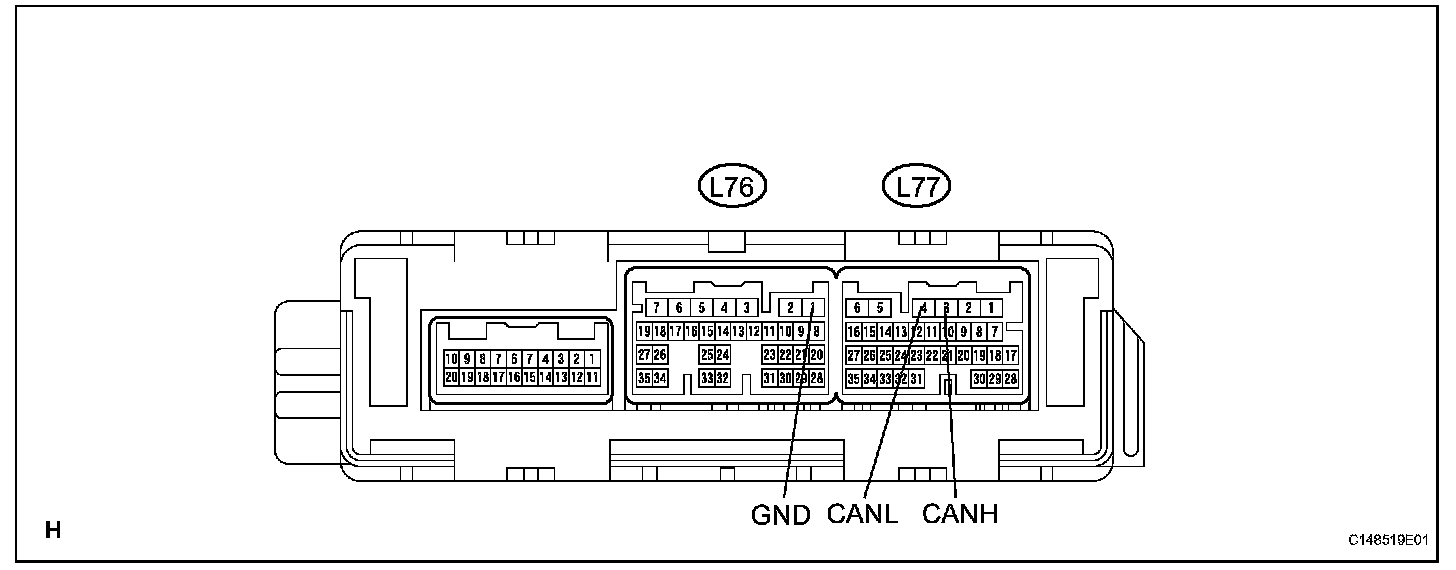

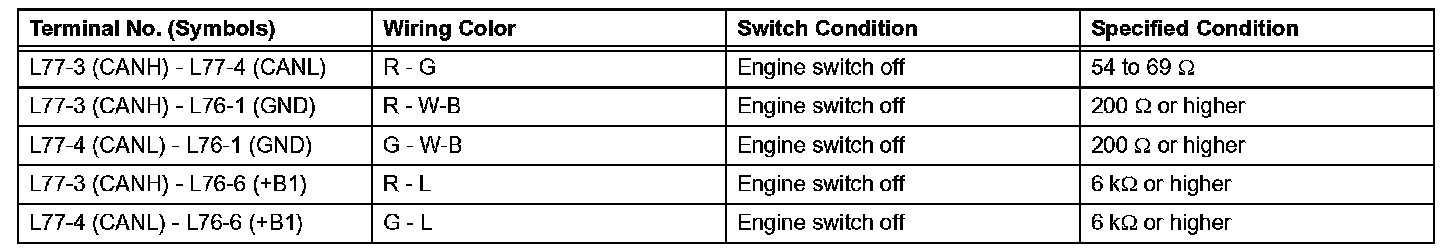

6. CHECK AIR CONDITIONING AMPLIFIER
a. Disconnect the L76 and L77 amplifier connectors.
b. Measure the resistance according to the value(s) in the table.

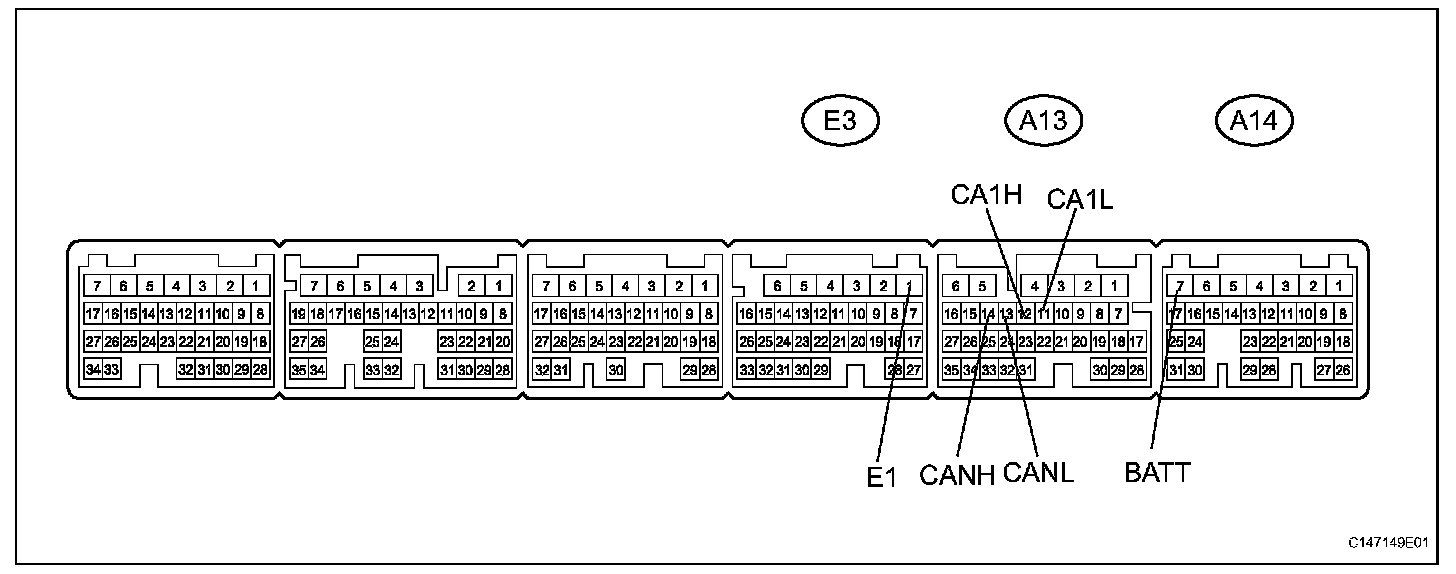

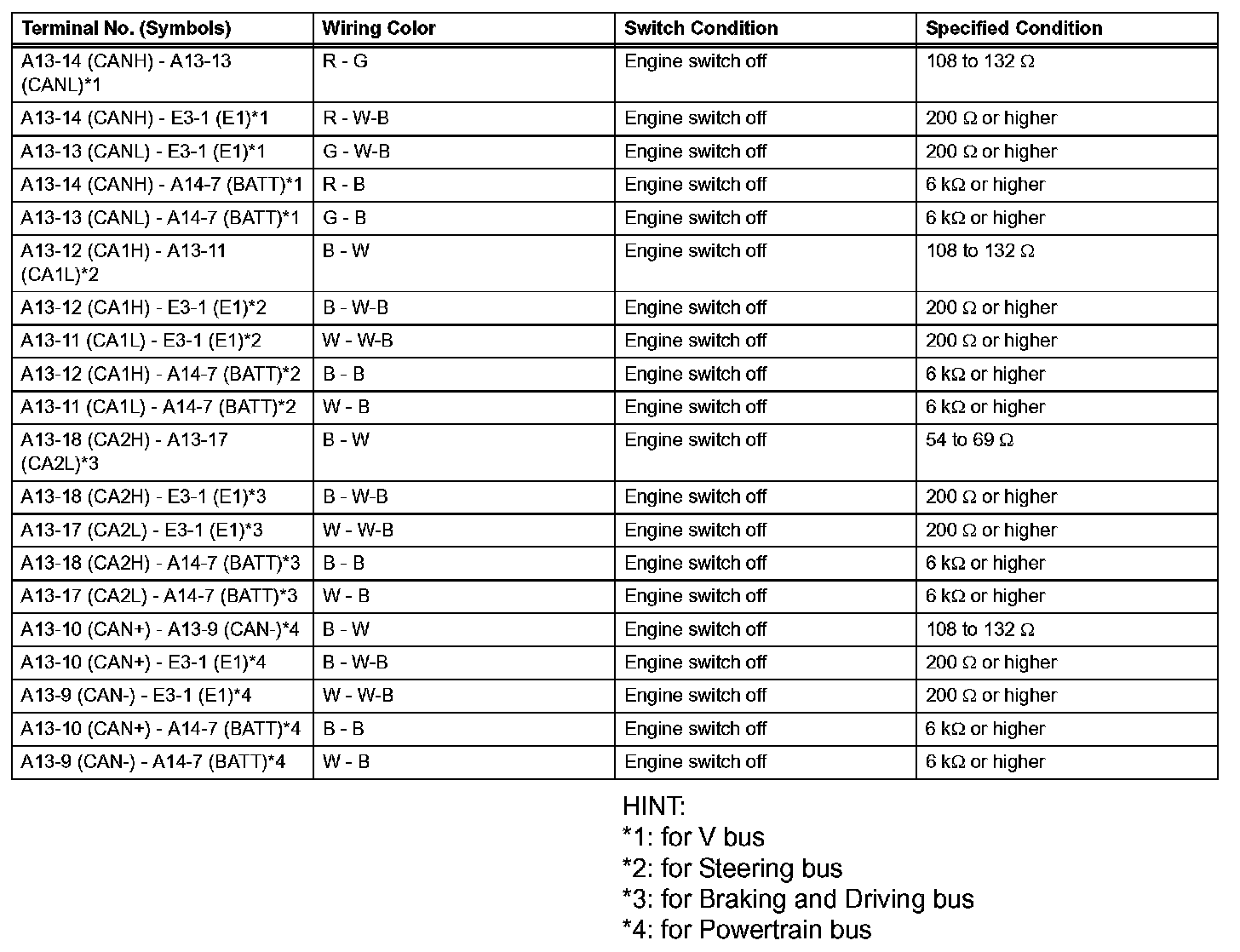

7. CHECK ECM
a. Disconnect the A13, A14 and E3 ECM connectors.
b. Measure the resistance according to the value(s) in the table.

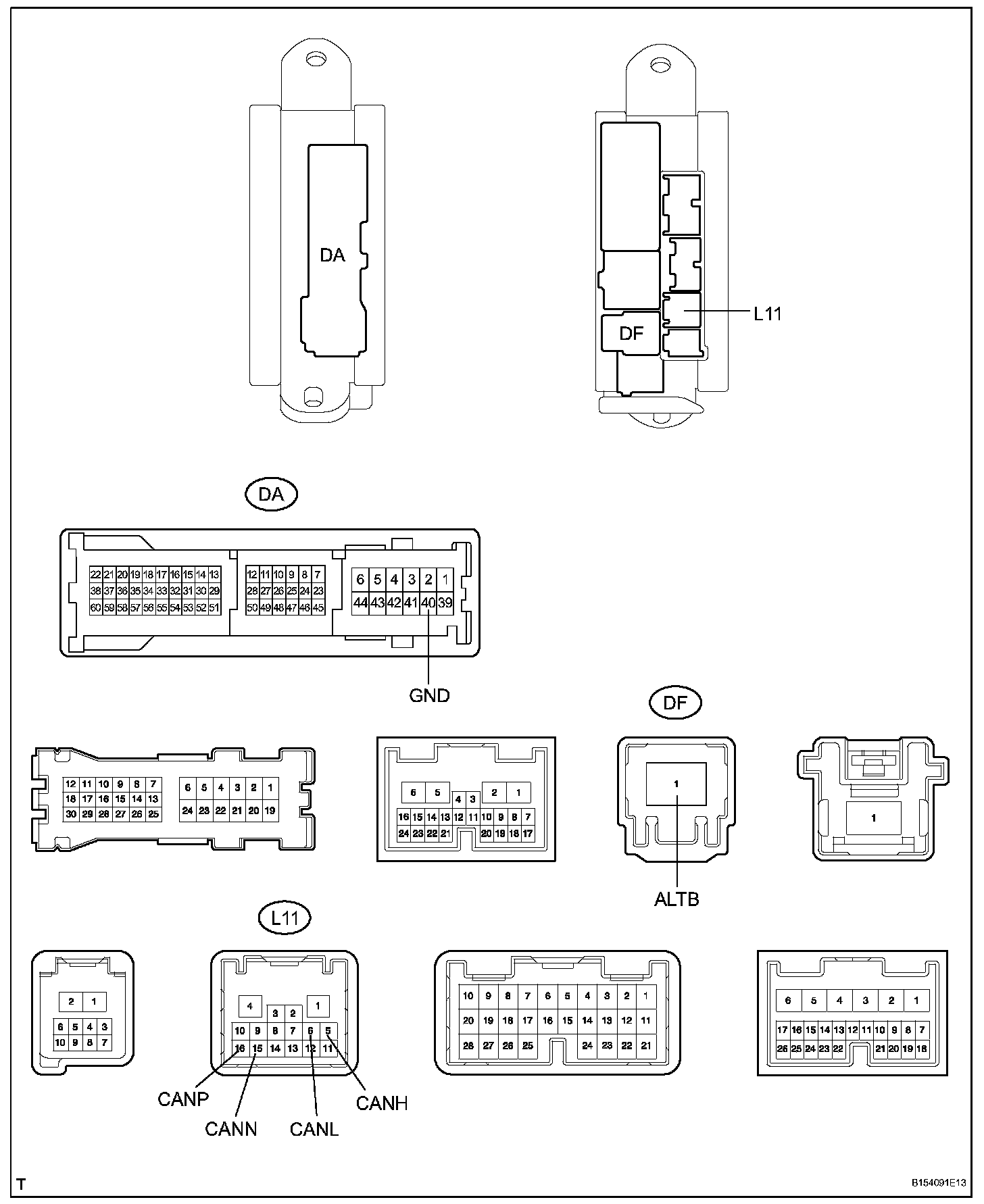

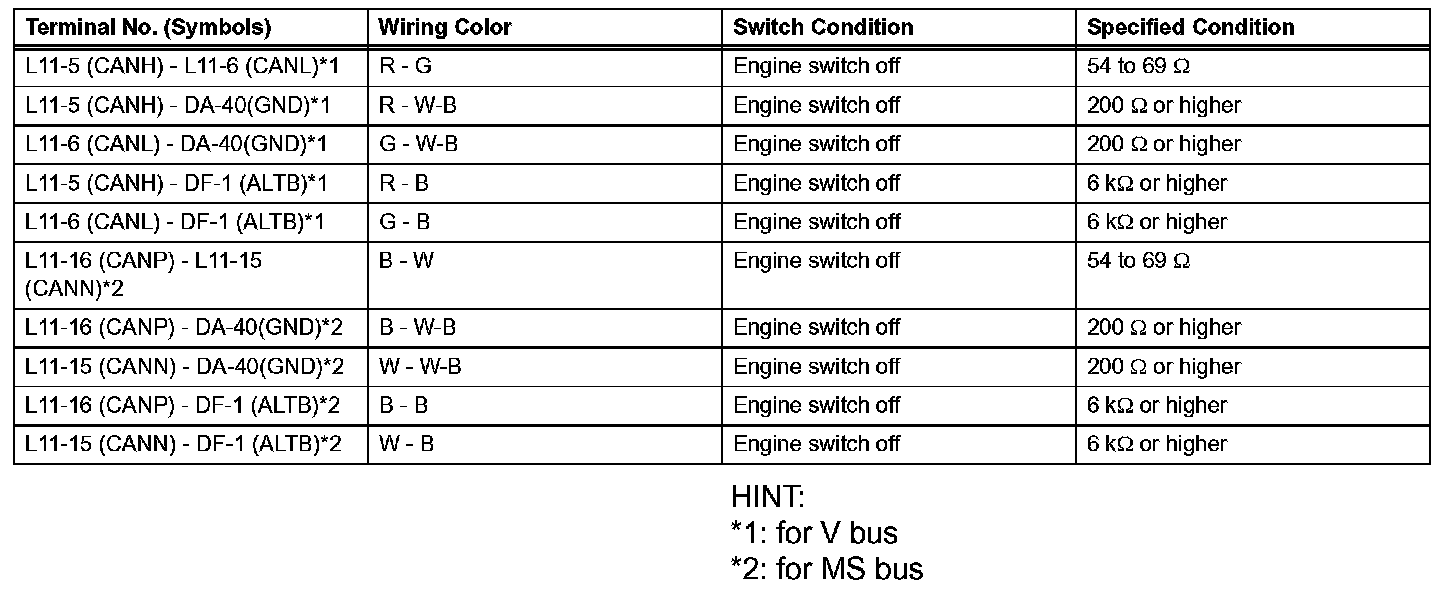

8. CHECK MAIN BODY ECU
a. Disconnect the L11 ECU connector.
b. Disconnect the DA and DF ECU connectors.
c. Measure the resistance according to the value(s) in the table.

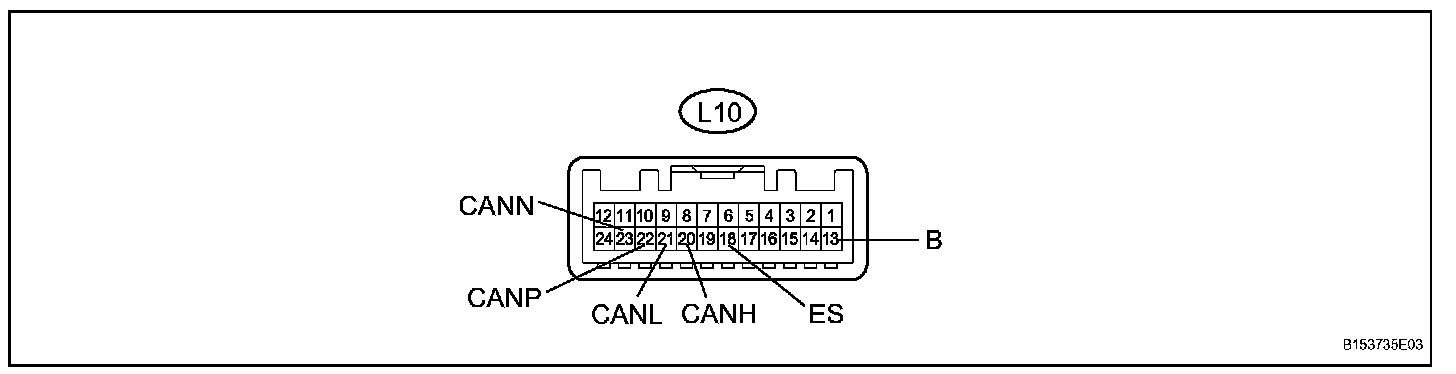

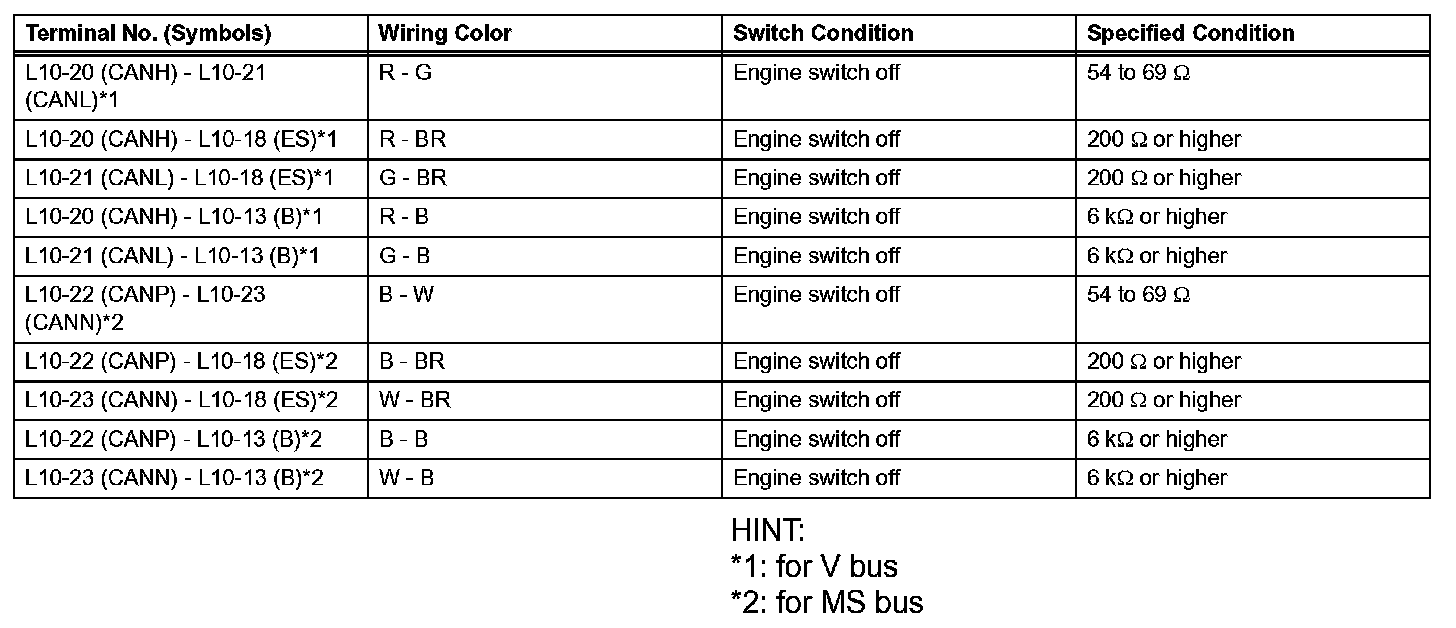

9. CHECK NO.1 METER ECU
a. Disconnect the L10 ECU connector.
b. Measure the resistance according to the value(s) in the table.

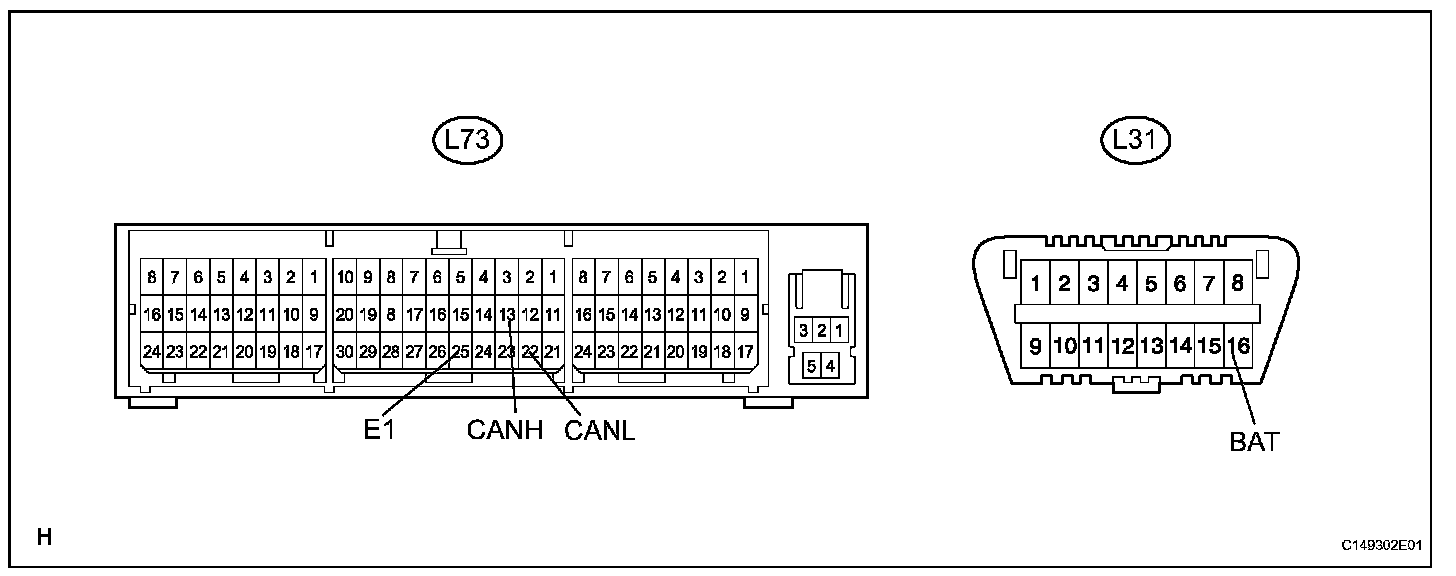

10. CHECK CENTER AIRBAG SENSOR
a. Disconnect the L73 ECU connector.
b. Measure the resistance according to the value(s) in the table.

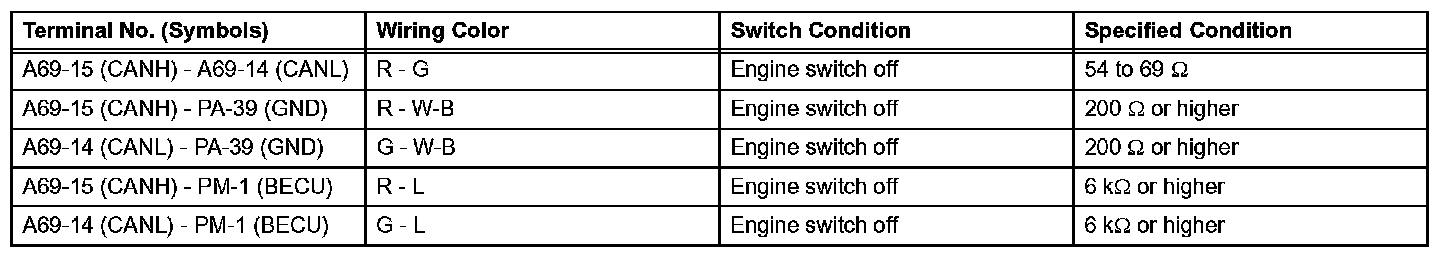

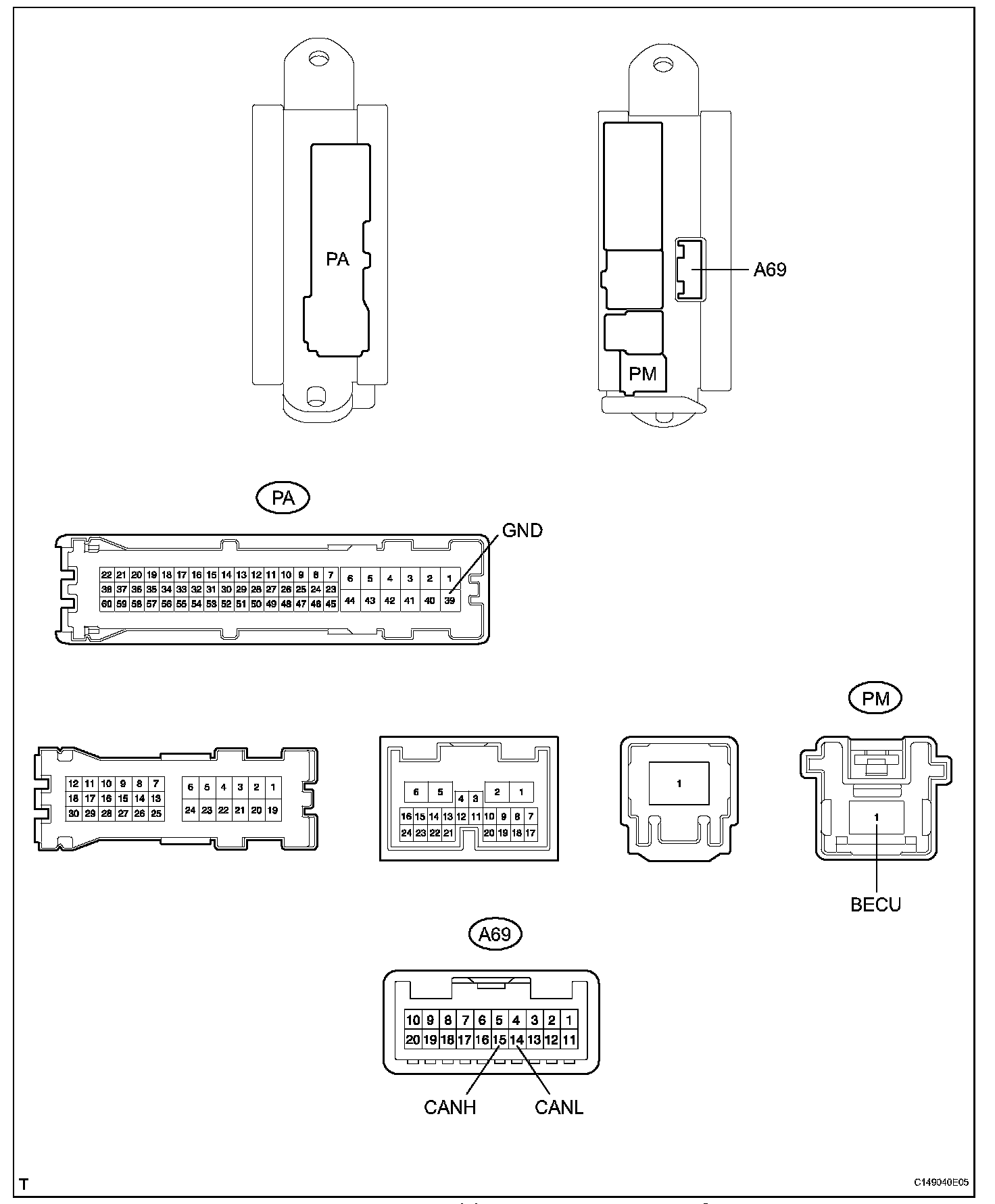

11. CHECK ELECTRIC POWER CONTROL ECU
a. Disconnect the A69 ECU connector.
b. Disconnect the PA and PM ECU connectors.
c. Measure the resistance according to the value(s) in the table.

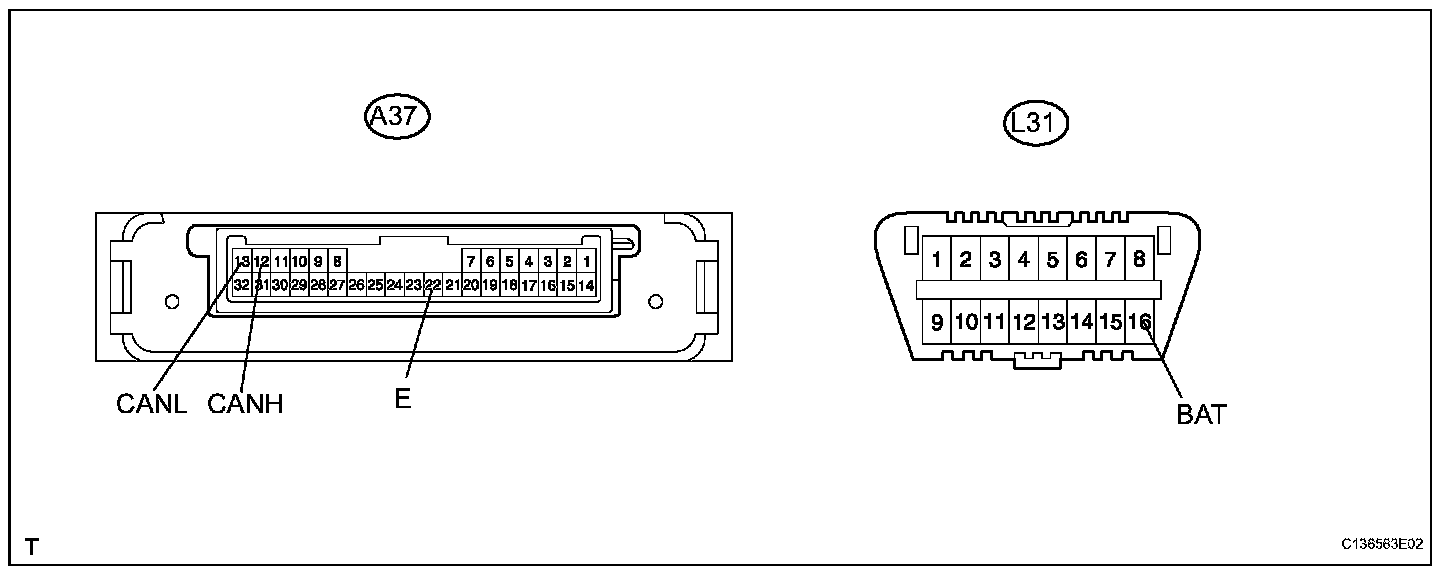

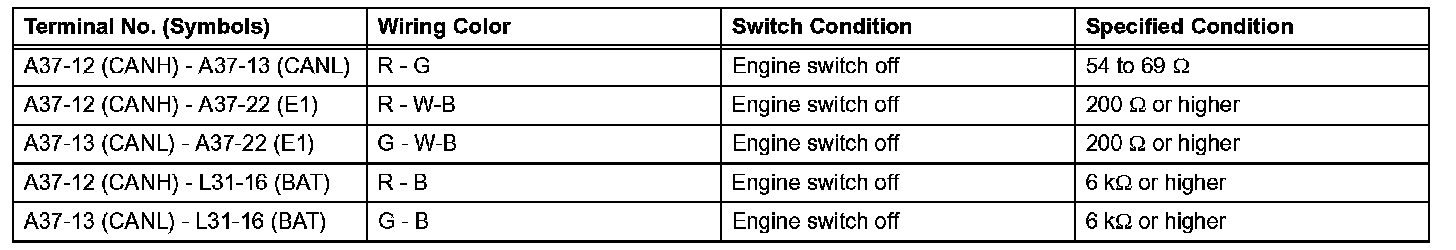

12. CHECK AFS ECU
a. Disconnect the A37 ECU connector.
b. Measure the resistance according to the value(s) in the table.

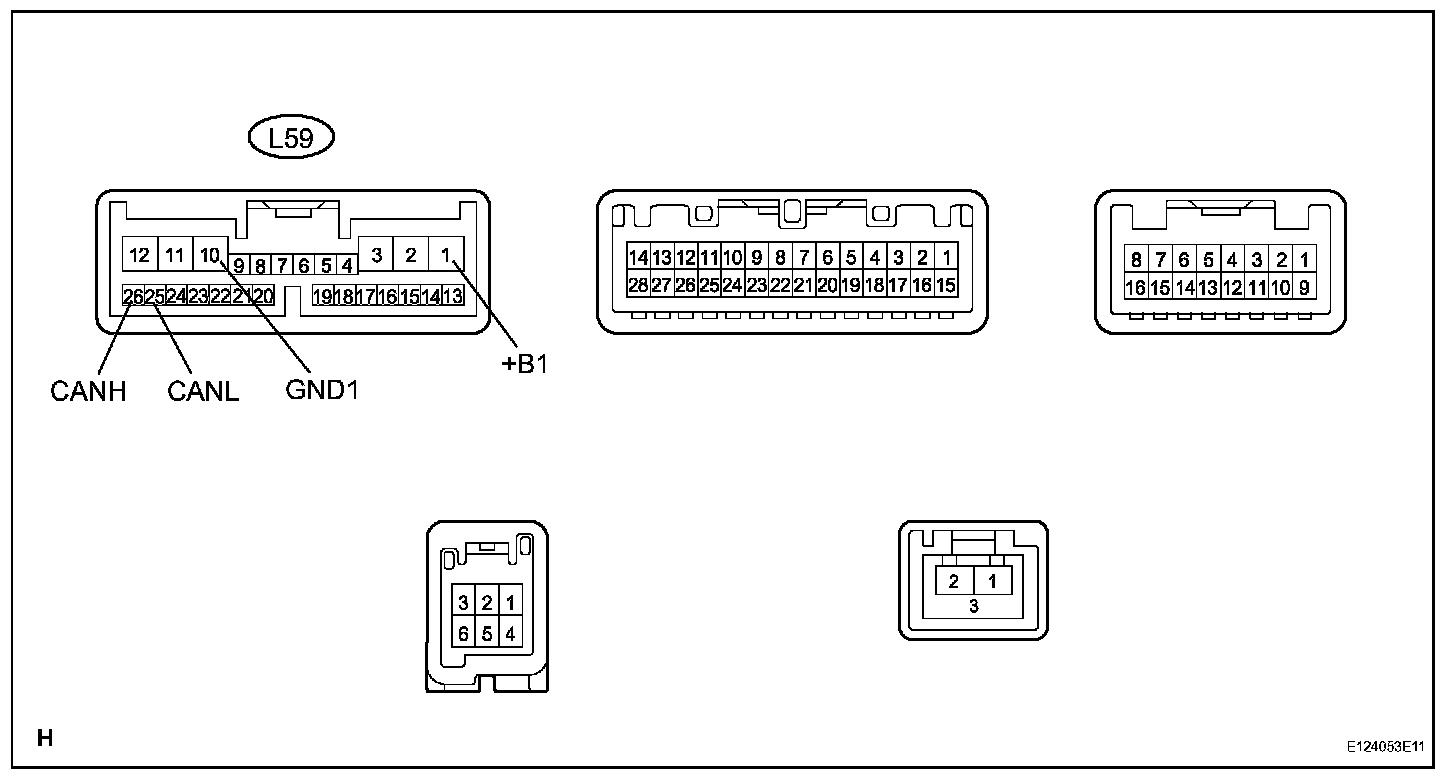

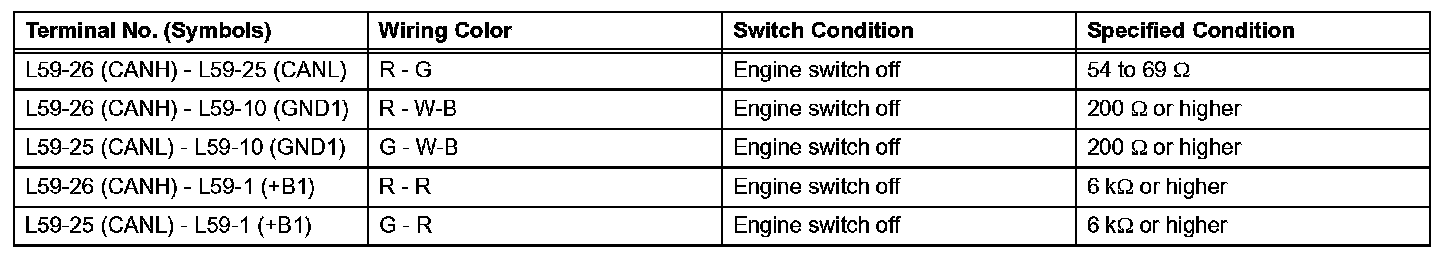

13. CHECK DISPLAY AND NAVIGATION ASSEMBLY
HINT: For vehicles with multi-display only.
a. Disconnect the L59 display and navigation assembly connector.
b. Measure the resistance according to the value(s) in the table.

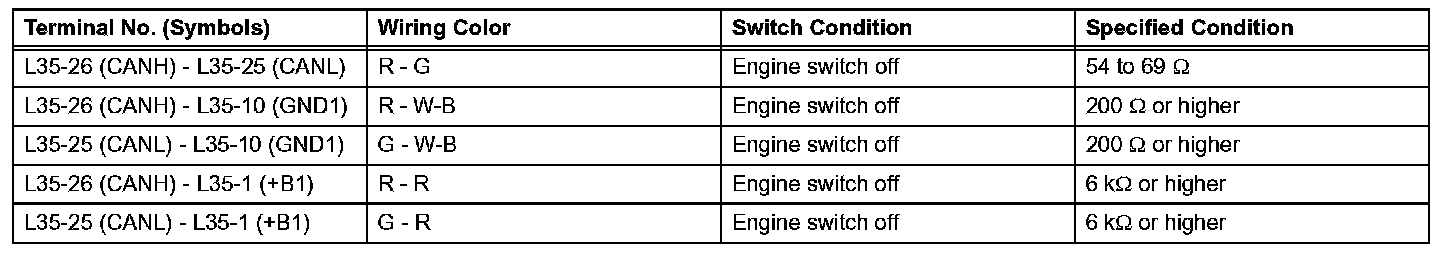

14. CHECK INTEGRATION CONTROL AND PANEL ASSEMBLY
HINT: For vehicles without multi-display only.

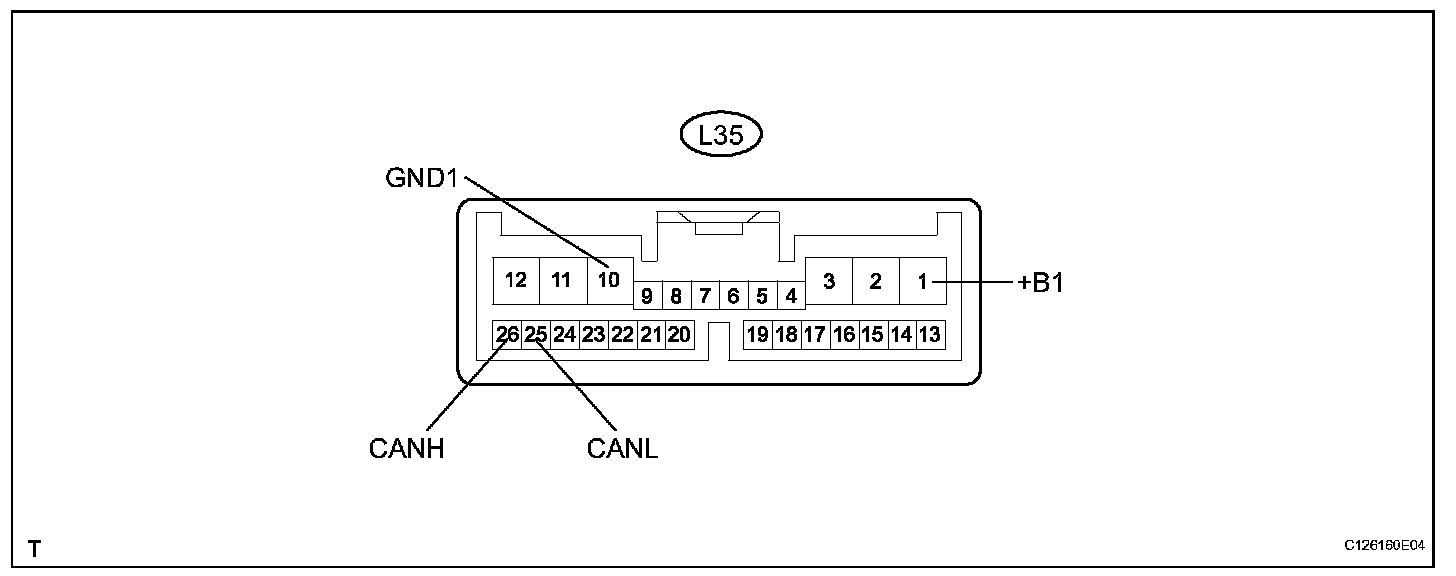

a. Disconnect the L35 panel assembly connector.
b. Measure the resistance according to the value(s) in the table.

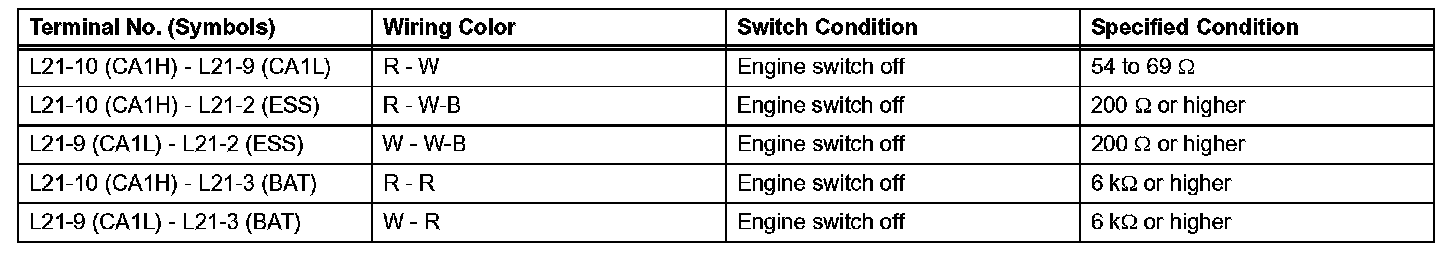

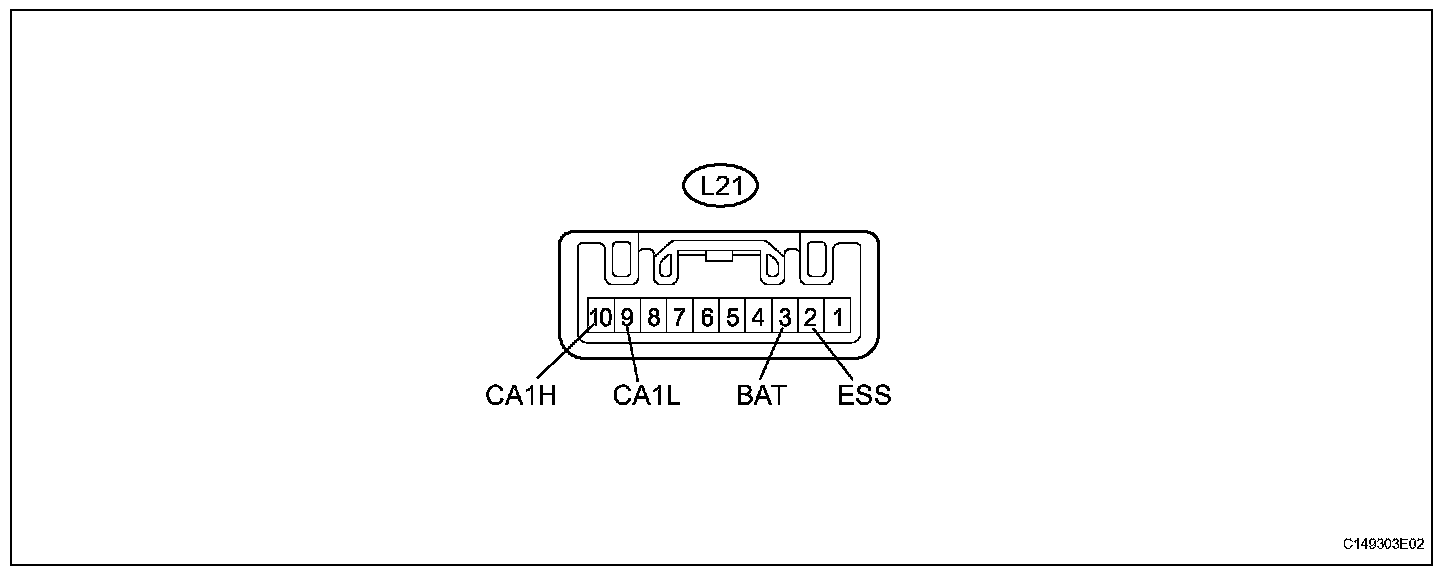

15. CHECK STEERING ANGLE SENSOR
a. Disconnect the L21 sensor connector.
b. Measure the resistance according to the value(s) in the table.

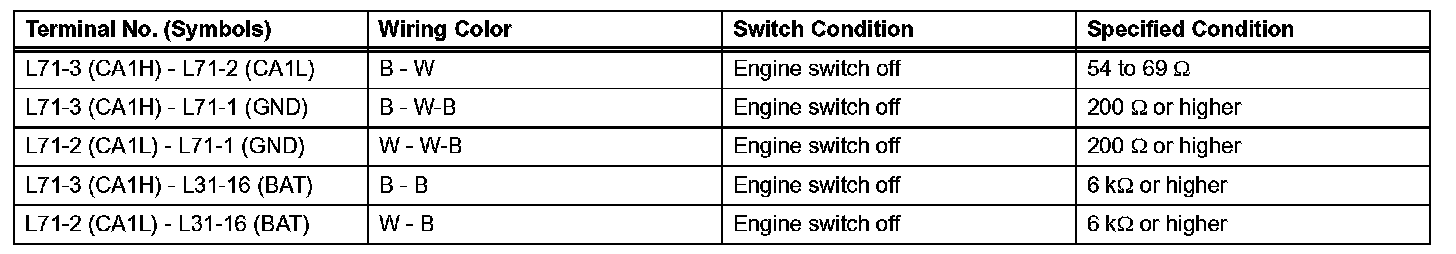

16. CHECK YAW RATE SENSOR

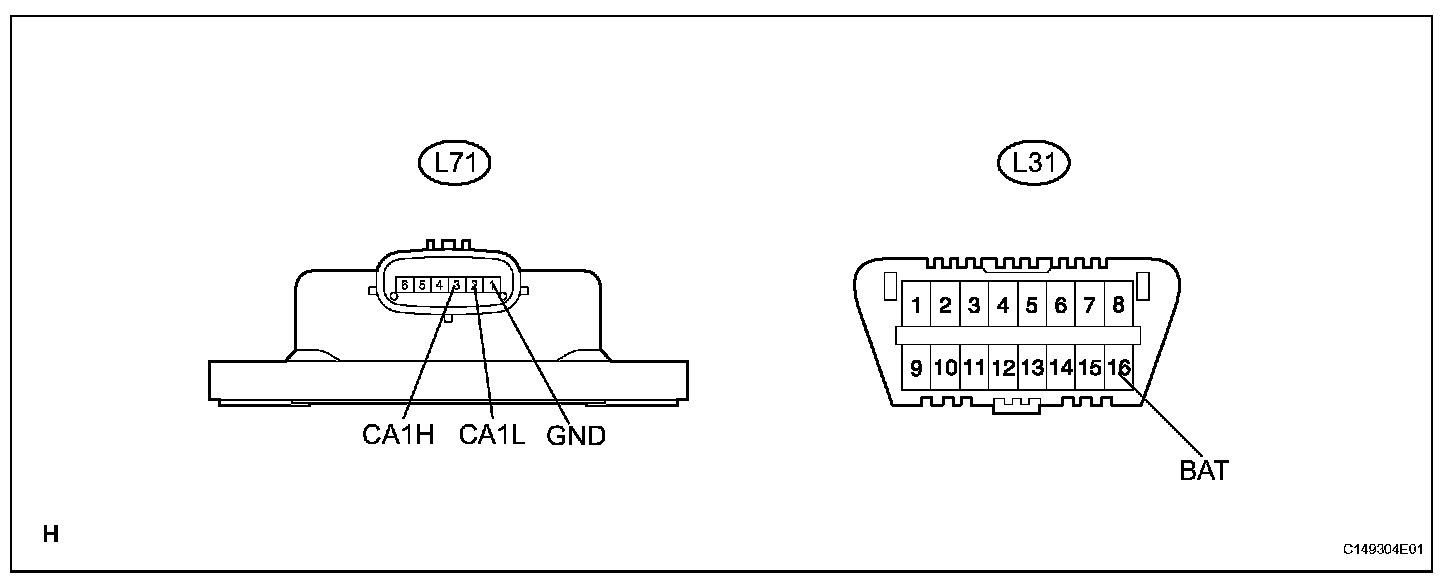

a. Disconnect the L71 sensor connector.
b. Measure the resistance according to the value(s) in the table.

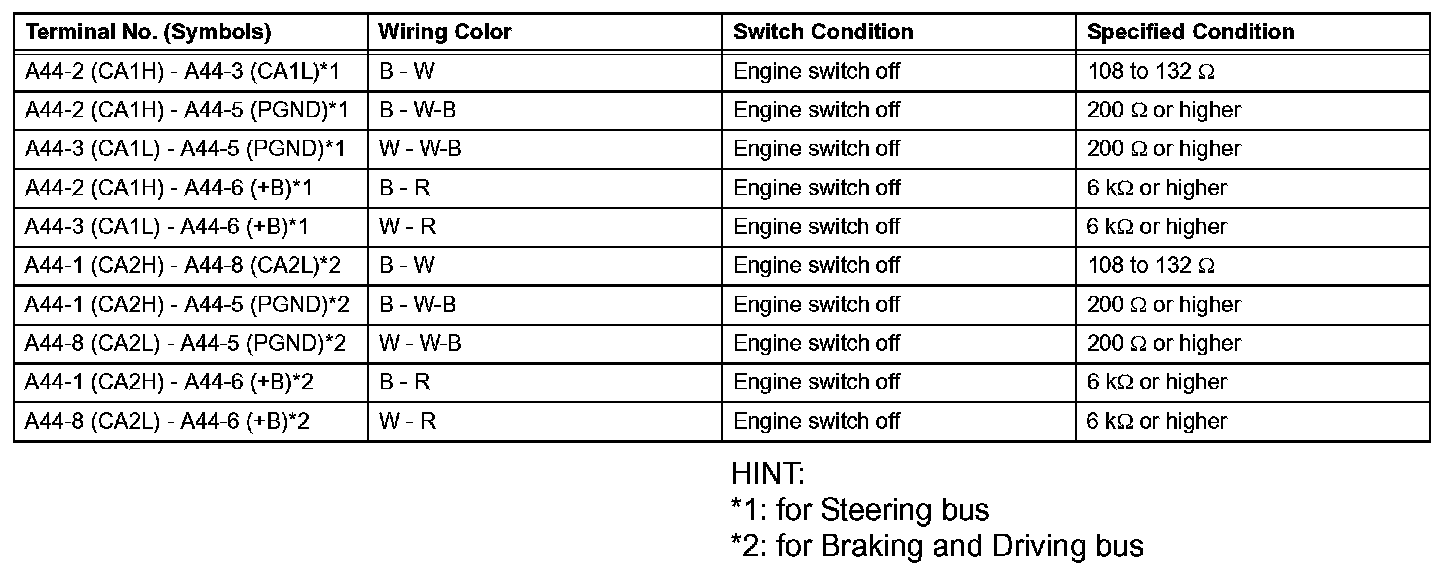

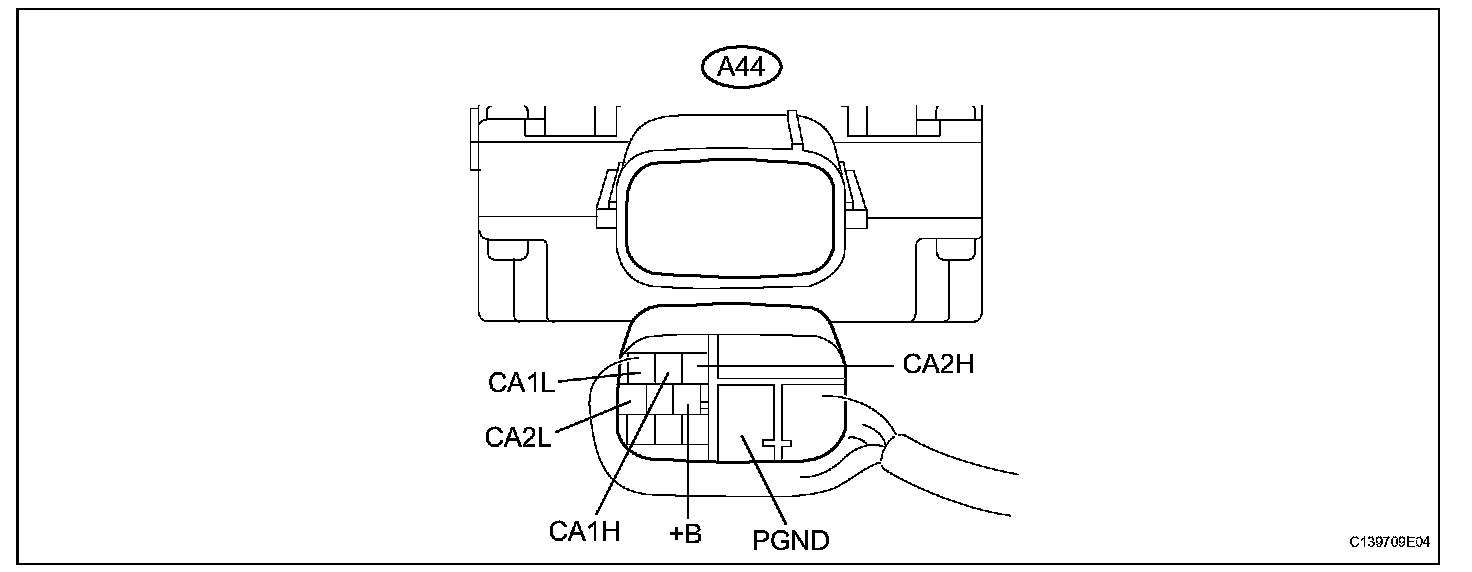

17. CHECK POWER STEERING ECU
a. Disconnect the A44 ECU connector.
b. Measure the resistance according to the value(s) in the table.

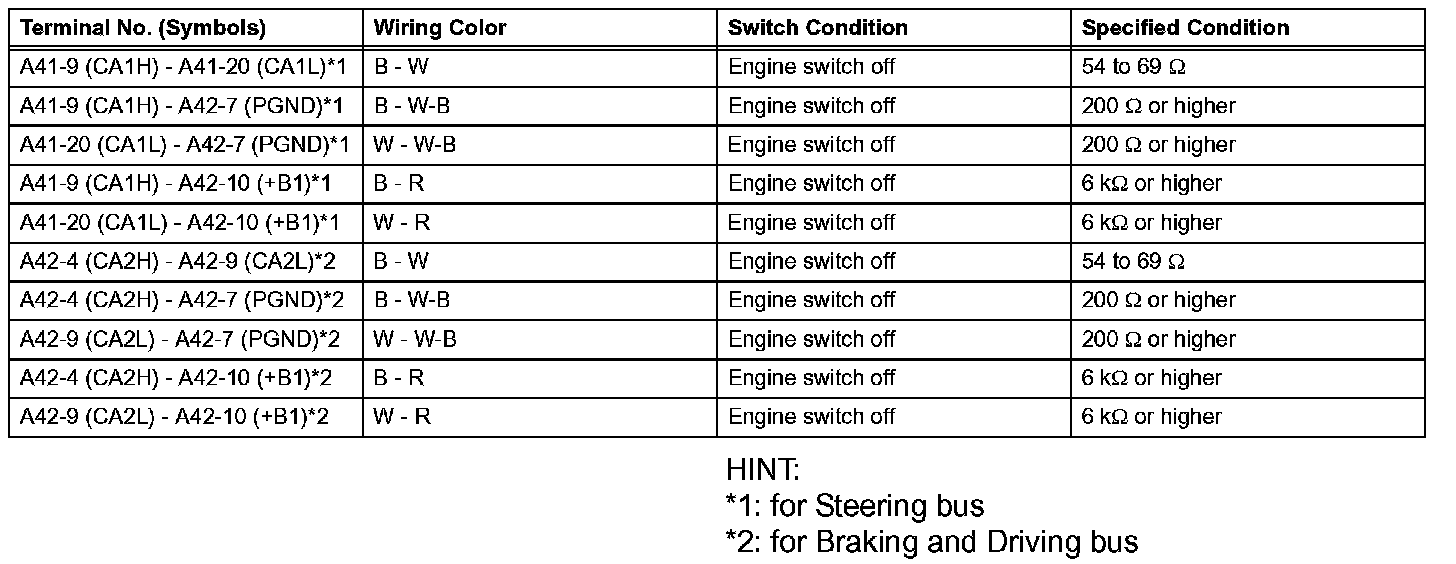

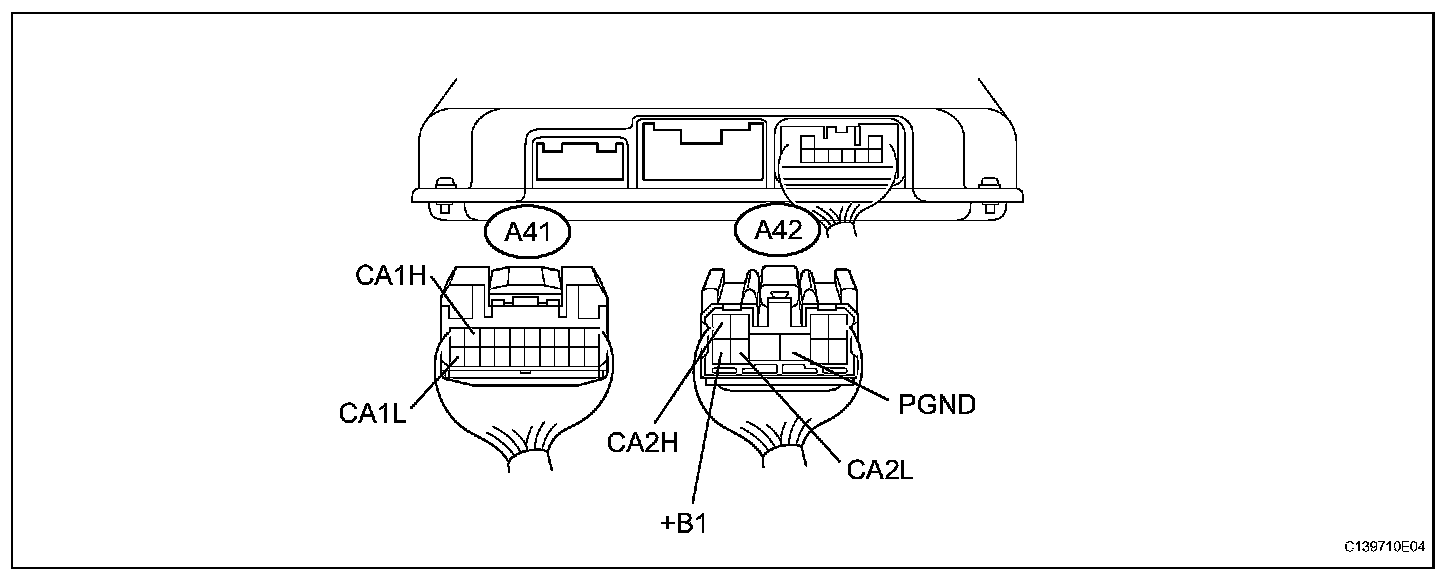

18. CHECK STEERING CONTROL ECU
HINT: For vehicles with variable gear ratio steering system only.
a. Disconnect the A41 and A42 ECU connectors.
b. Measure the resistance according to the value(s) in the table.

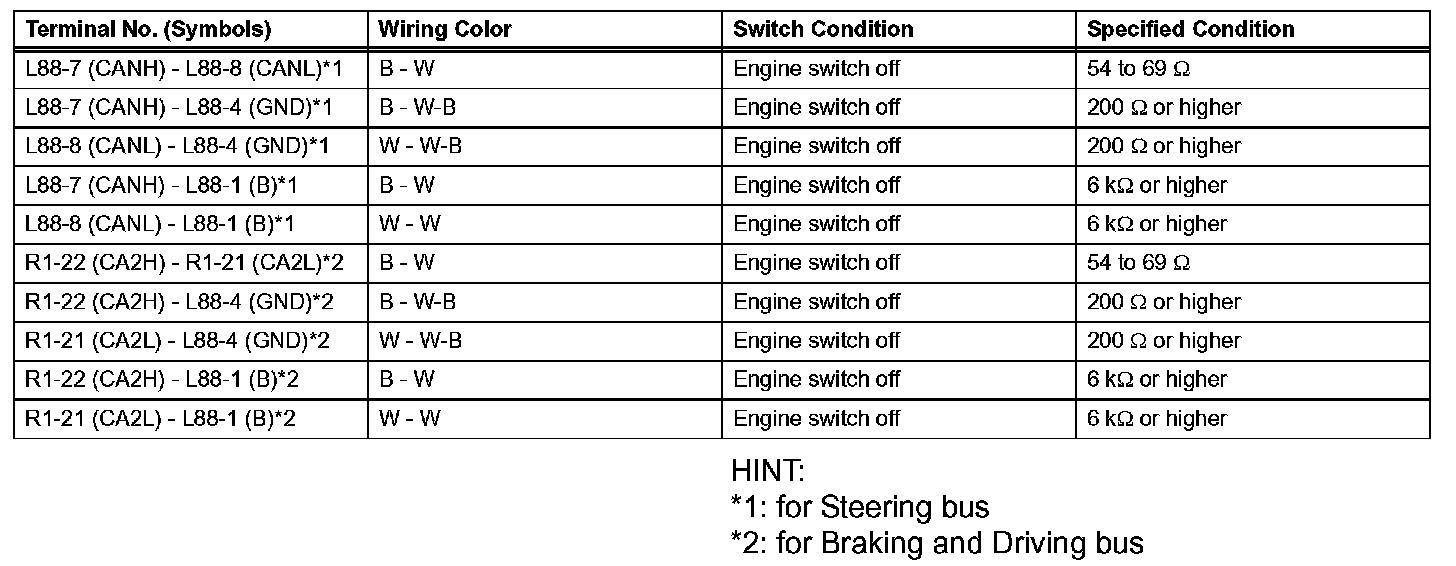

19. CHECK SUSPENSION CONTROL ECU
HINT: For vehicles with air suspension system only.
a. Disconnect the L88 and R1 ECU connectors.
b. Measure the resistance according to the value(s) in the table.

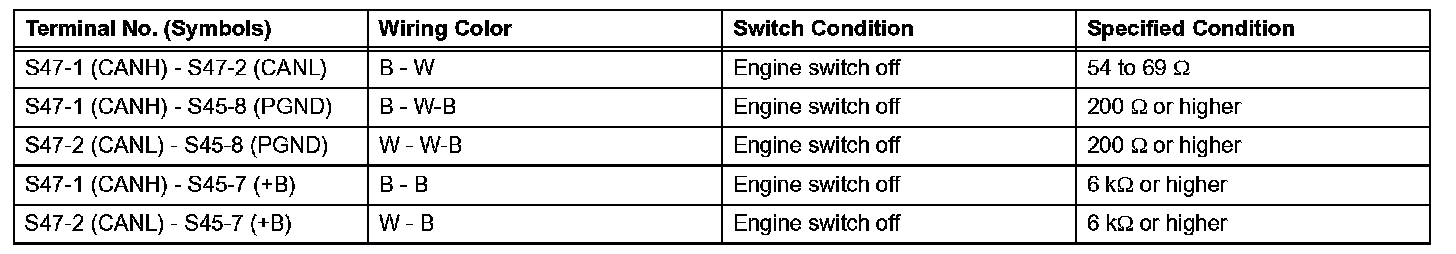

20. CHECK SEAT BELT CONTROL ECU
HINT: For vehicles with pre-collision system only.

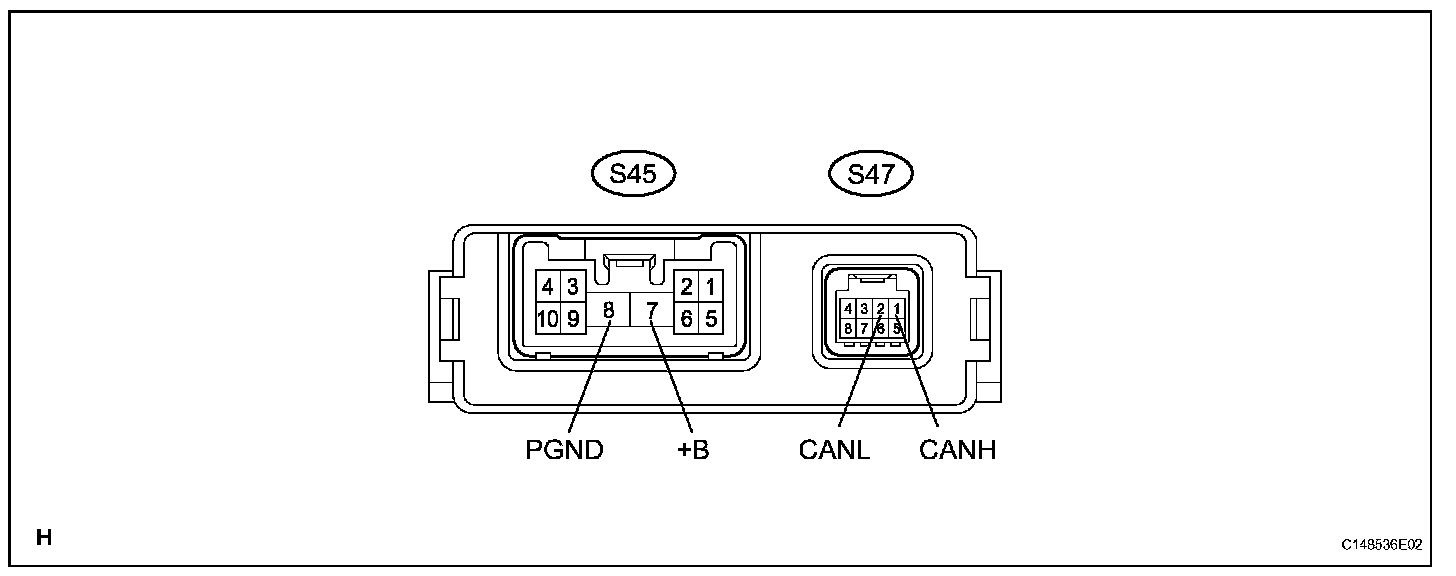

a. Disconnect the S45 and S47 ECU connectors.
b. Measure the resistance according to the value(s) in the table.
21. CHECK DRIVING SUPPORT ECU
HINT: For vehicles with dynamic radar cruise control system or with pre-collision system only.
a. Disconnect the A33 ECU connector.
b. Measure the resistance according to the value(s) in the table.

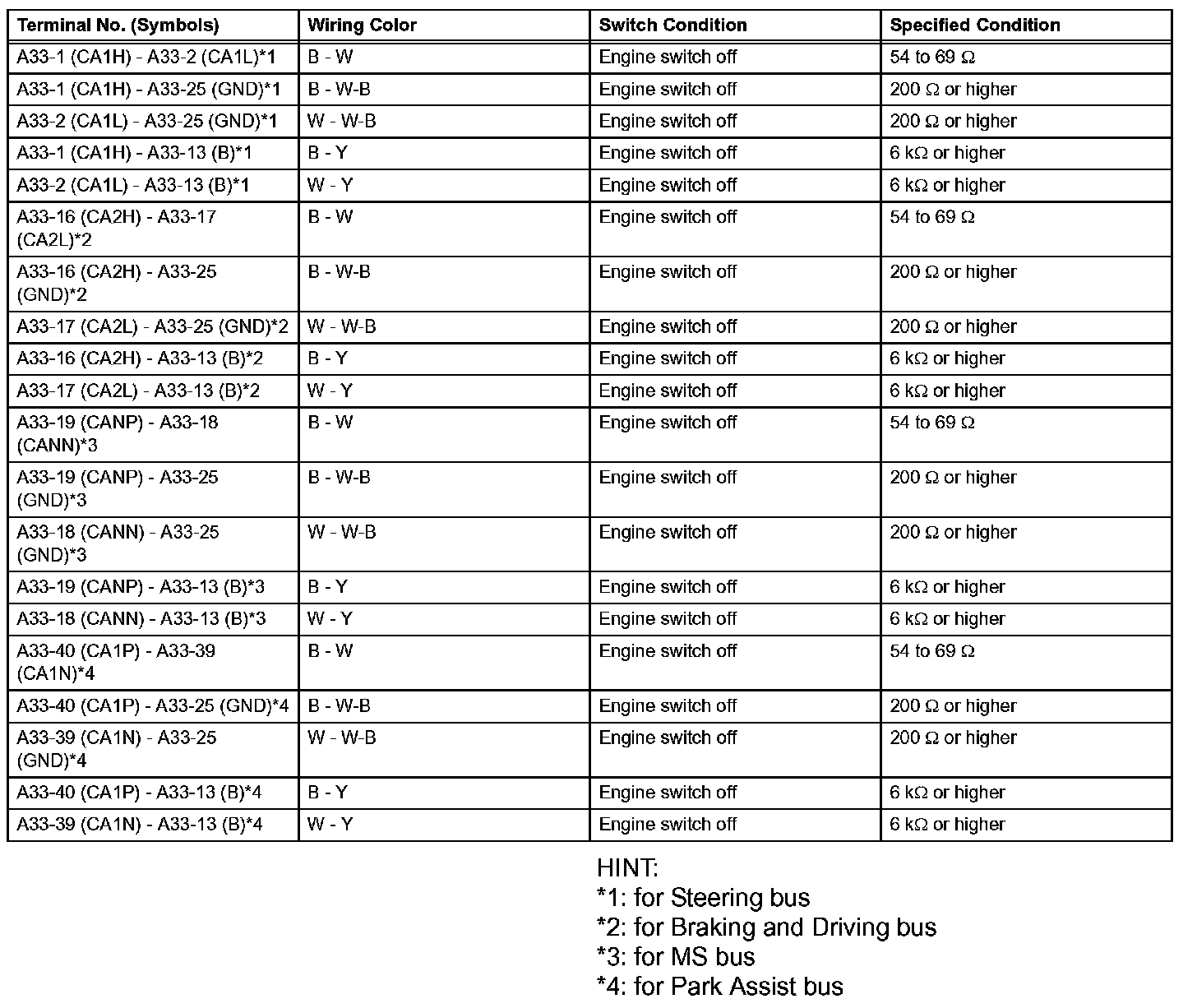

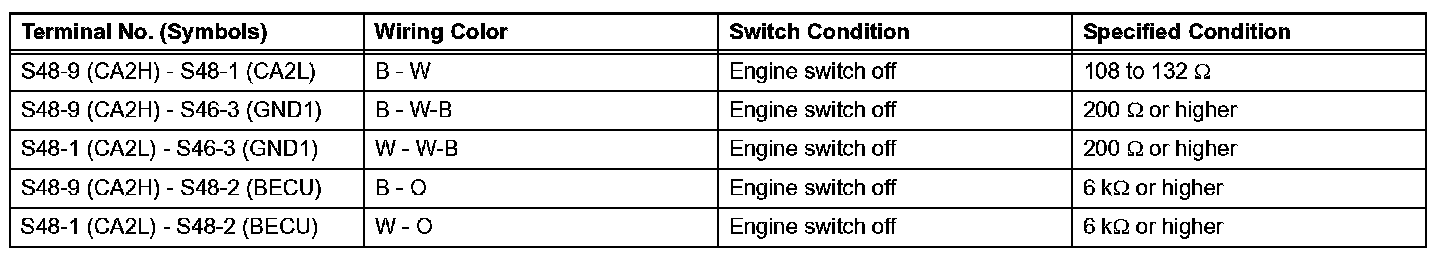

22. CHECK ELECTRIC PARKING BRAKE ECU
a. Disconnect the S48 ECU connector.
b. Measure the resistance according to the value(s) in the table.

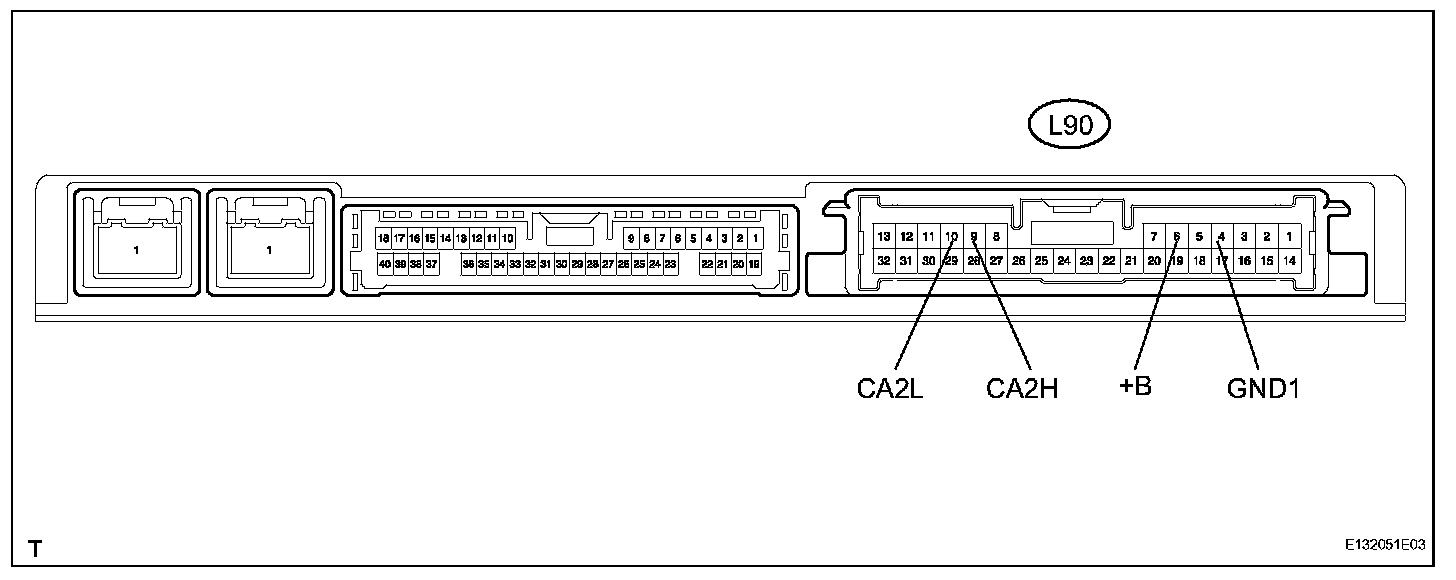

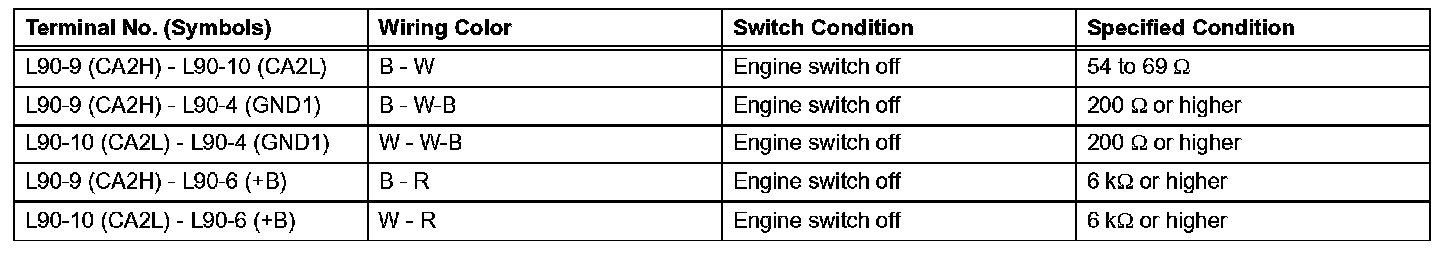

23. CHECK PARKING ASSIST ECU
HINT: For vehicles with advanced parking guidance system and intuitive parking assist system only.
a. Disconnect the L90 ECU connector.
b. Measure the resistance according to the value(s) in the table.

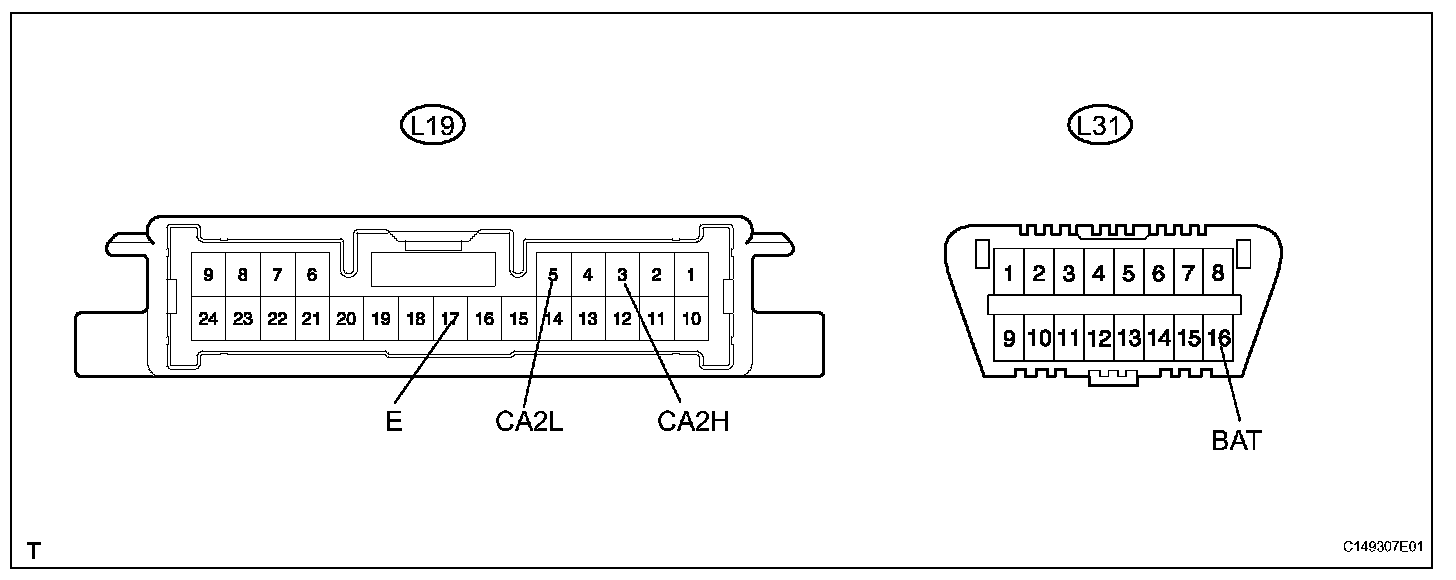

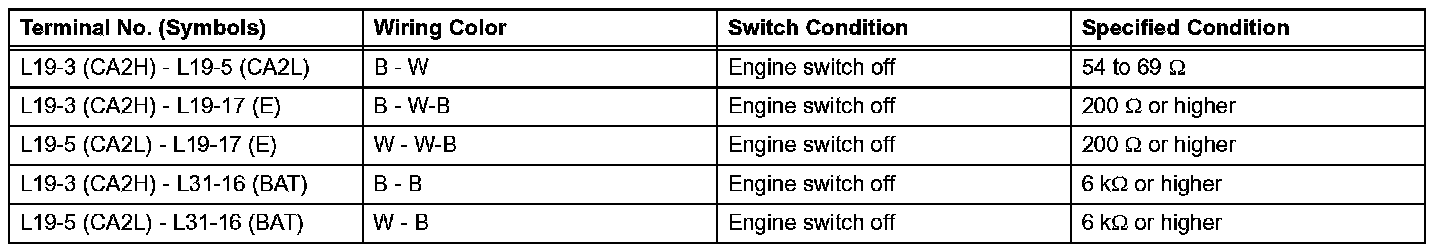

24. CHECK CLEARANCE WARNING ECU
HINT: For vehicles with intuitive parking assist system only.
a. Disconnect the L19 ECU connector.
b. Measure the resistance according to the value(s) in the table.

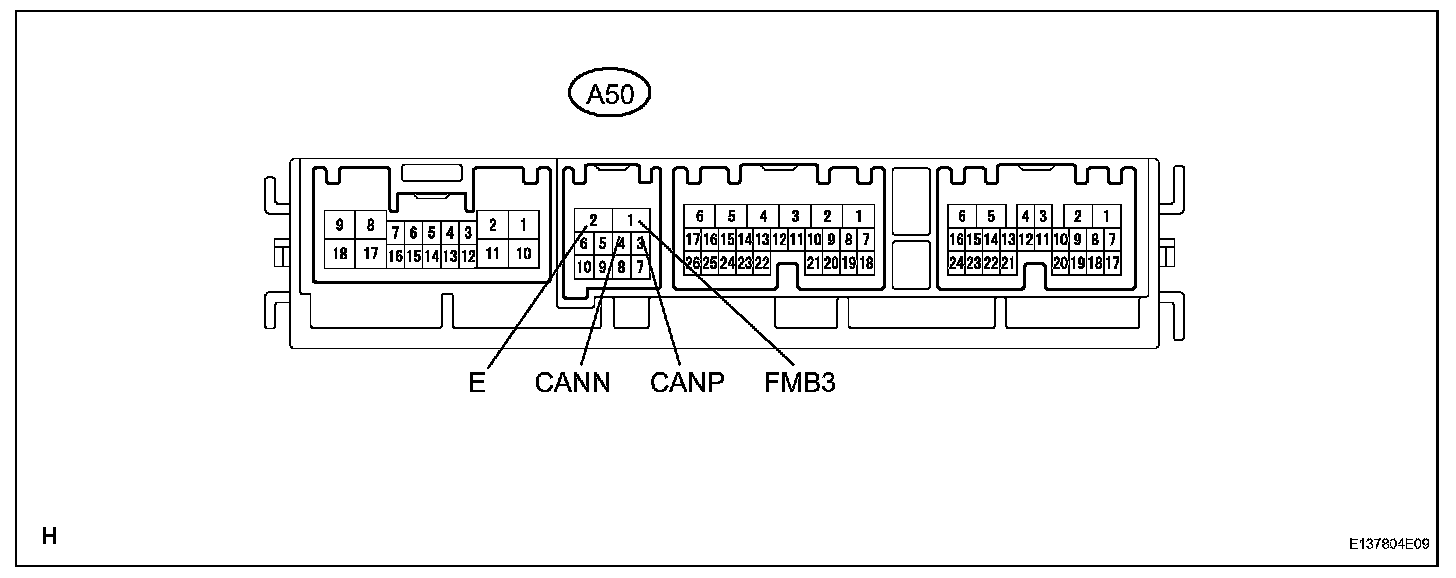

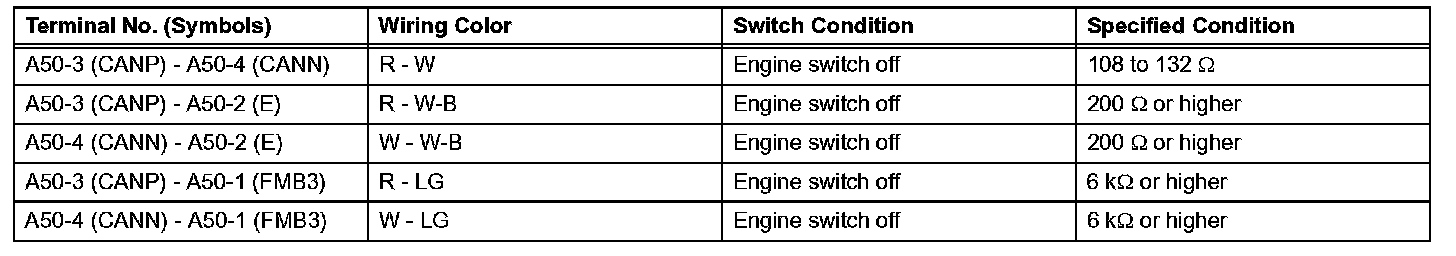

25. CHECK FRONT CONTROLLER
a. Disconnect the A50 controller connector.
b. Measure the resistance according to the value(s) in the table.
