Fail-Safe Chart

FAIL-SAFE CHART

FAIL-SAFE FUNCTION

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:

Part 7:

Part 8:

Part 9:

Part 10:

Part 11:

Part 12:

Part 13:

Part 14:

Part 15:

Part 16:

Part 17:

Part 18:

Part 19:

Part 20:

Part 21:

Part 22:

Part 23:

Part 24:

Part 25:

a. When communication fails in any of the main wires (communication lines) due to a short circuit or other causes, the fail-safe function, which is specified for each system, operates to prevent the system from malfunctioning.

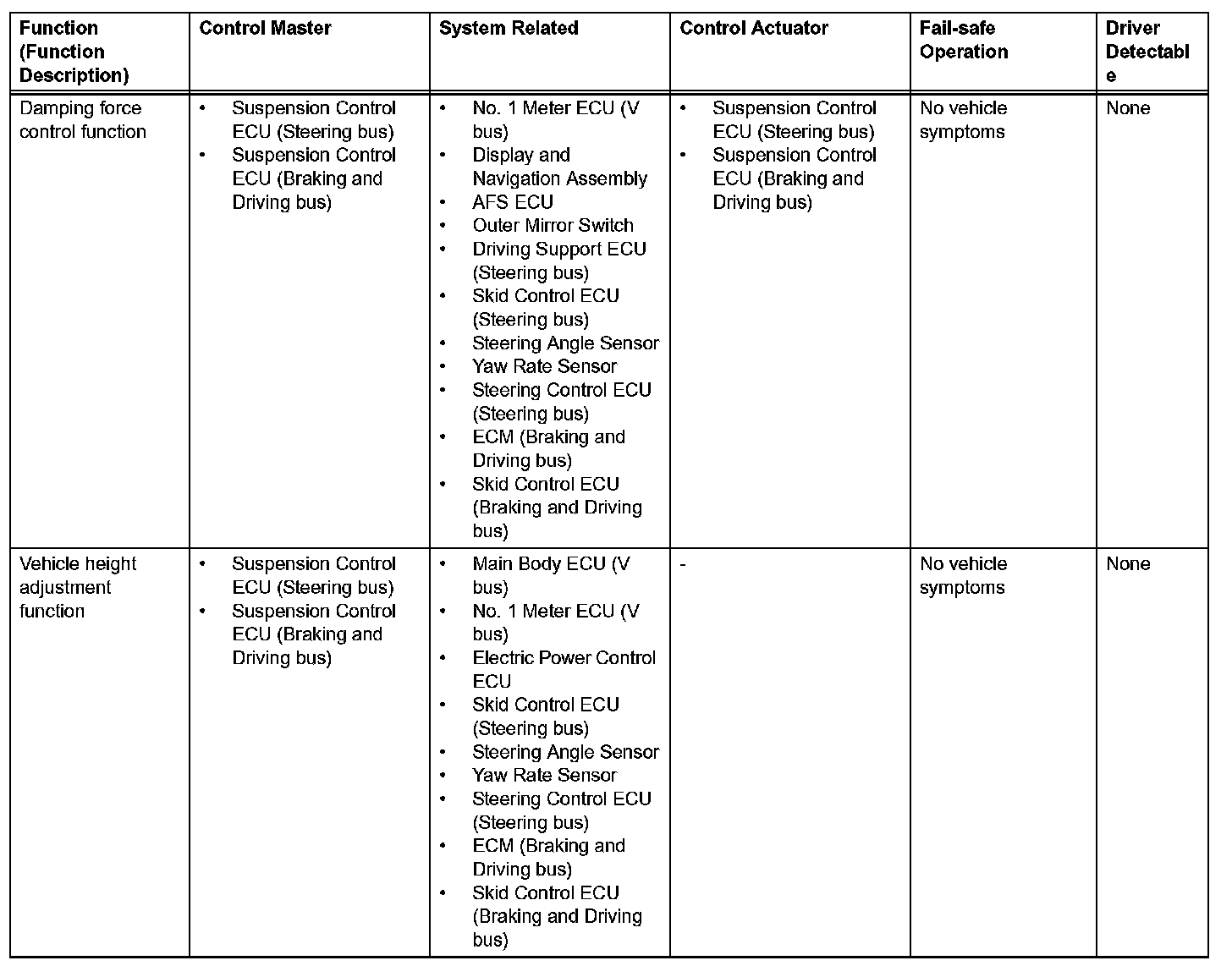

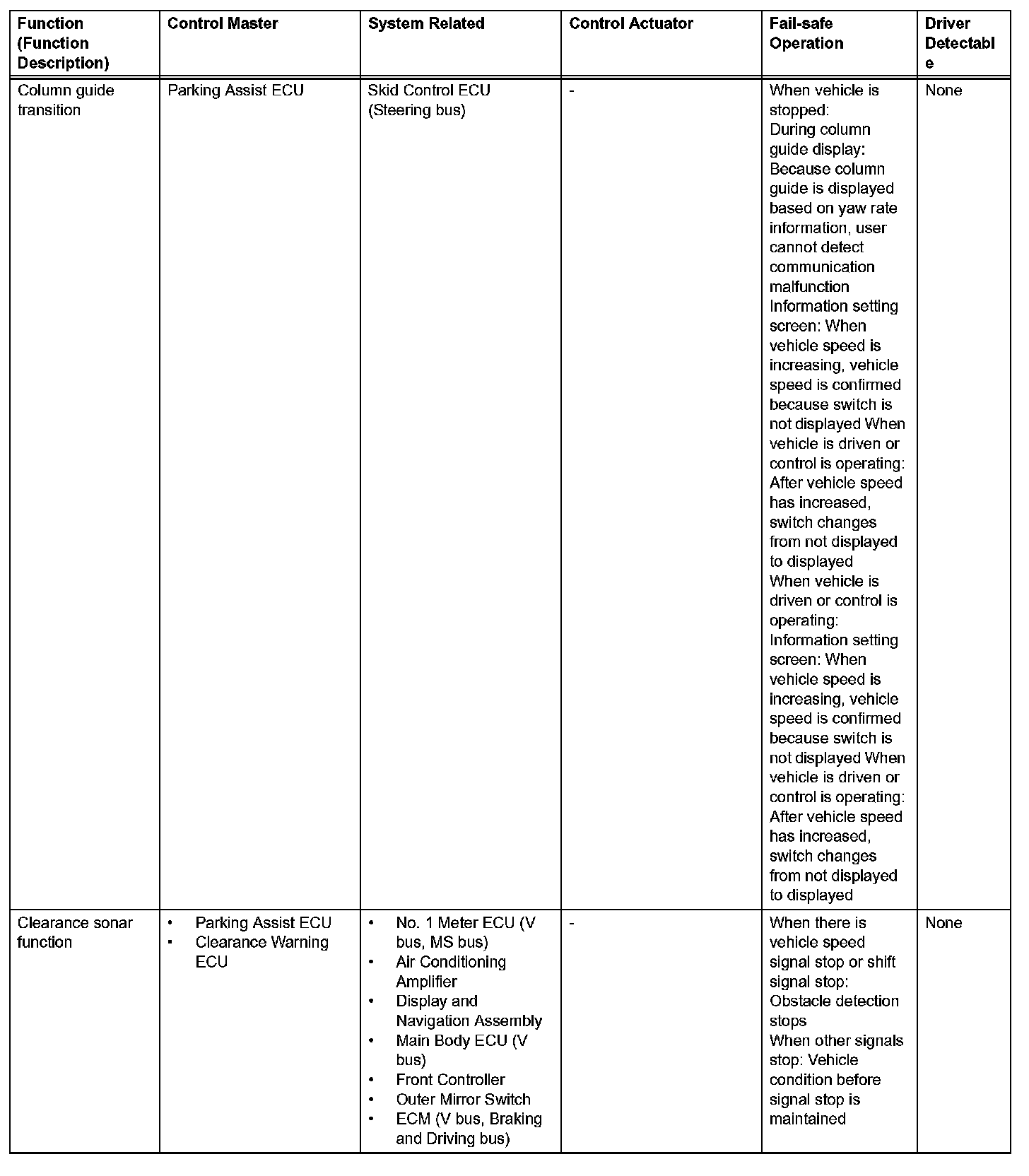

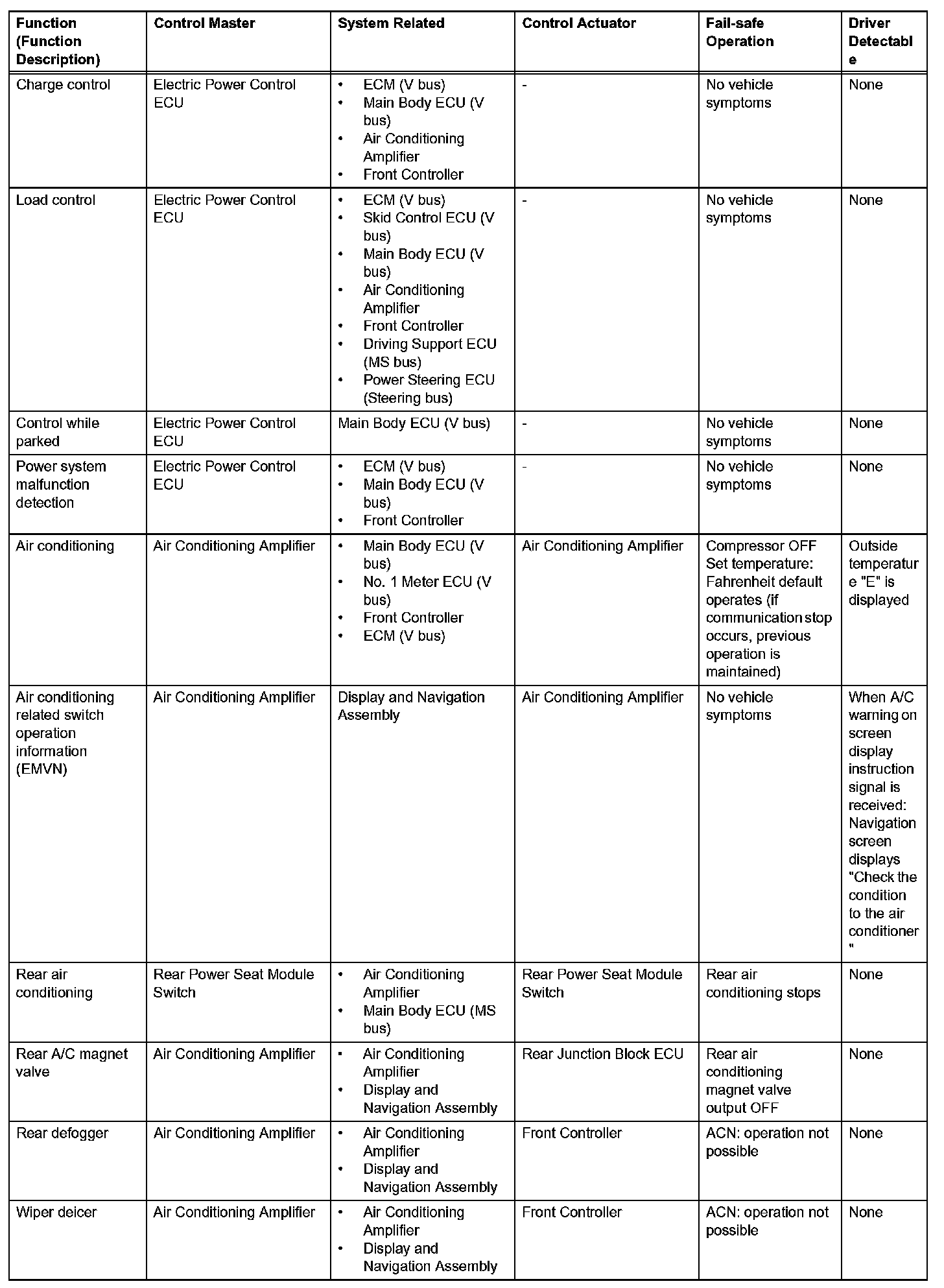

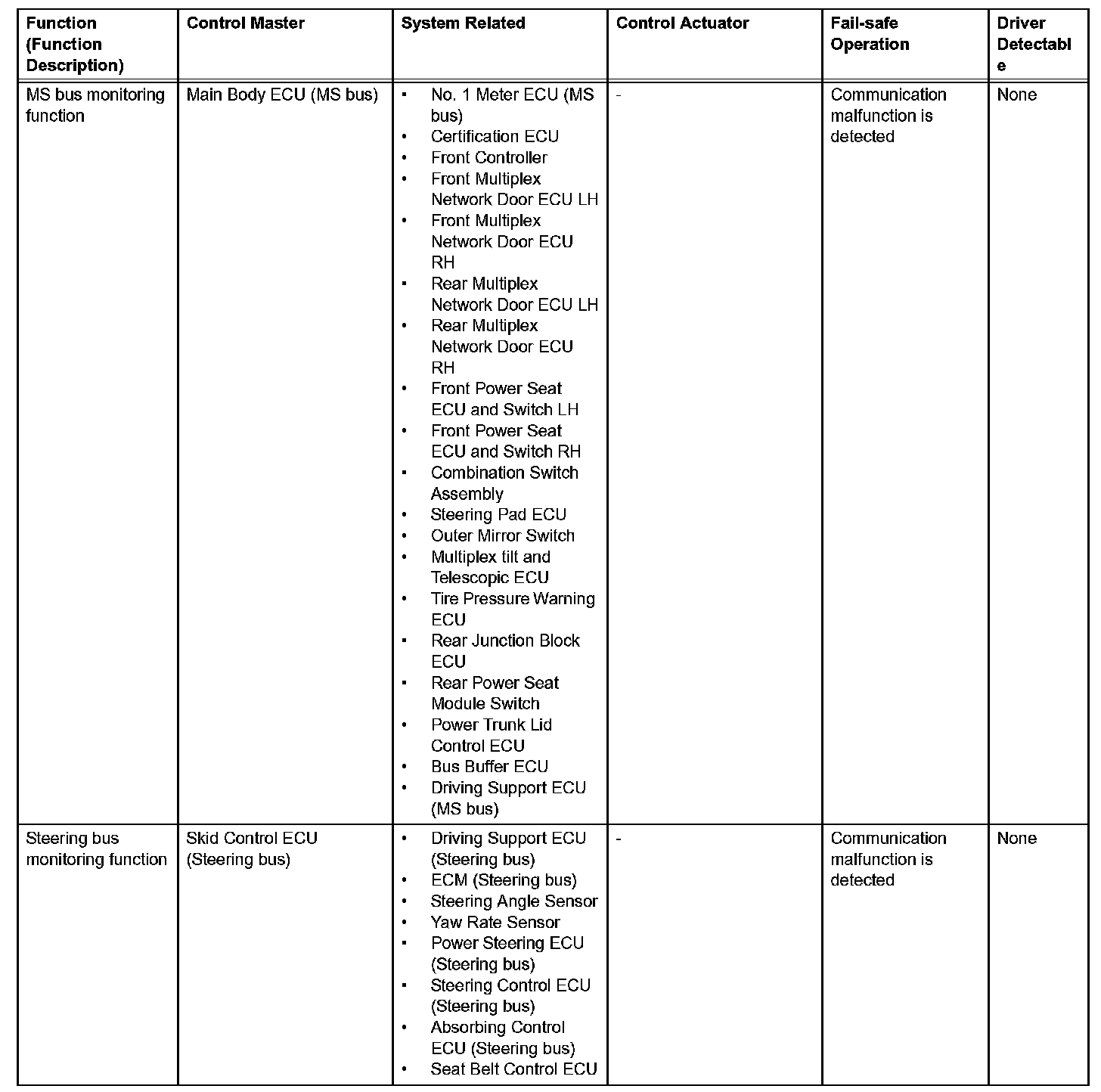

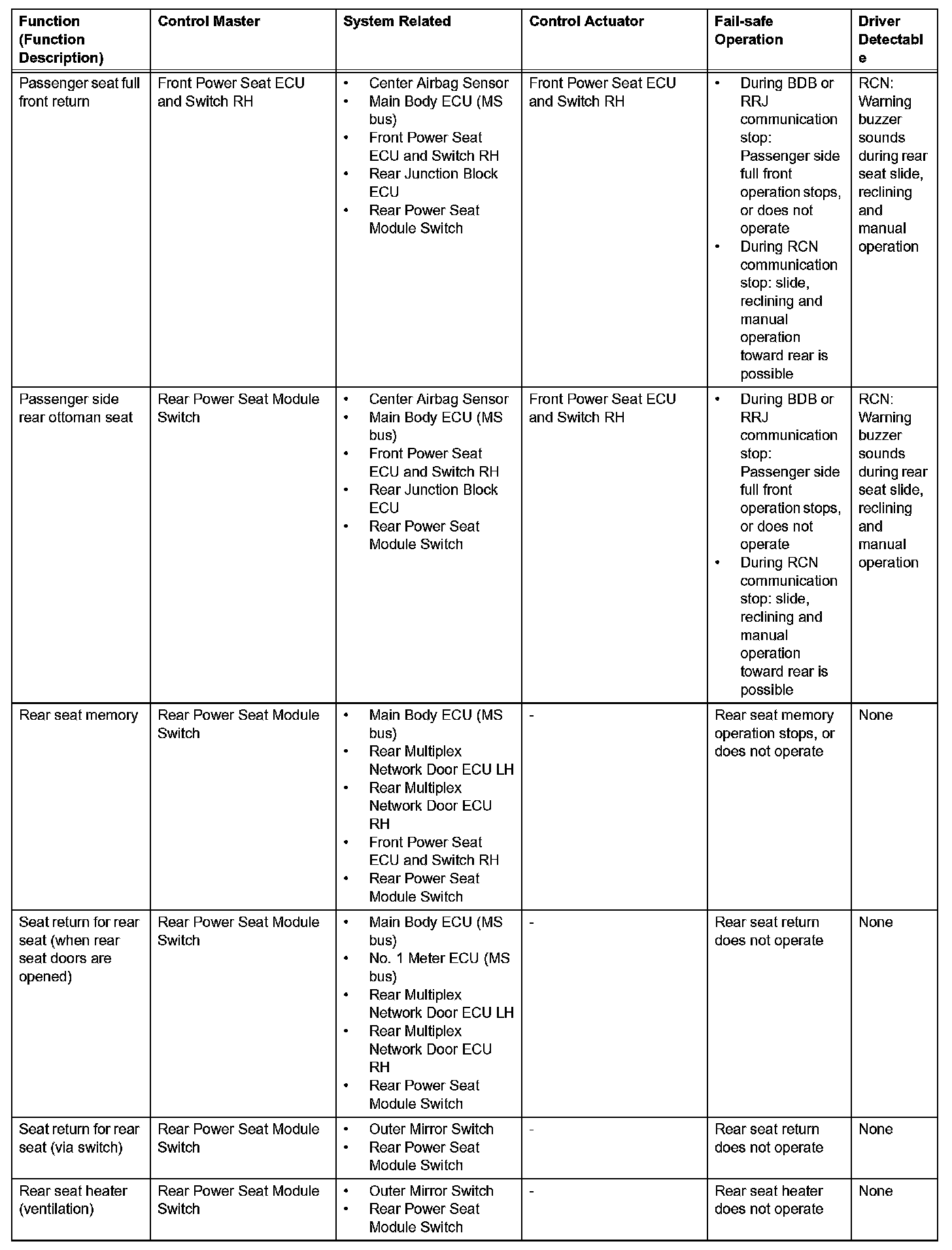

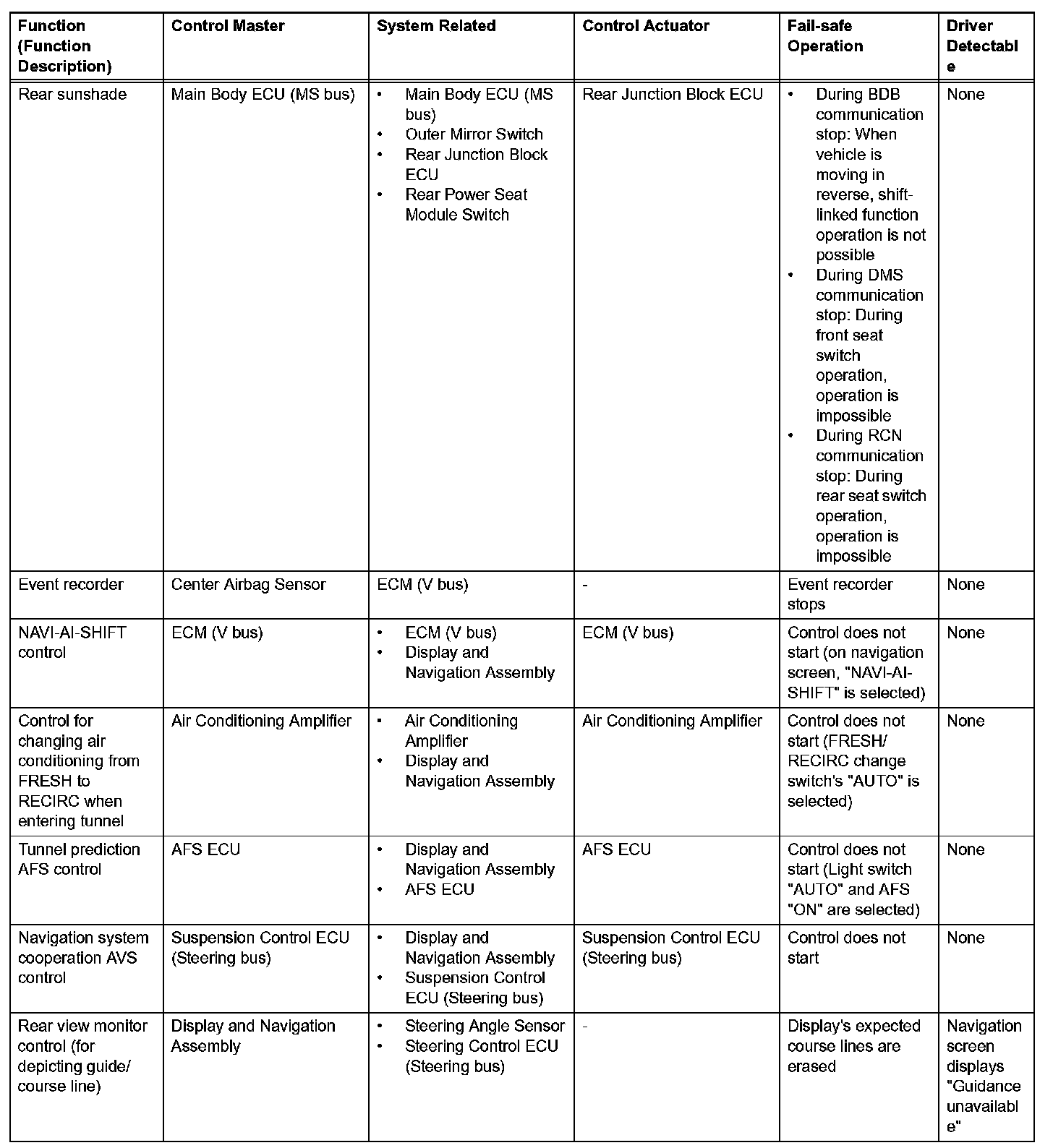

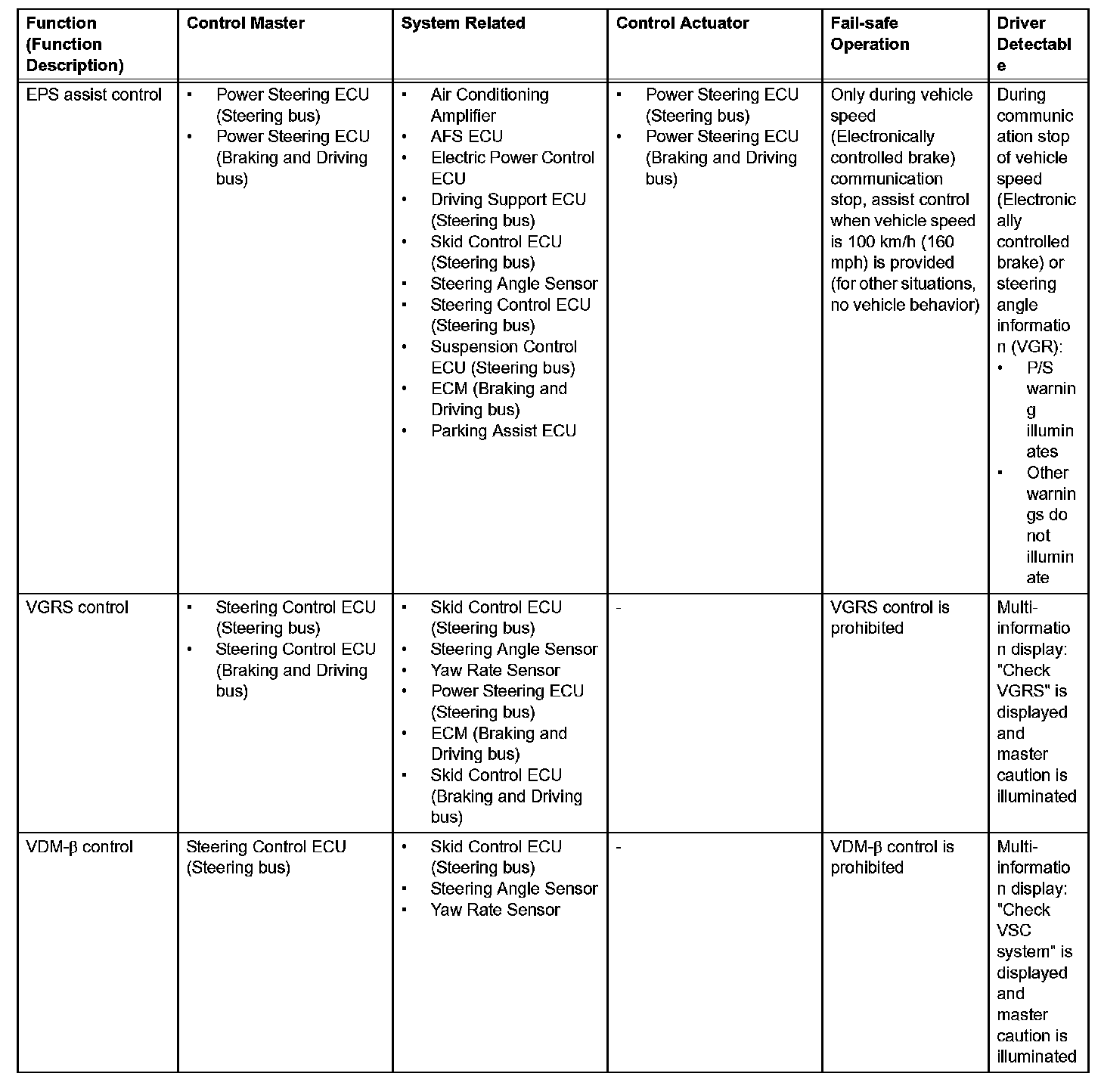

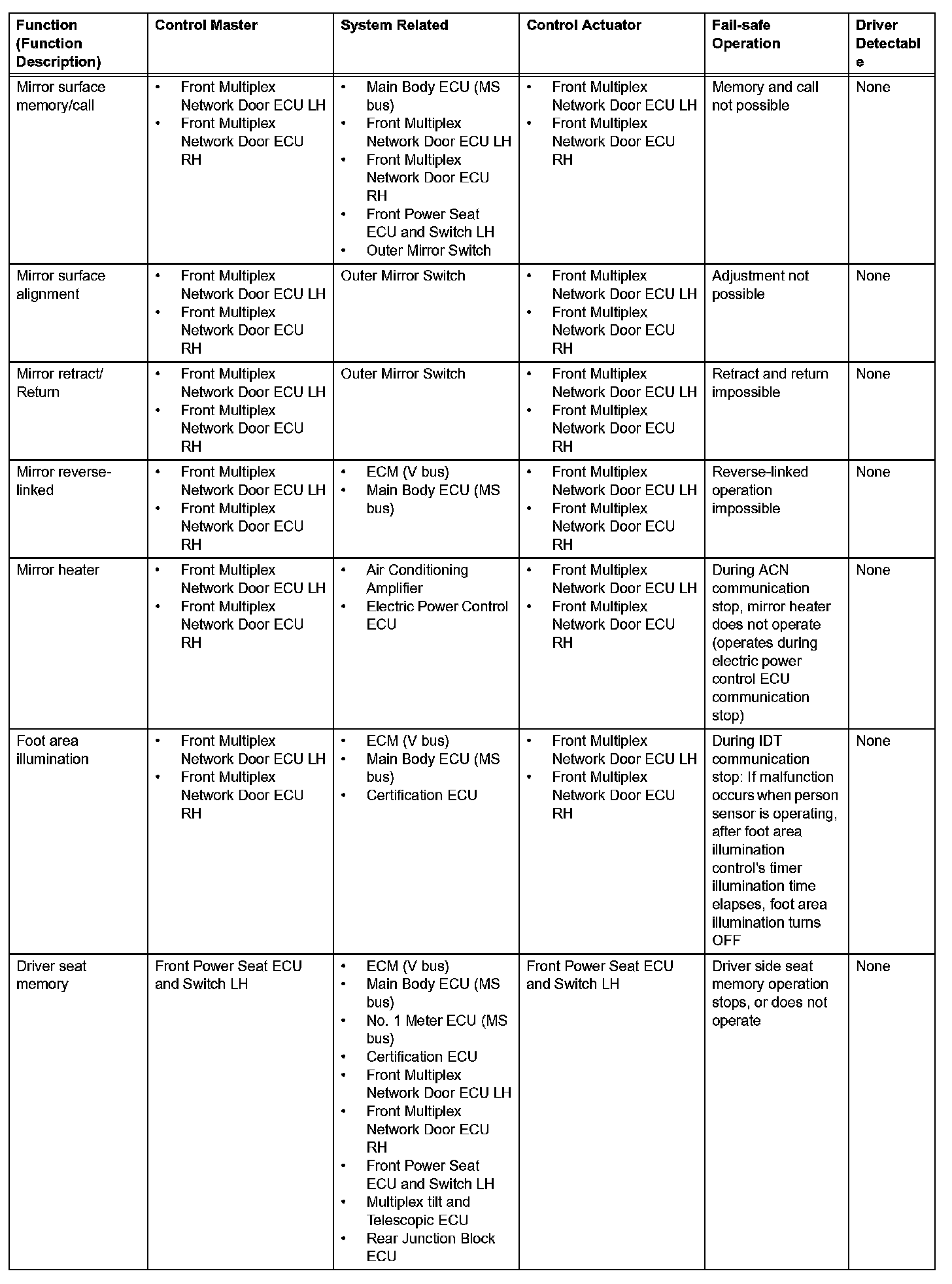

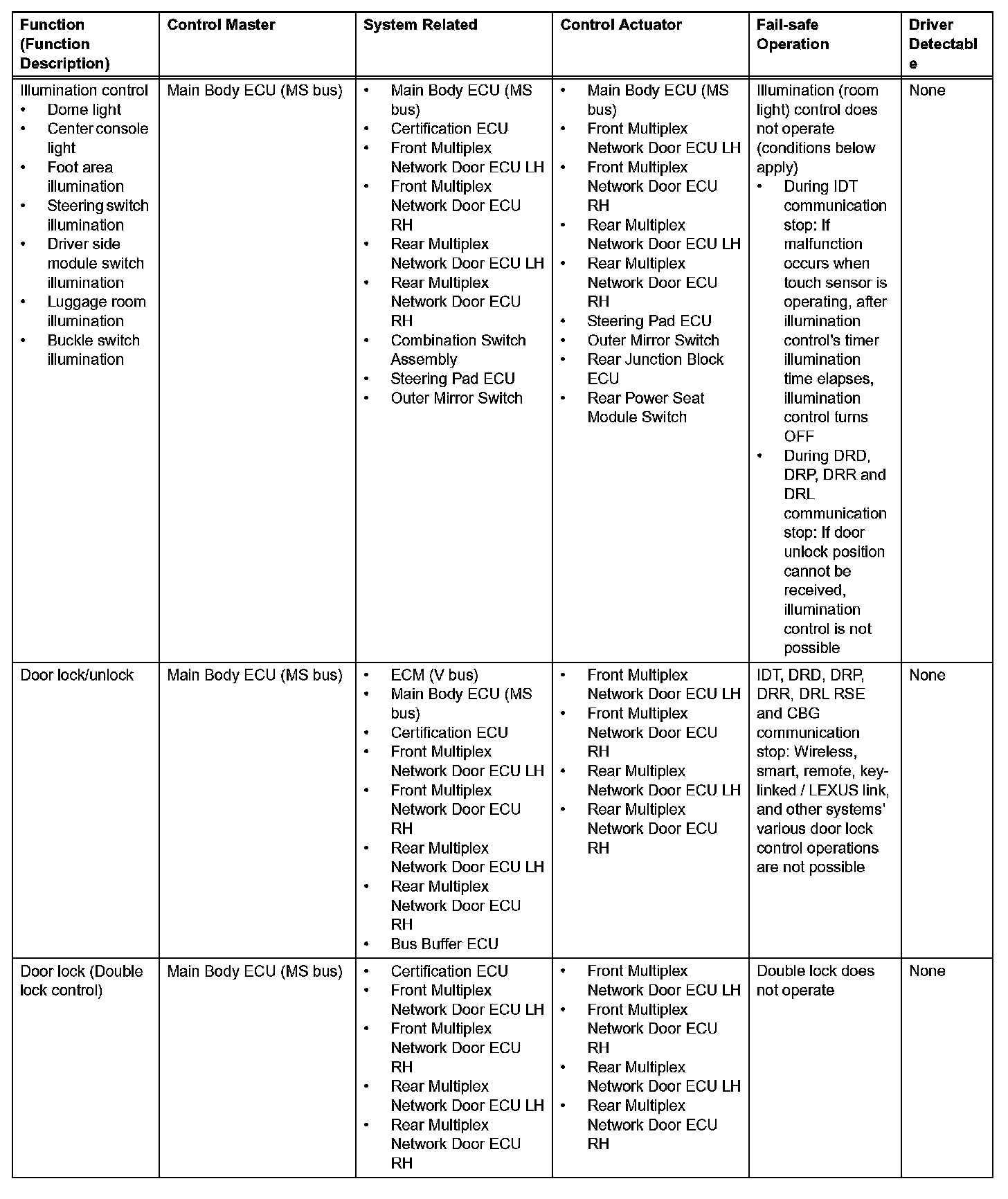

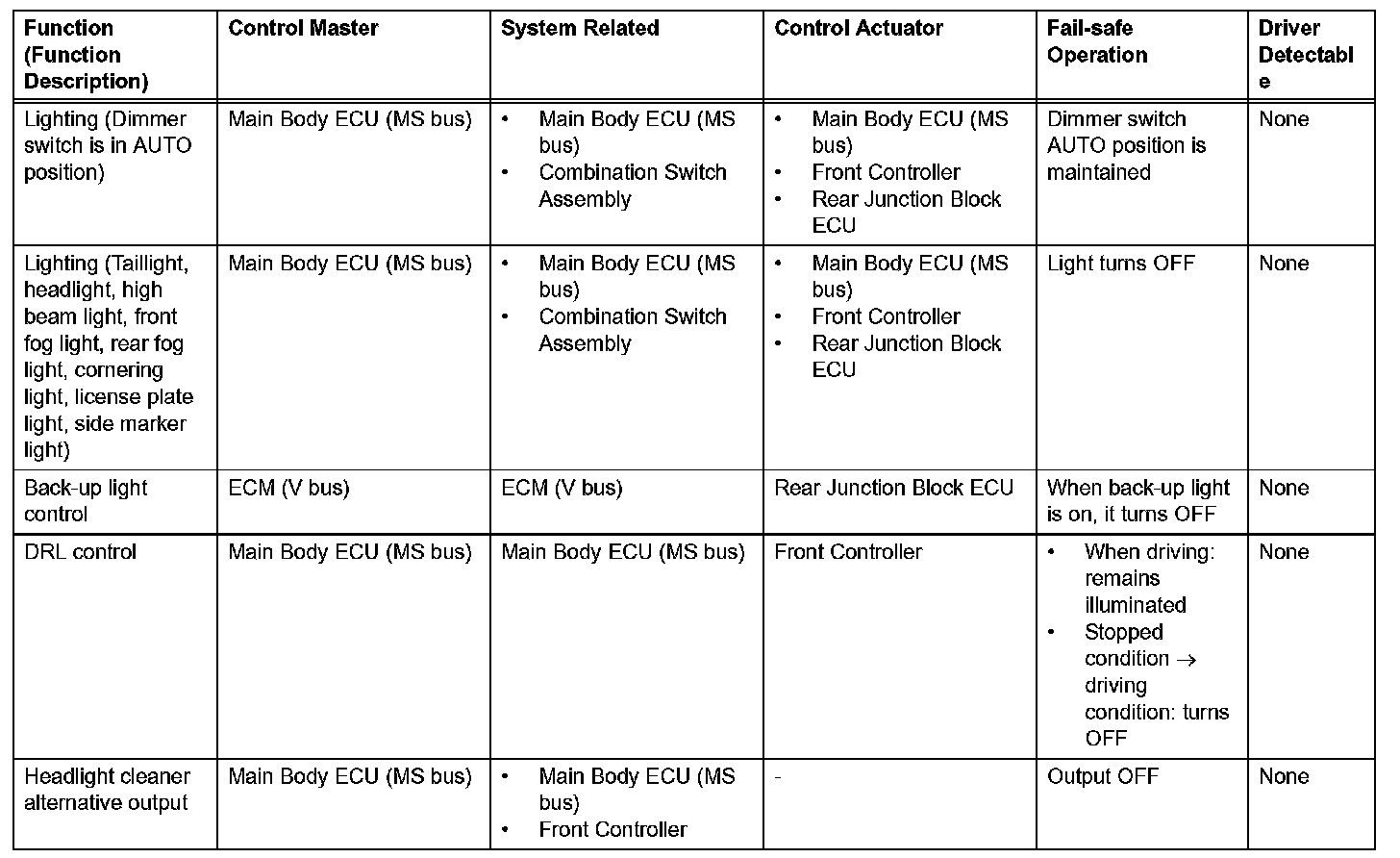

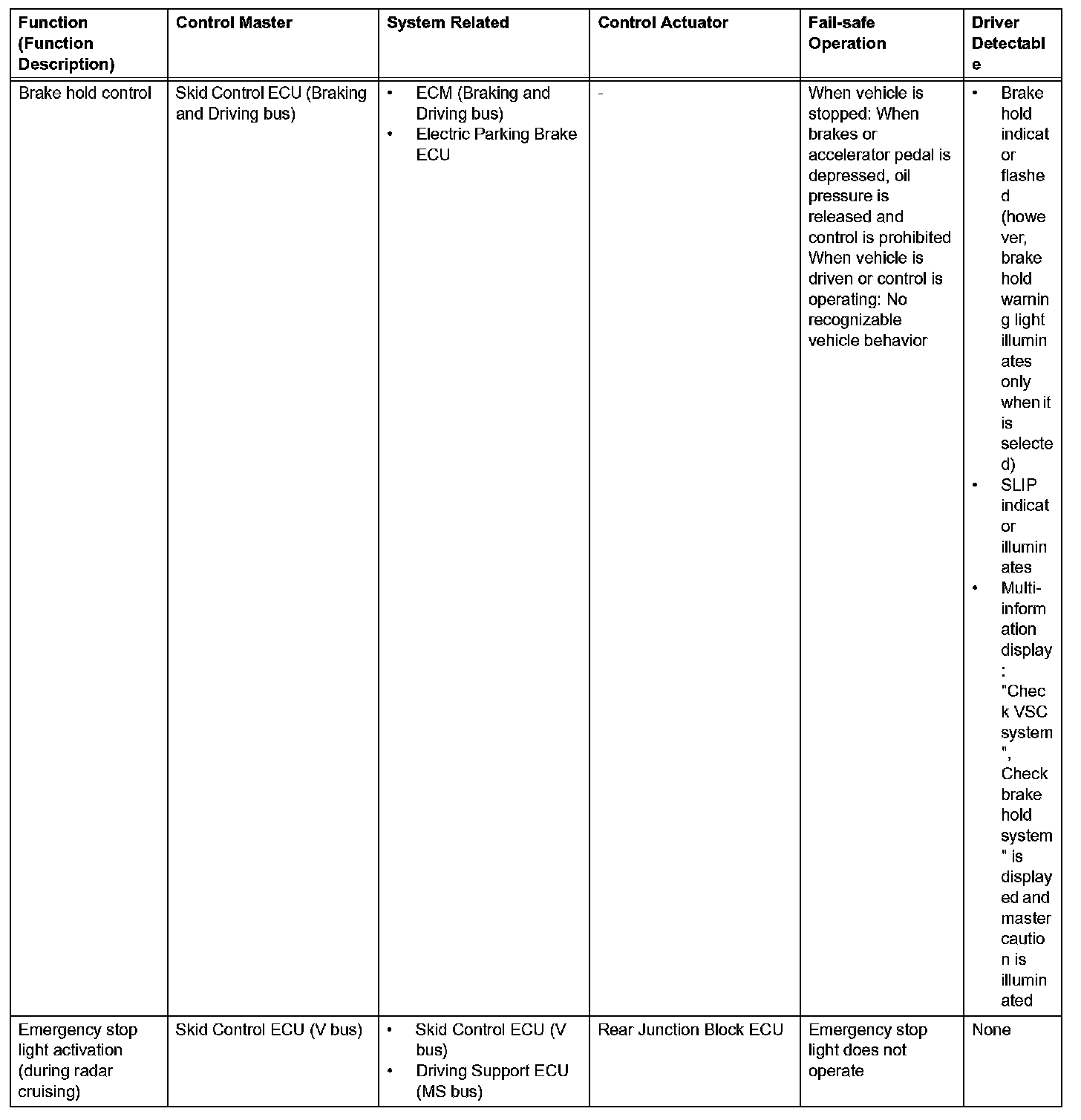

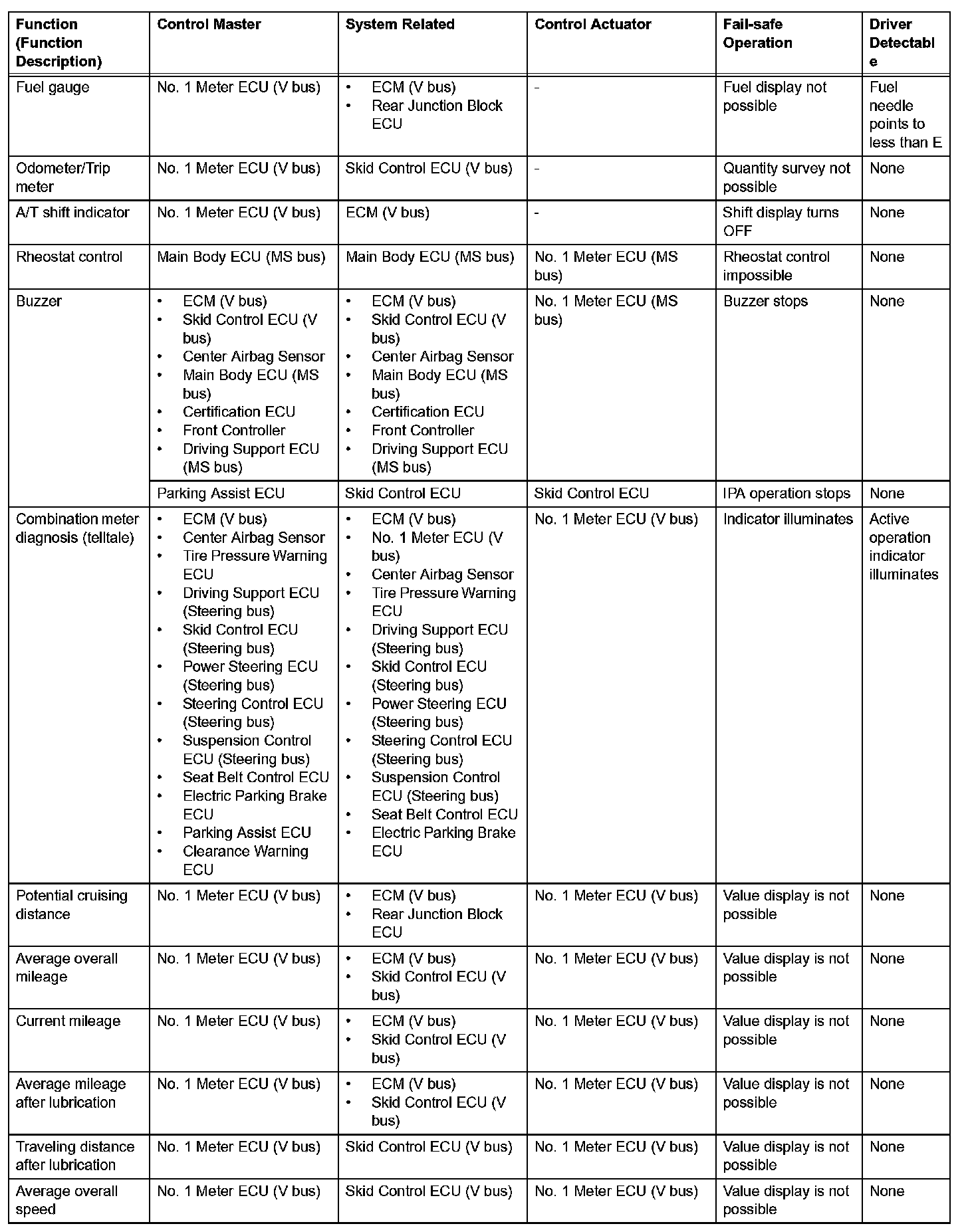

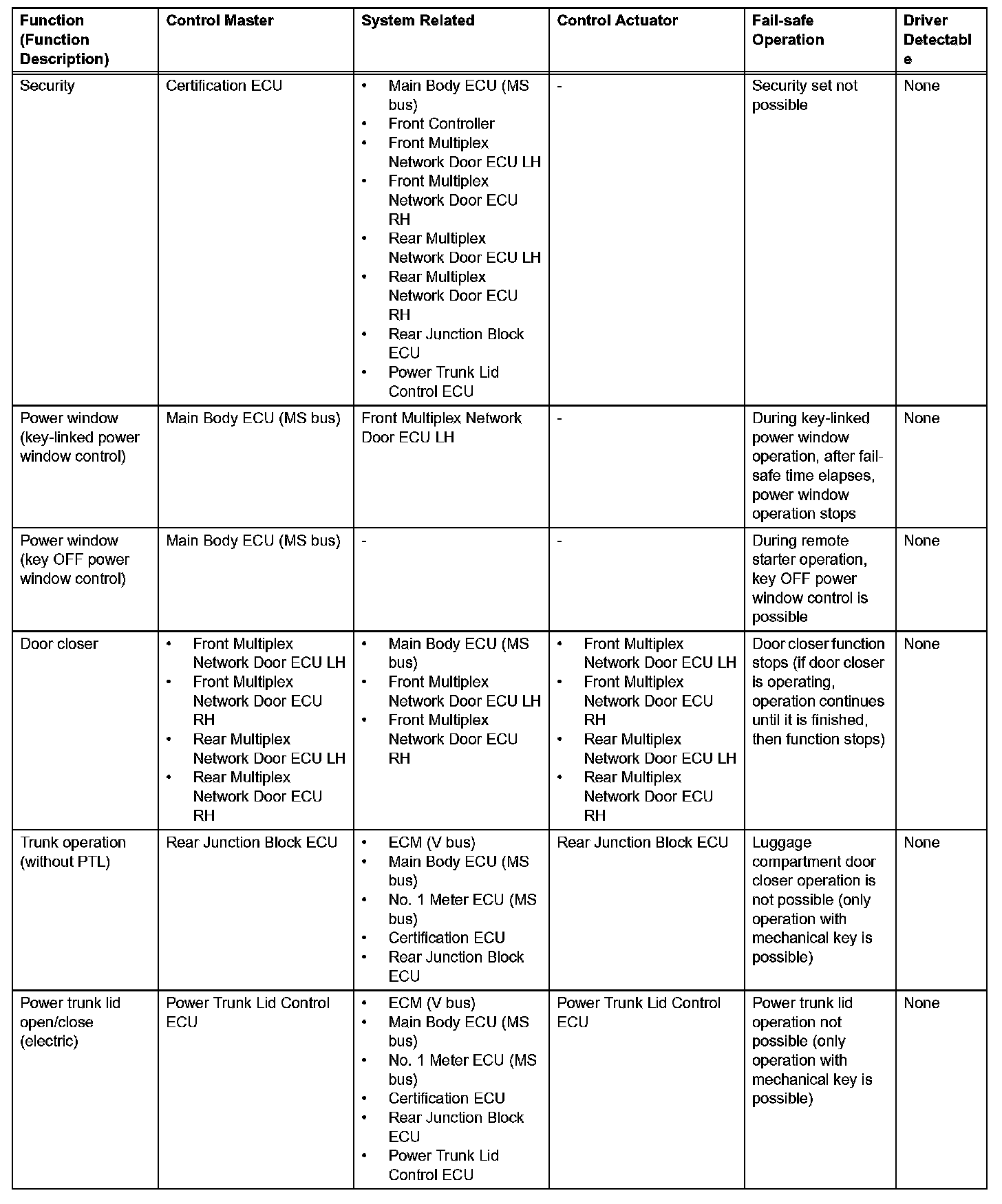

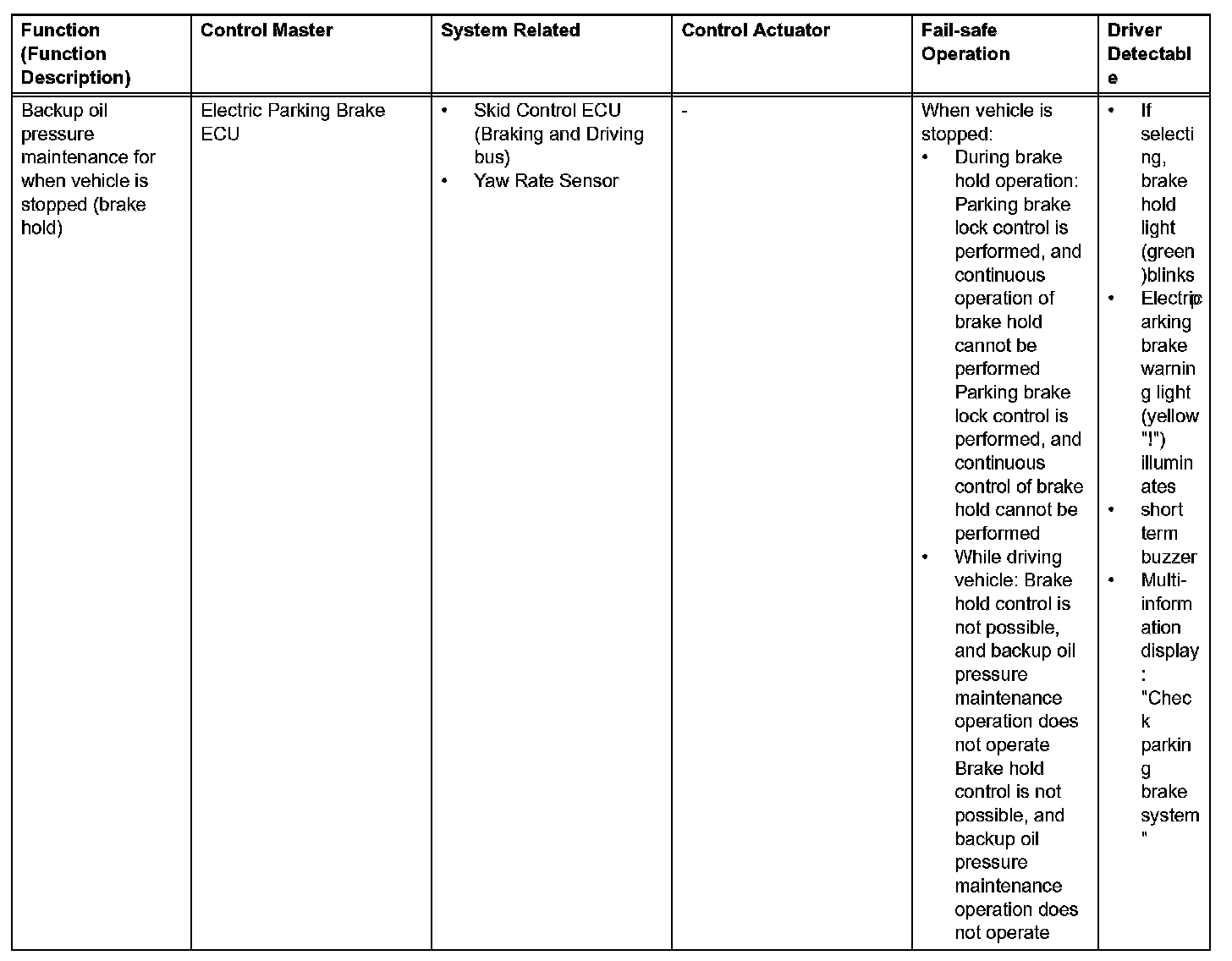

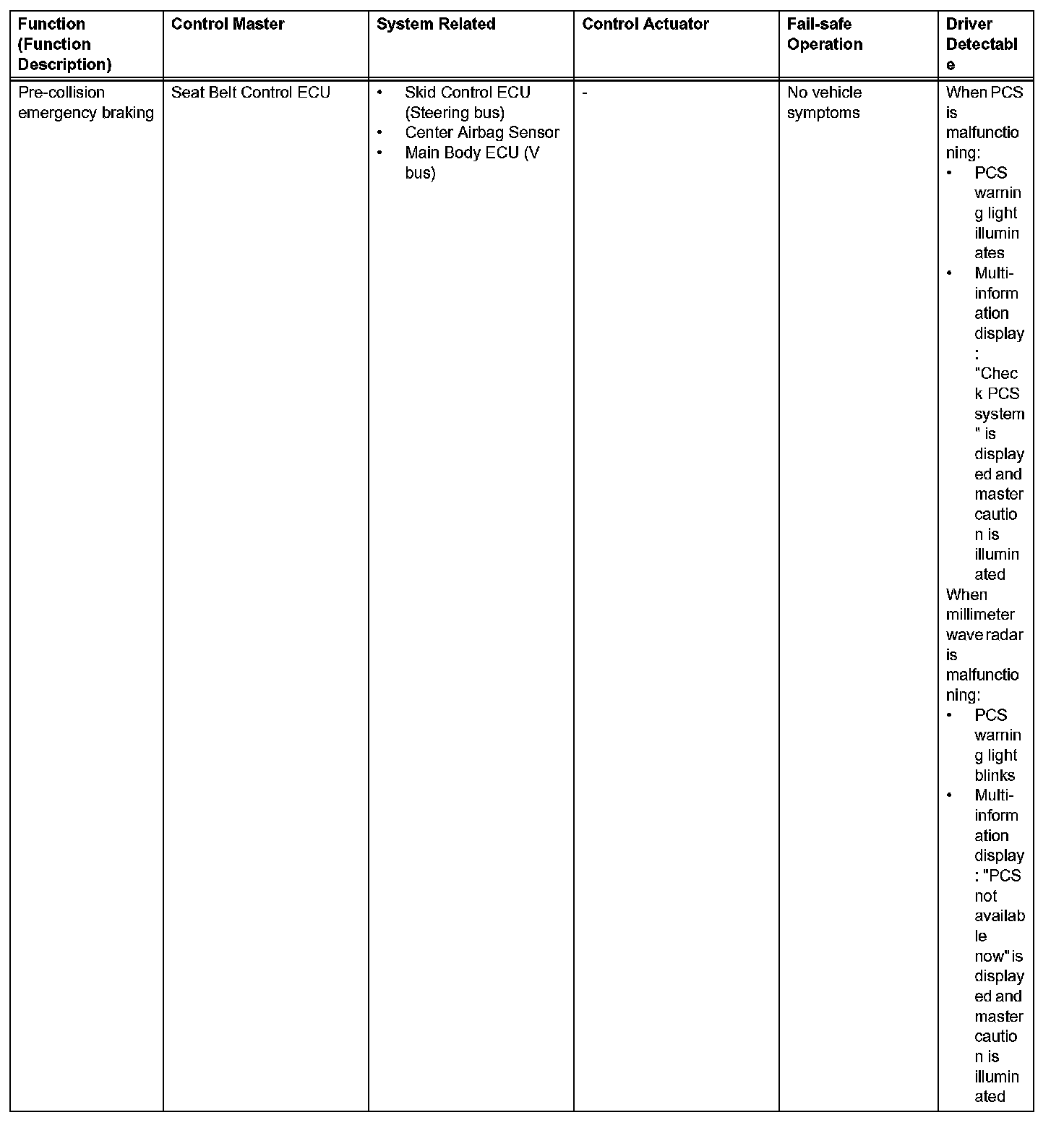

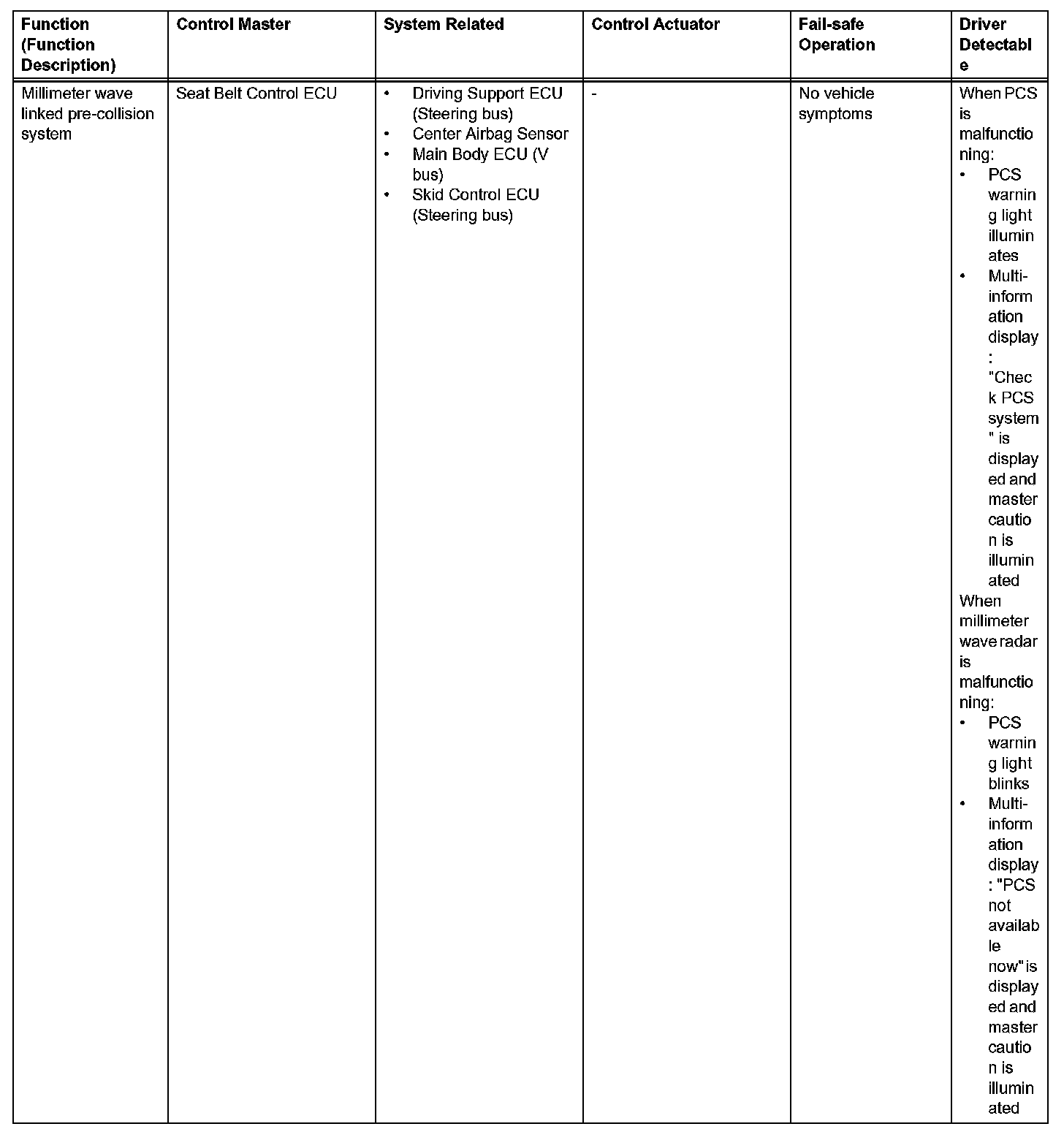

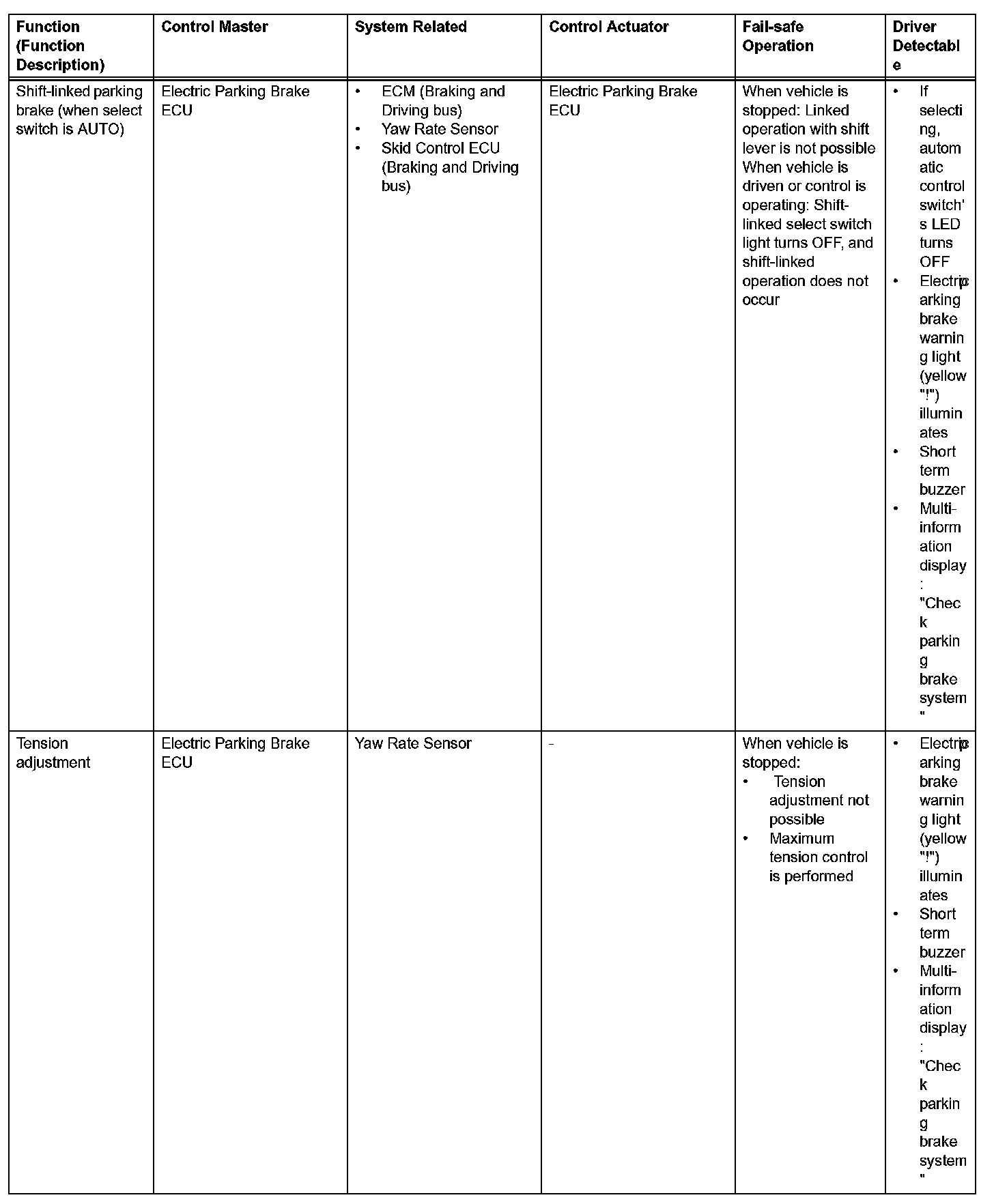

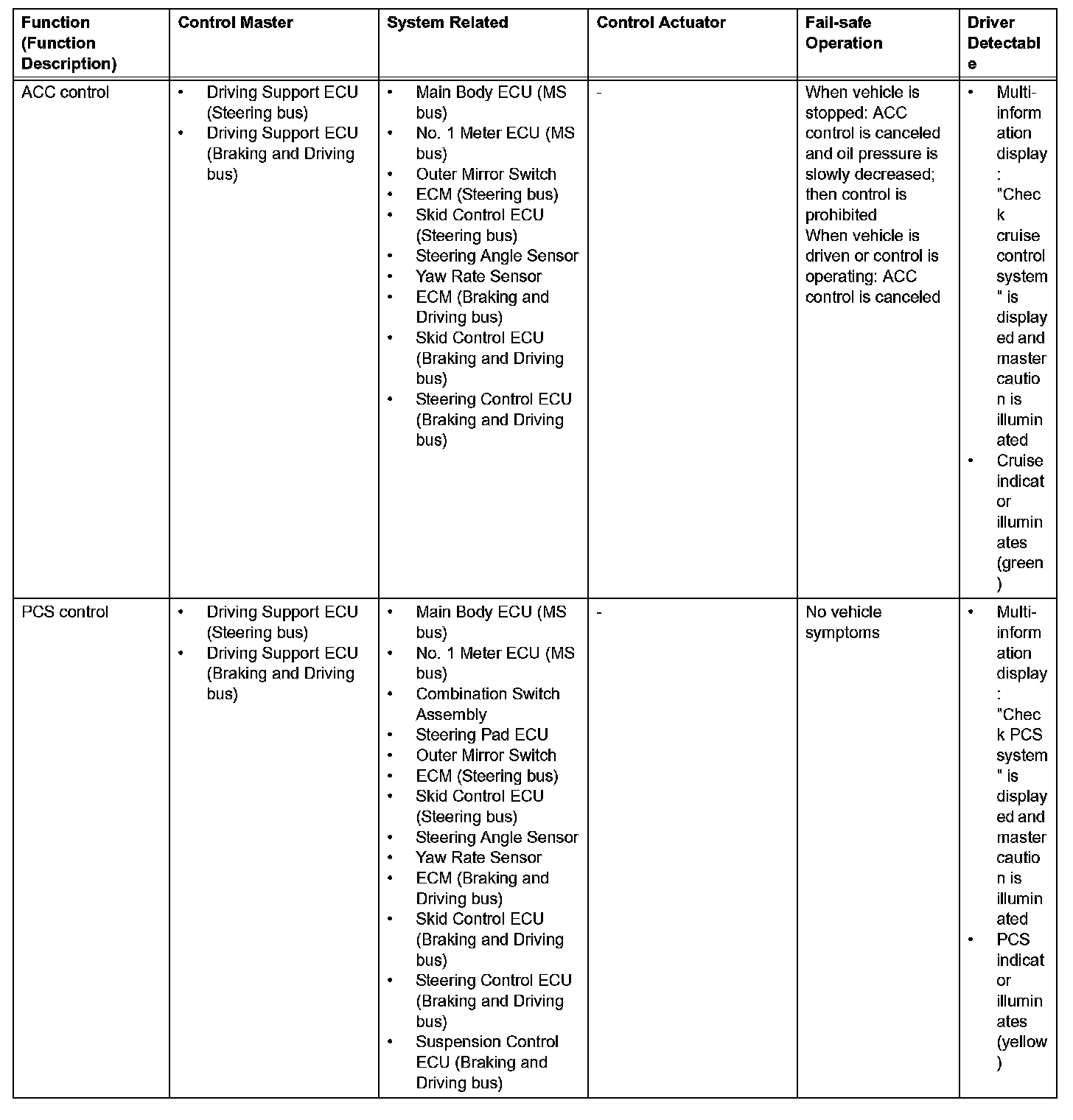

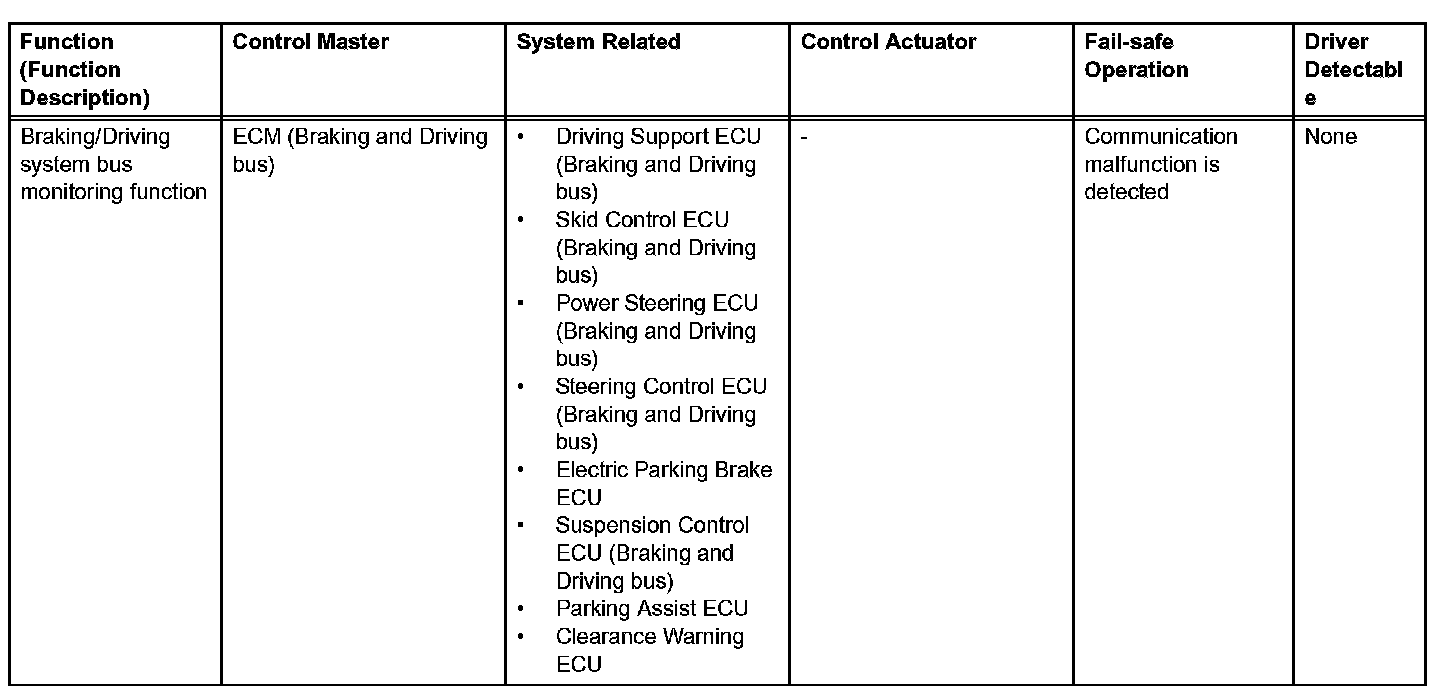

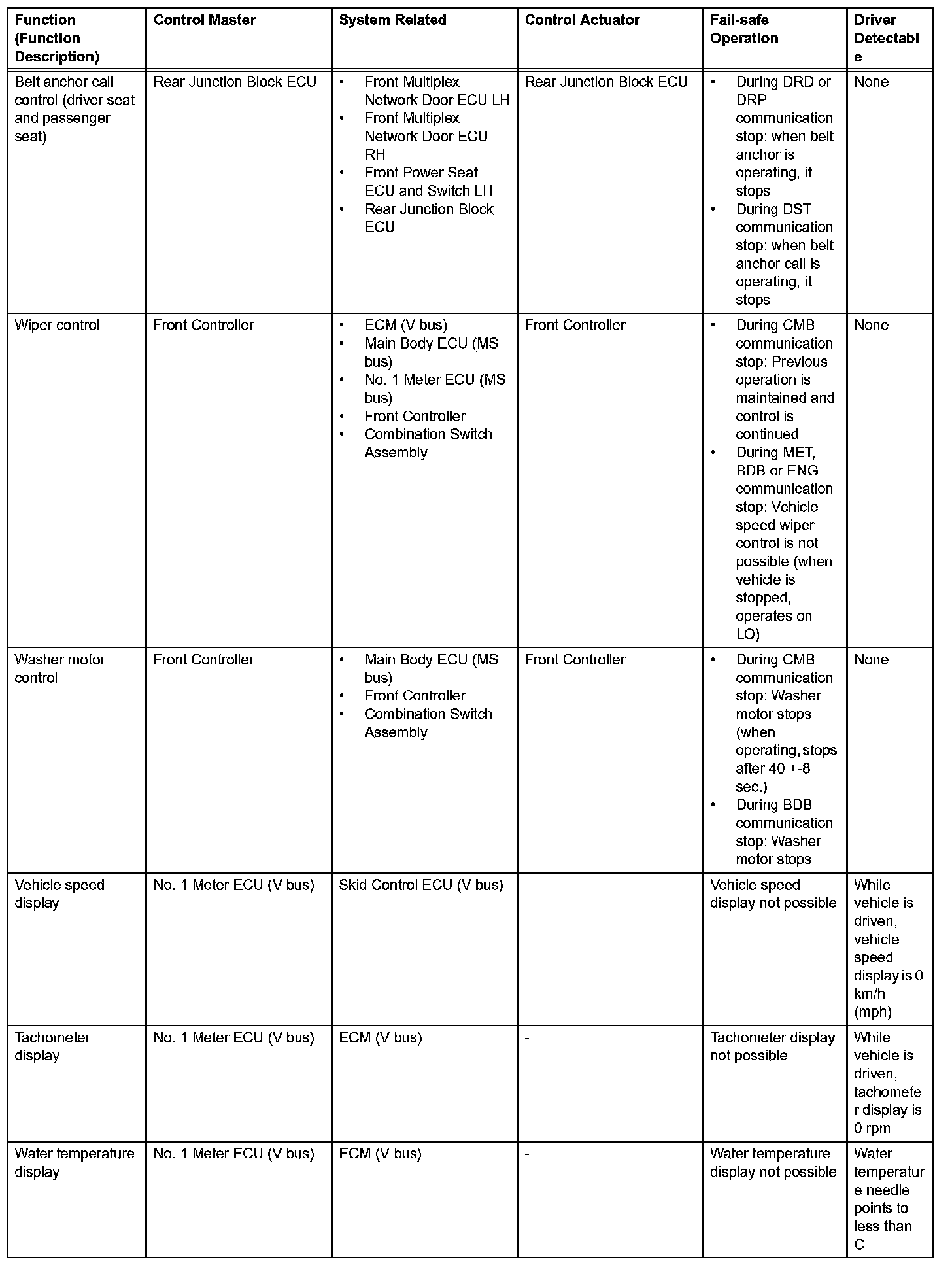

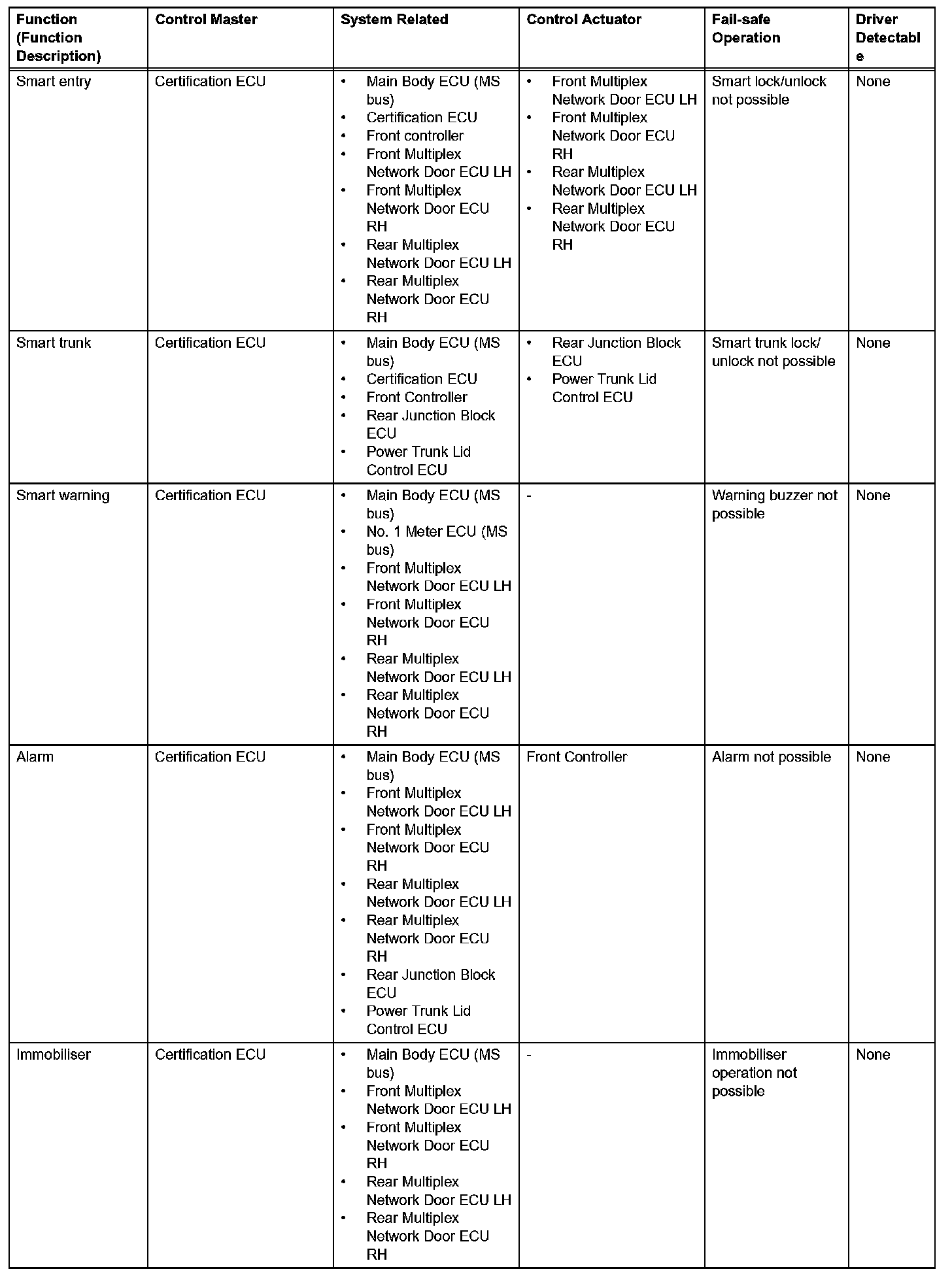

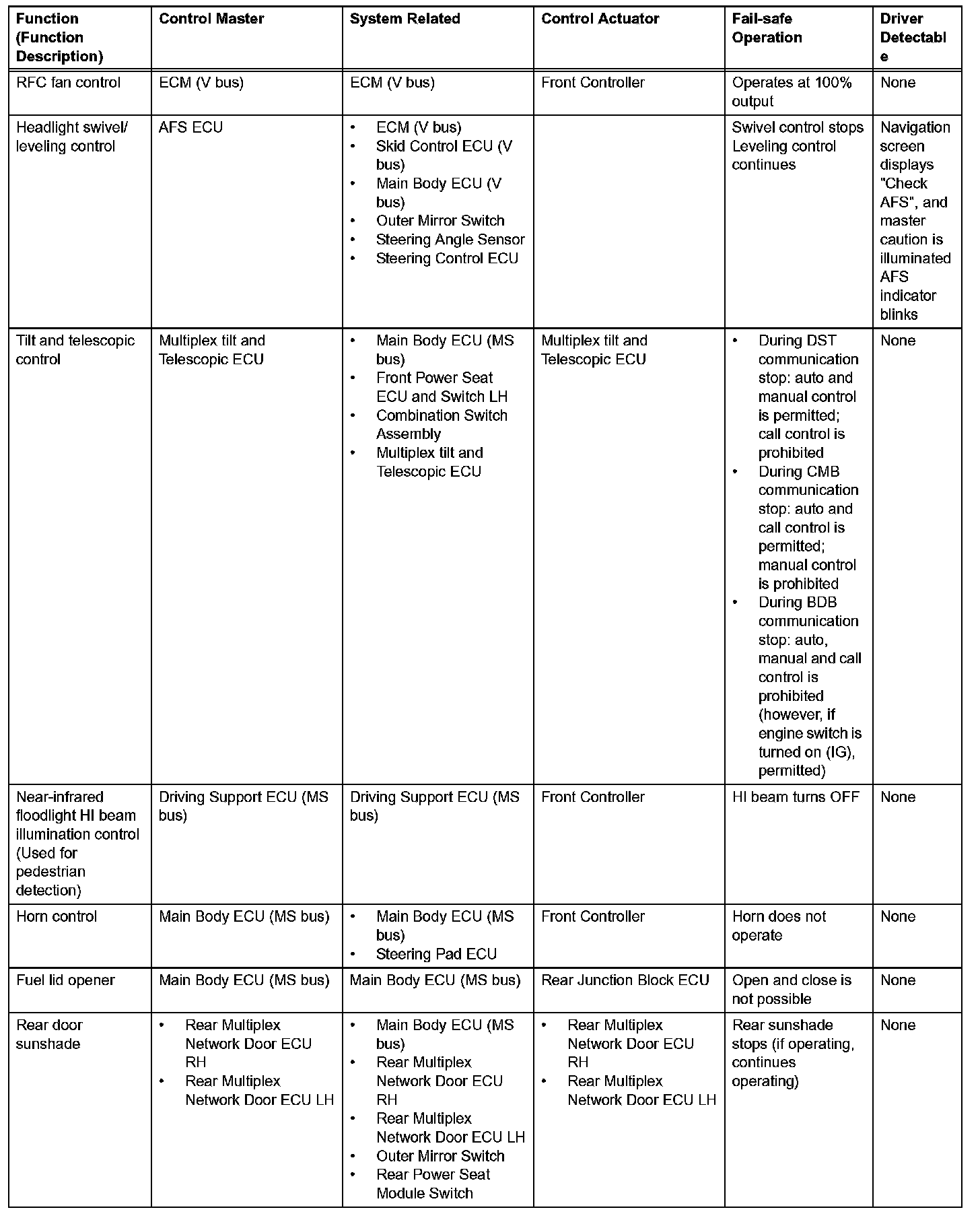

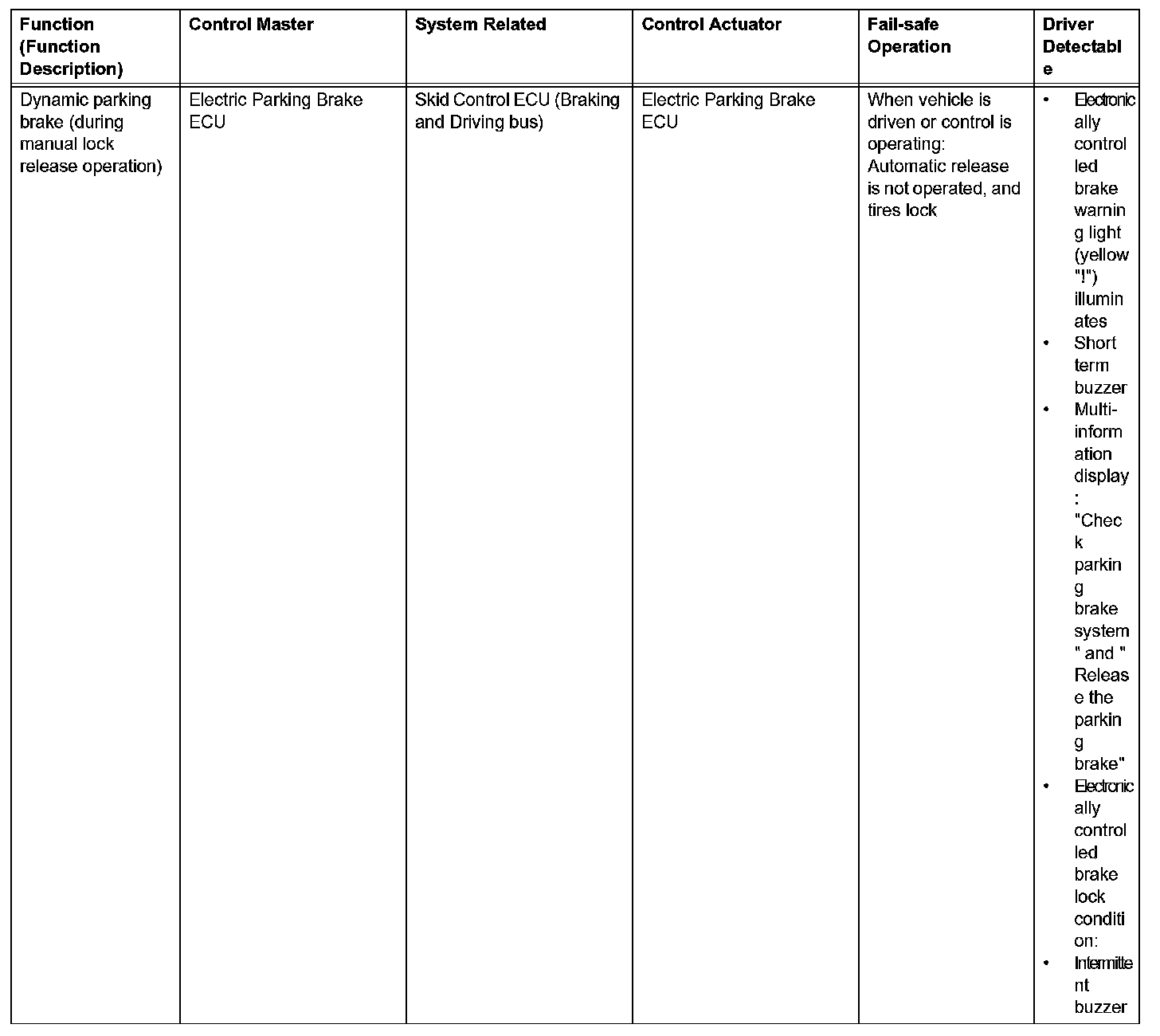

b. The table shows the effects on each system when communication is impossible. For further details, refer to each system.
