Short to B+ in CAN Bus Line
Short to B+ in CAN Bus LineDESCRIPTION

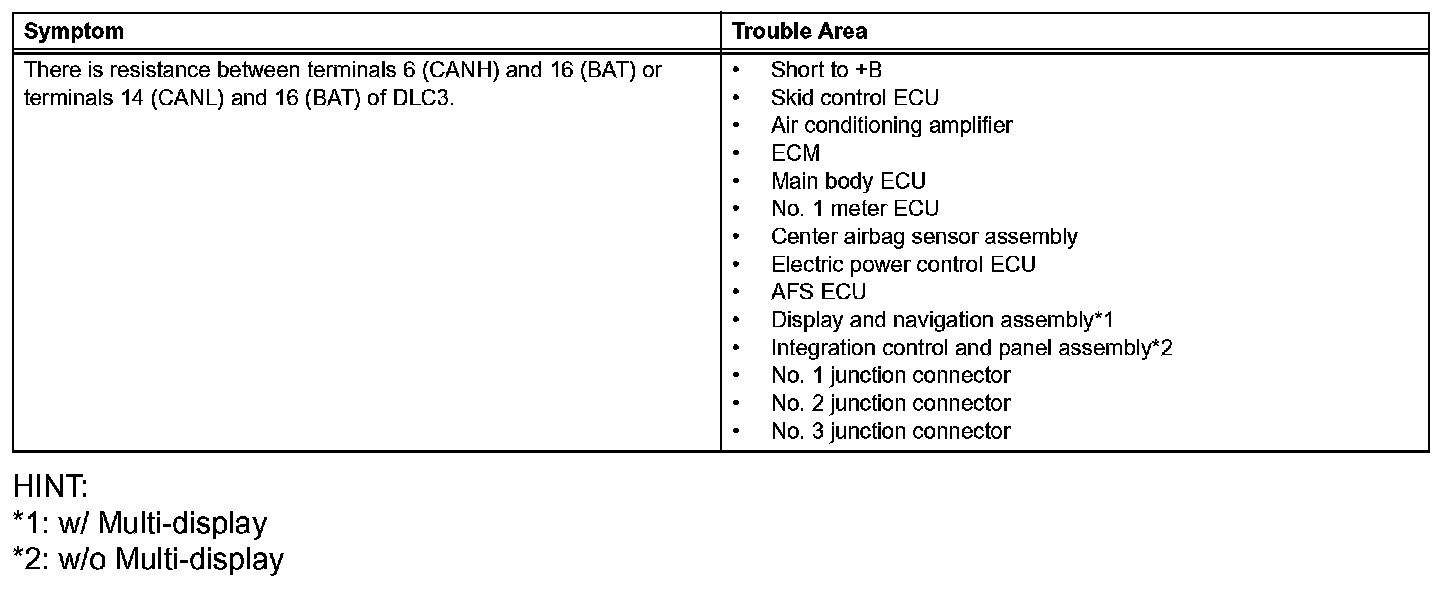

There may be a short circuit between the CAN bus line and +B when there is resistance between terminals 6 (CANH) and 16 (CANL) or terminals 14 (CANL) and 16 (BAT) of the DLC3.

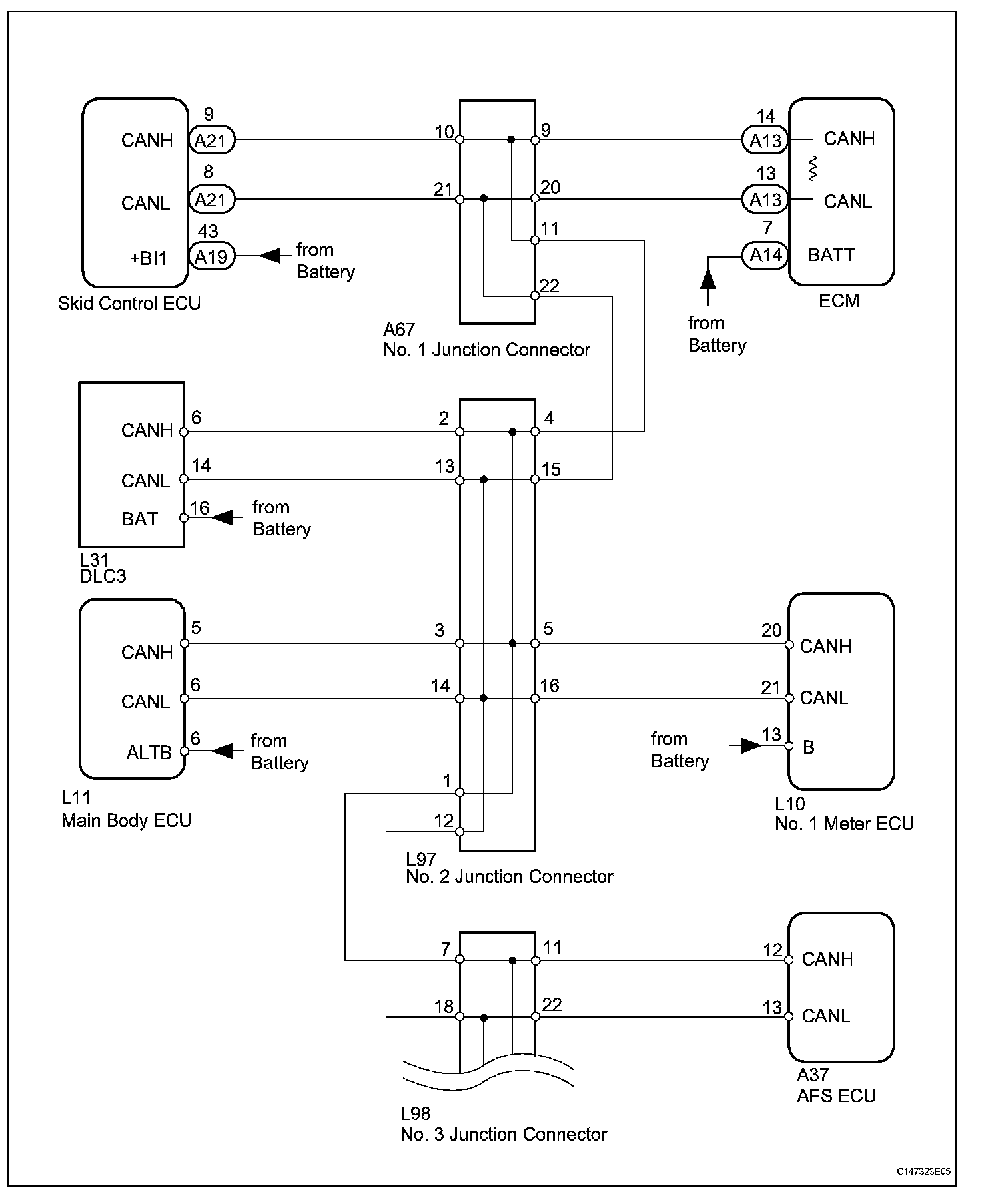

Wiring Diagram (Part 1):

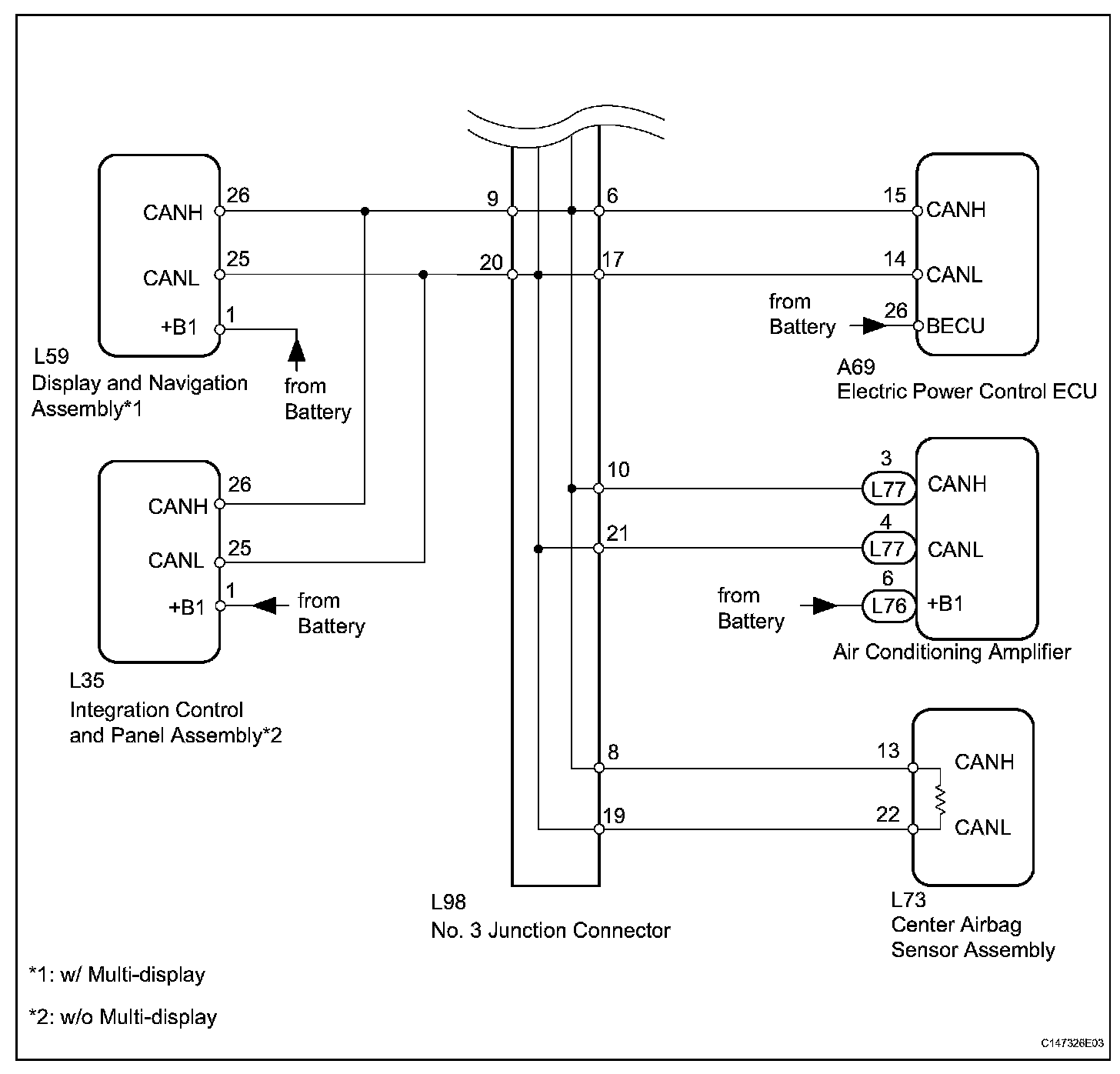

Wiring Diagram (Part 2):

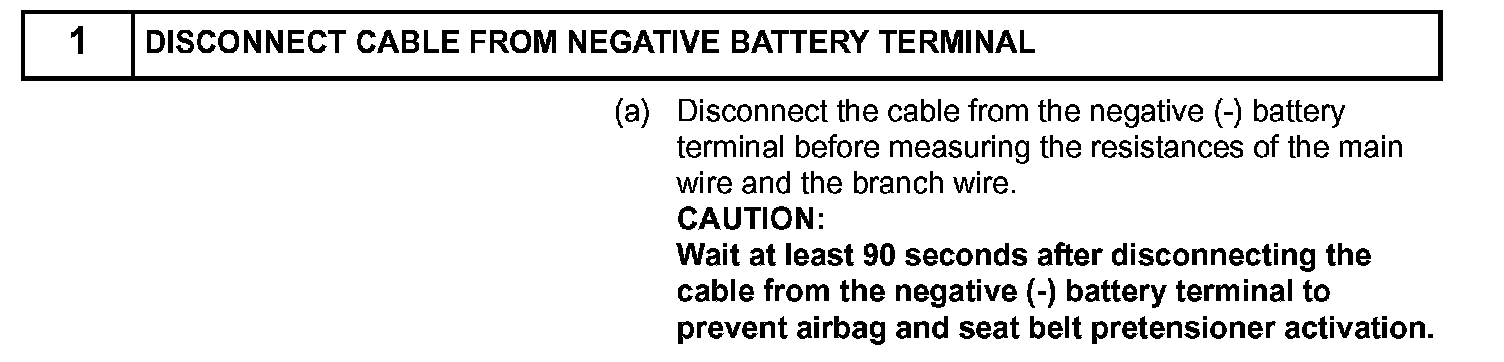

Step 1:
Step 1 (Conitnued)-4:

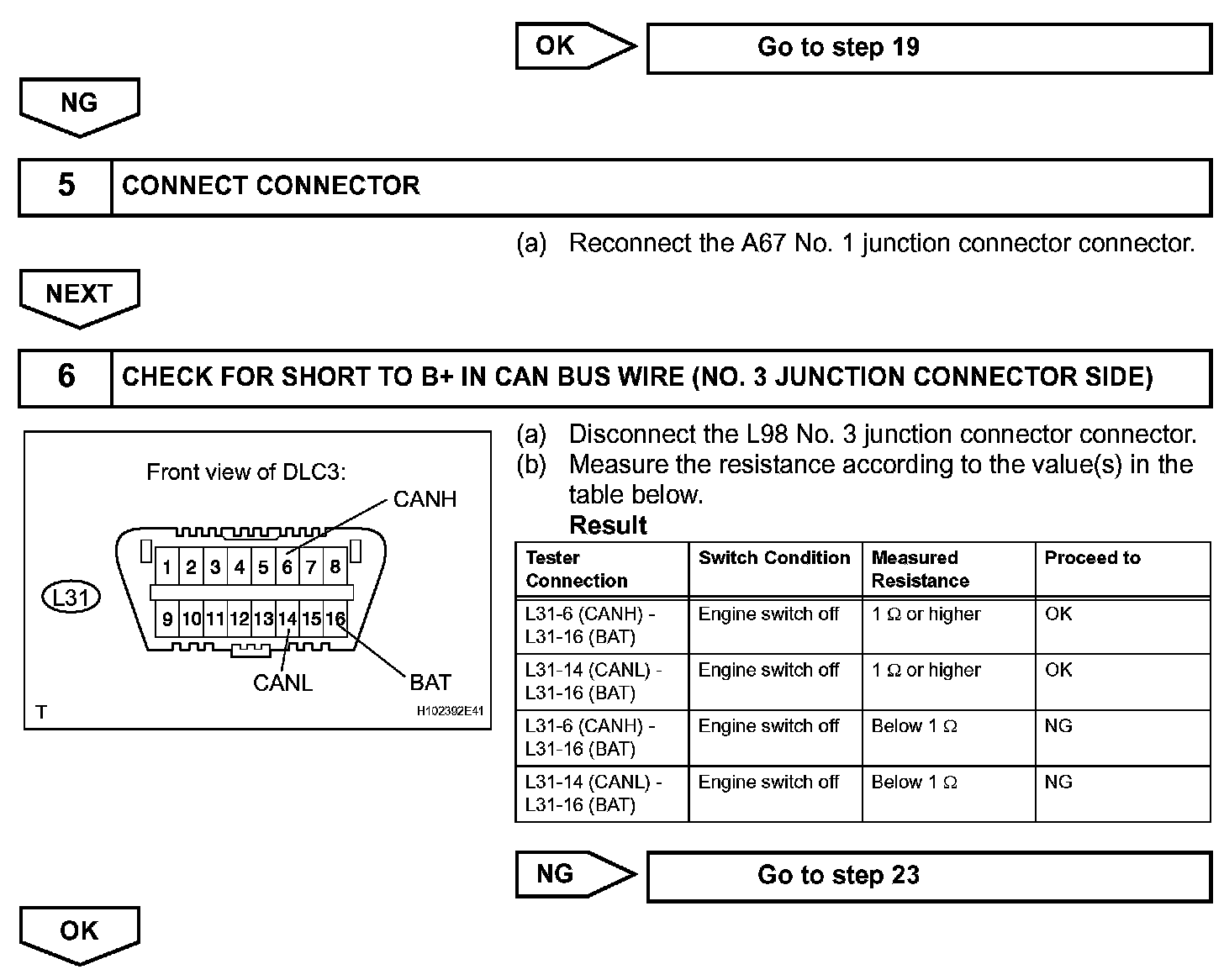

Step 4 (Continued)-6:

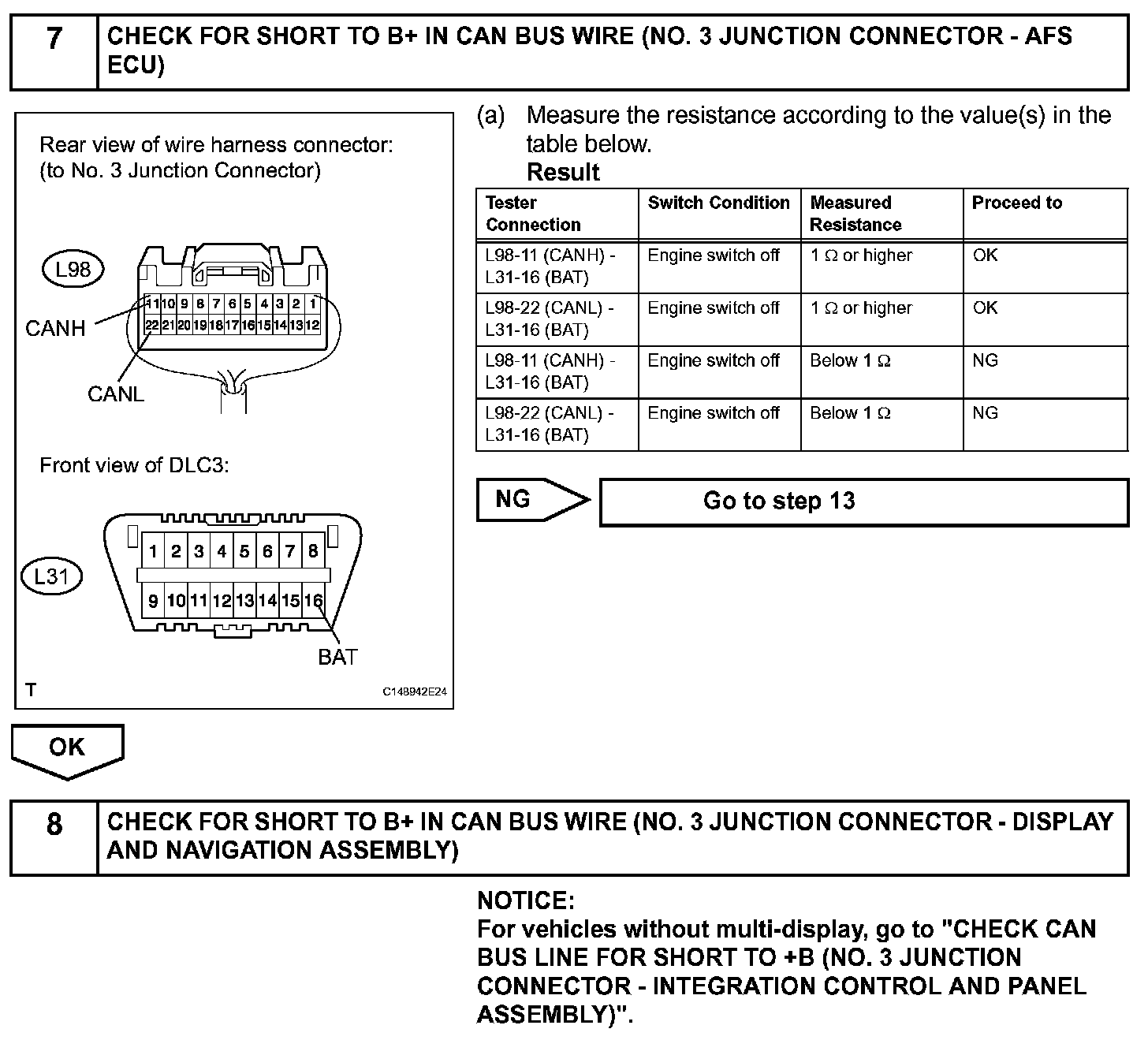

Step 7-8:

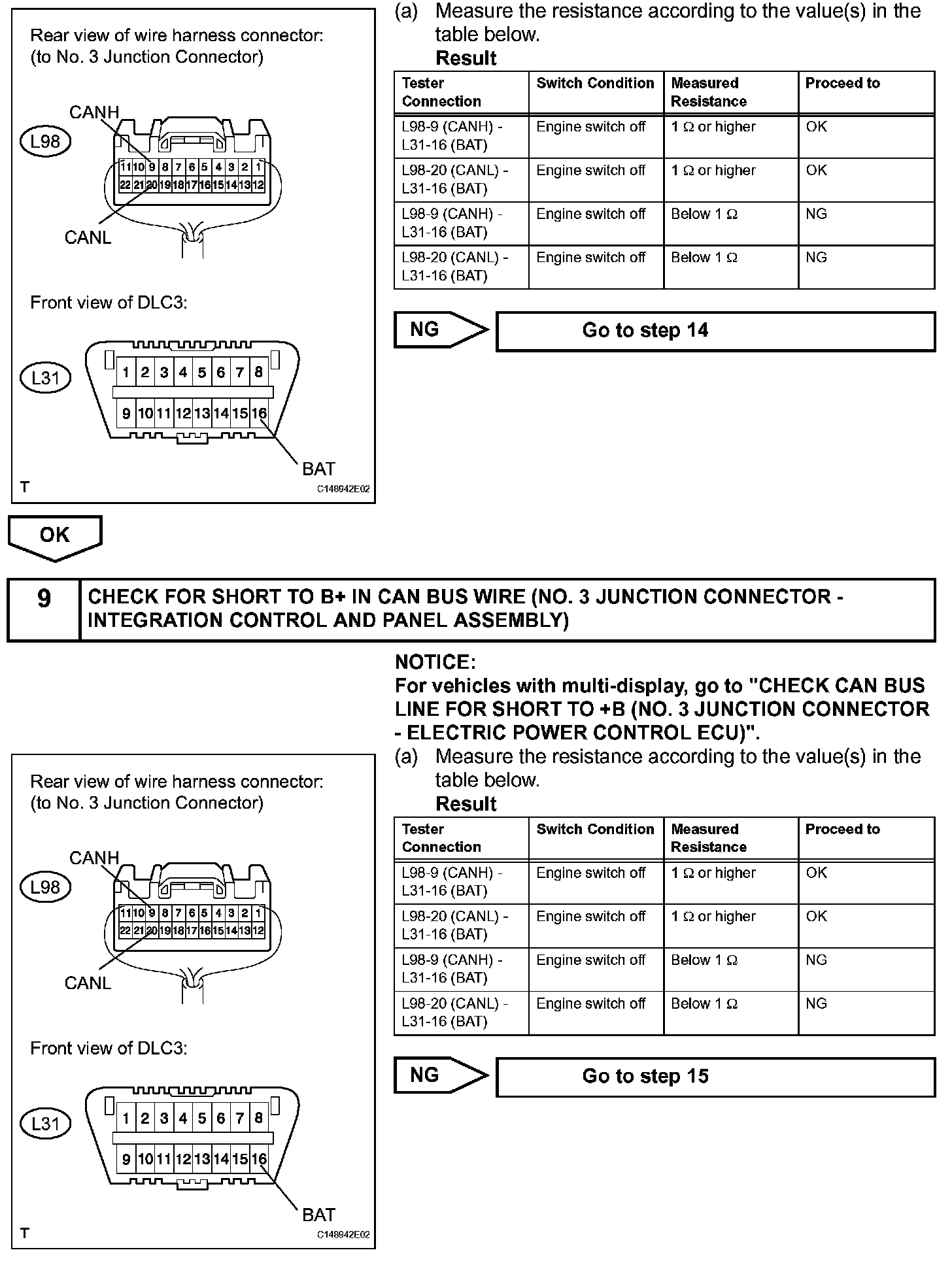

Step 8 (Continued)-9:

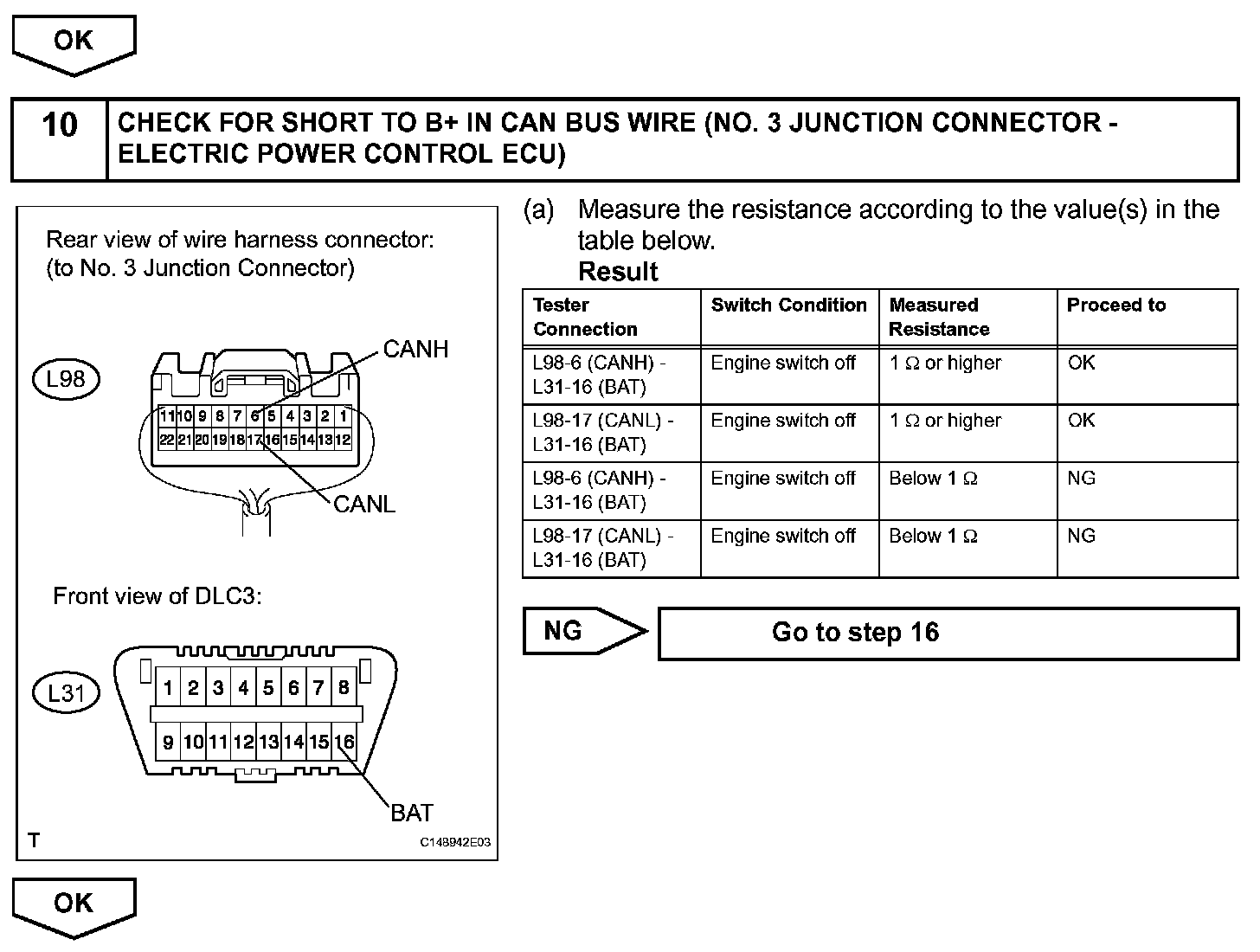

Step 9 (Continued)-10:

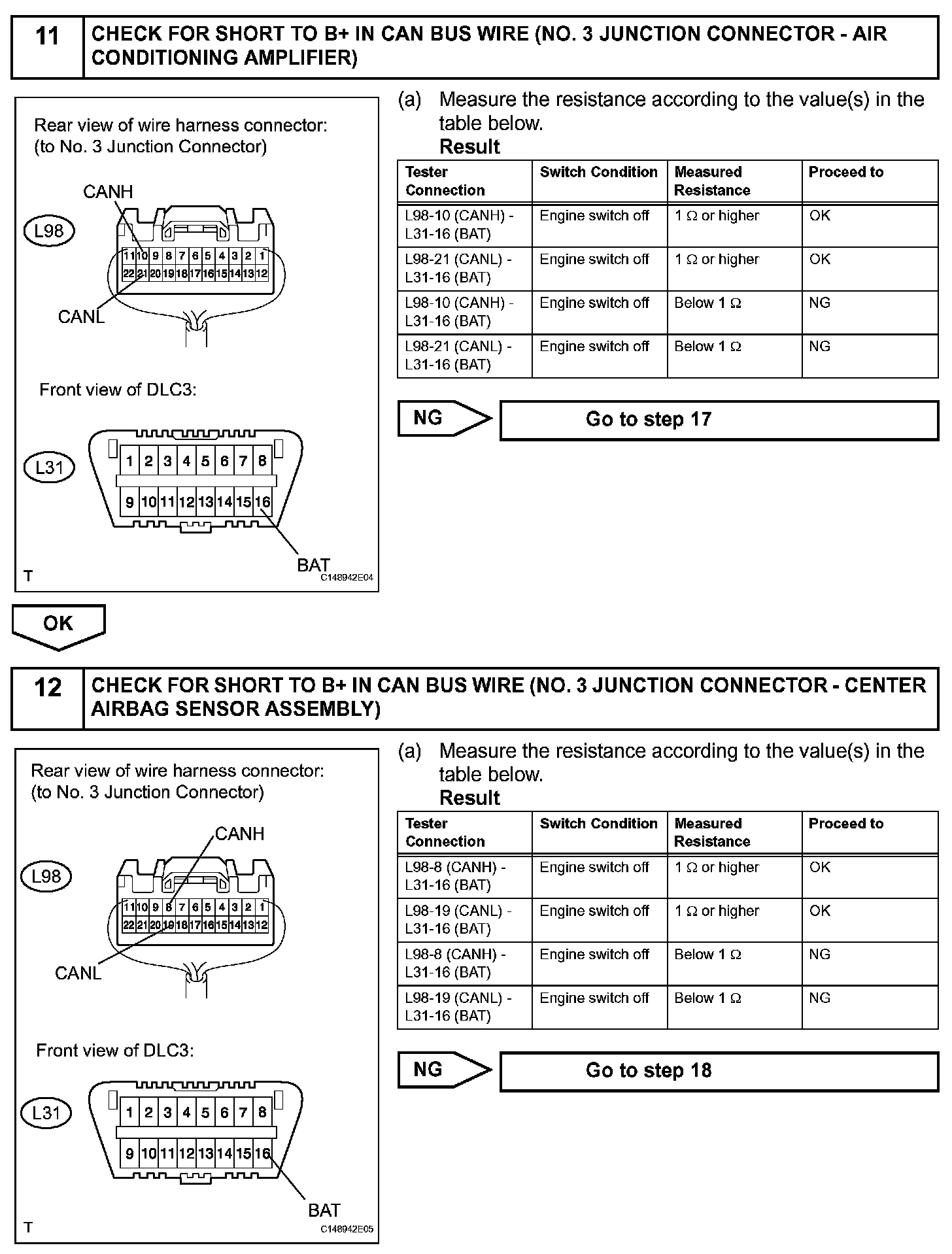

Step 11-12:

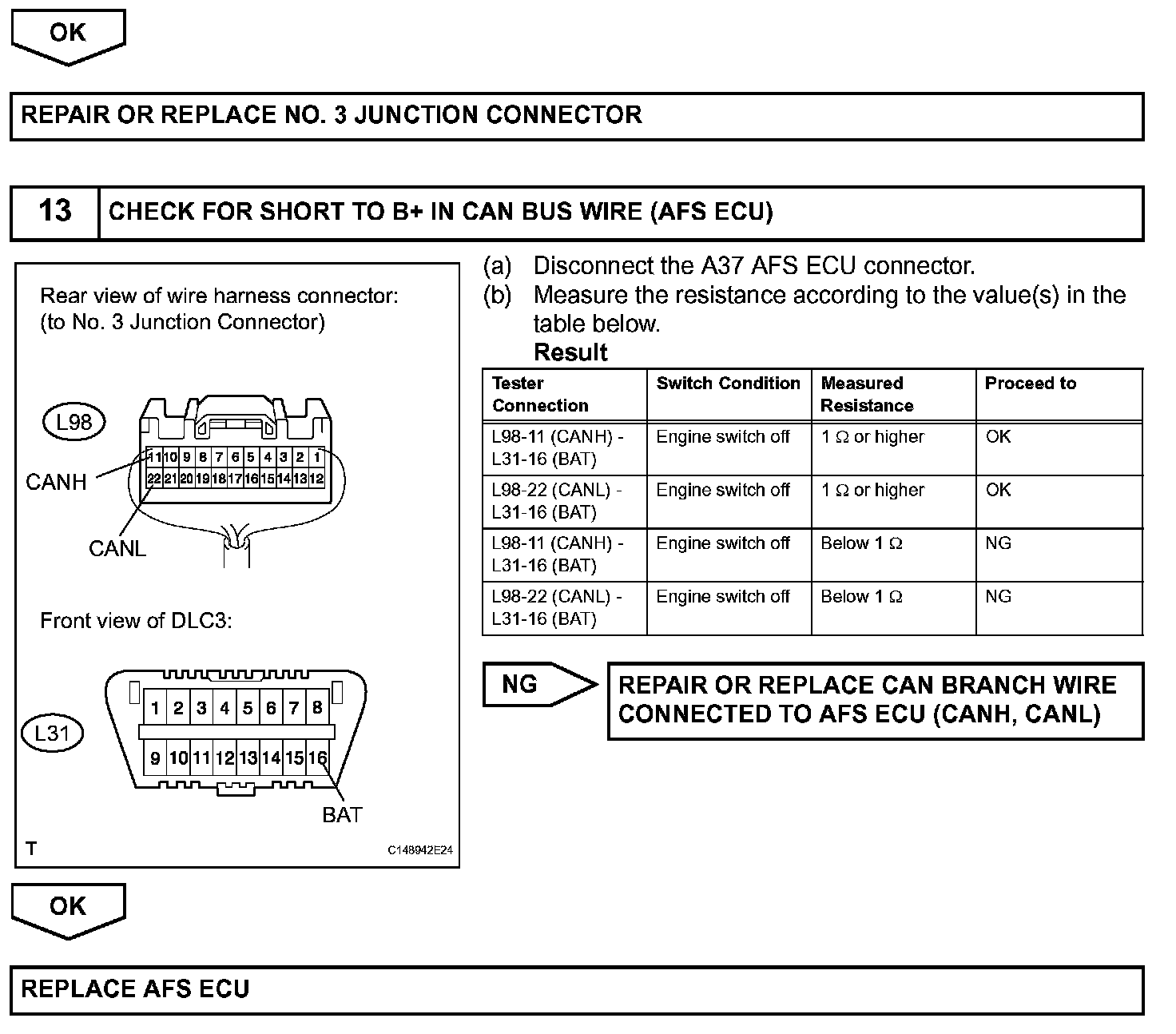

Step 12 (Continued)-13:

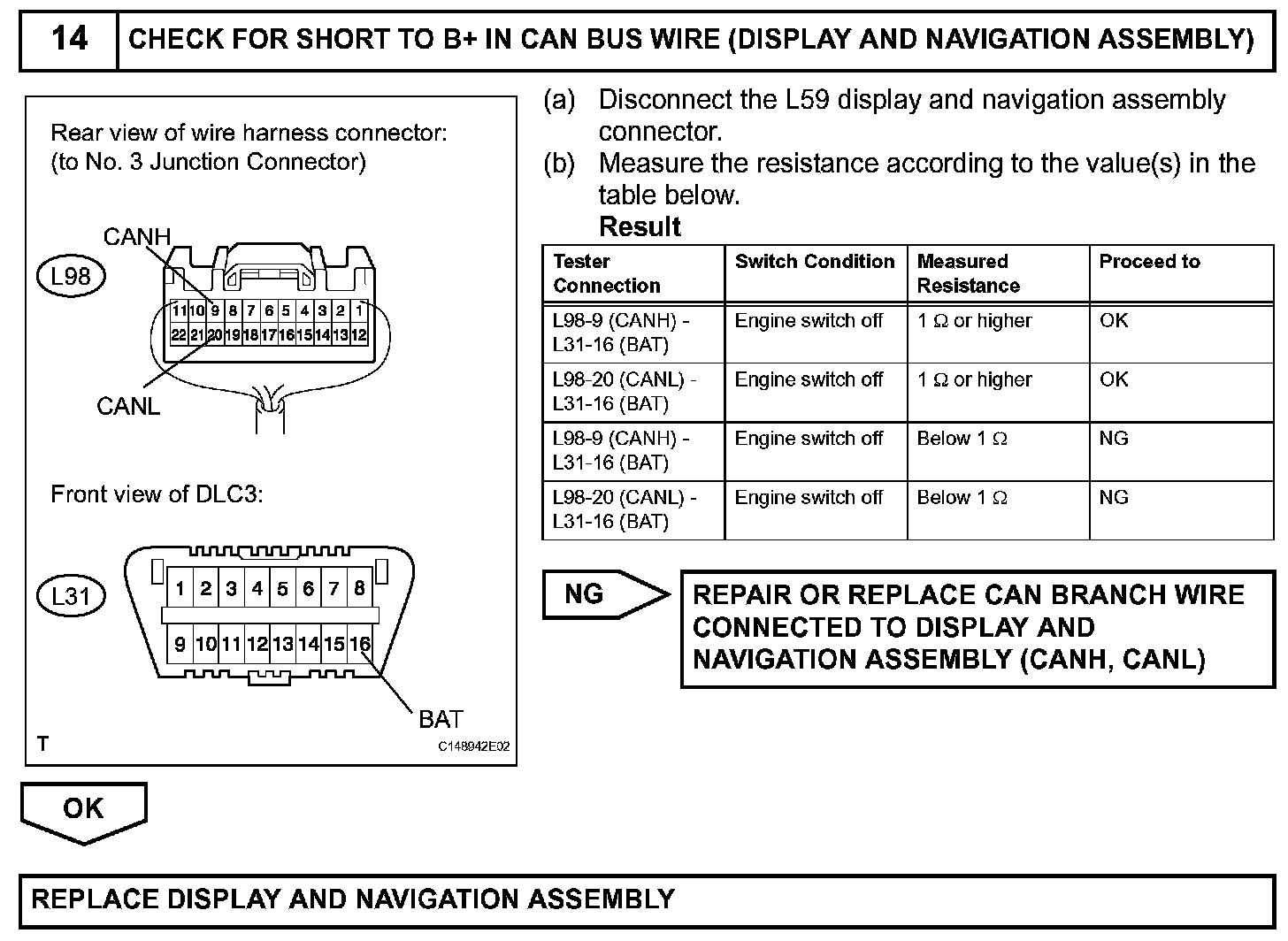

Step 14:

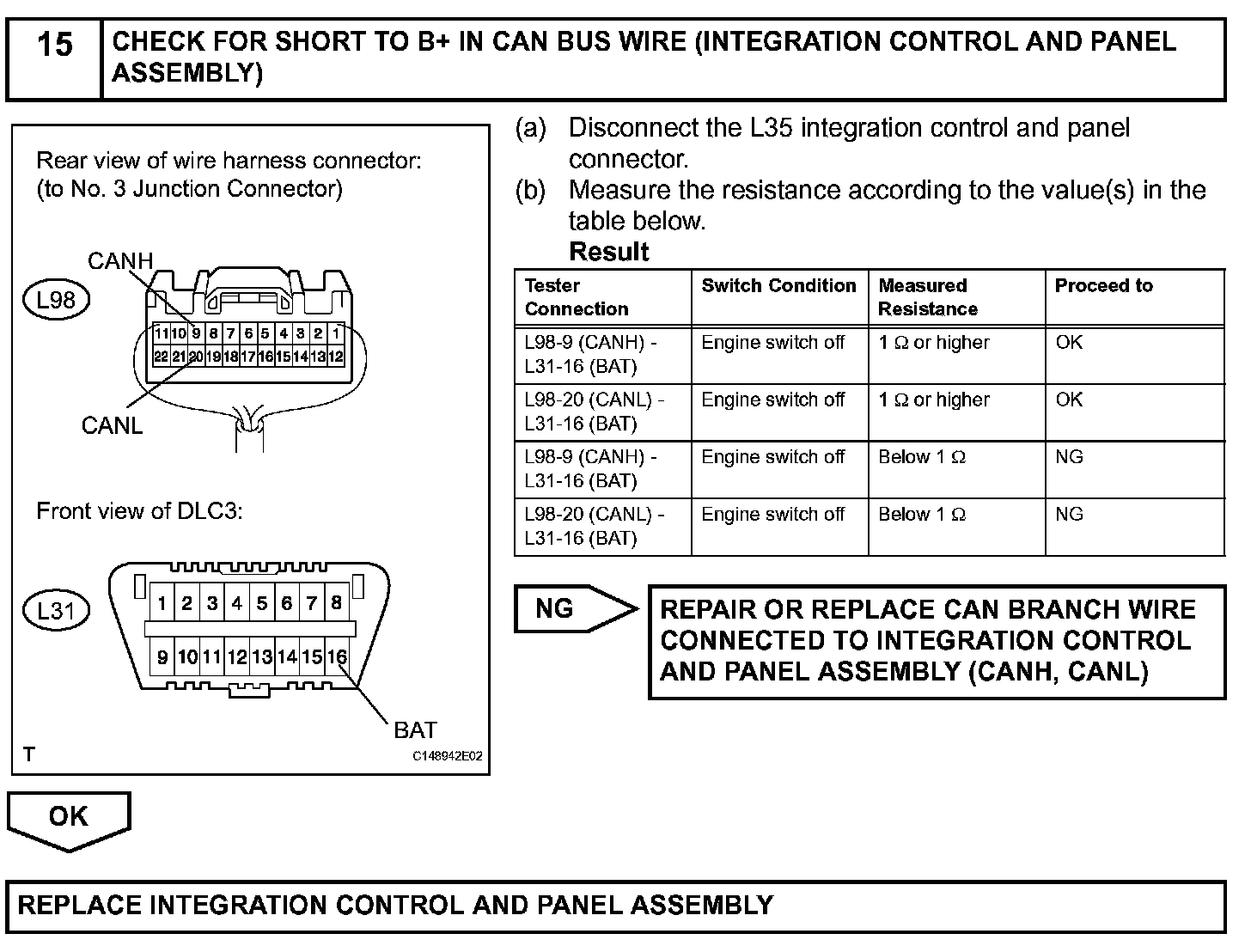

Step 15:

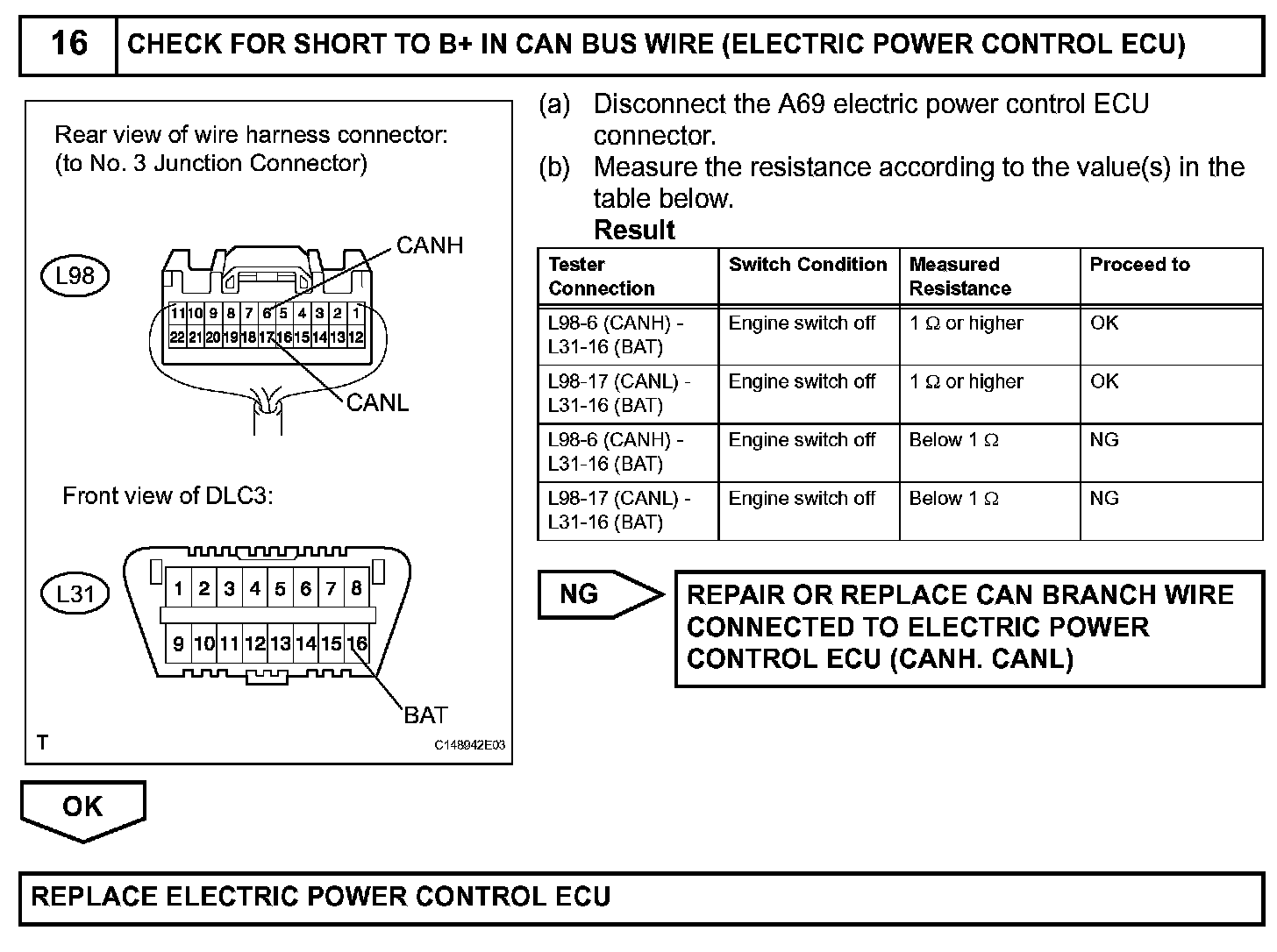

Step 16:

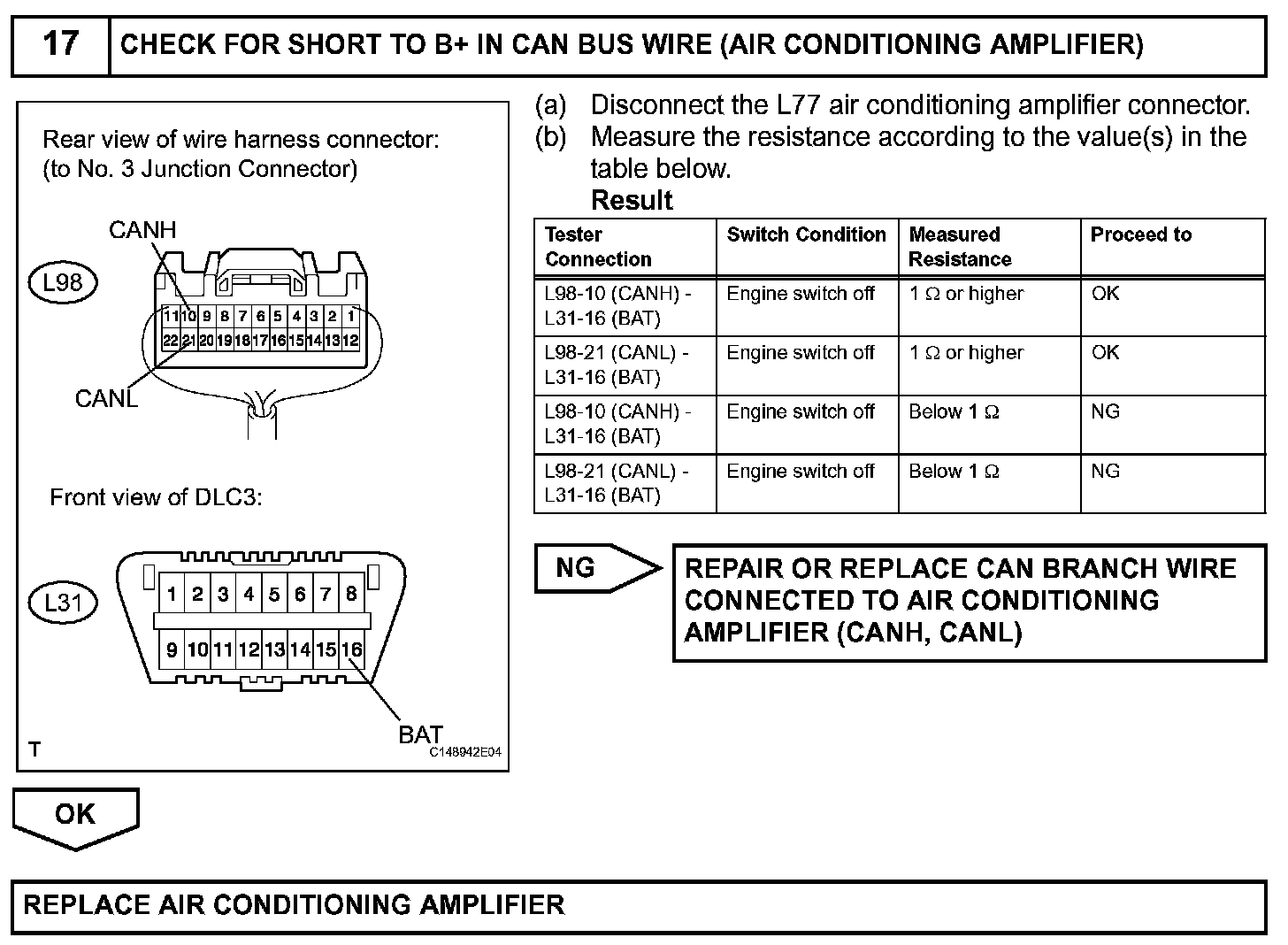

Step 17:

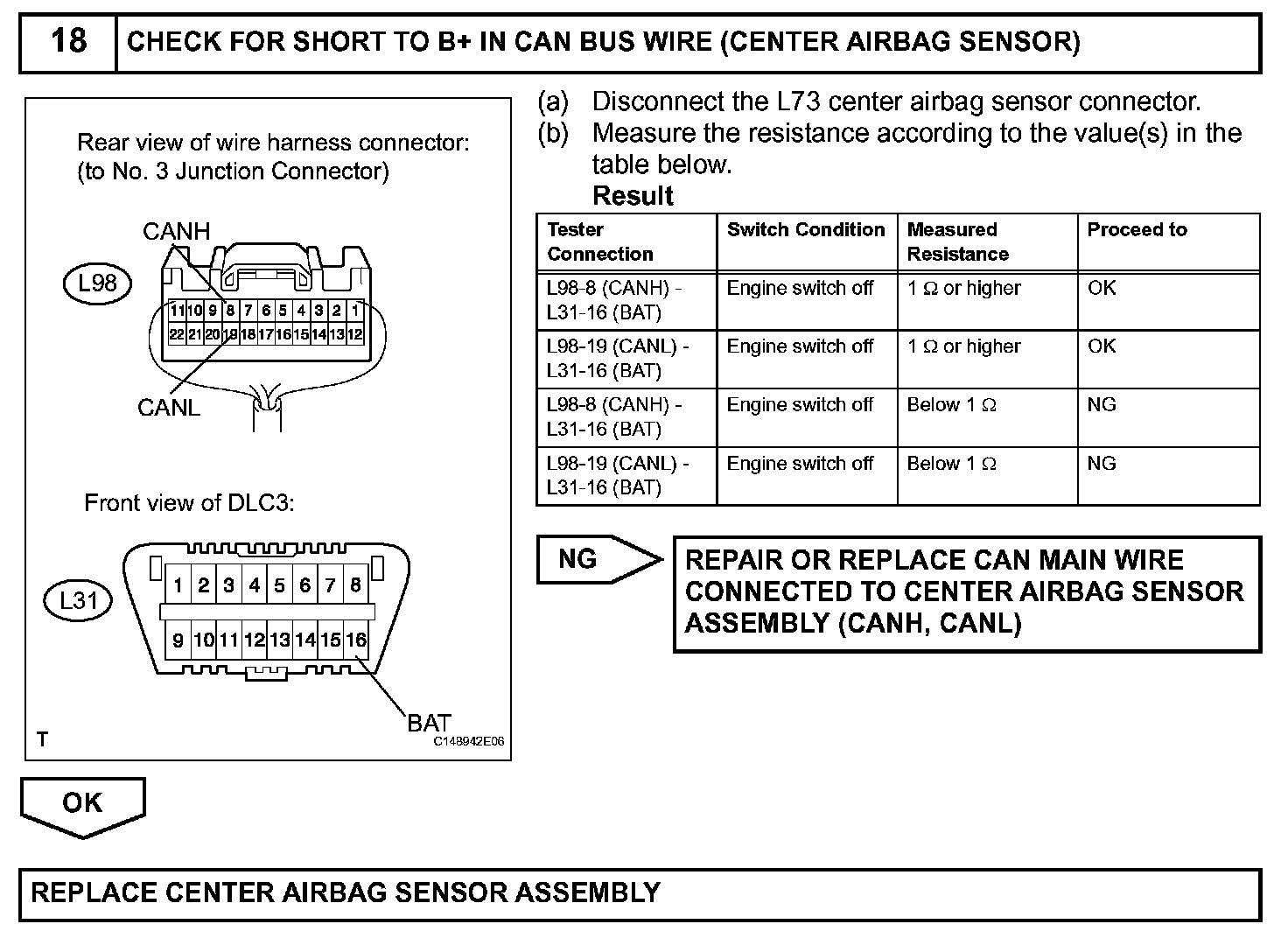

Step 18:

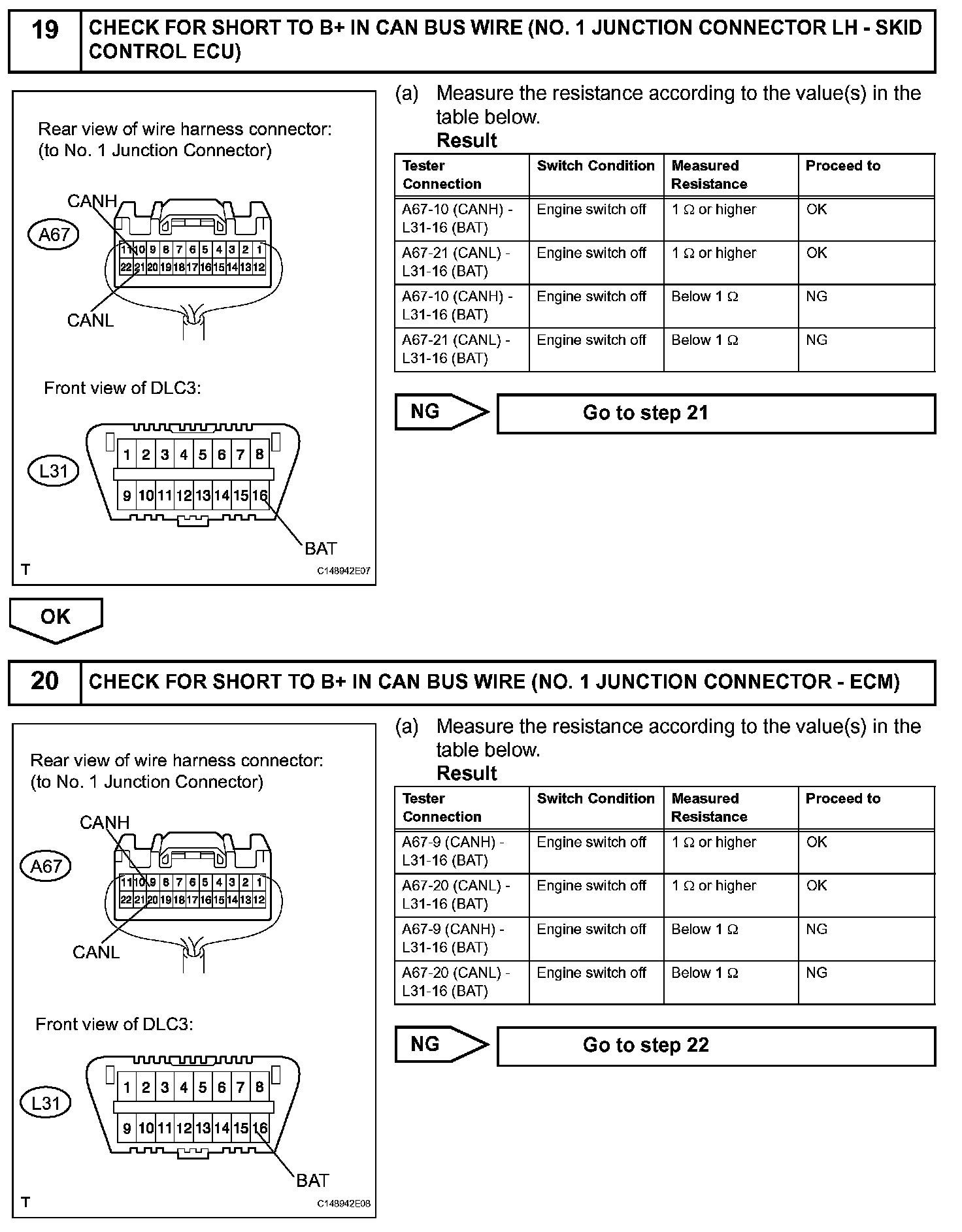

Step 19-20:

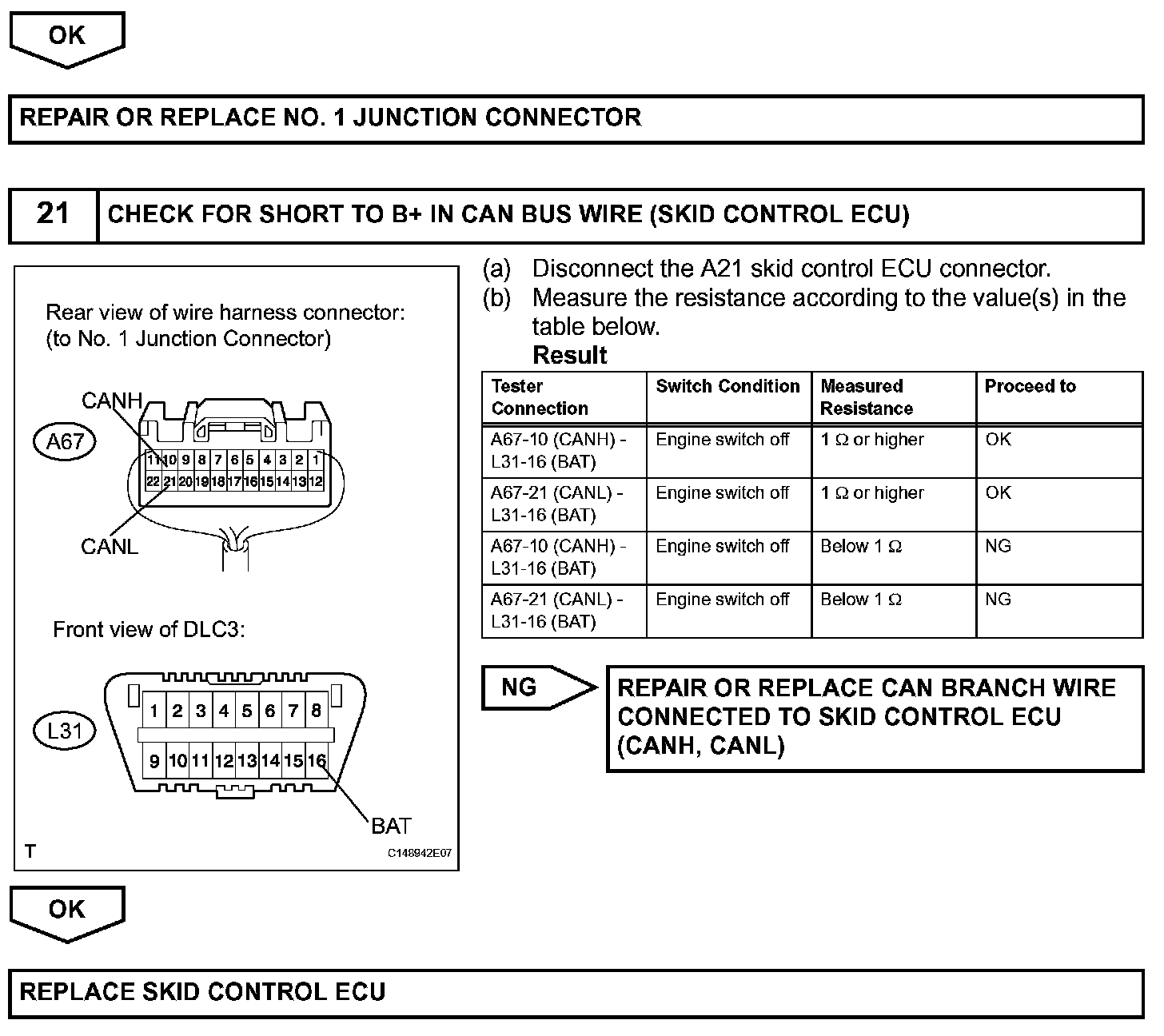

Step 20 (Continued)-21:

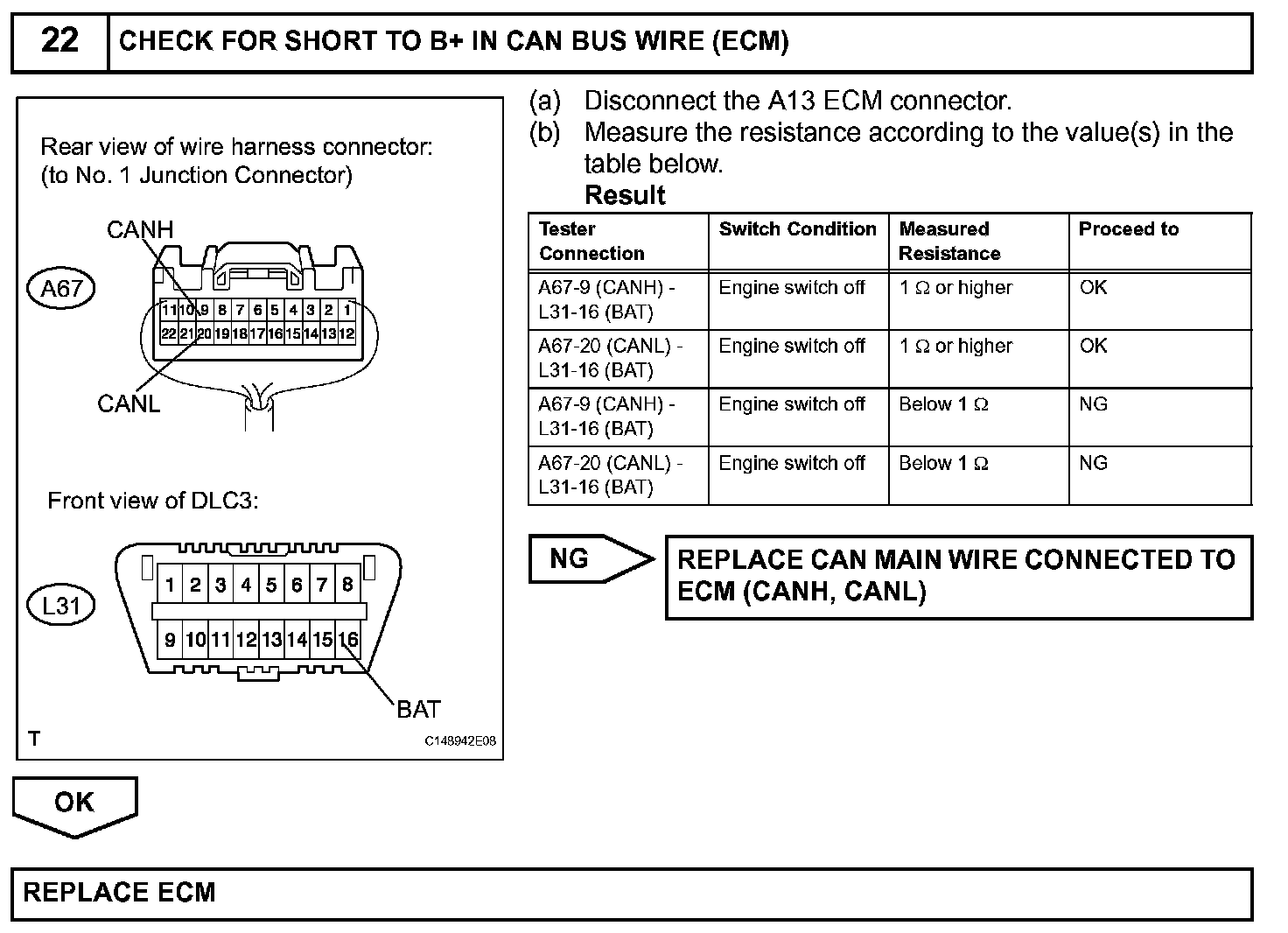

Step 22:

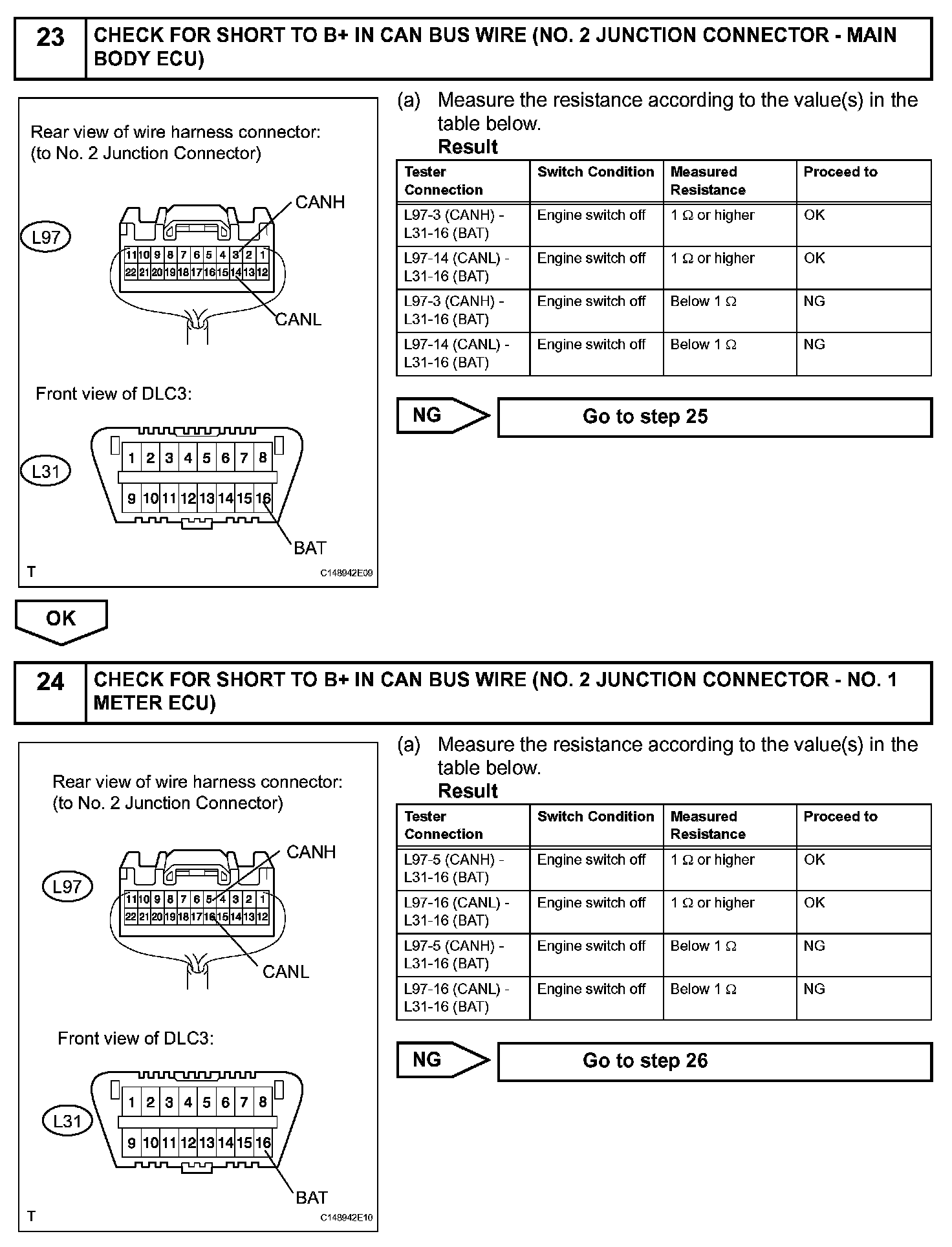

Step 23-24:

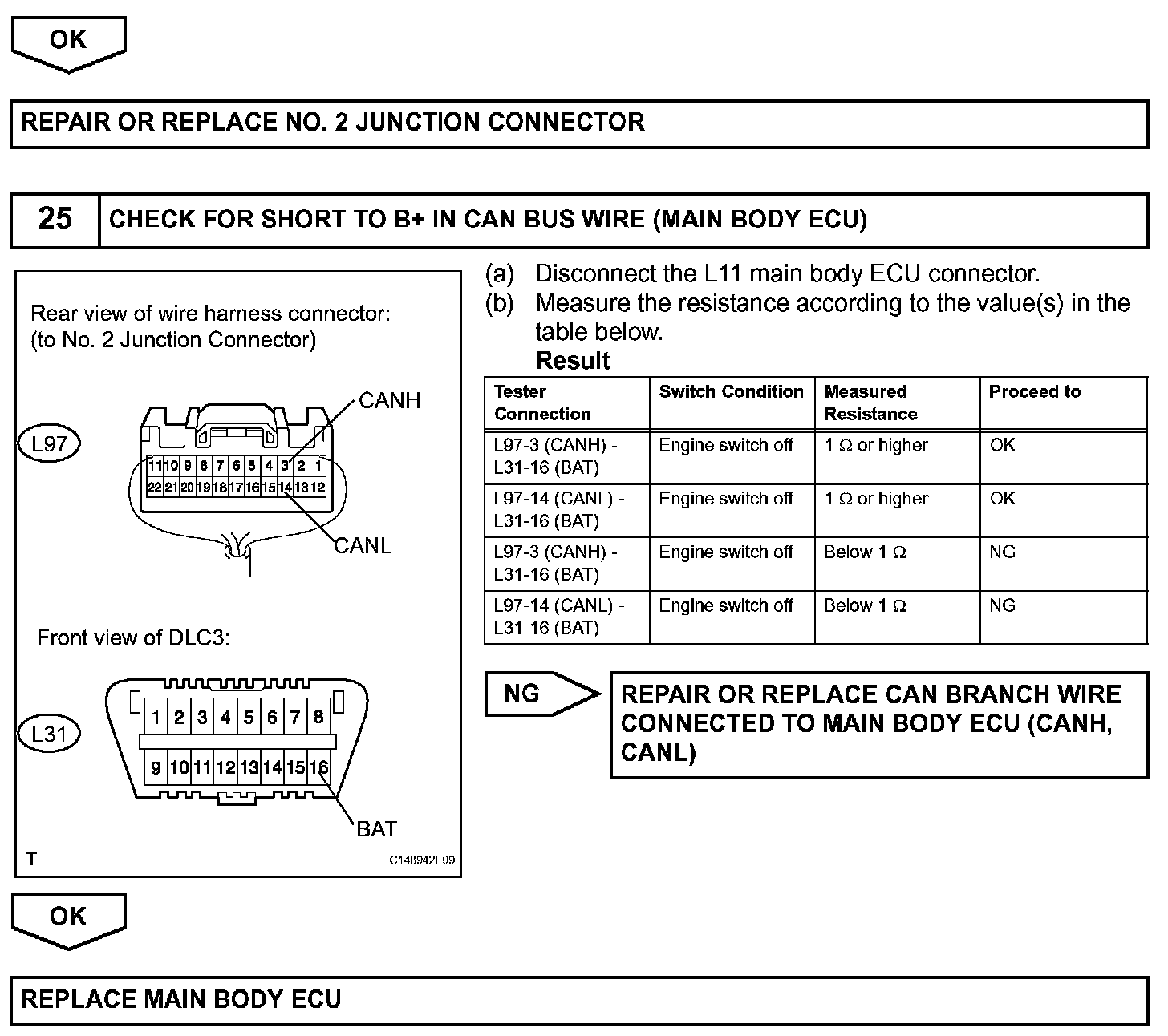

Step 24 (Continued)-25:

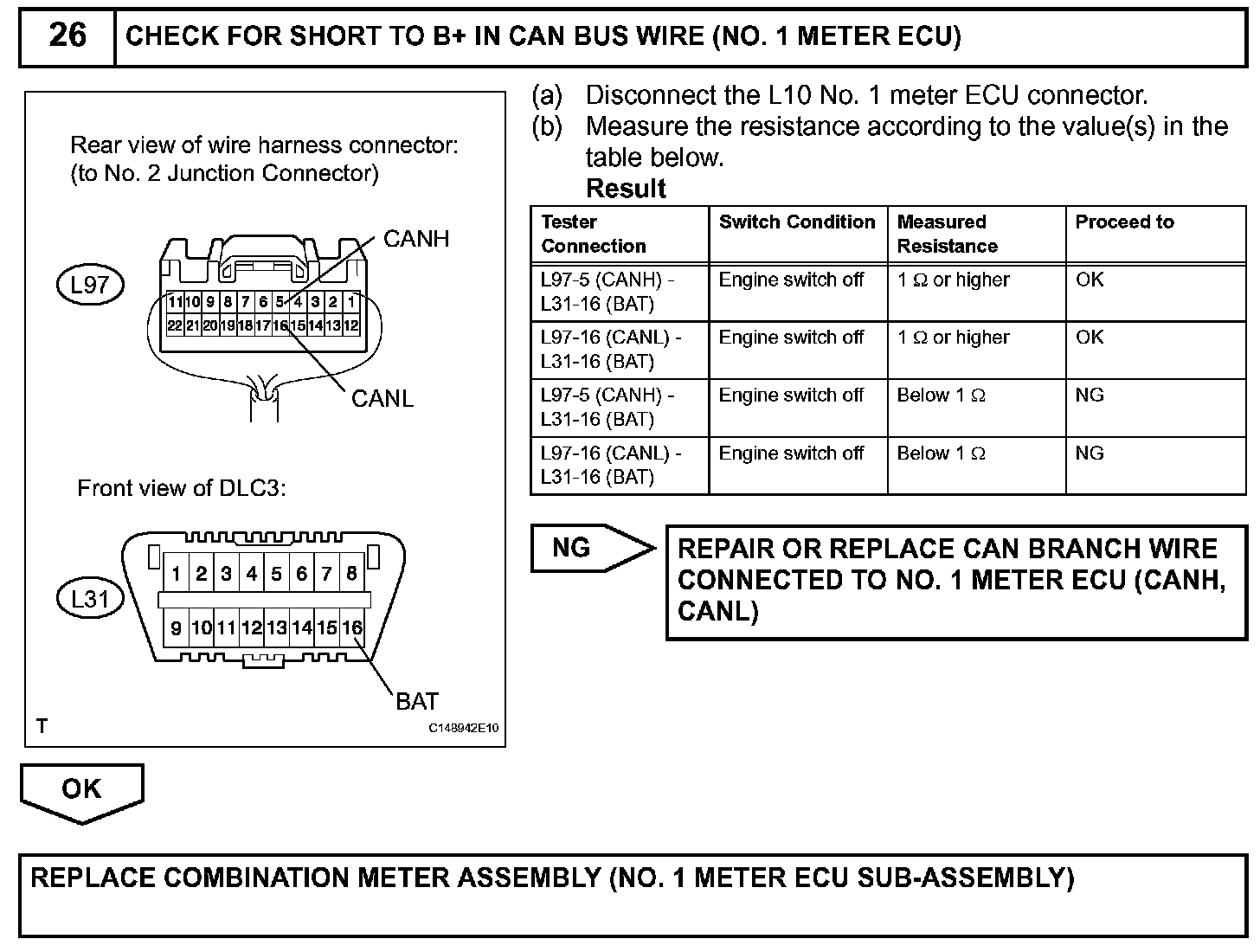

Step 26:
INSPECTION PROCEDURE
HINT: Operating the engine switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.
