Short in CAN Bus Lines
Short in CAN Bus LinesDESCRIPTION

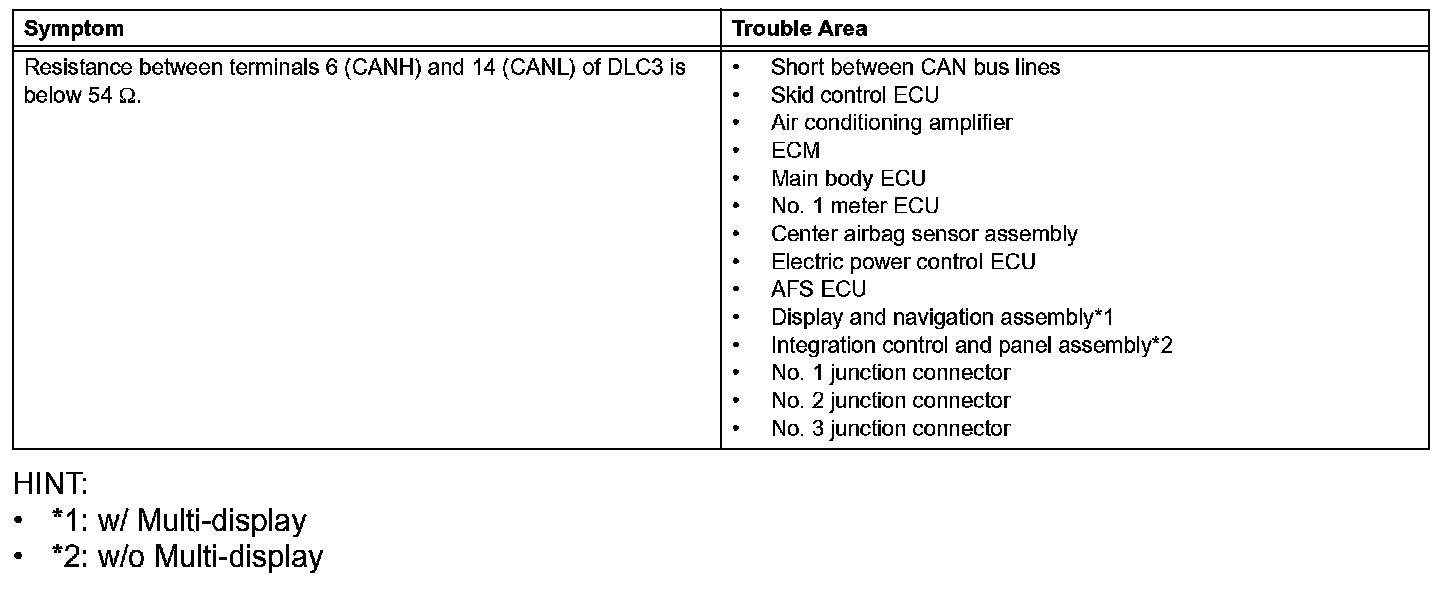

There may be a short circuit between the CAN bus lines when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is below 54 ohms.

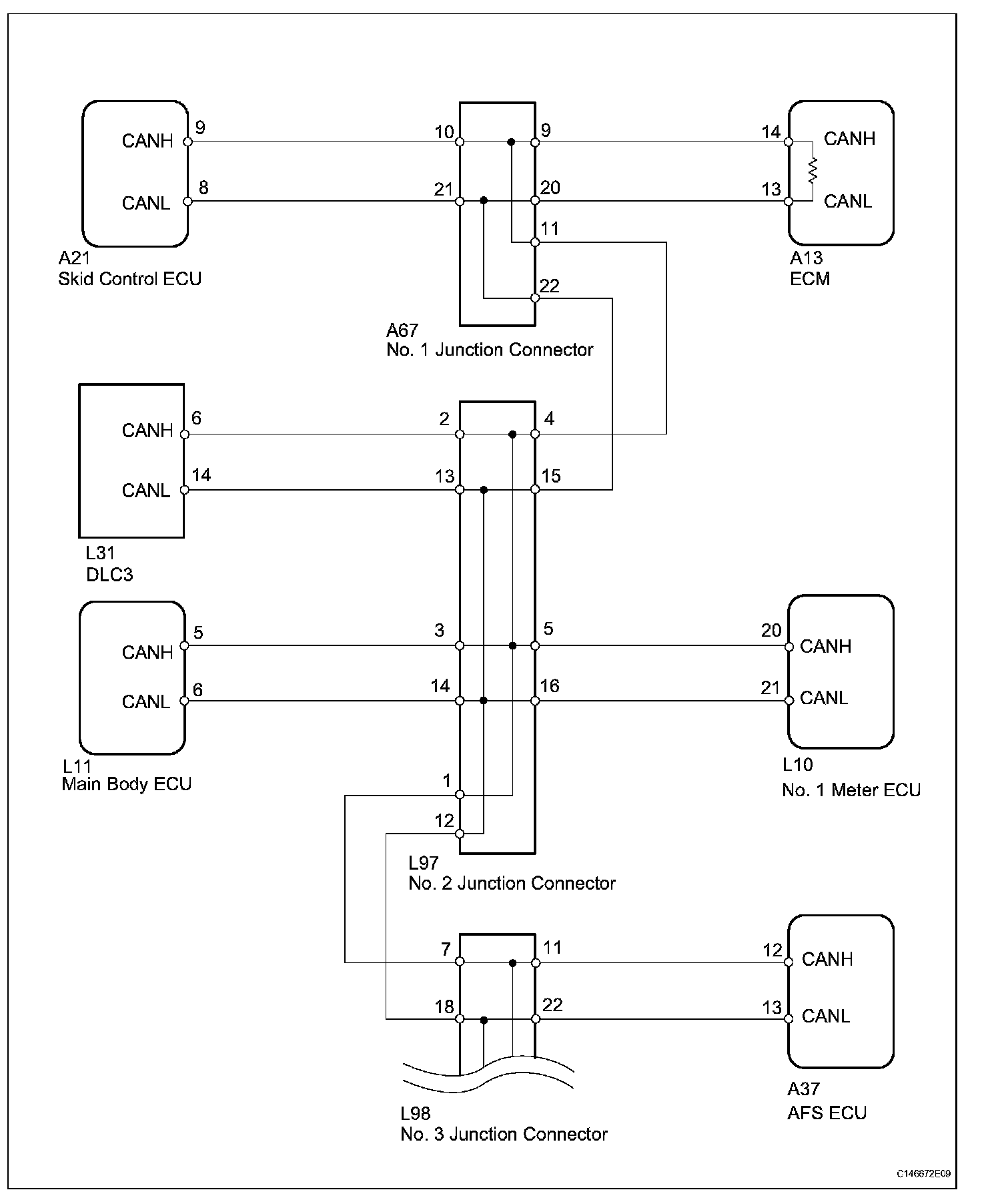

Wiring Diagram (Part 1):

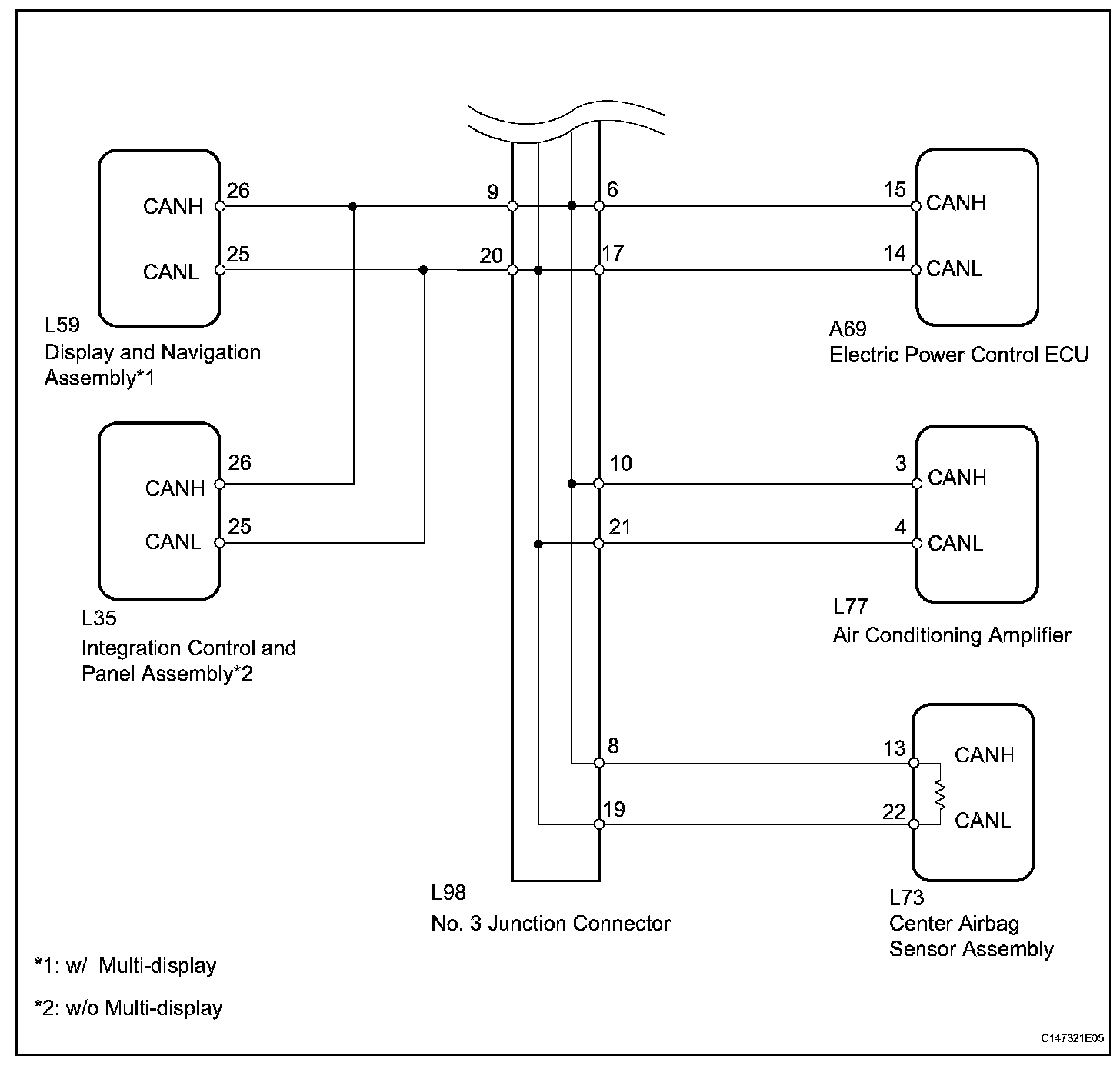

Wiring Diagram (Part 2):

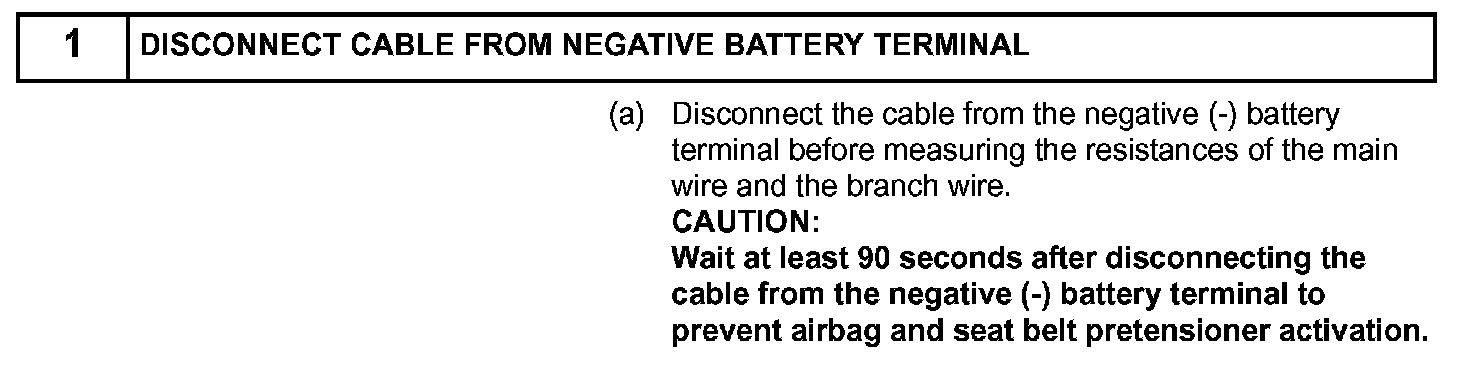

Step 1:

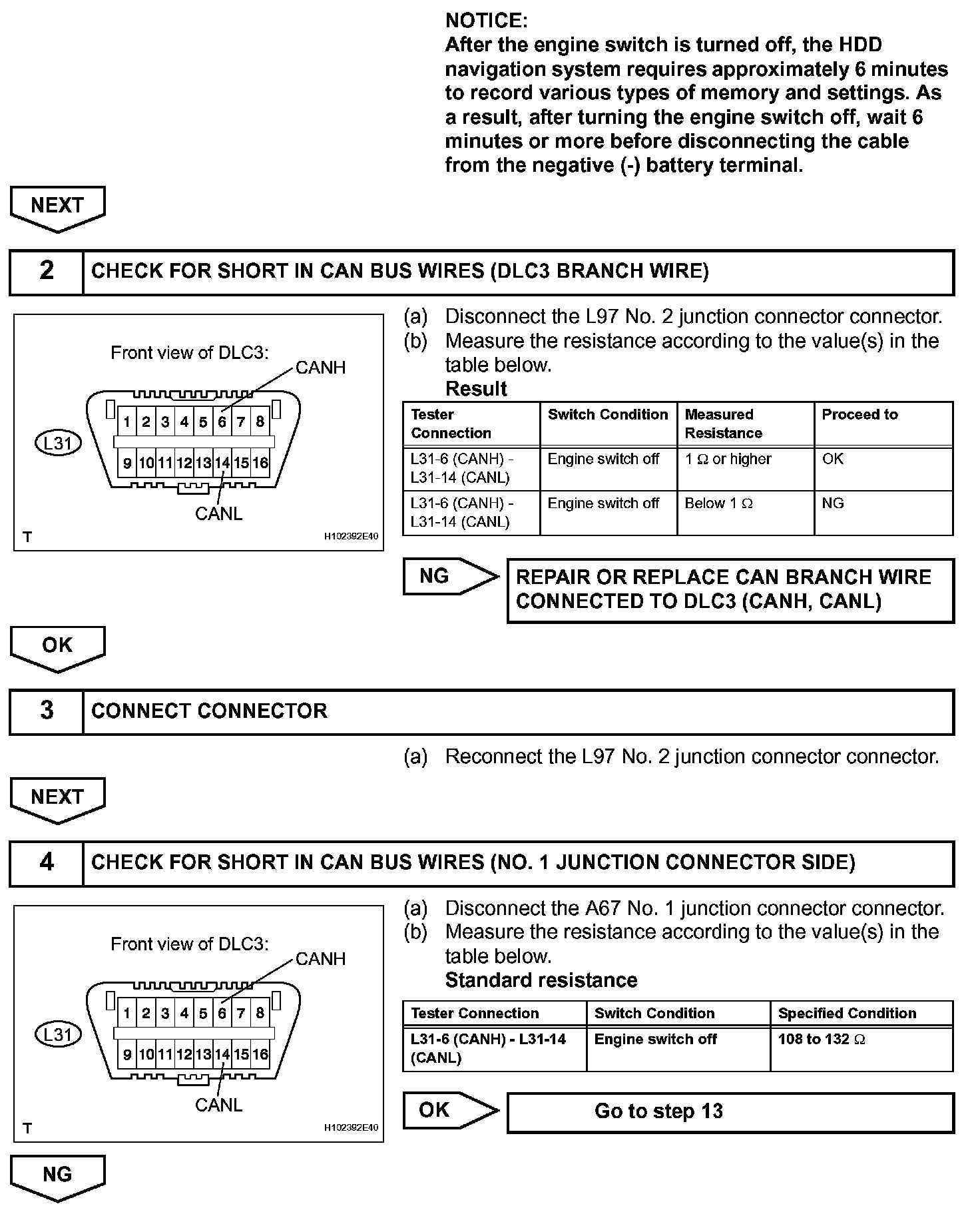

Step 1 (Continued)-4:
Step 5-7:

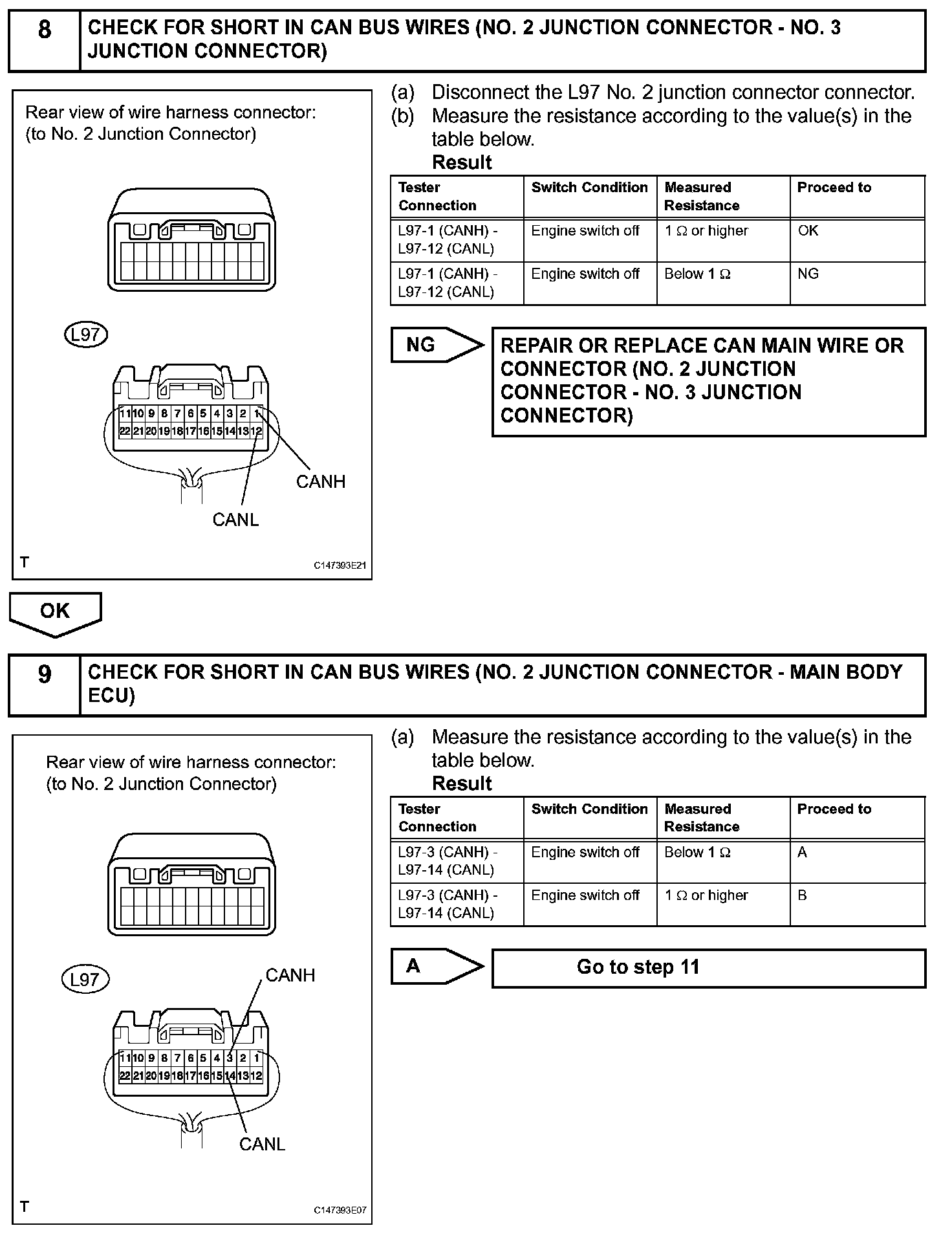

Step 8-9:

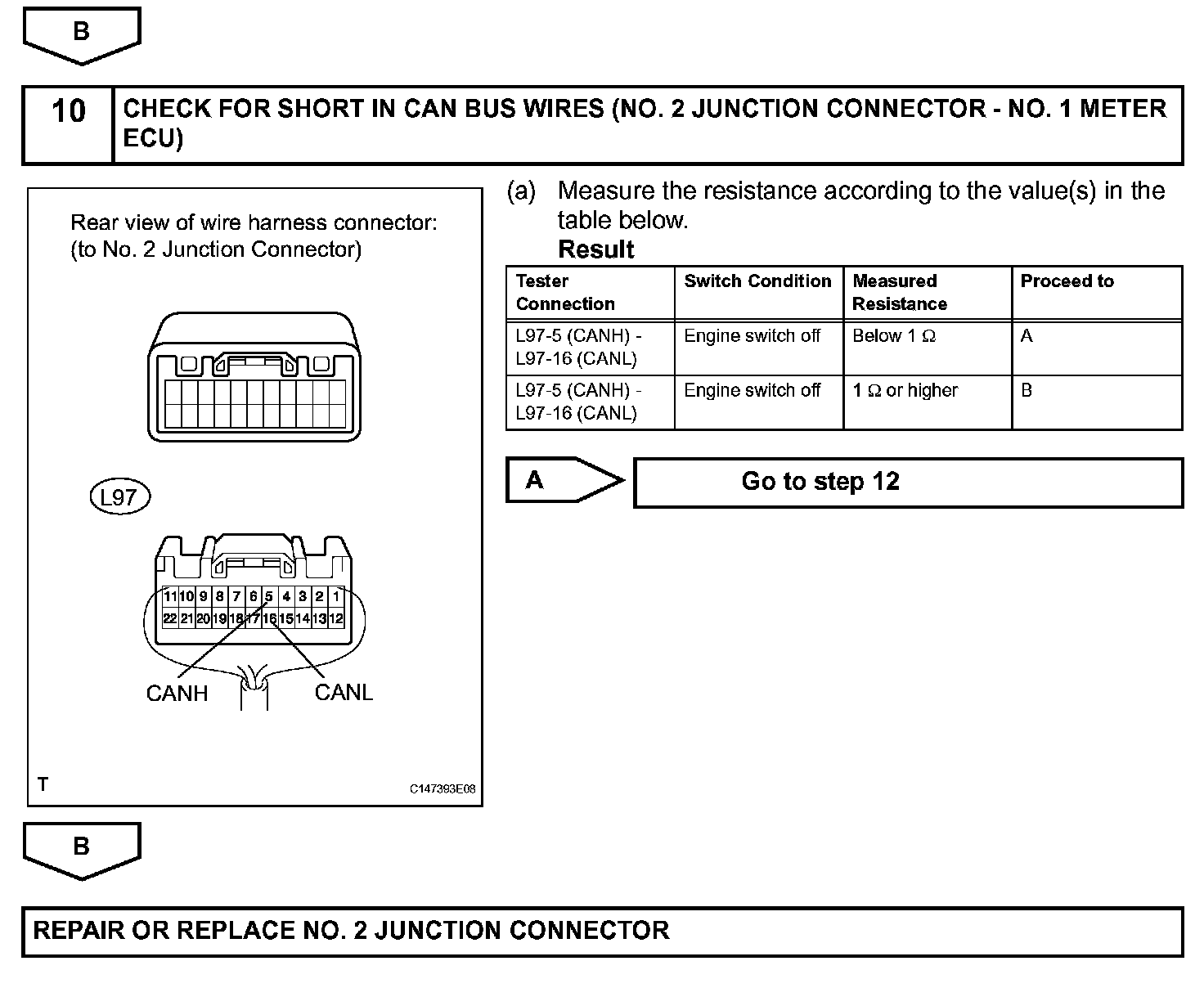

Step 9 (Continued)-10:

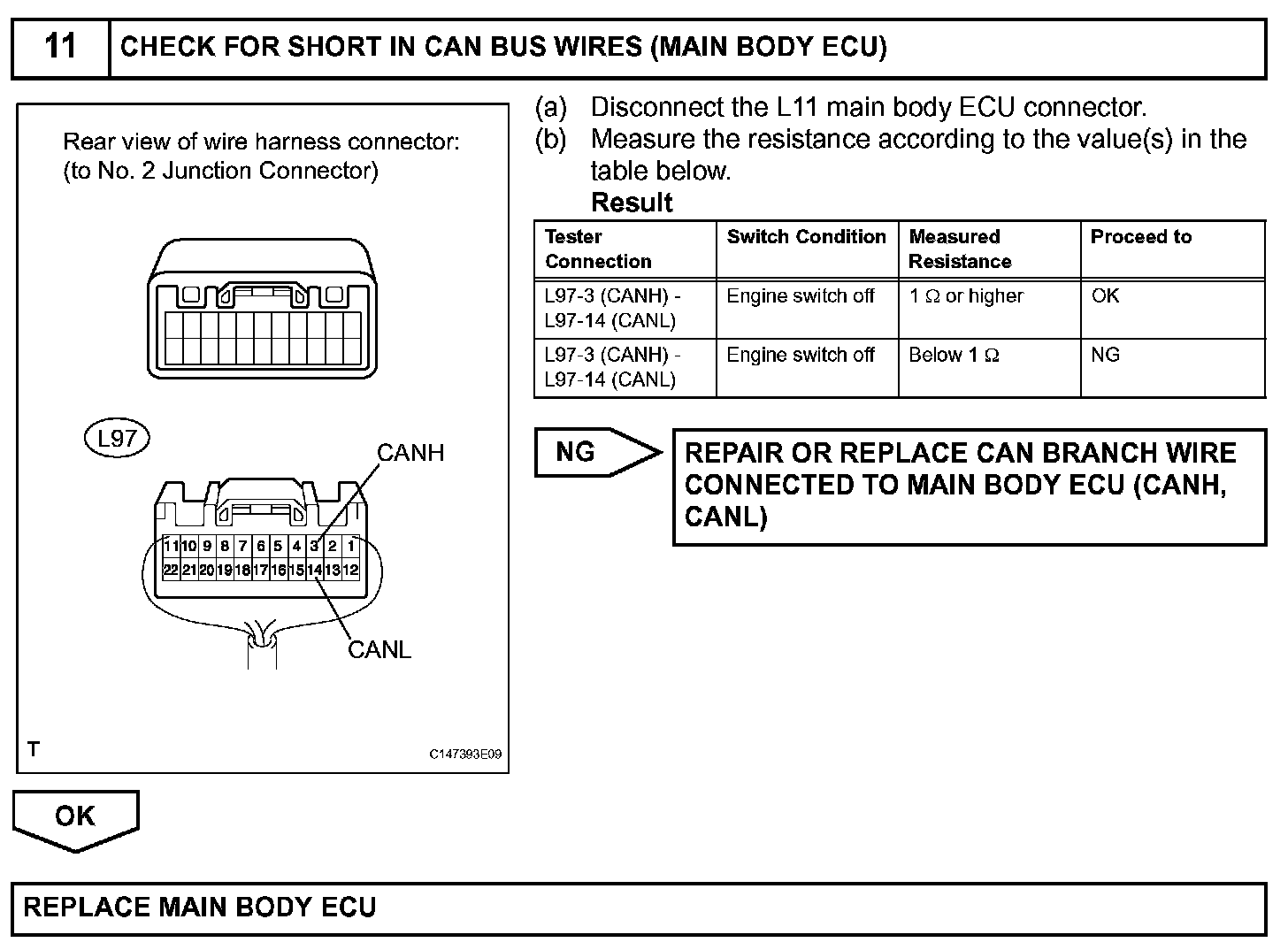

Step 11:

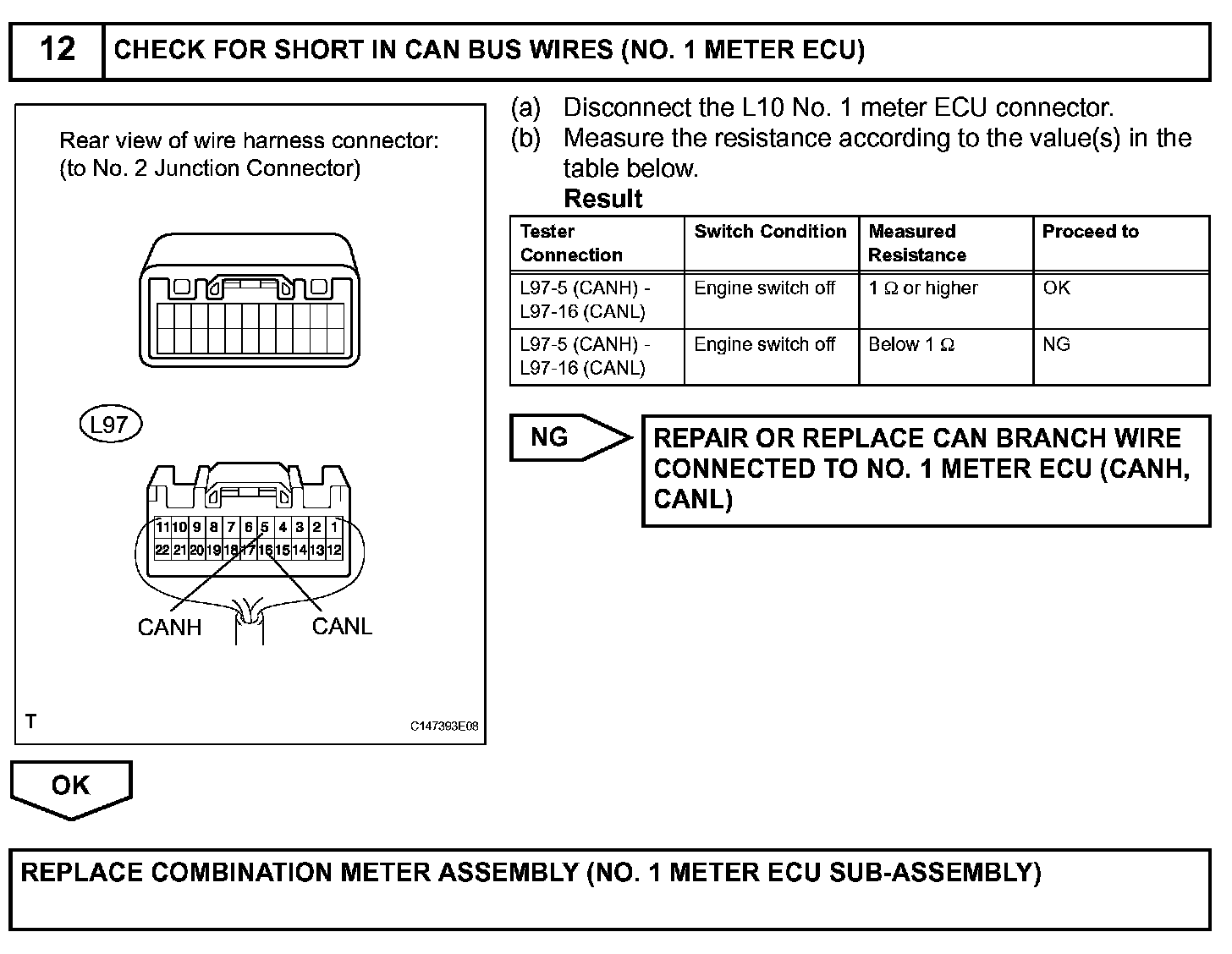

Step 12:

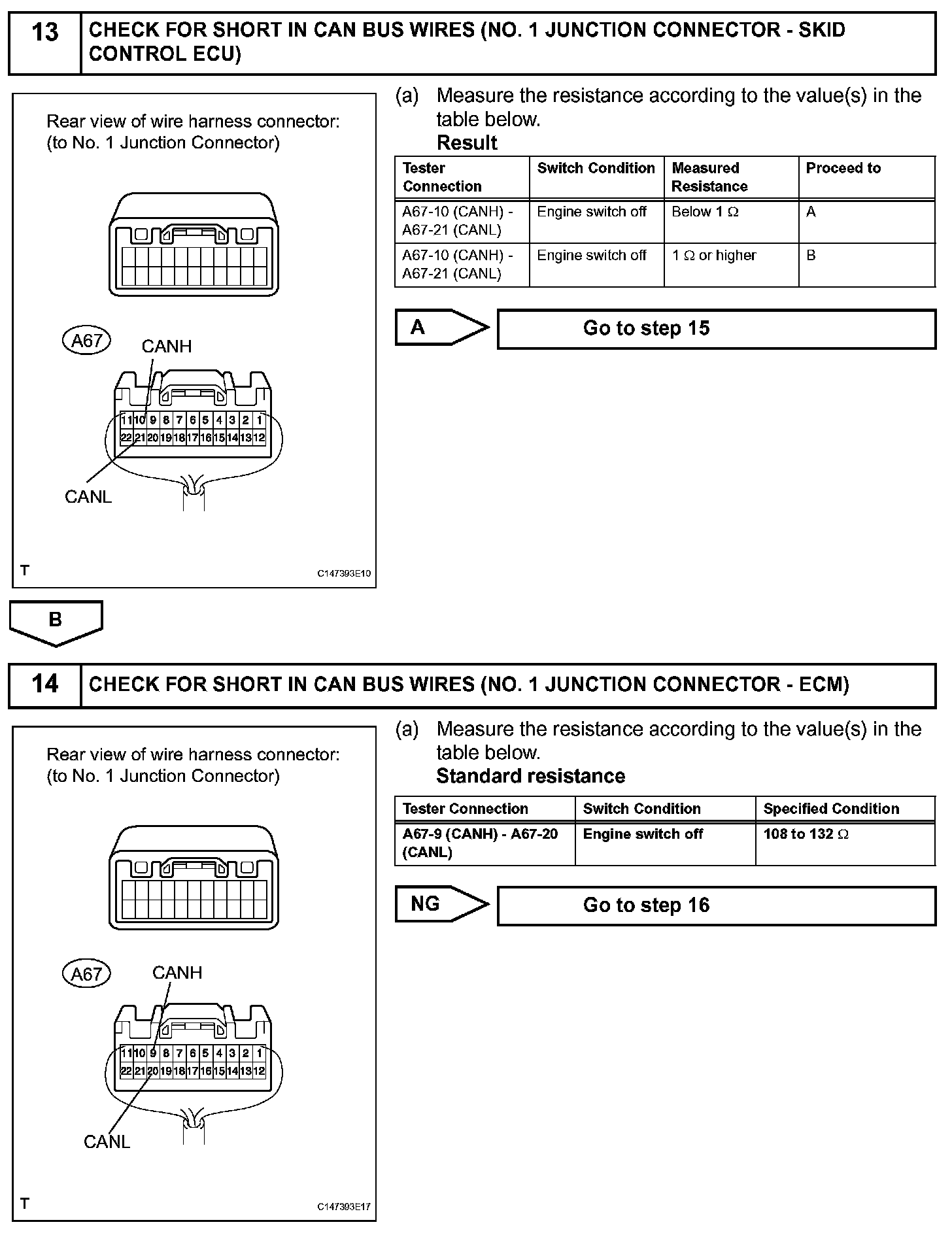

Step 13-14:

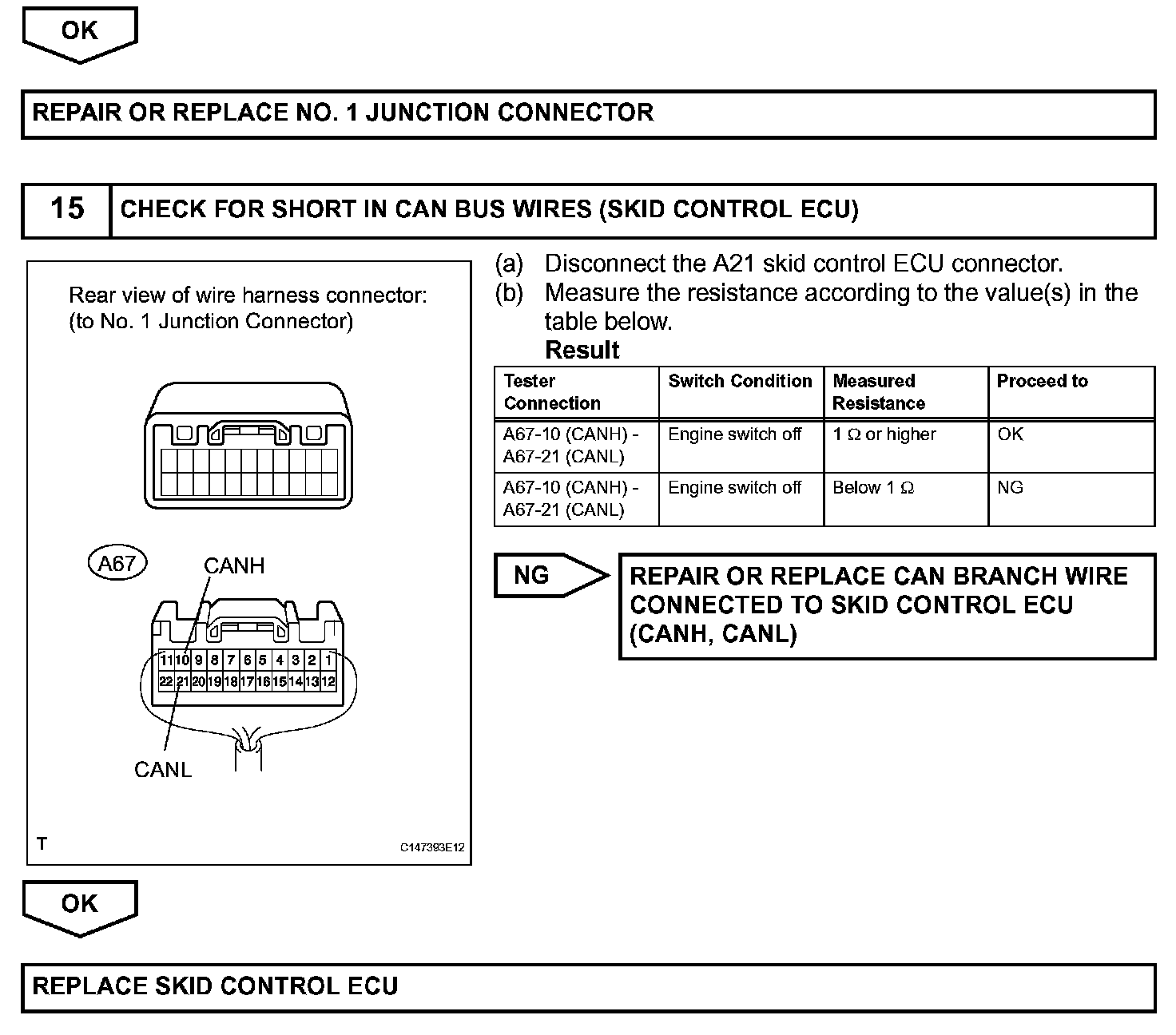

Step 14 (Continued)-15:

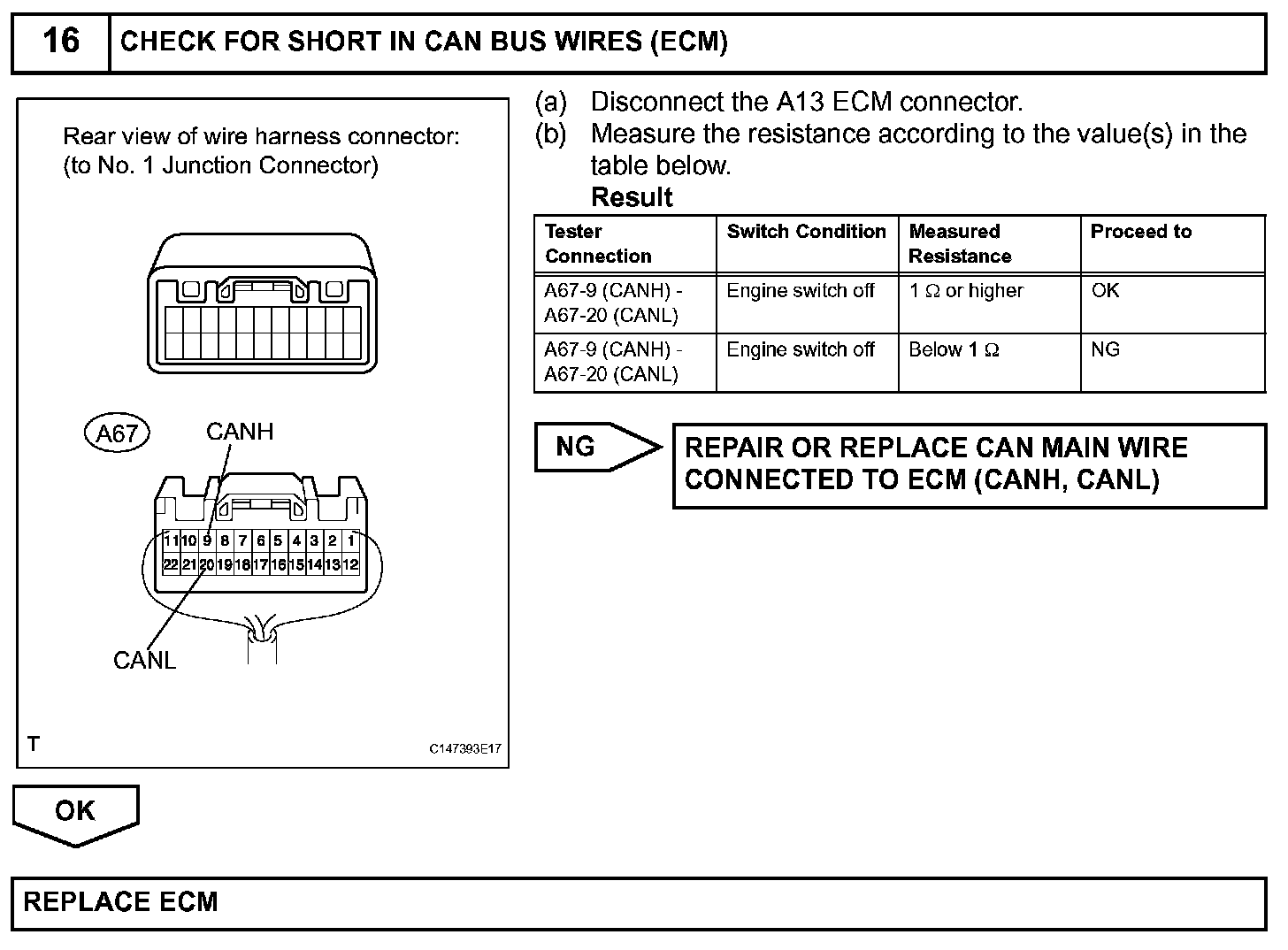

Step 16:

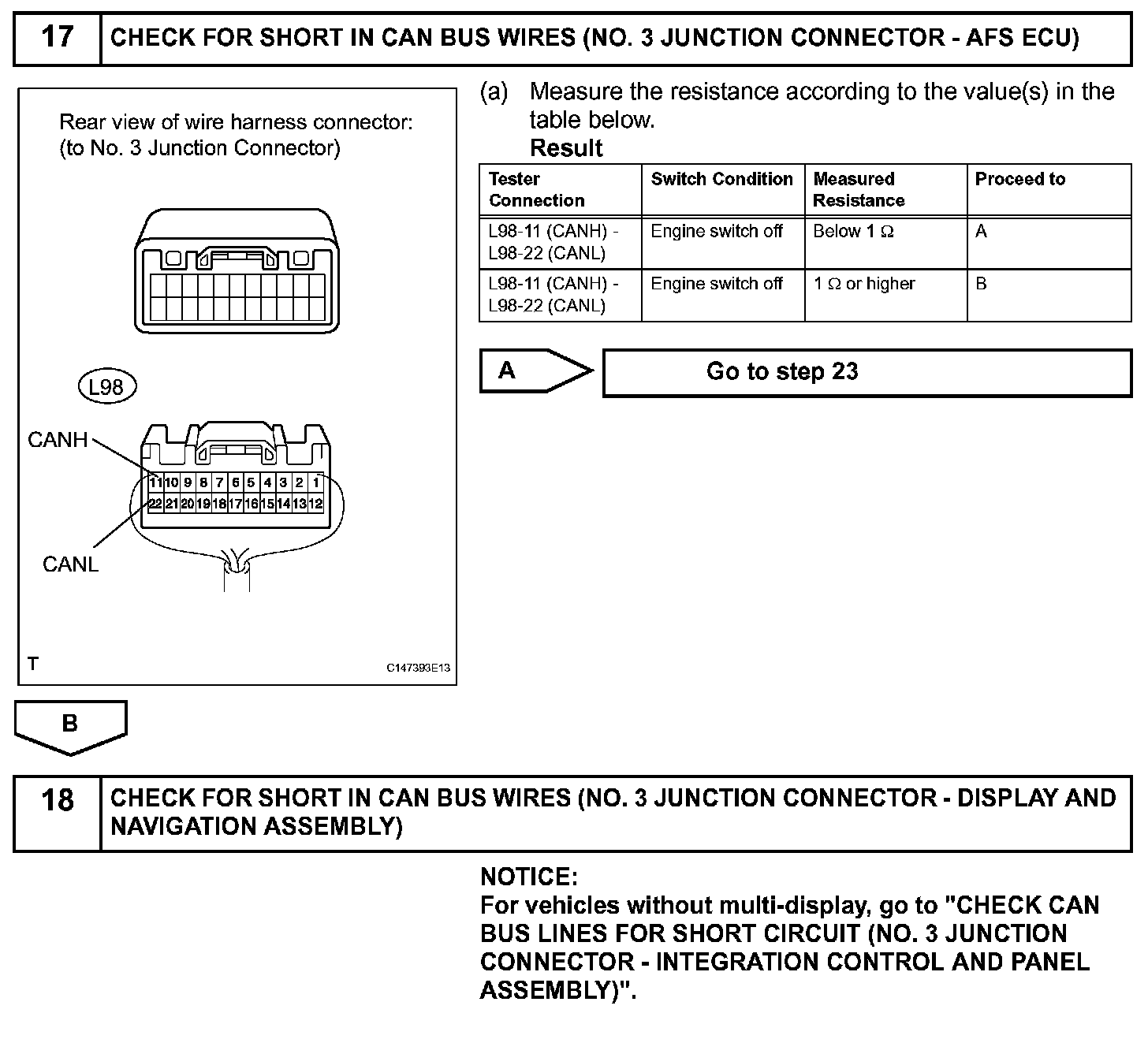

Step 17-18:

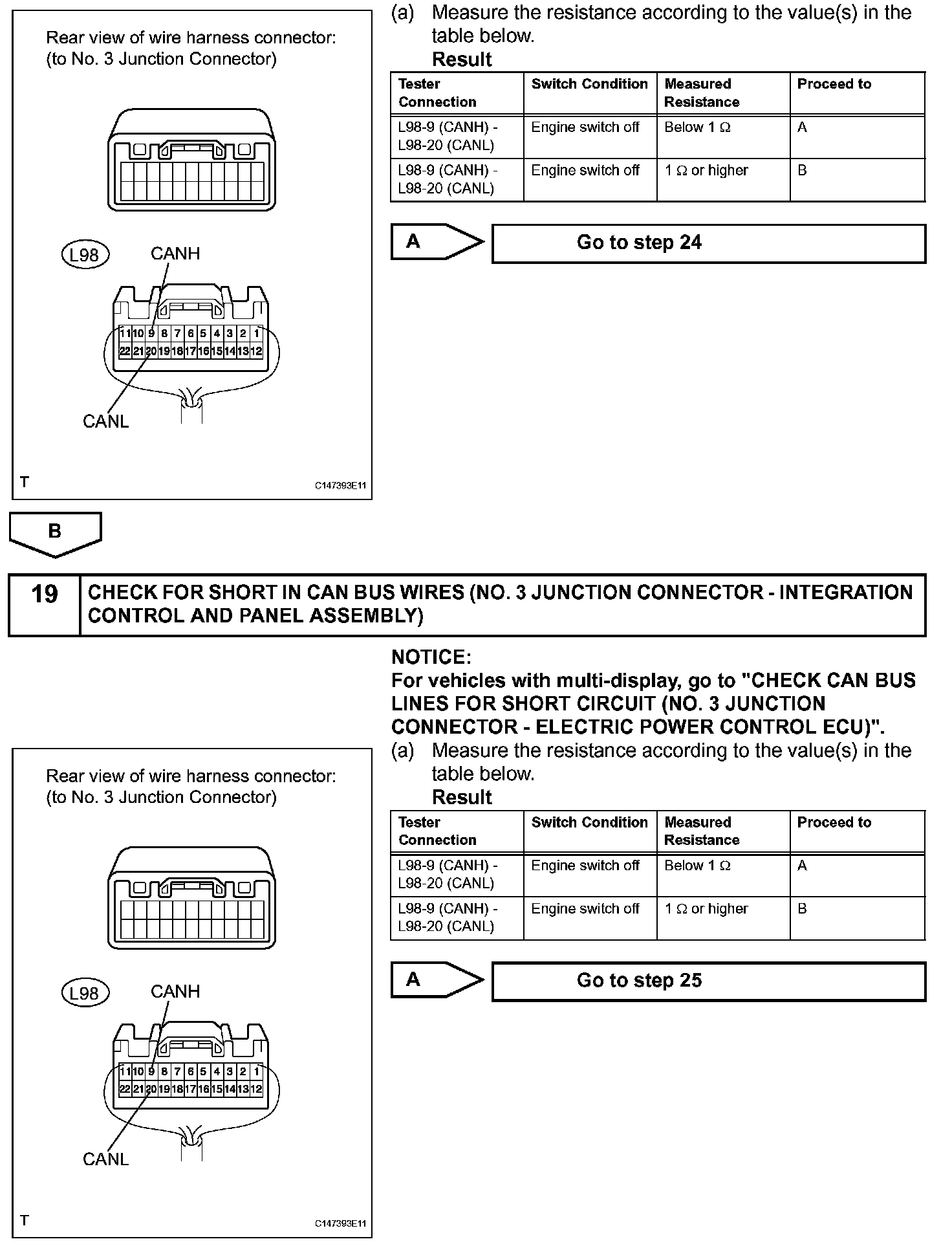

Step 18 (Continued)-19:

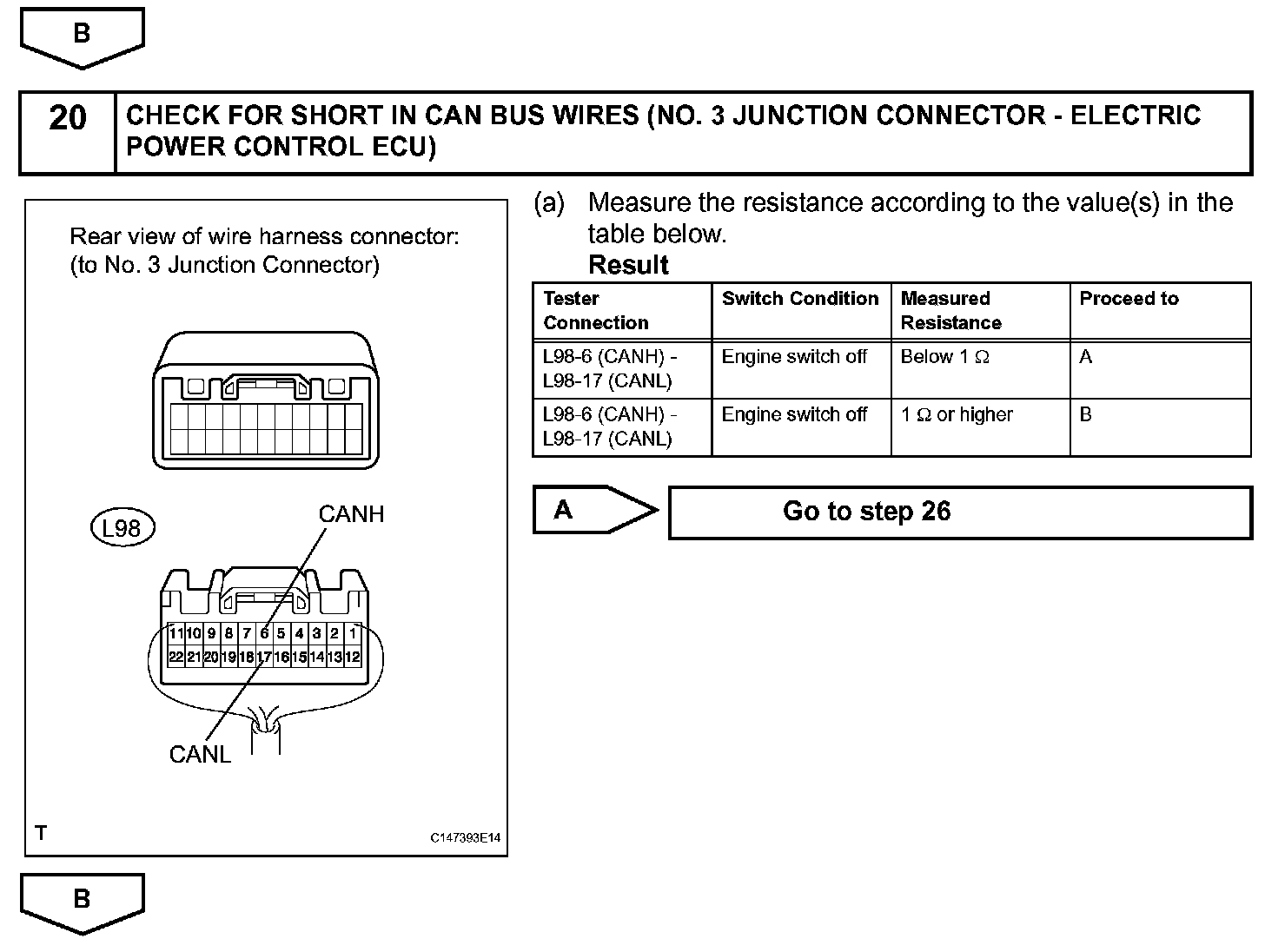

Step 19 (Continued)-20:

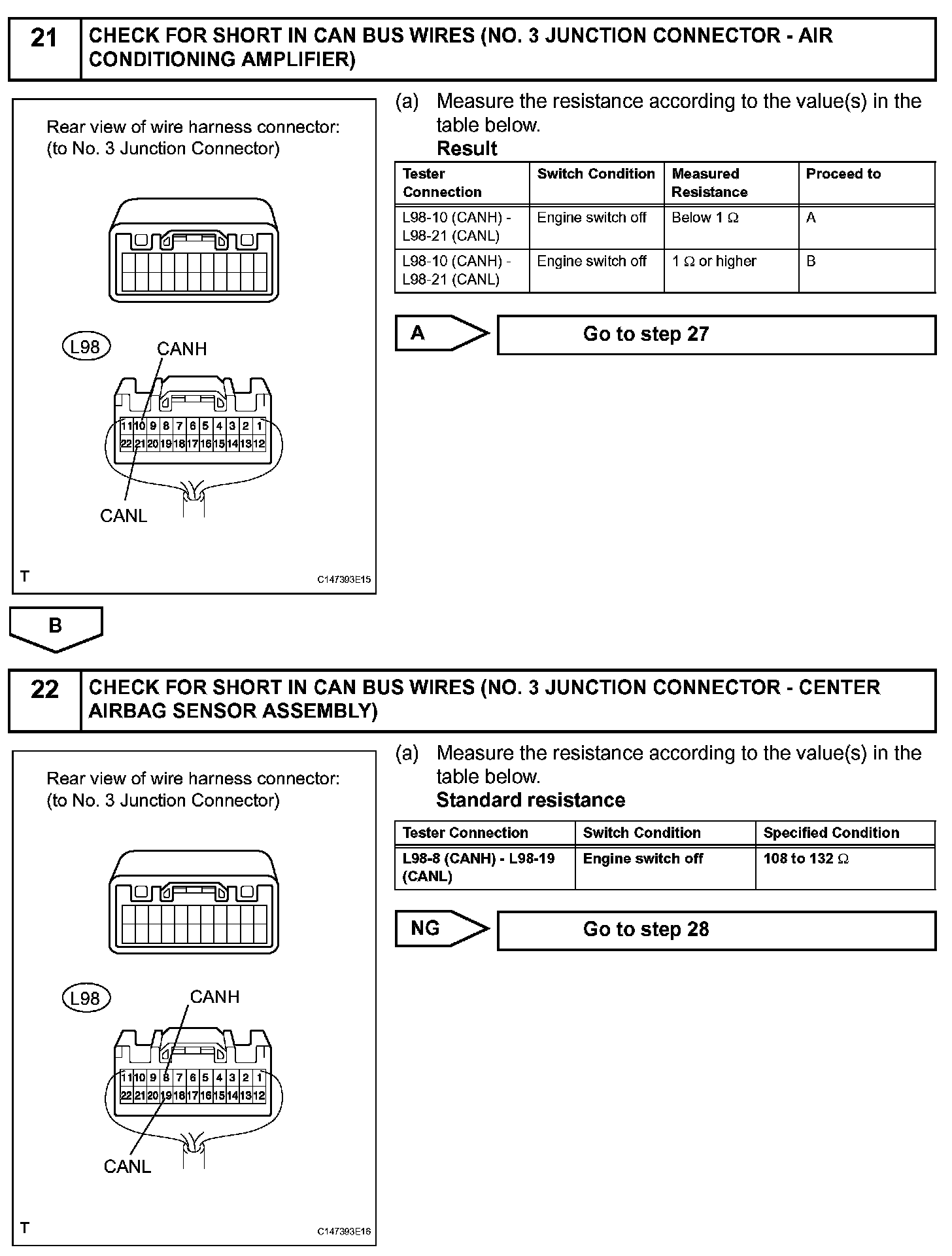

Step 21-22:

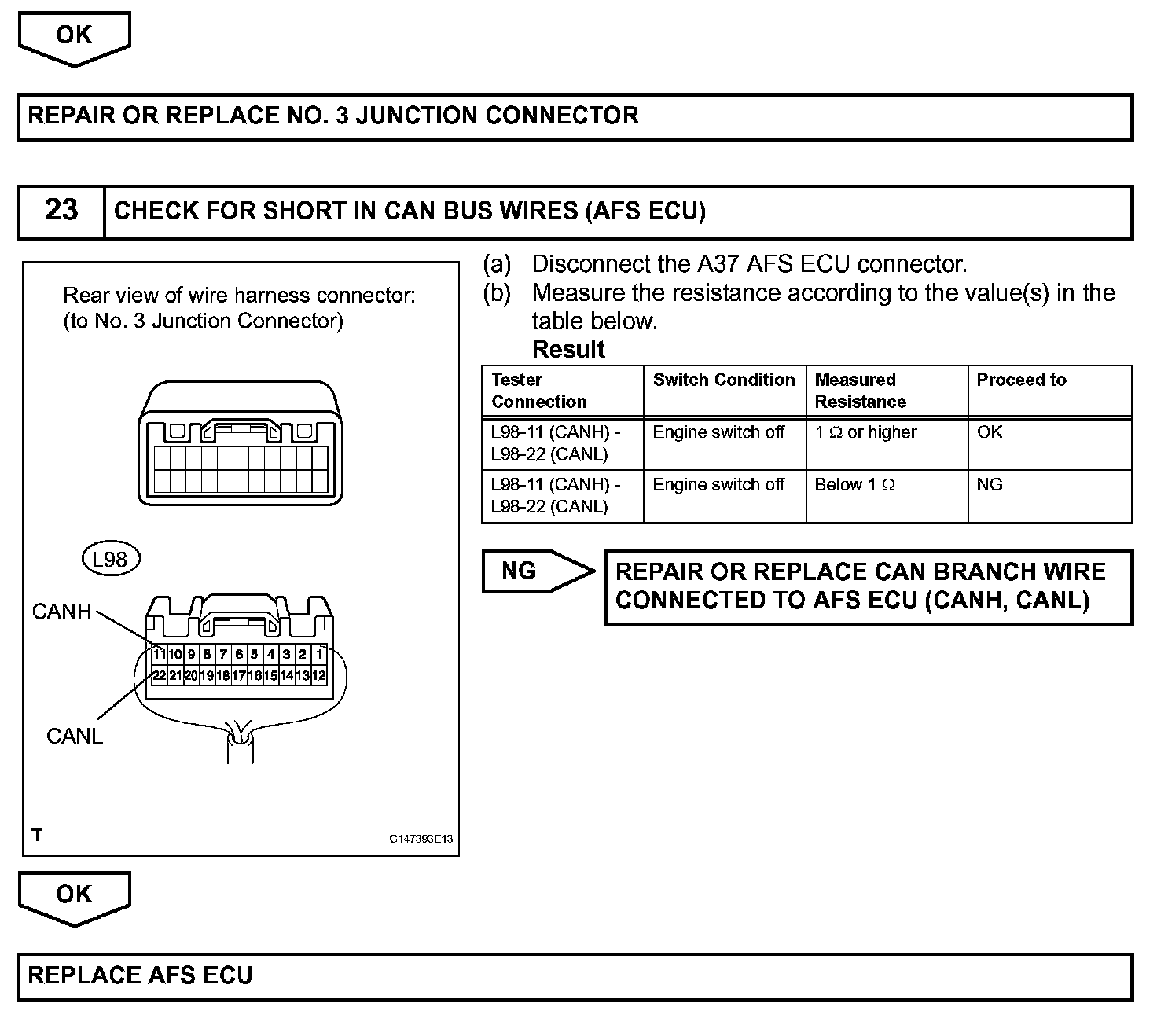

Step 22 (Continued)-23:

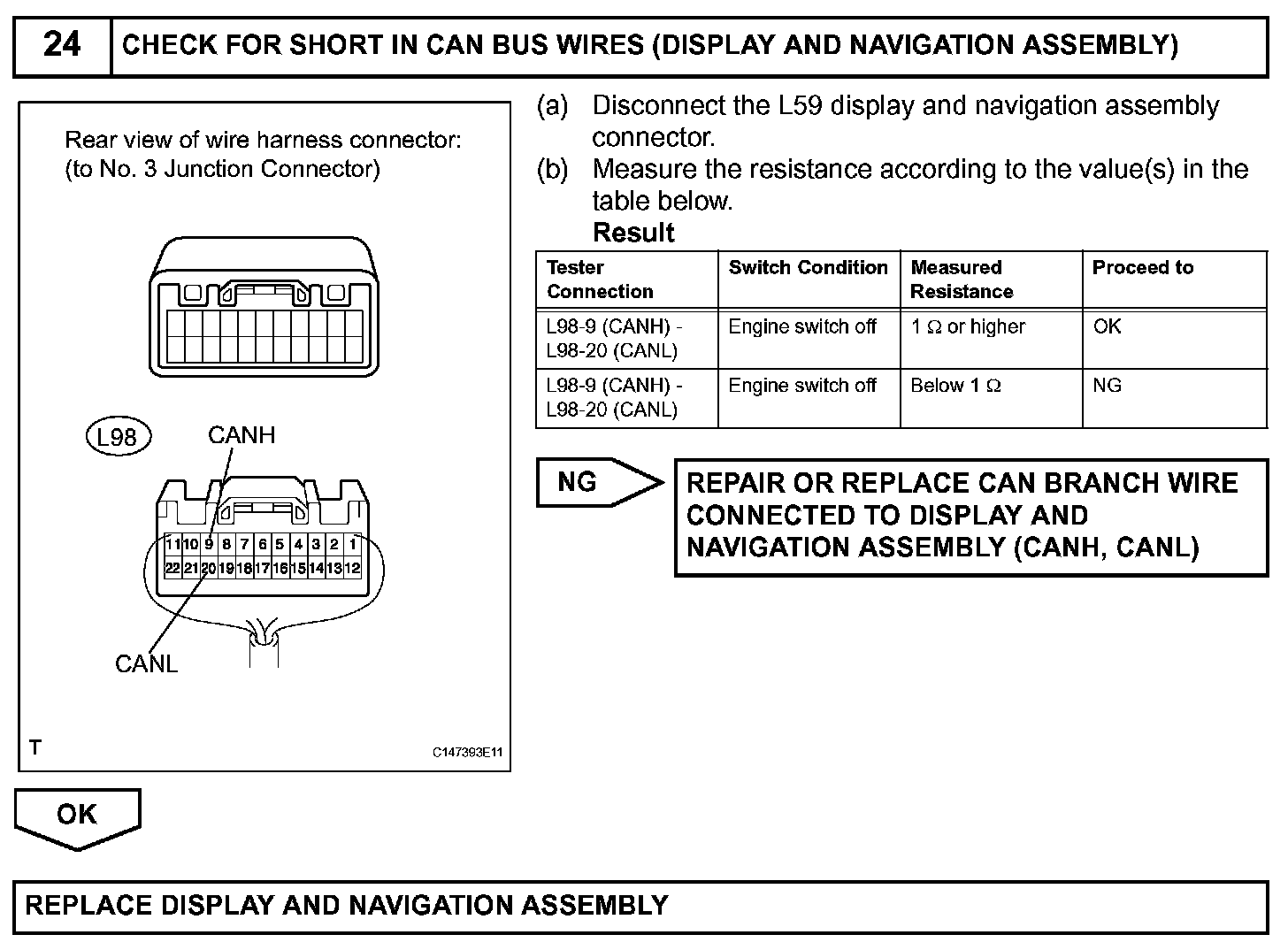

Step 24:

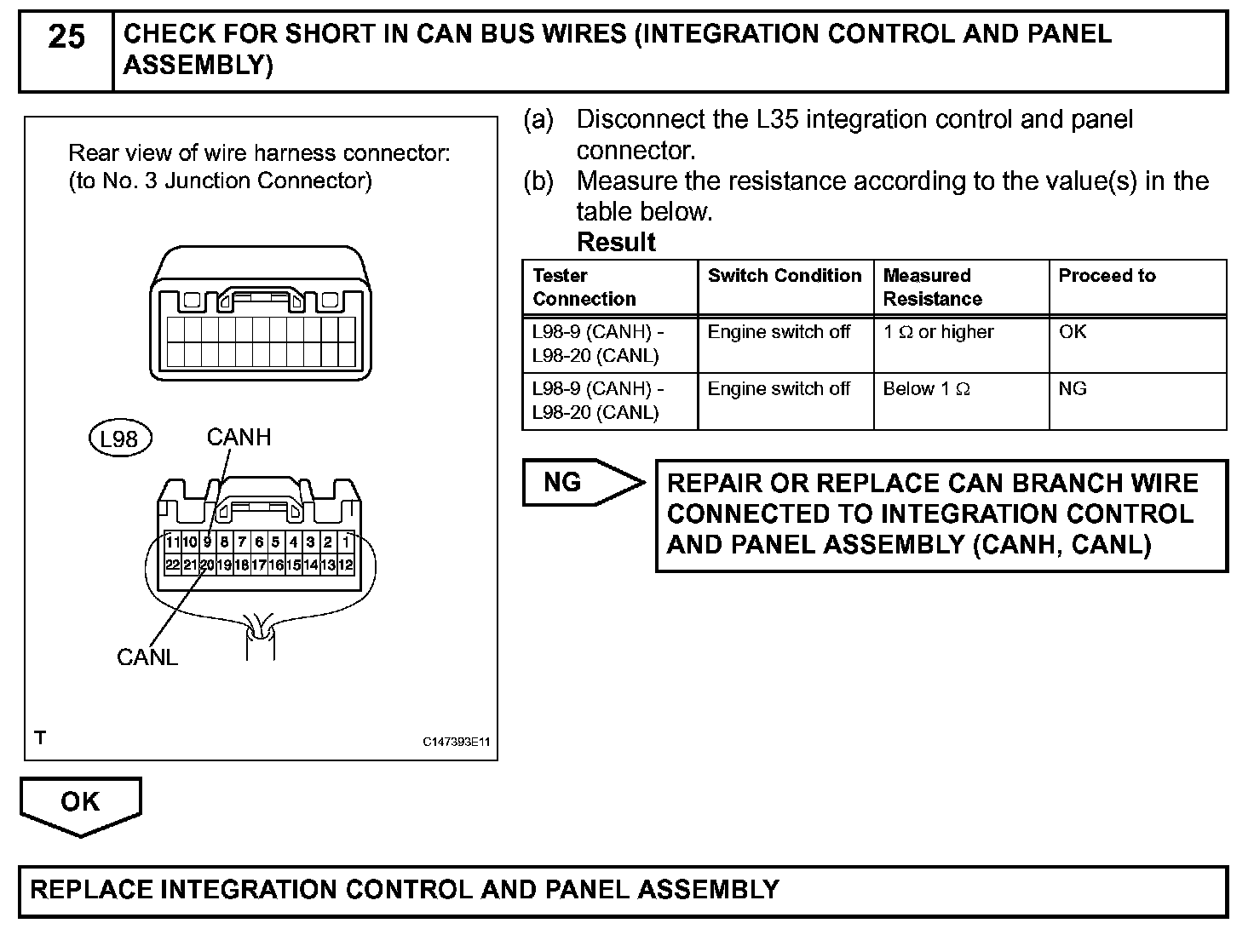

Step 25:

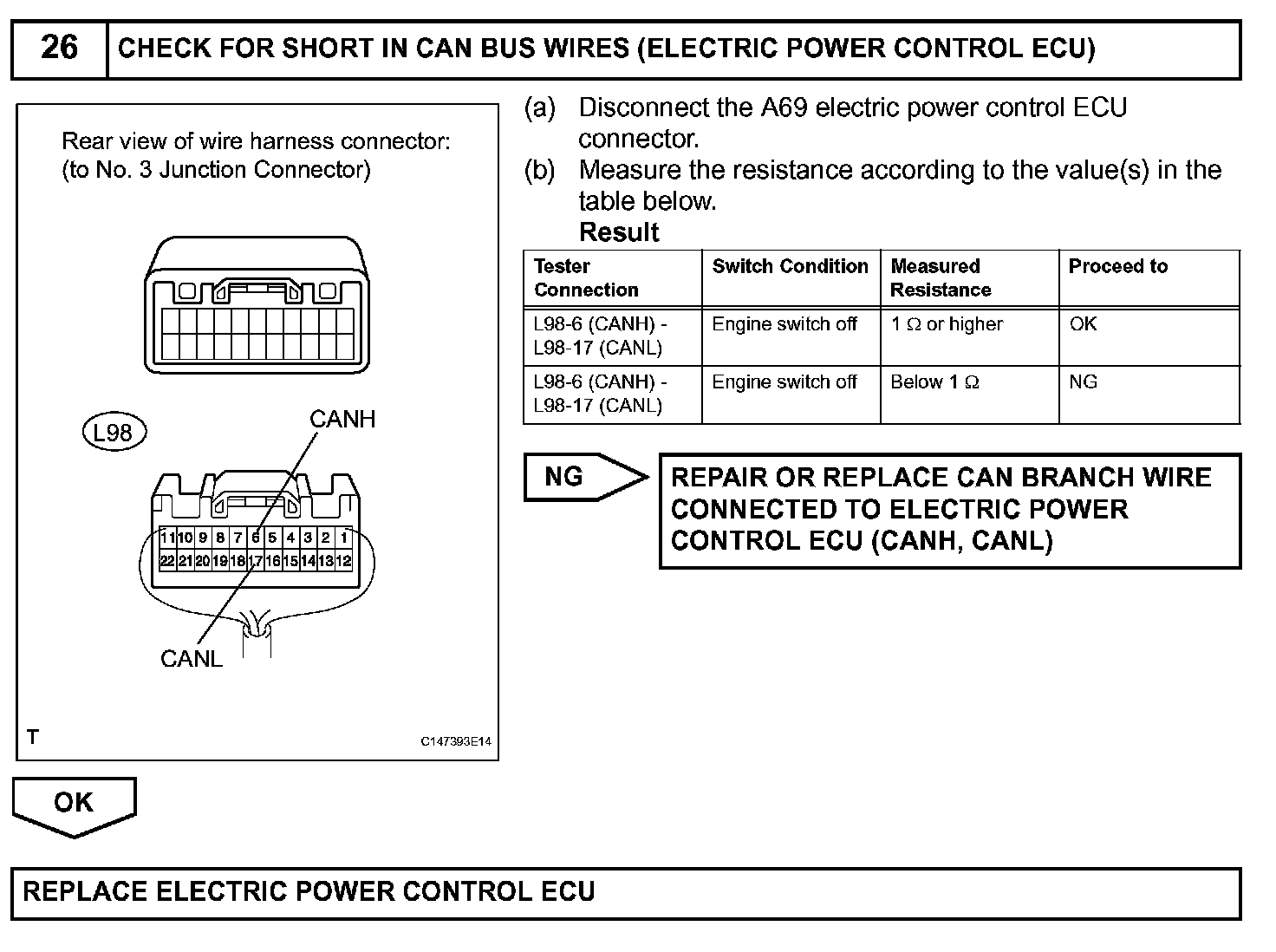

Step 26:
Step 27:

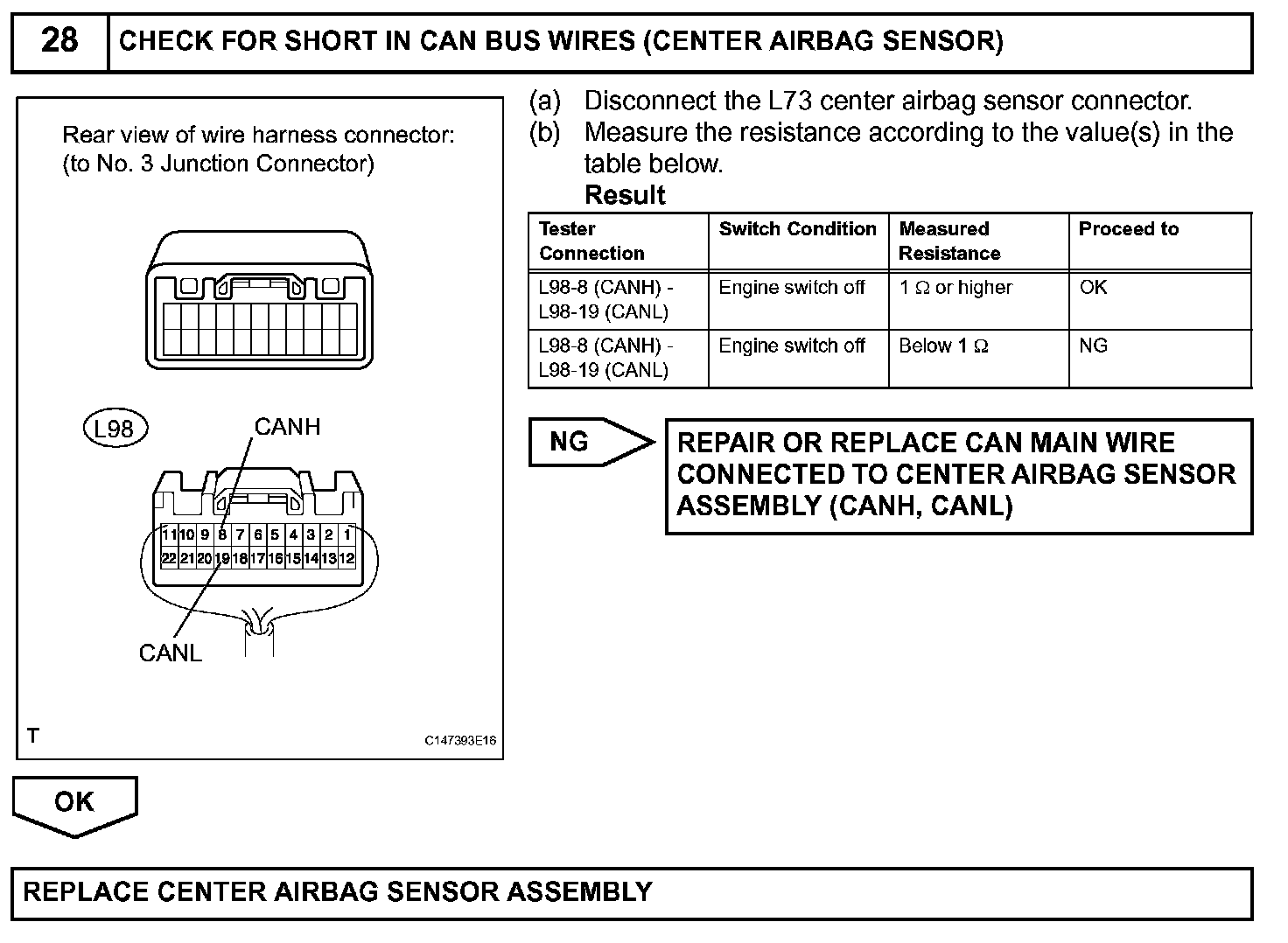

Step 28:
INSPECTION PROCEDURE
HINT: Operating the engine switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.
