Open in CAN Main Wire
Open in CAN Main WireDESCRIPTION

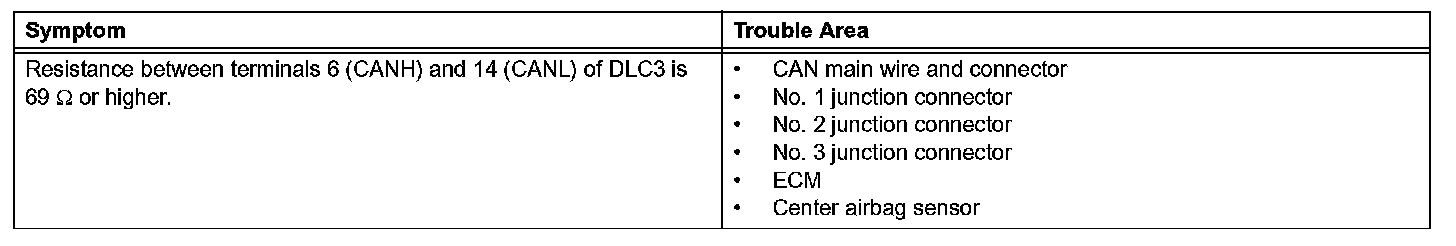

There may be an open circuit in the CAN main wire and/or the DLC3 branch wire when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is 69 ohms or higher.

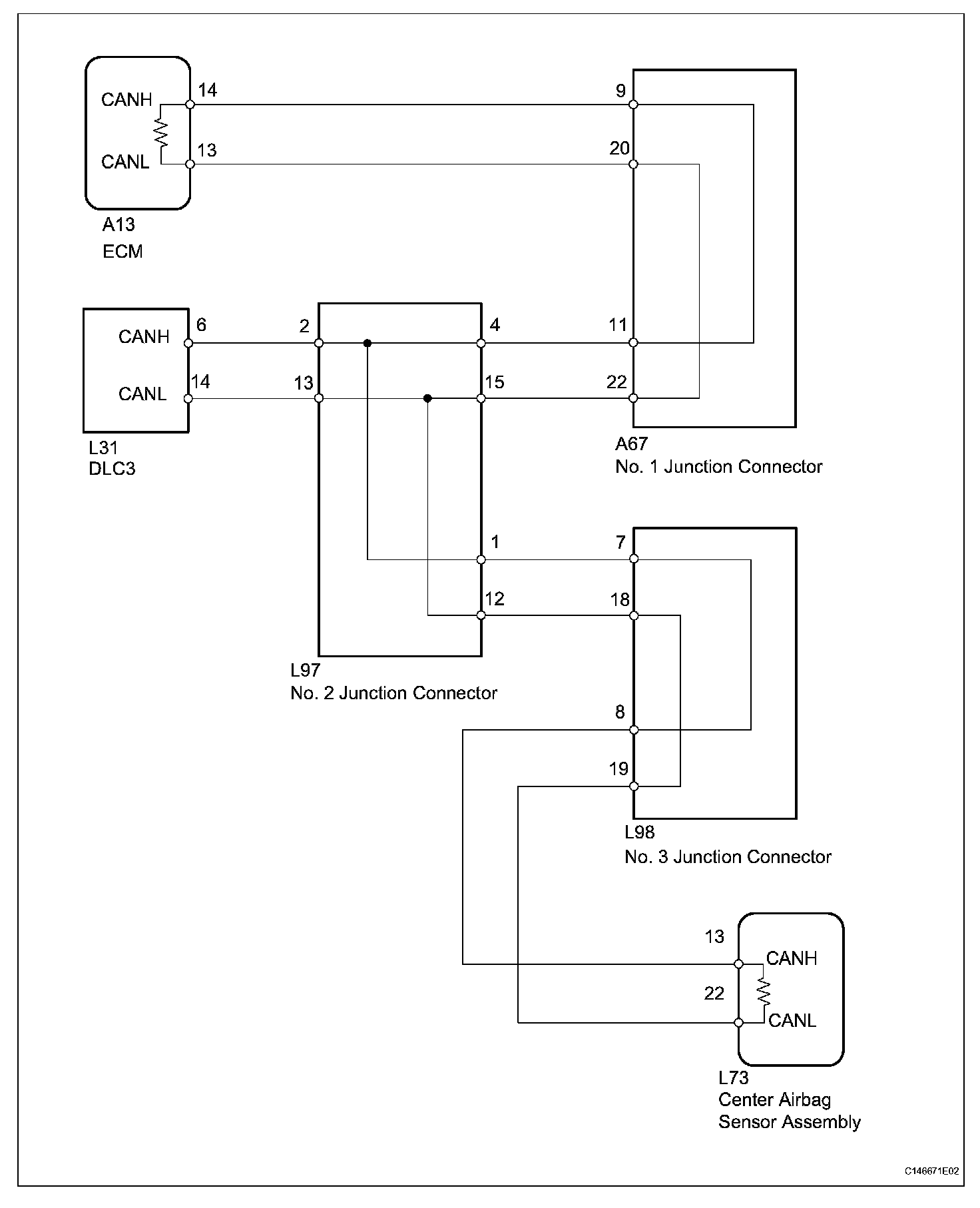

Wiring Diagram:

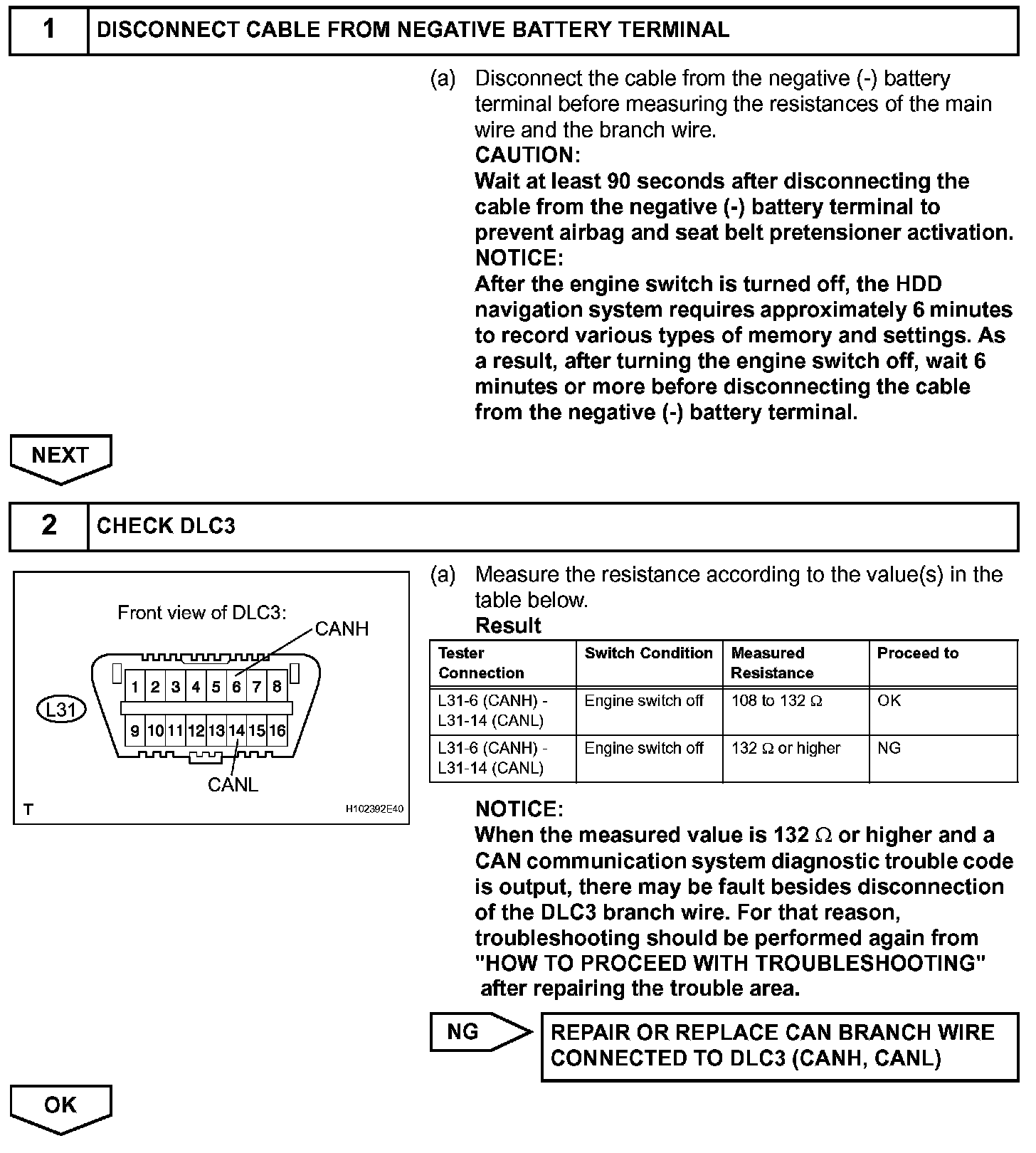

Step 1-2:

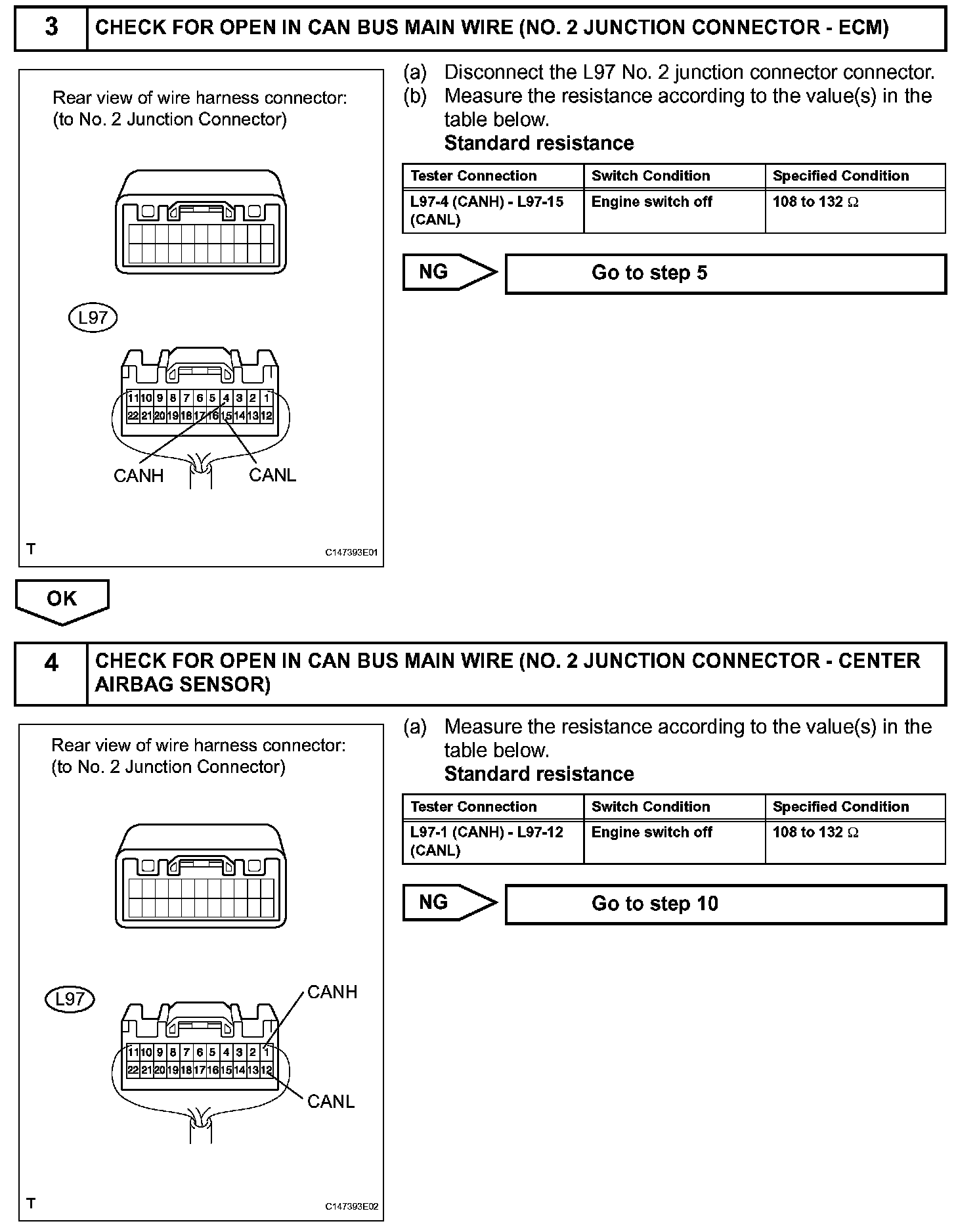

Step 3-4:

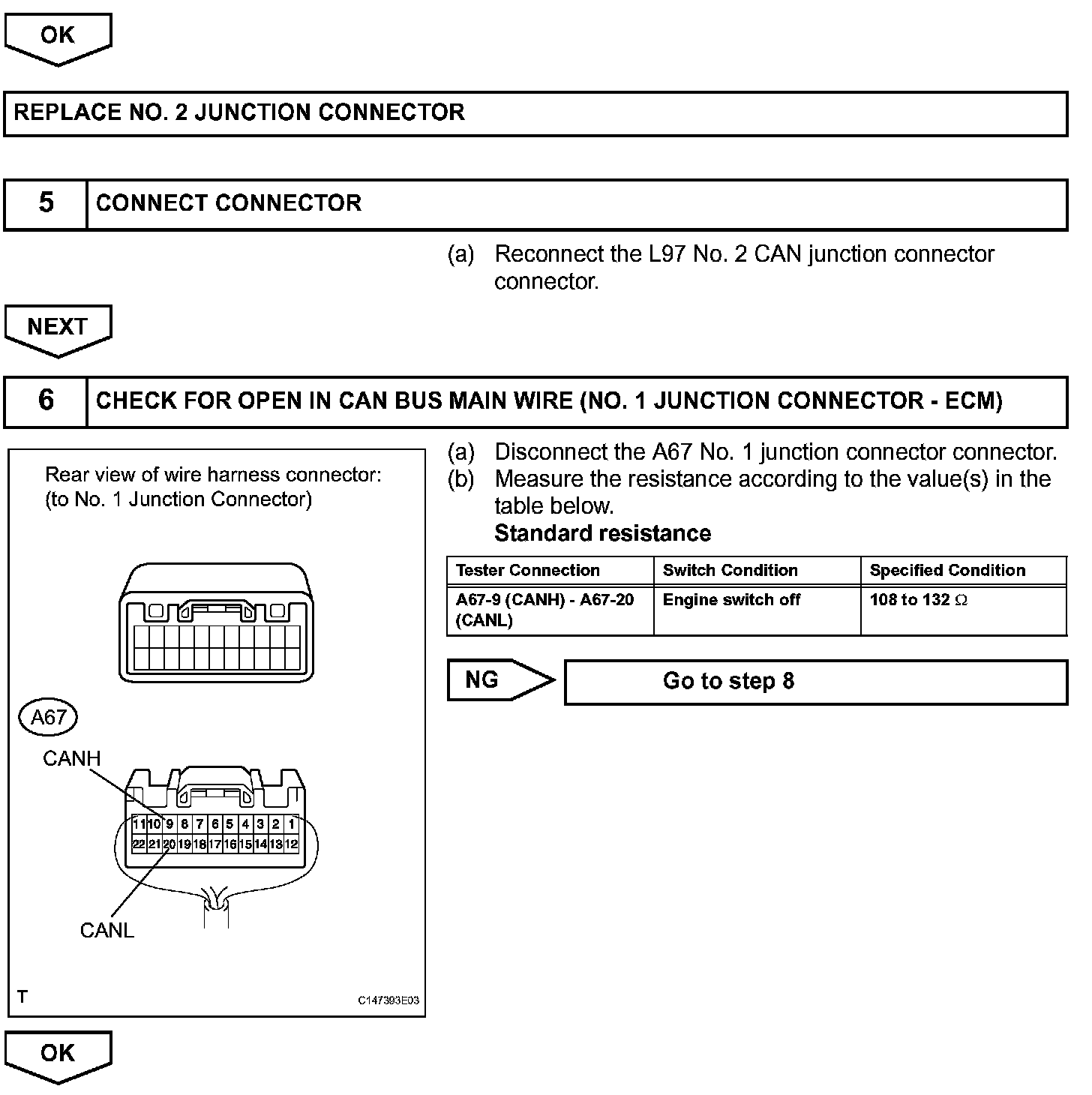

Step 4 (Continued)-6:

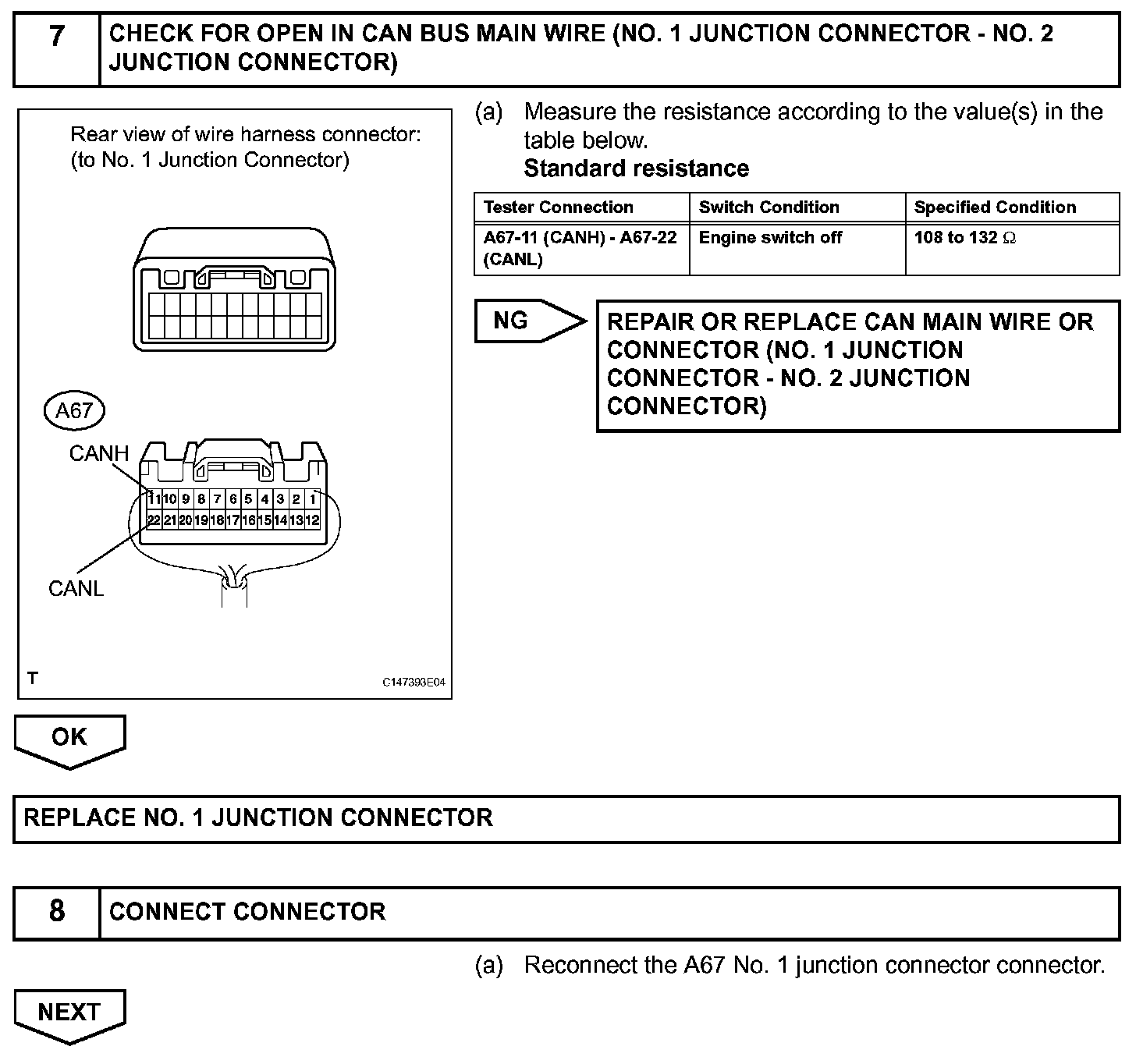

Step 7-8:

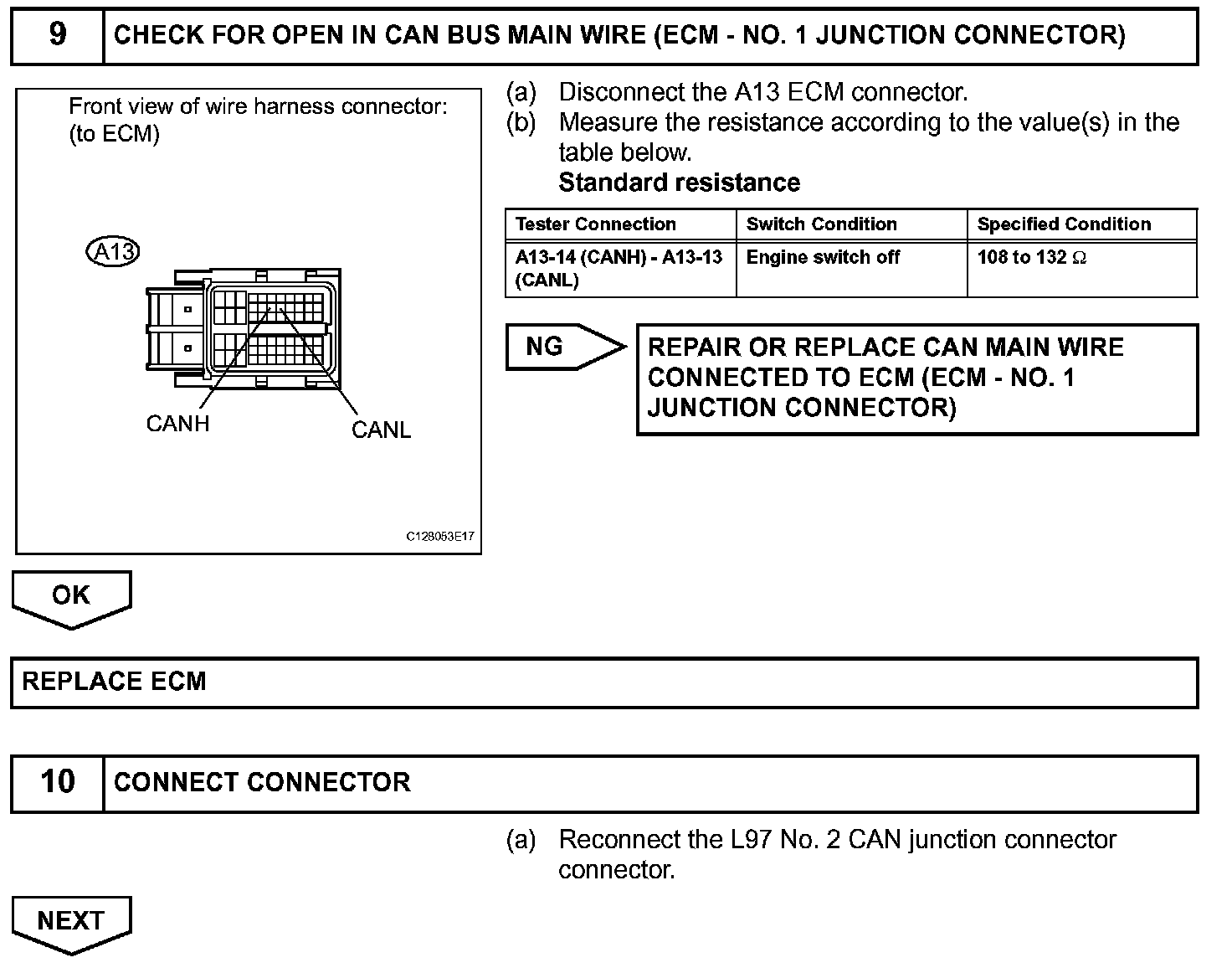

Step 9-10:

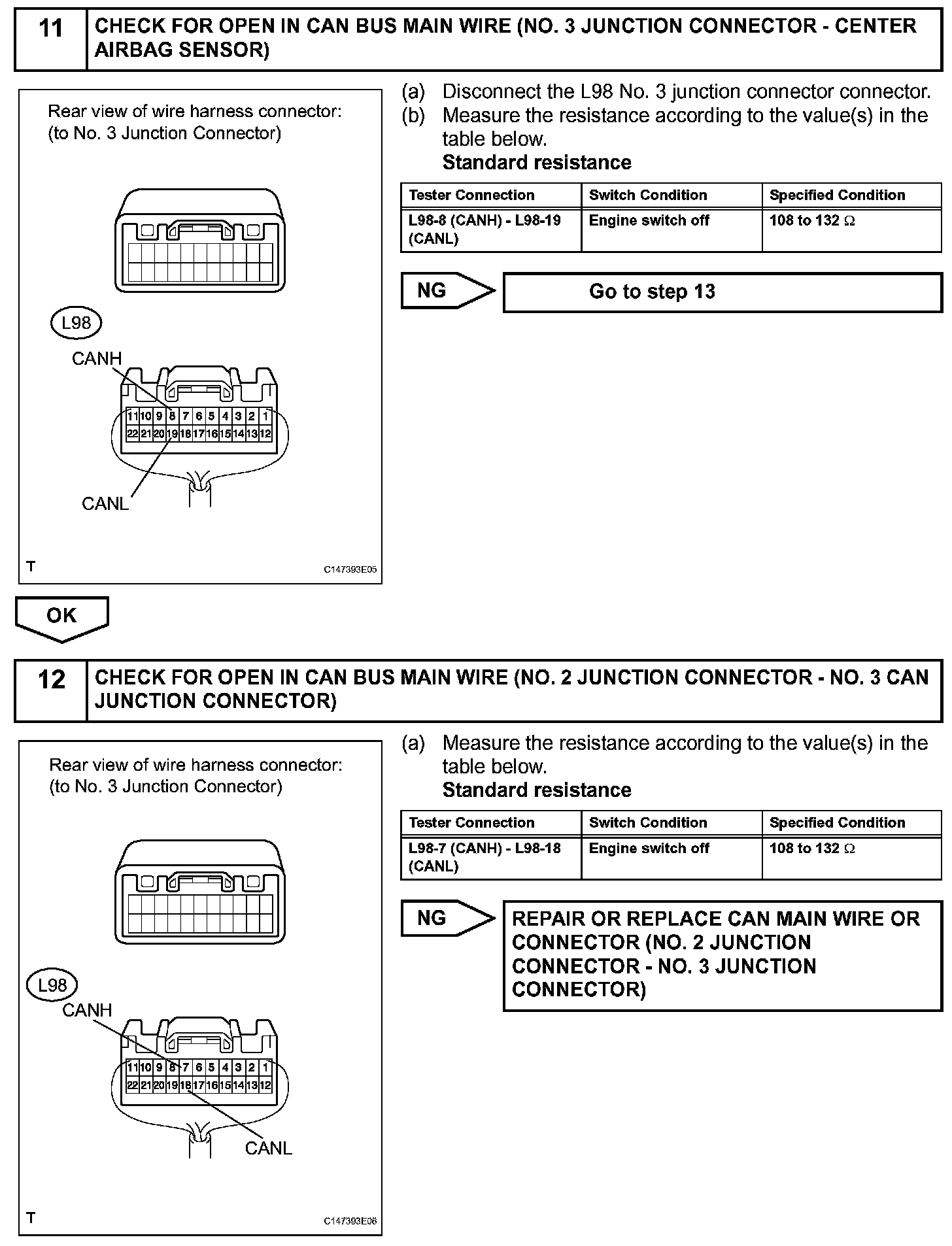

Step 11-12:

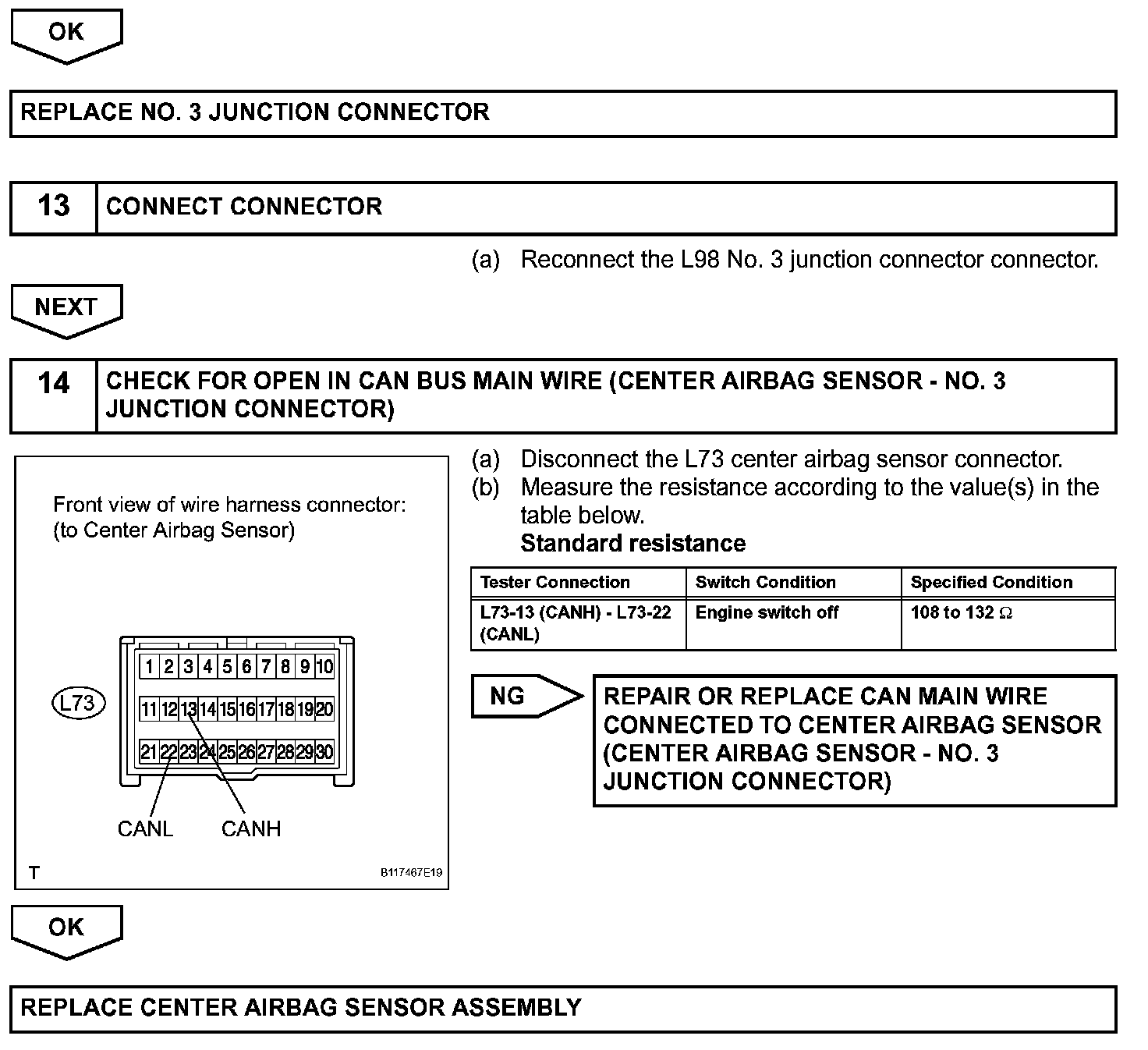

Step 12 (Continued)-14:
INSPECTION PROCEDURE
HINT: Operating the engine switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.
