Main Body ECU Communication Stop Mode

Main Body ECU Communication Stop Mode

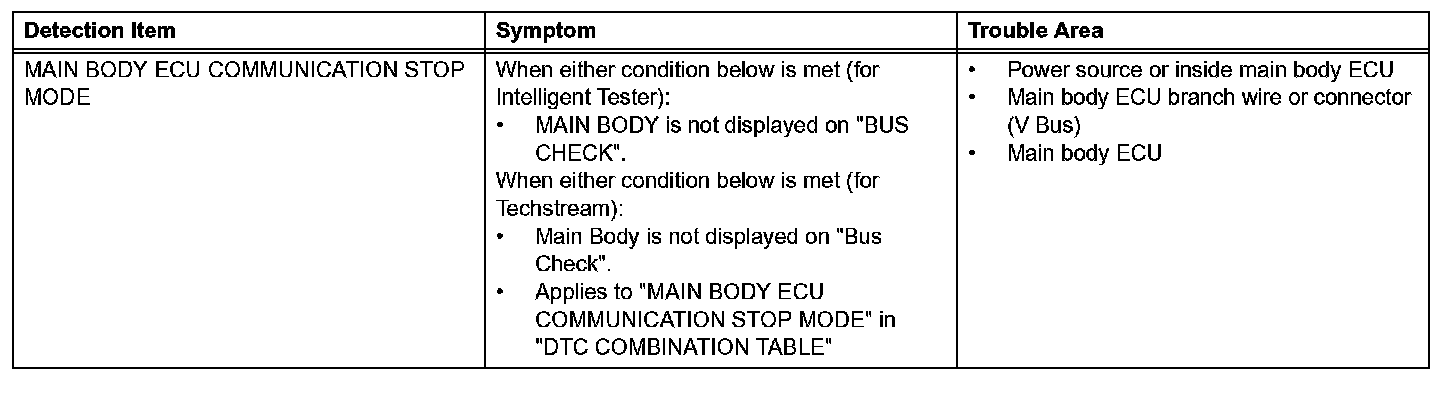

DESCRIPTION

Wiring Diagram:

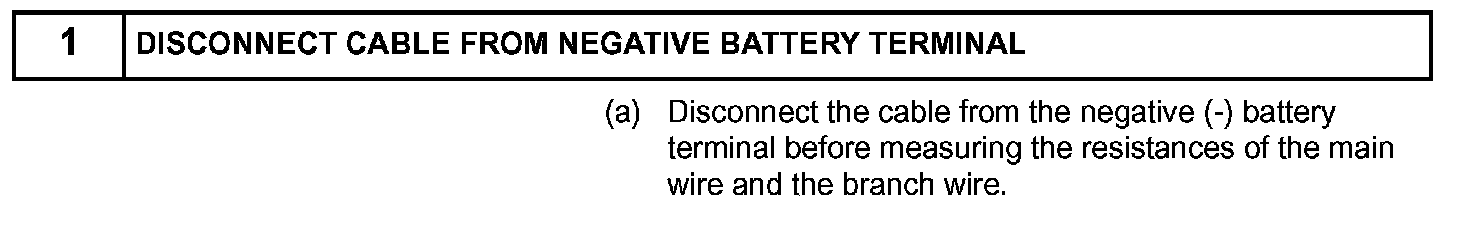

Step 1:

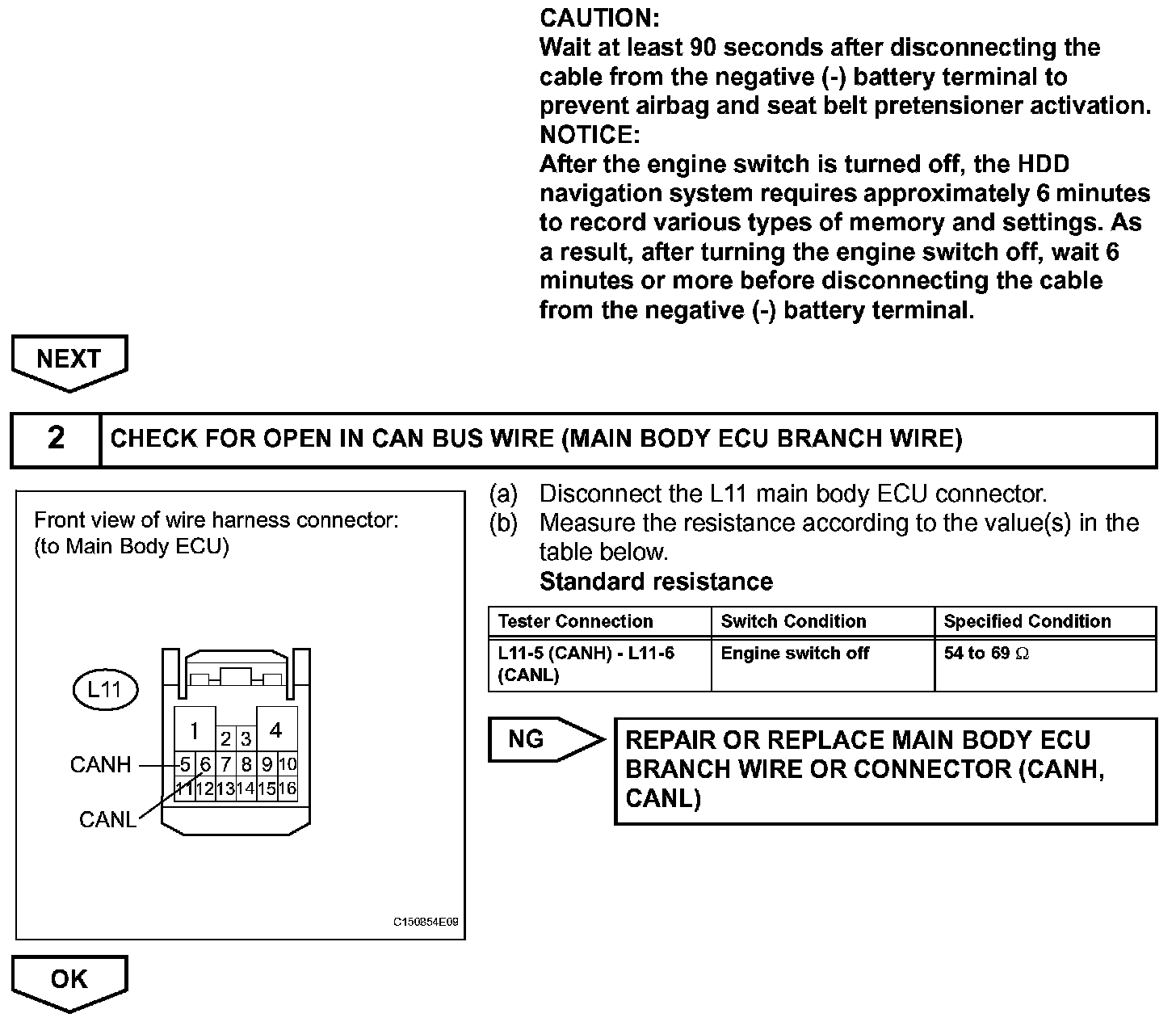

Step 1 (Continued)-2:

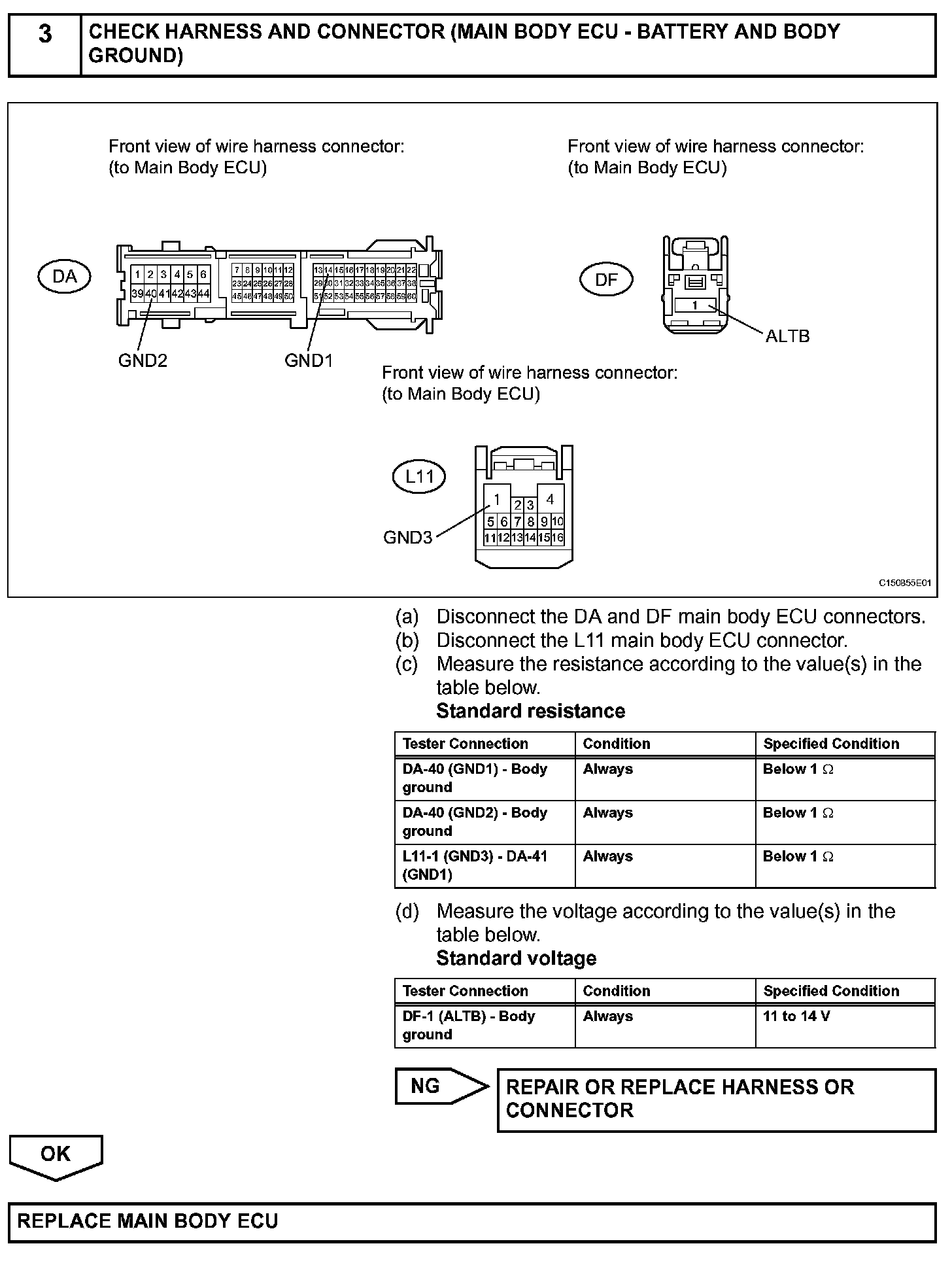

Step 3:

INSPECTION PROCEDURE

HINT: Operating the engine switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.
