Integration Control and Panel Assembly Communication Stop Mode

Integration Control and Panel Assembly Communication Stop Mode

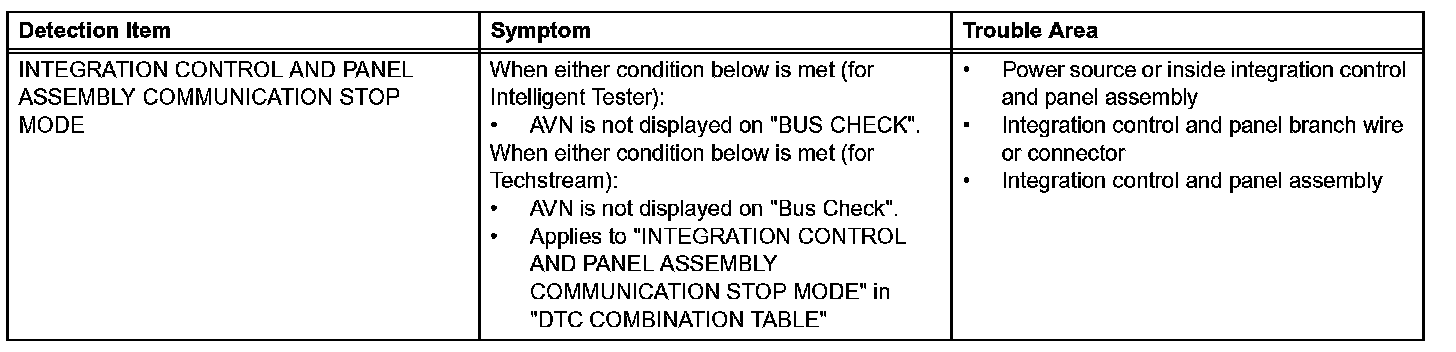

DESCRIPTION

HINT: For vehicles without multi-display only.

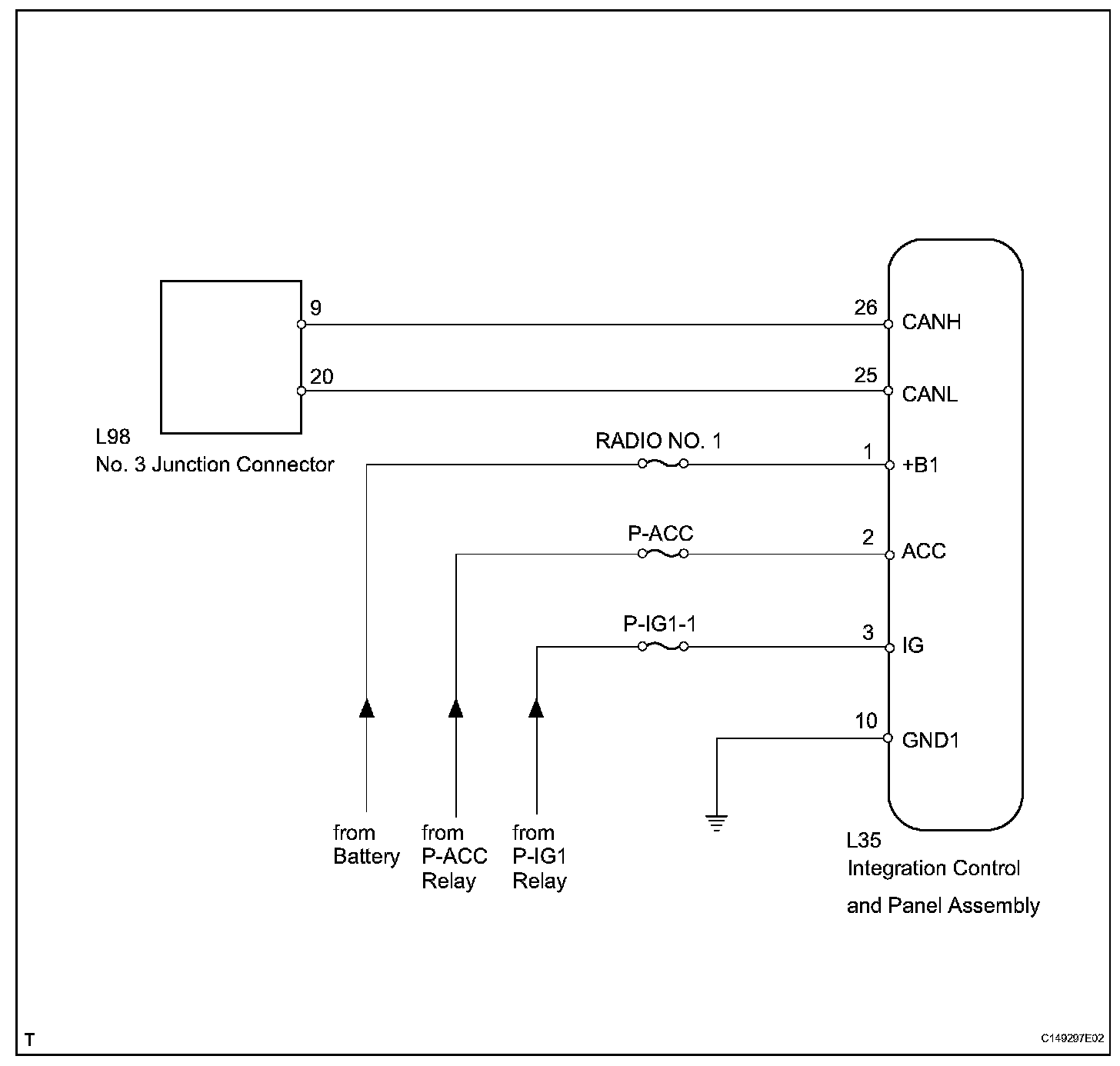

Wiring Diagram:

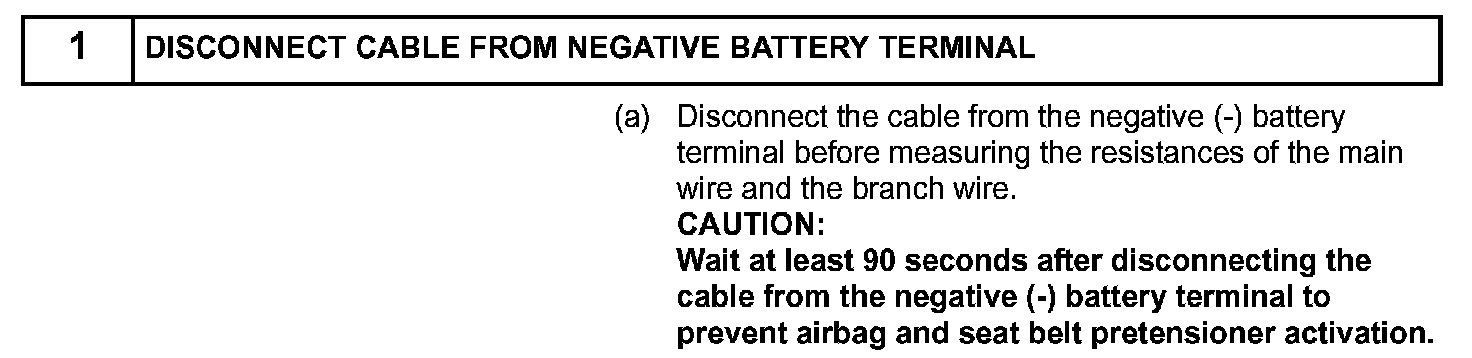

Step 1:

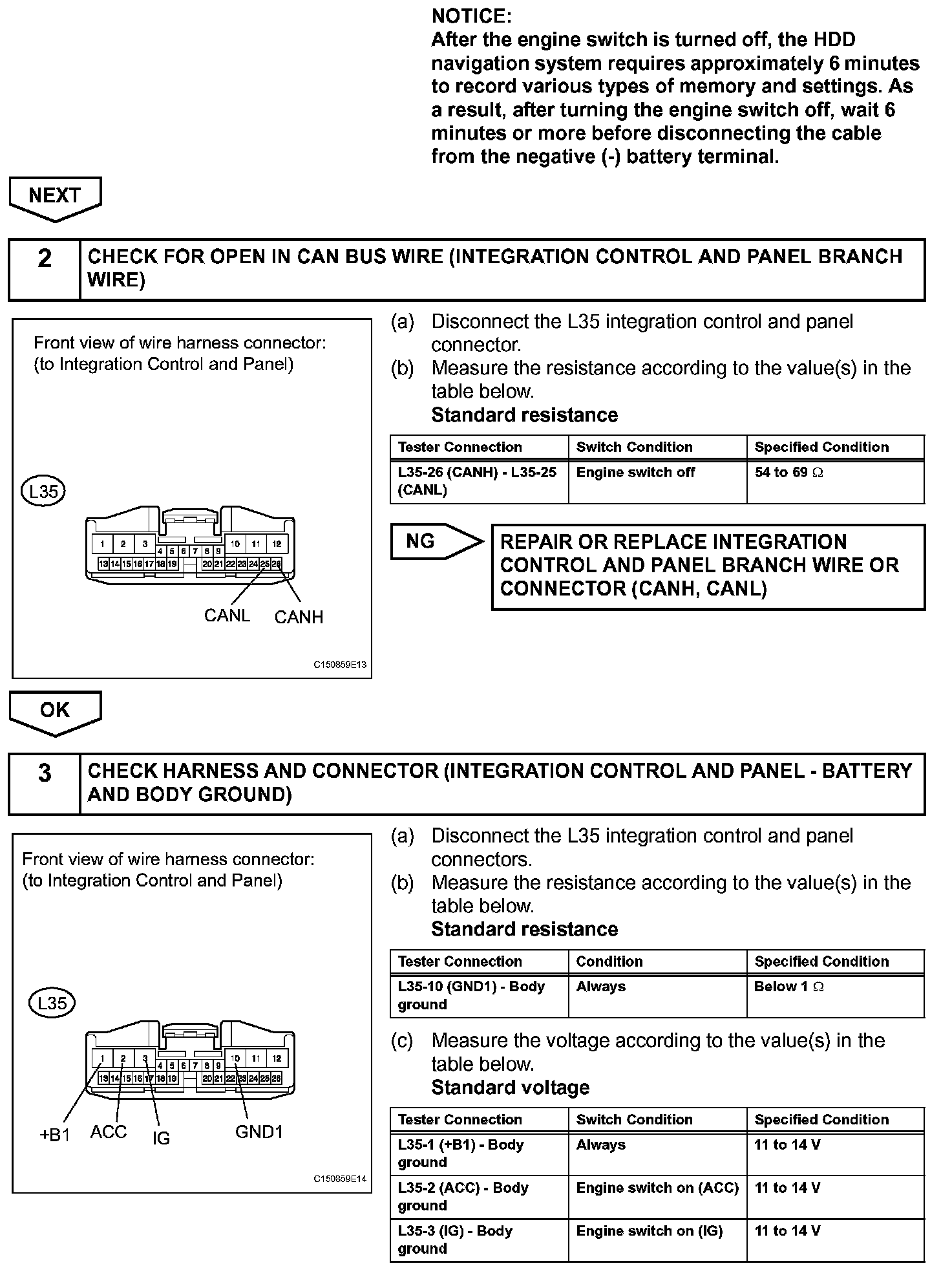

Step 1 (Continued)-3:

Step 3 (Continued):

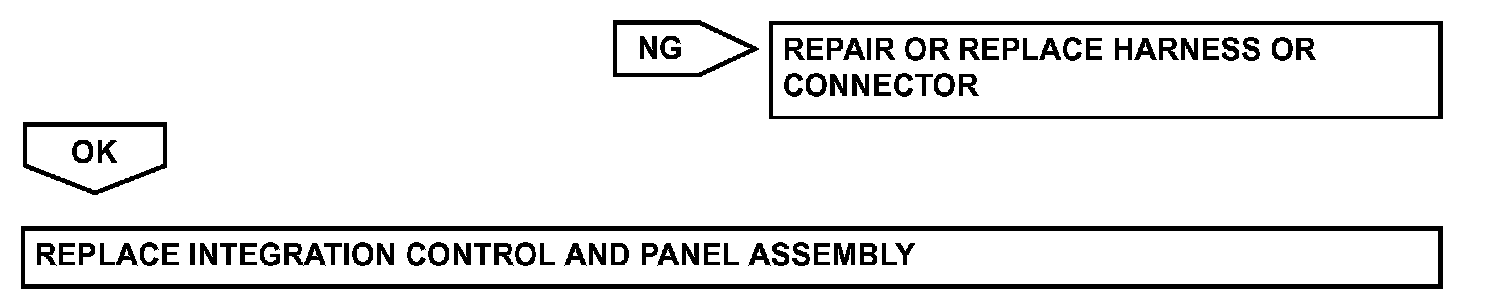

INSPECTION PROCEDURE

HINT: Operating the engine switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.
