Electric Power Control ECU Communication Stop Mode

Electric Power Control ECU Communication Stop Mode

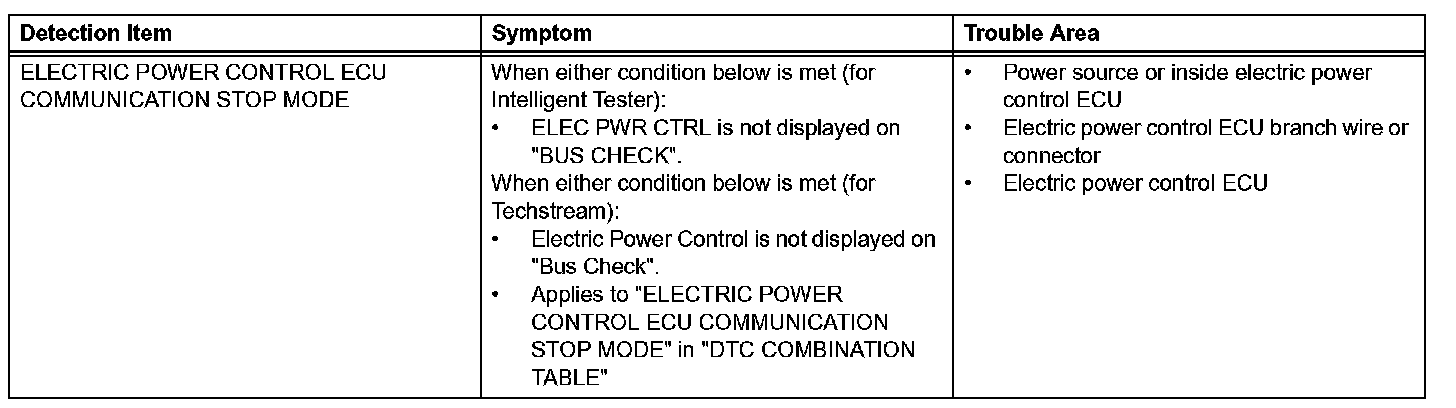

DESCRIPTION

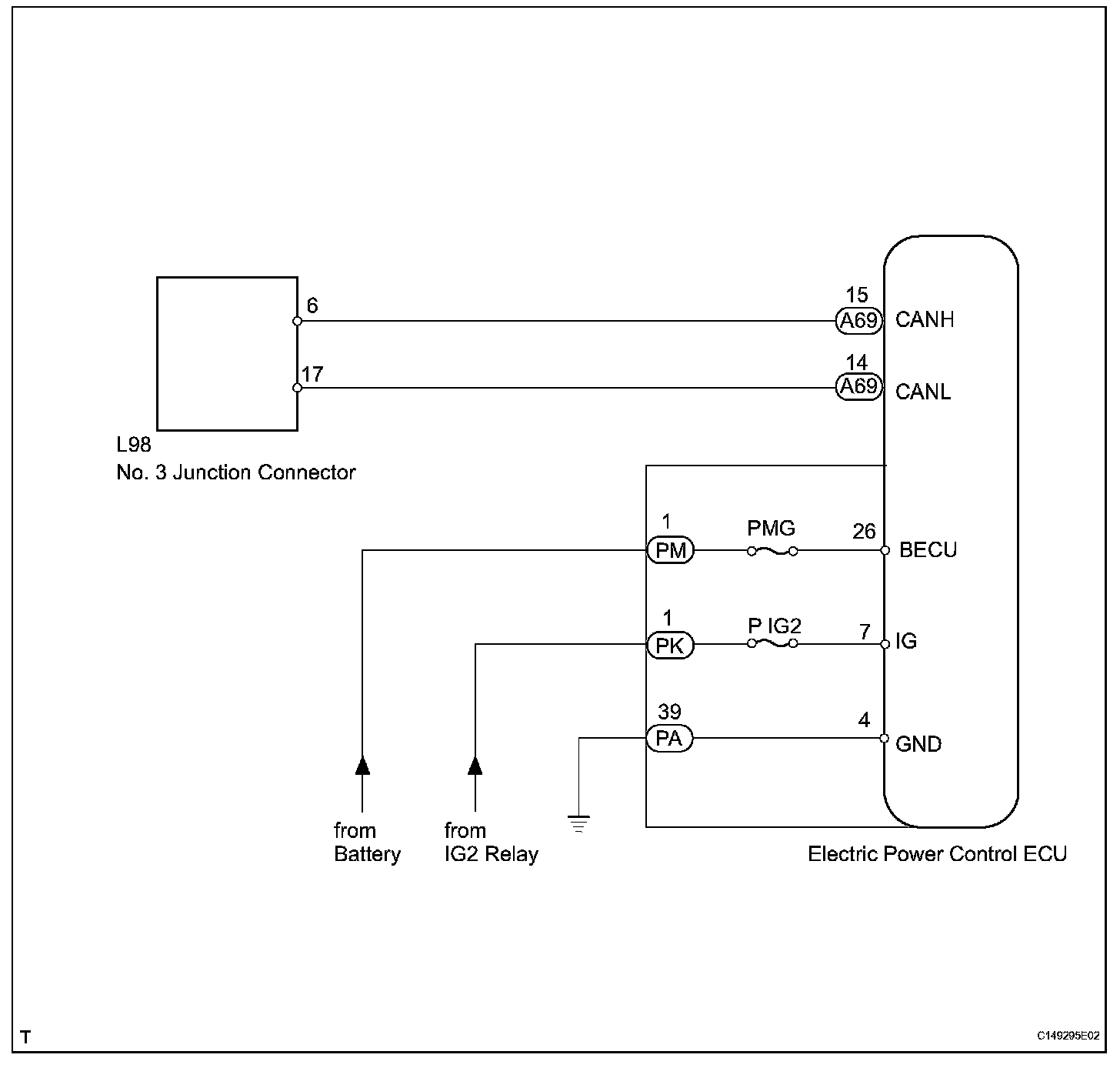

Wiring Diagram:

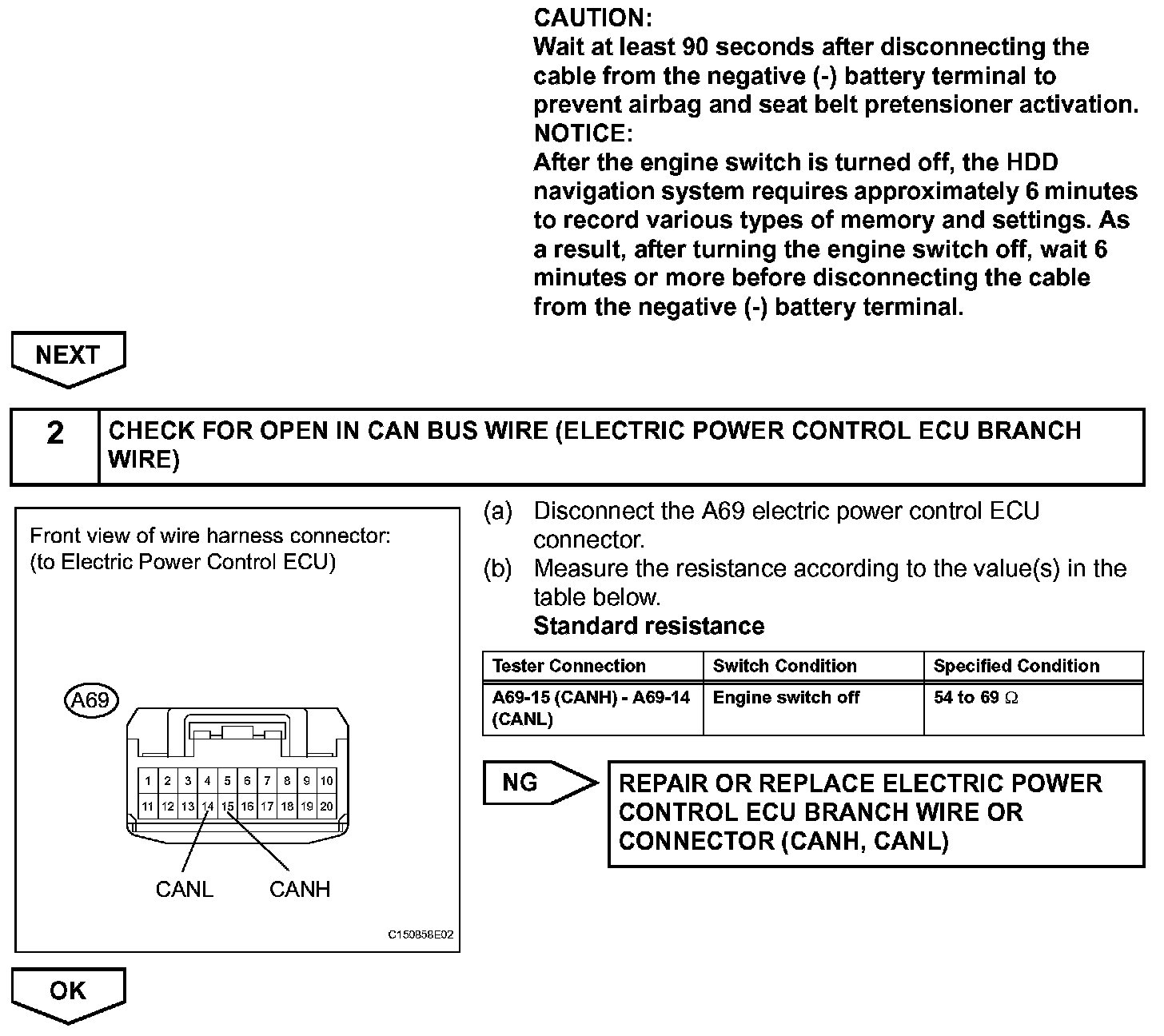

Step 1:

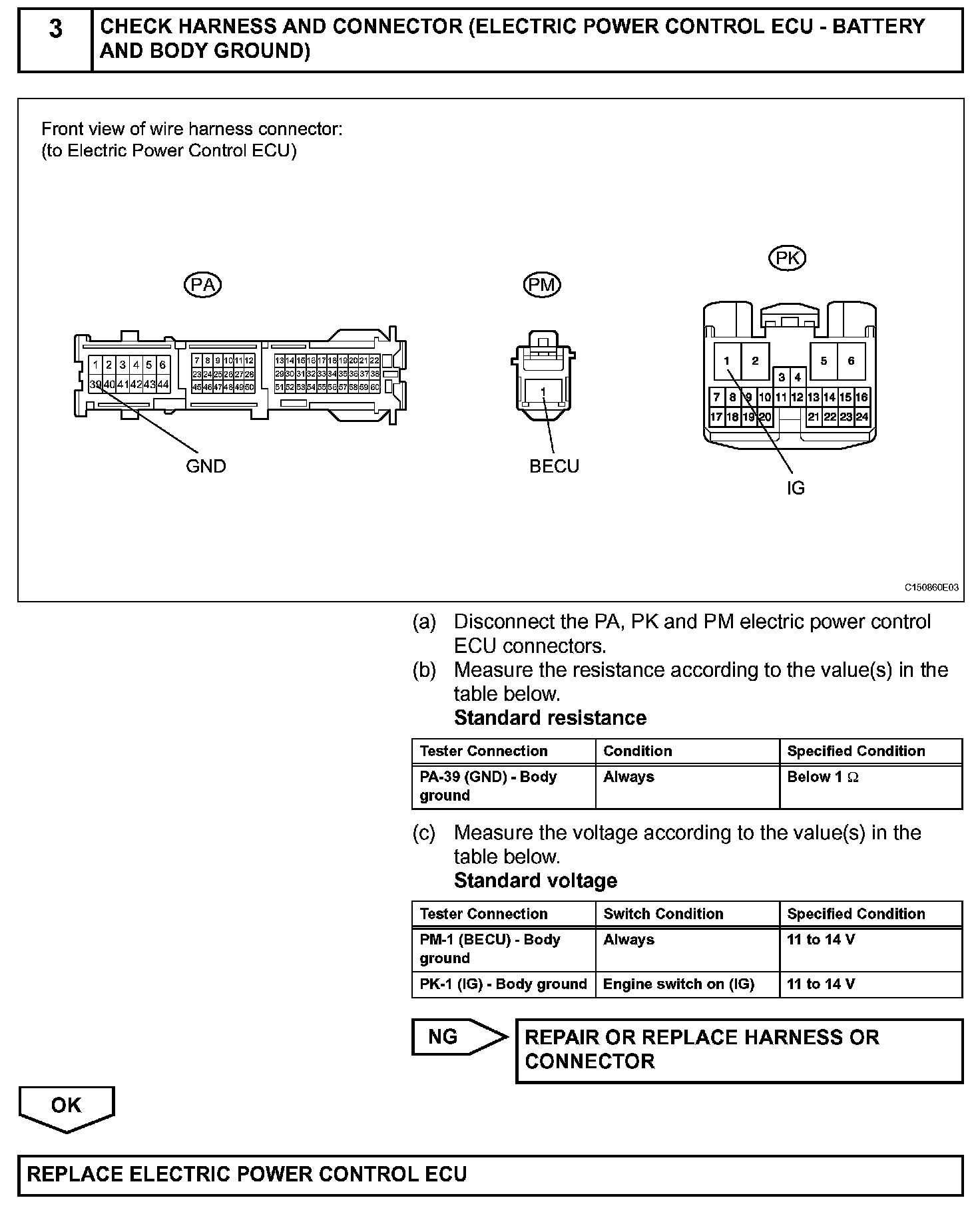

Step 1 (Continued)-2:




Step 3:




INSPECTION PROCEDURE

HINT: Operating the engine switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.
