Center Airbag Sensor Communication Stop Mode

Center Airbag Sensor Communication Stop Mode

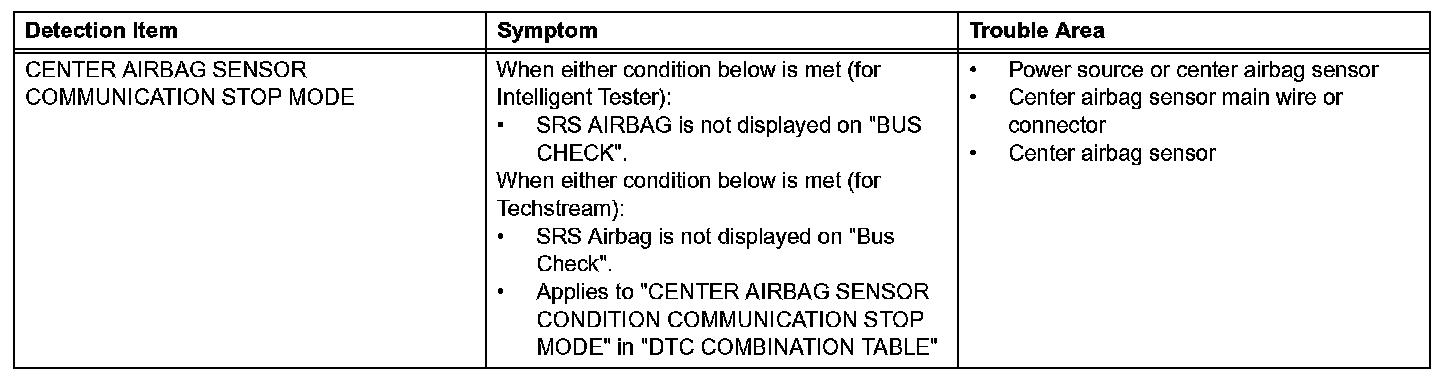

DESCRIPTION

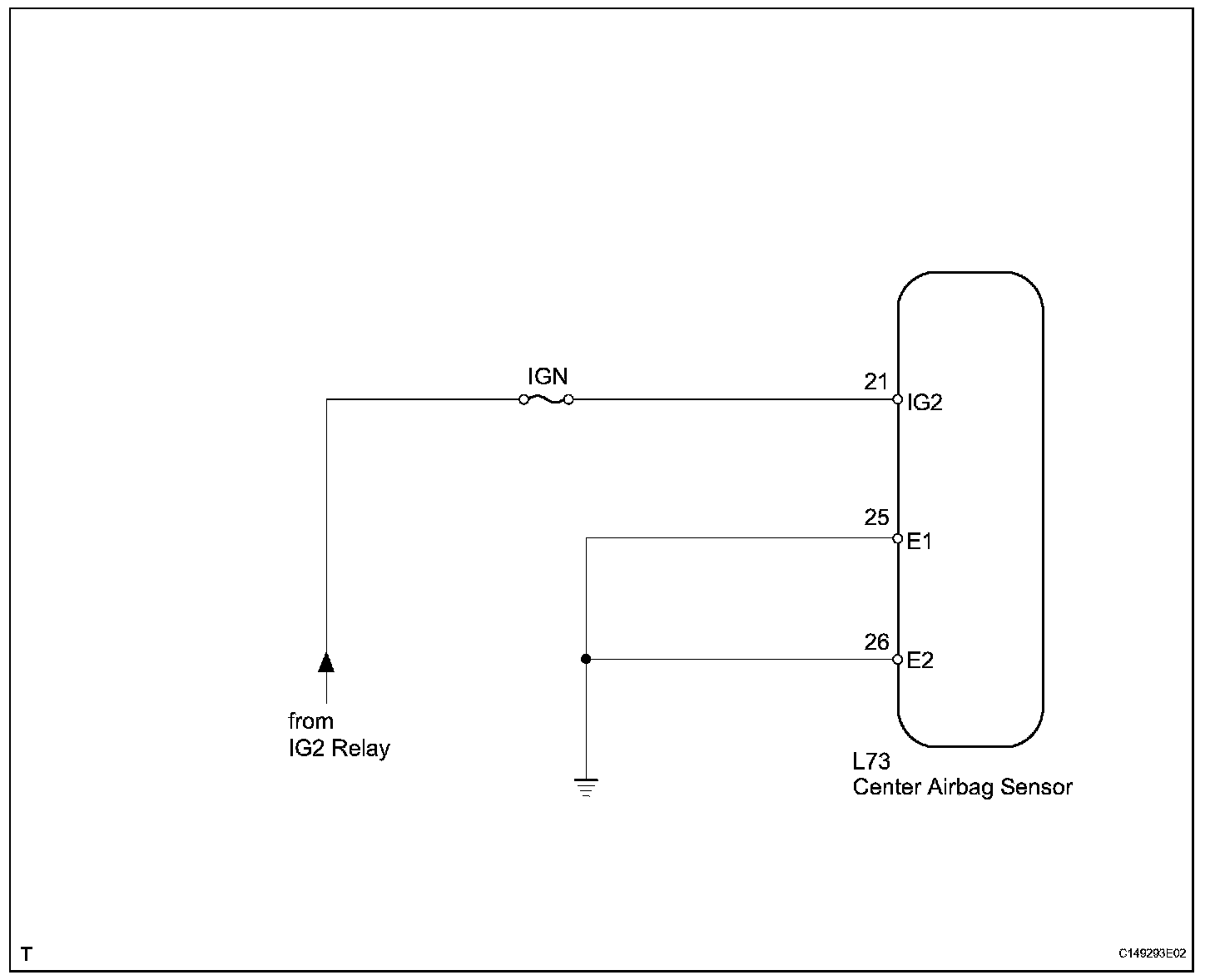

Wiring Diagram:

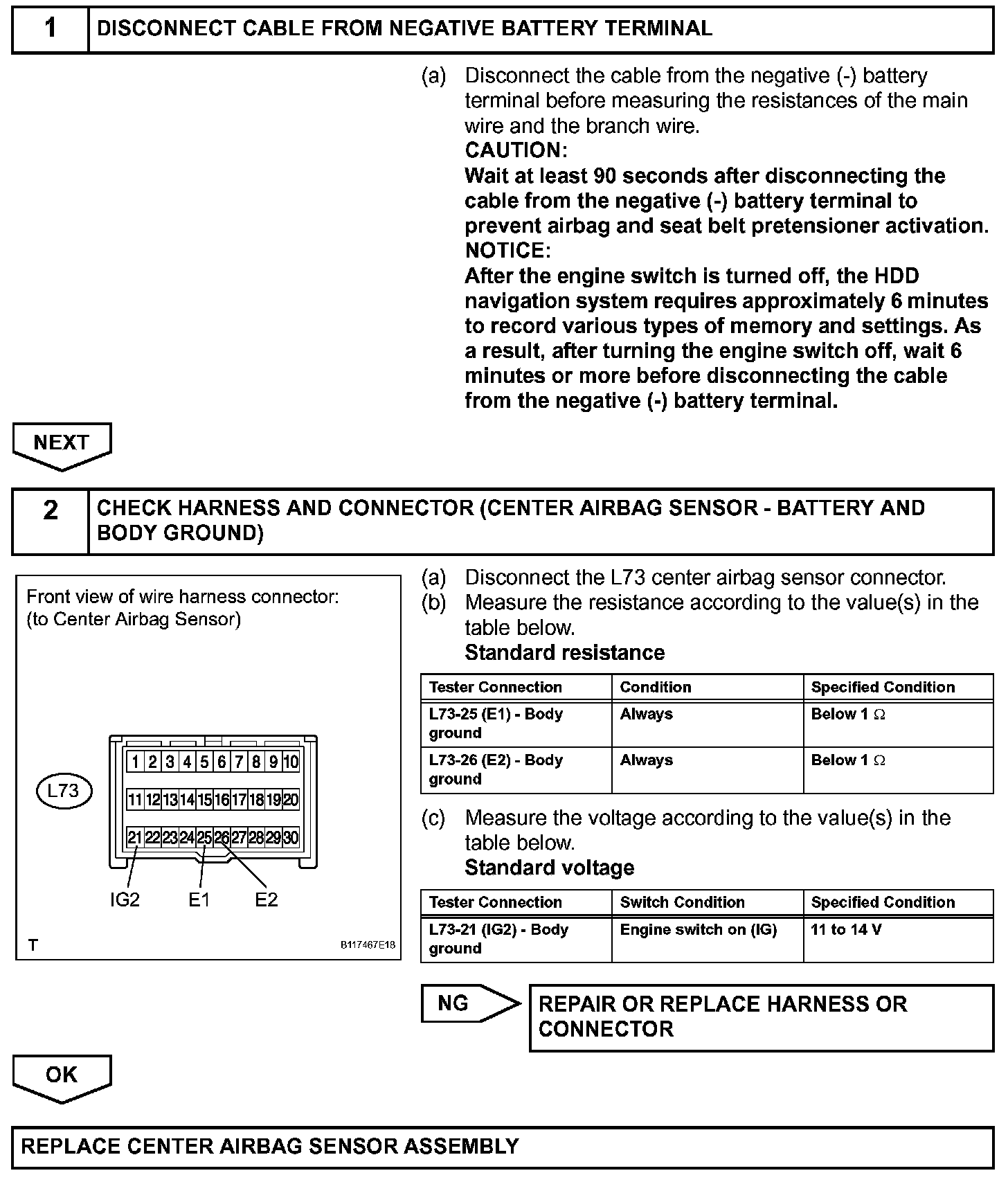

Step 1-2:




INSPECTION PROCEDURE

HINT: Operating the engine switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.
