Inverter Main Switch

Inverter Main Switch:

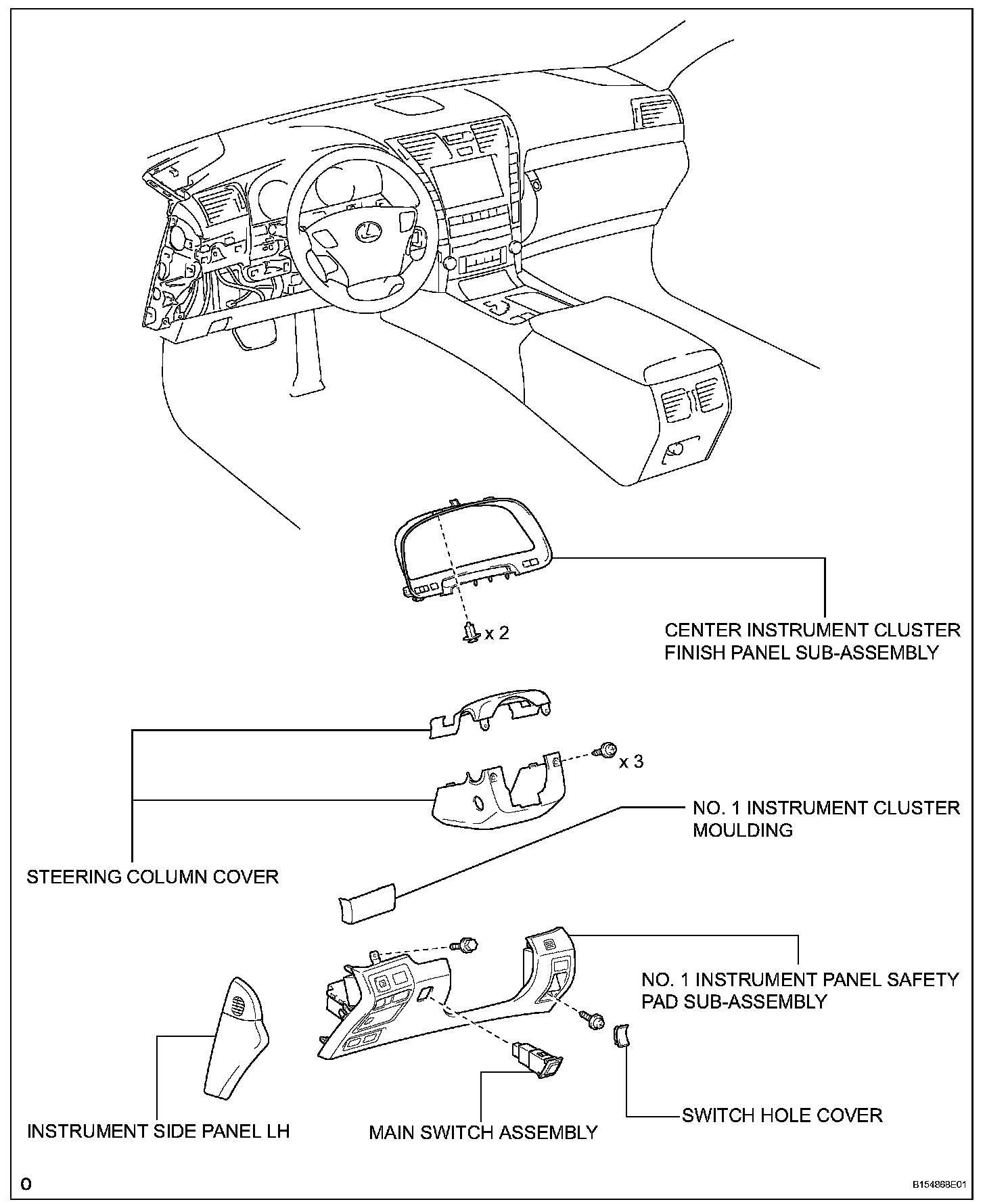

INVERTER MAIN SWITCH

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE STEERING COLUMN COVER
4. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
5. REMOVE INSTRUMENT SIDE PANEL LH
6. REMOVE NO.1 INSTRUMENT CLUSTER MOULDING
7. REMOVE NO.1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY




8. REMOVE MAIN SWITCH ASSEMBLY

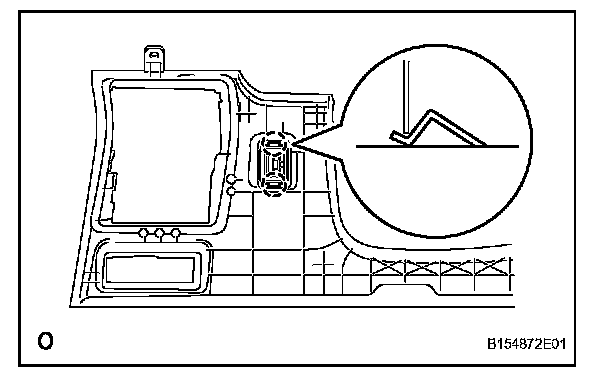

a. Detach the 2 claws and remove the main switch.

INSTALLATION




1. INSTALL MAIN SWITCH ASSEMBLY

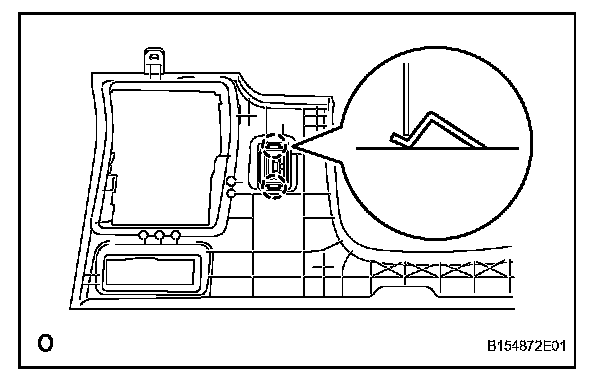

a. Attach the 2 claws to install the main switch.

2. INSTALL NO.1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
3. INSTALL NO.1 INSTRUMENT CLUSTER MOULDING
4. INSTALL INSTRUMENT SIDE PANEL LH
5. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
6. INSTALL STEERING COLUMN COVER
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. REMOVE COWL TOP VENTILATOR LOUVER RH

9. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
