Without Scan Tool
DTC CHECK / CLEAR1. CHECK DTC (USING INTELLIGENT TESTER OR TECHSTREAM)
(a) Turn the engine switch off.
(b) Connect the intelligent tester or Techstream to the DLC3.
(c) Turn the engine switch on (IG) and the tester on.
(d) Enter the following menus:
(1) Intelligent tester - Select: DIAGNOSIS / OBD/ MOBD / CHASSIS / TIRE PRESSURE / DTC INFO /
(2) Techstream - Select: Chassis / Tire Pressure Monitor / Trouble Codes /
(e) Read the DTCs following the prompts on the tester screen.
HINT: Refer to the tester operator's manual for further details.
2. CHECK DTC (USING SST CHECK WIRE)
(a) Turn the engine switch off.
(1) Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
SST 09843-18040
(2) Turn the engine switch on (IG).
(3) Read and record any DTCs from the tire pressure warning light on the combination meter.

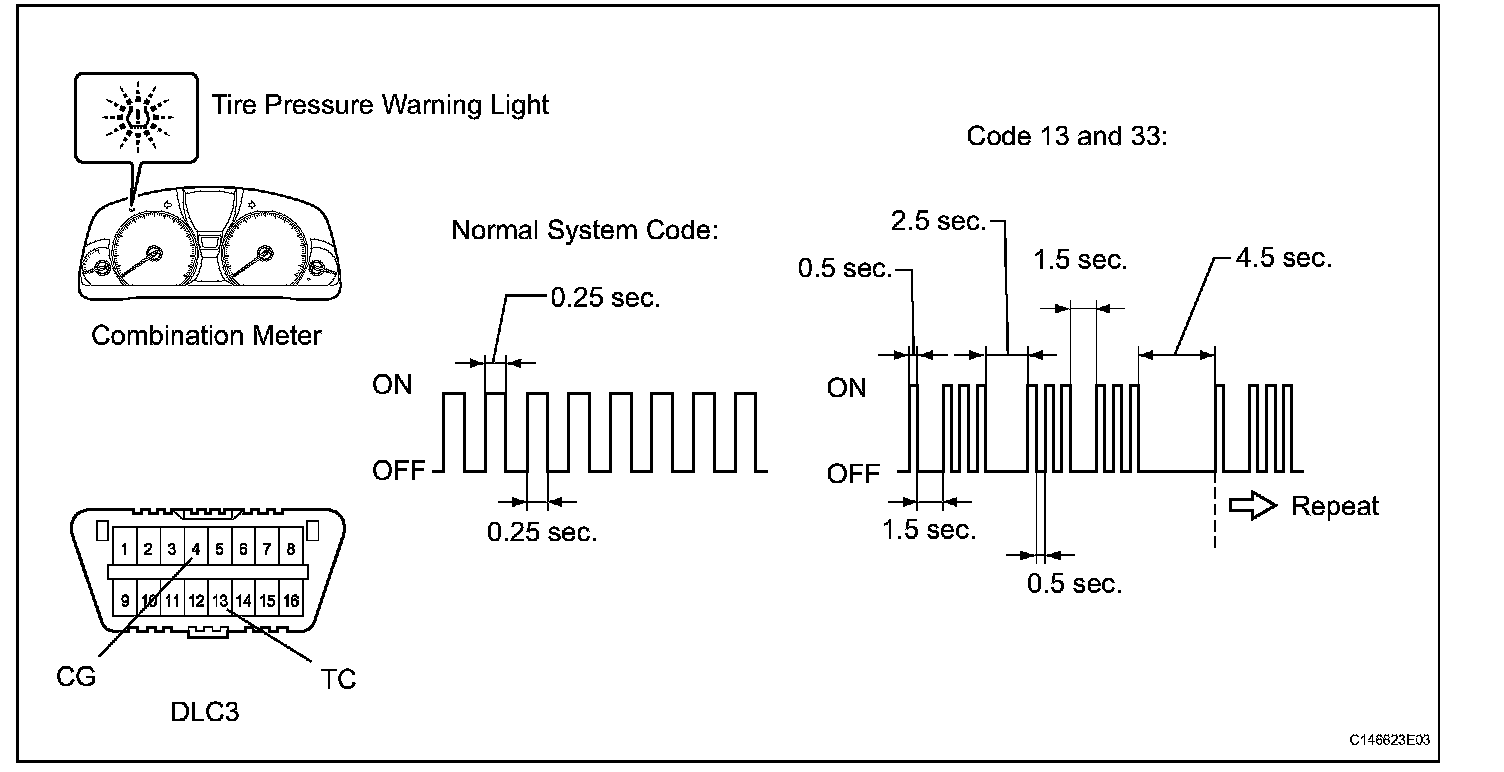

Refer to the illustration above for examples of a normal system code and codes 13 and 33.
HINT:

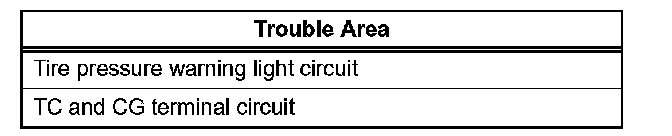

^ If the tire pressure warning light does not indicate any DTCs or the normal system code, inspect the tire pressure warning light circuit or TC and CG terminal circuit.
^ If 2 or more malfunctions are indicated at the same time, the lowest numbered DTC is displayed first.
(4) Refer to the Diagnostic Trouble Code Chart for DTC information. Diagnostic Trouble Code Descriptions
(5) After completing the check, turn the engine switch off and remove SST from the DLC3.
SST 09843-18040
3. CLEAR DTC
HINT: After repairing the malfunctions, clear the DTCs.
(a) Turn the engine switch off.
(b) Connect the intelligent tester or Techstream to the DLC3.
(c) Turn the engine switch on (IG) and the tester on.
(d) Enter the following menus:
(1) Intelligent tester - Select: DIAGNOSIS / OBD/ MOBD / CHASSIS / TIRE PRESSURE / DTC INFO /
(2) Techstream - Select: Chassis / Tire Pressure Monitor / Trouble Codes /
(e) Clear the DTCs following the prompts on the tester screen.
HINT: Refer to the tester operator's manual for further details.
