Vanity Light (For Front)
Vanity Light (For Front)
INSPECTION
1.

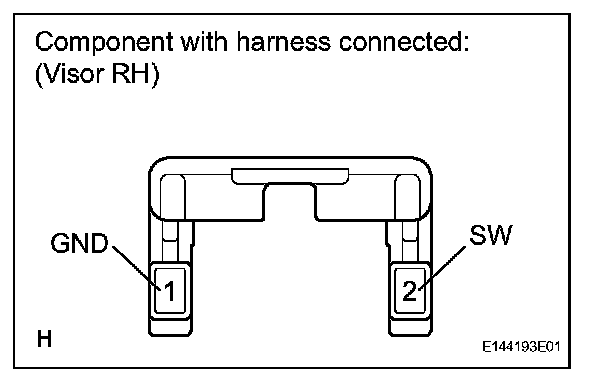

INSPECT VISOR ASSEMBLY RH
a.

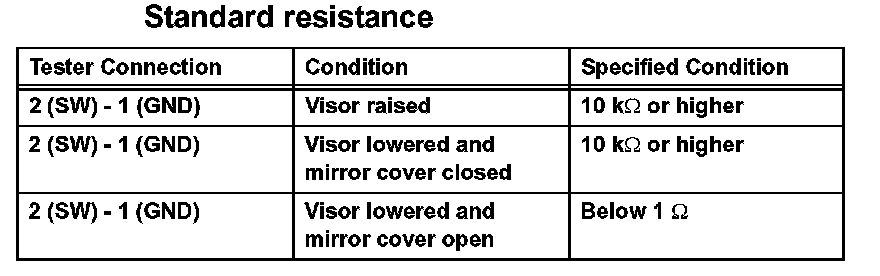

Measure the resistance according to the value(s) in the table.
